Discontinued
PB60G

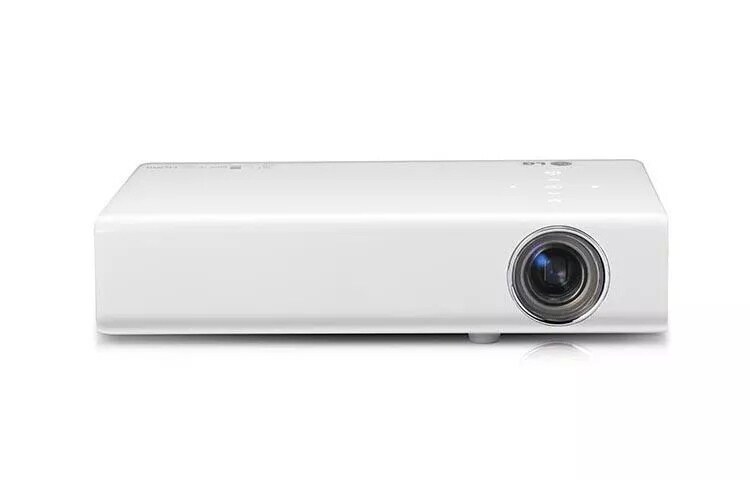

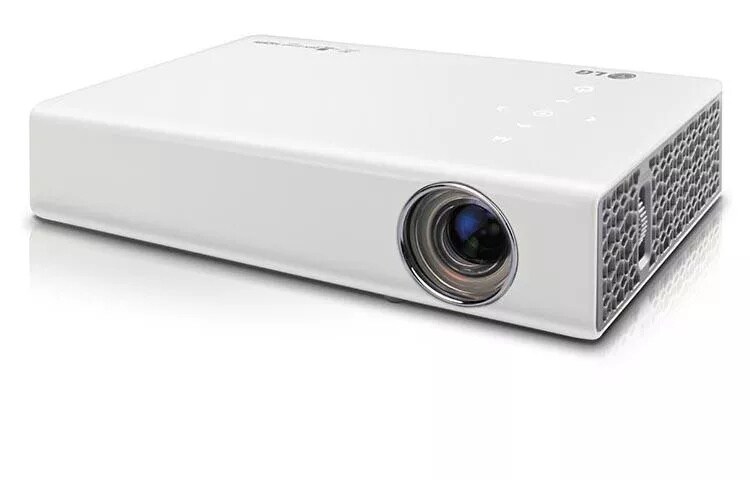

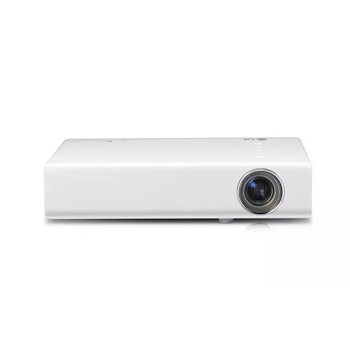

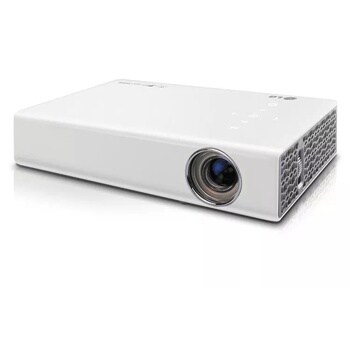

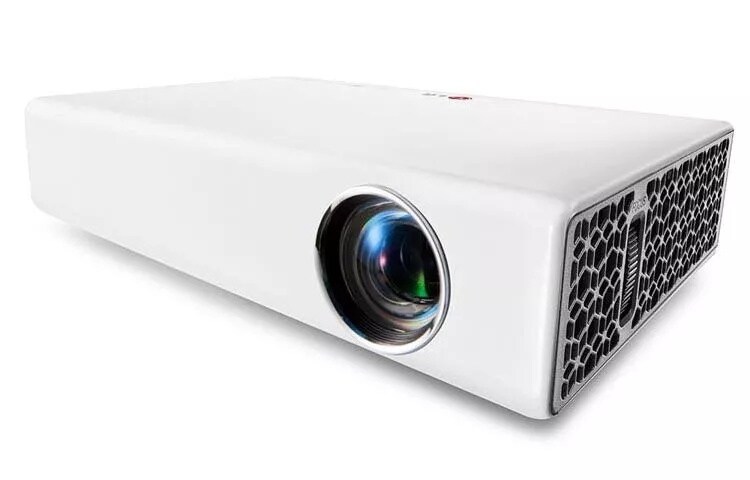

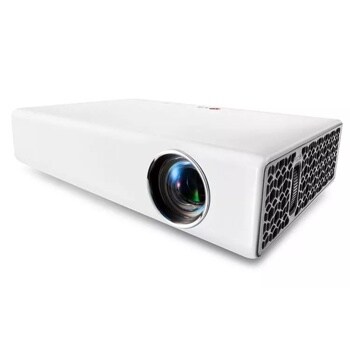

Micro-portable LED Projector
  • WXGA (1,280 x 800)
  • 500 ANSI Lumens
  • Up to 30,000 Hour LED Life
  • Multimedia thru USB (Movies, Photo, Music)
Micro-portable LED Projector

Projection

  • System
    DLP (0.45")
    Native Resolution
    WXGA (1280x800)
  • Brightness (ANSI-Lumens)
    500
    Contrast Ratio (FOFO)
    15,000:1
  • Noise (High Brightness)
    34 dB(A)
    Noise (Normal)
    31 dB(A)
  • Noice (Economic)
    26 dB(A)
    Uniformorty
    85%
  • Projection Lens (Focus)
    Manual
    Projection Lens (Zoom)
    Fixed
  • Projection Image (Screen Size)
    25" - 100"
    Projection Image (Standard)
    40"@1.3m
  • Projection Image (Throw Ratio)
    1.5
    Projection Offset
    100%
  • Lamp (Type)
    RGB LED
    Lamp (Life Economic)
    30,000 Hrs
  • Lamp (Life High Brightness)
    30,000 Hrs

General Specification

  • Menu Language
    Korean/English/French/Spanish/German/Italian/Swedish/Portguses/Chinese Simplified/Polish/Turkish/Russian/Arabic/Brazilian Portuguese
    Aspect Ratio Correction
    4:3/Just scan/Set by Pro/16:9/Cinema Zoom/Full/Zoom
  • Sound
    1W Stereo
    Dimension (WxDxH)
    6.22" x 4.06" x 1.30"
  • Shipping Dimensions (WxDxH)
    10.4" x 12.6" x 4.7"
    Weight
    0.99 lb
  • Shipping Weight
    4.4 lbs
    Power Consumption
    60w
  • Stand by Power
    0.5 W
    Power Supply
    Adapter
  • Operation Temp
    0º ~ 104º
    Input Signal Compatibility - Digital (HDMI)
    1080p/1080i/720p/576p/480p
  • Input Signal Compatibility - RGB
    Up to WSXGA+(1680x1050@60Hz)
    Input Signal Compatibility - Component Video
    1080p/1080i/720p/ 480p/480i
  • Input Signal Compatibility - Composite Video
    480p/480i

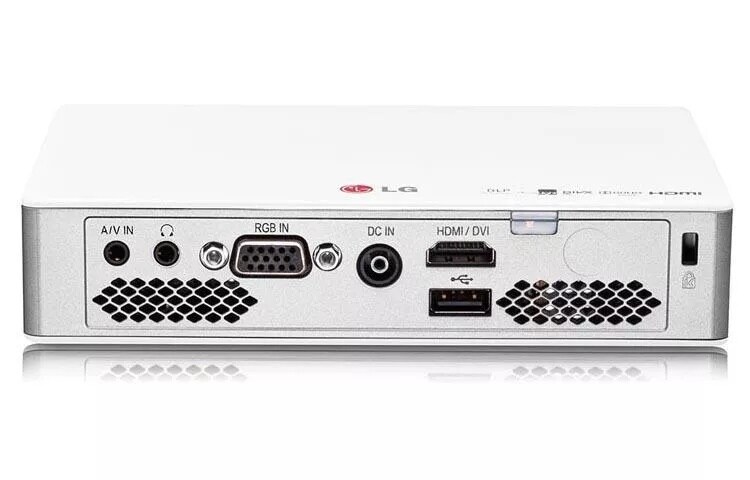

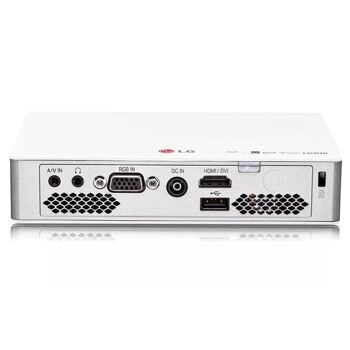

Input / Output Terminals

  • RGB In
    1
    RGB(PC) Audio In
    1
  • Composite (AV) In
    Phone to AV In
    Component (Y,Pb,Pr)
    RGB to Component In
  • Audio Out
    1 (3.5")
    HDMI®
    1
  • USB (SVC, Interactive)
    1 (Type A)

Design

  • Cabinet Color
    White
    Local Key
    Yes
  • Kensington Lock
    Yes
    Leg Stand
    Yes

Special Features

  • 3D
    DLP 3D Ready (DPL Link), PC XGA 120Hz
    Digital Keystone Correction
    Vertical
  • Auto Source Detection
    Yes
    Quick Power on/off
    Yes (Within 10 Seconds)
  • Auto Sleep
    Yes
    Blank
    Yes (Blue, Green, Logo)
  • Image Flip
    Horizontal / Vertical
    Color Temperature
    Yes
  • Brilliant Color™
    Yes
    Black Level Control
    Yes
  • Expert Control
    Yes
    Gamma Correction
    Yes
  • Noise Reduction
    Yes
    Closed Caption
    Yes
  • Sleep Timer
    Yes

Accessory

  • 3D Glasses
    DLP Link Glasses (Not Included)
    Carrying Pouch
    Yes
  • Manual
    CD
    Remote control
    Yes
  • Quick Setup Guide
    Yes
    Cable
    D-sub 15 & Phone to AV (Composite)
  • Ceiling Mount
    Ready

Added Features

  • File viewer: MS Office, PDF, TXT
    Yes
    USB Host: MP3, HD DivX, Photo Paper
    Yes

Warranty

  • Limited Warranty
    2 Years Parts and Labor
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Size of power supply unit

Hi could you provide me the dimensions, weight and cord length for the power supply unit. Finally is the final output cable from the psu to the projector USB or proprietary (i know the input to the projector is proprietary, i'm asking about the output from the psu) and if the former what is these output voltage/current. I travel a lot so saving space and/or entirely avoiding duplicate power bricks for my various gear is important. Thanks
Asked by: Anonymous
Our offices, in the United States, do not have specific product information units released in the United Kingdom. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/uk/support/contact/support-here-to-help.jsp.
Answered by: NeilE
Date published: 2018-07-24

inquiry 3D movie and USB

dear sir, good evening, i just want to inquire about LG projector PB60G, because it say 3D ready, it means it can play 3D? without a player or PC? and a regular movie save in USB stick can play on the projector or 3D movie? thanks i'll wait for your reply jeffrey
Asked by: jbjeffreymacalincag
Our offices, in the United States, do not have product information for Saudi Arabia. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/sa/support. Assistance for household appliances and entertainment devices may be obtained at 8002442929; for air conditioning, 8002445454; for mobile devices, 920007427.
Answered by: NeilE
Date published: 2017-05-14

My projector now  comes in standby mode after few seconds,  what can be the reason ?

Asked by: vasco
I sorted out mine, there is 3 fans inside if 1 of them stop than the overheat protection switch off the projector. Just open it and clean it
Answered by: Vasco
Date published: 2019-03-29

How to clean the fan of lg ph300 mini beam

Asked by: upul
Our offices, in the United States, do not have specific product information units released in South Korea. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lgservice.co.kr/Index.laf.
Answered by: NeilE
Date published: 2017-05-14

When i connect usb to my PB60G LG projector it shows that no storage unit is available. I change many usb drives but the result is same. Previously it was working

Asked by: Ms hameed
Our offices, in the United States, do not have product information for the UAE. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/ae/support/contact-customer-support.
Answered by: NeilE
Date published: 2017-05-14

How to get the 3d to work

Asked by: Paul Bester
Our offices, in the United States, do not have product information for South Africa. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/za/support/contact/support-here-to-help.jsp.
Answered by: NeilE
Date published: 2018-09-16

Is there any difference in options between the LG PB63U and LG PB60G?

Are these the same other than the size or is there more or less options between the two? What are the differences?
Asked by: RVOpalinski

1/ Where can I demo the PB 60G near zip 85255 - I see a place in Tempe but this is a long way away.

2/ When will the LG PW 700 be available in the US?
Asked by: DCAL
