22EA53T-P

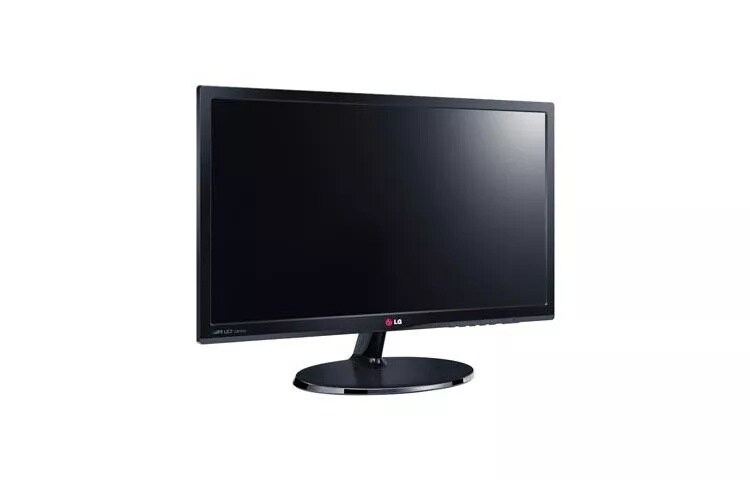

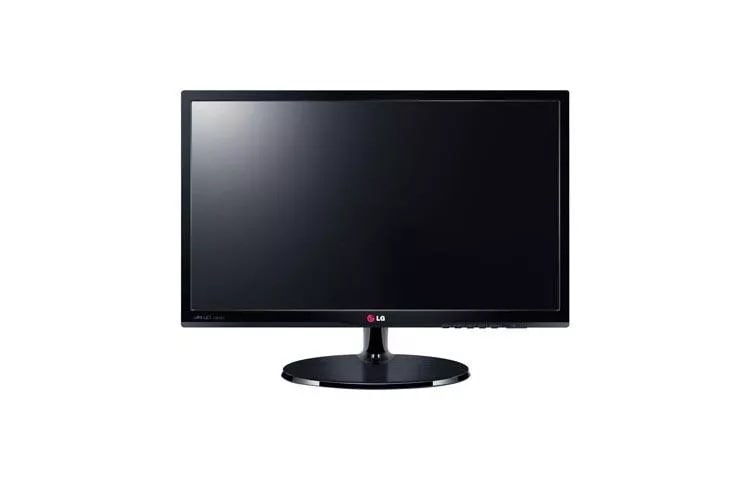

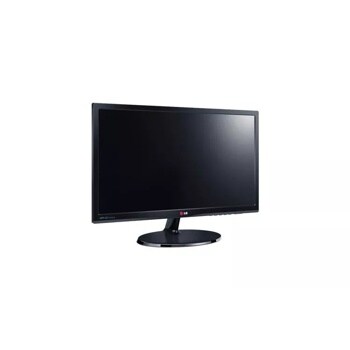

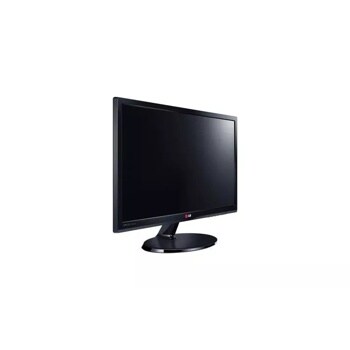

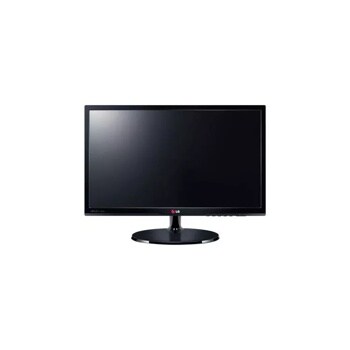

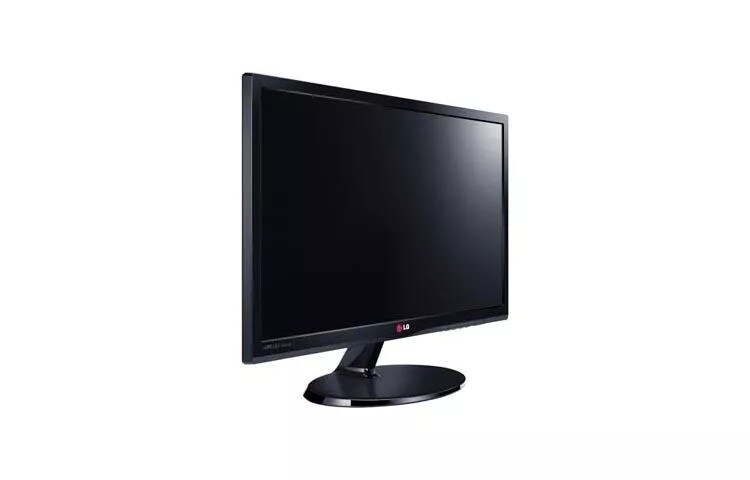

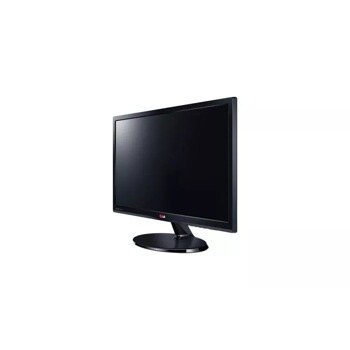

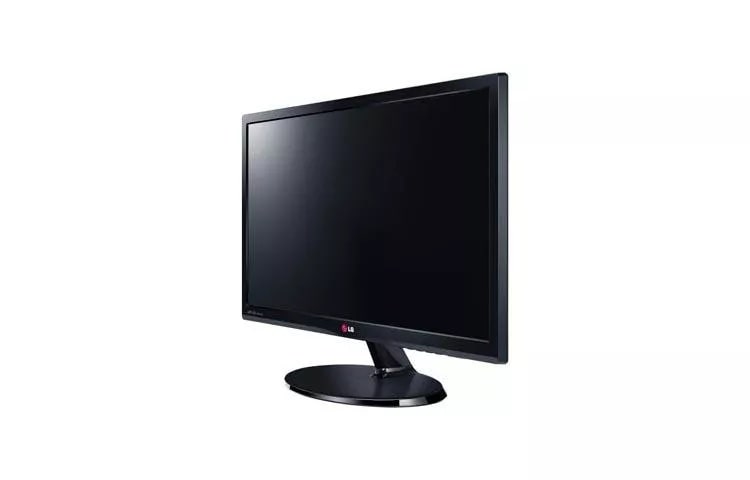

22'' Class Slim IPS LED Monitor (21.5'' diagonal)
  • LED Backlighting
  • IPS
  • Full HD 1080p Resolution
  • ENERGY STAR® Qualified
22" Class Slim IPS LED Monitor (21.5" diagonal)

PANEL SPECIFICATIONS

  • Screen Size Class (diagonal)
    22" Class (21.5" diagonal)
    Panel Type
    IPS - LED
  • Aspect Ratio
    16:9
    Resolution
    1920 x 1080
  • Brightness (cd/m2)
    250
    Contrast Ratio (DFC)
    5,000,000:1
  • Response Time (GTG)
    5ms
    Viewing Angle (CR>10)
    178º/178º
  • Display Colors
    16.7 M Colors
    Panel Surface
    Hard Coating, 3H

INPUTS/OUTPUTS

  • D-Sub
    1
    DVI-D
    Yes

POWER

  • Type
    Adapter
    Input
    100~240V
  • Consumption (On)
    25W (Typical)
    Consumption (DC Off)
    <0.3W (Max.)

SPECIAL FEATURES

  • PC
    Yes
    Video
    Yes
  • DDC/CI
    Yes
    Plug & Play
    Yes
  • ez-Zooming
    Yes
    Dual Smart Solution
    Yes
  • Dual Package
    Yes
    Picture Mode
    Yes
  • Intelligent Auto (Auto Resolution)
    Yes

STAND

  • Detachable Base
    Yes
    Tilt (angle)
    -5º (front) ~ 20º (rear)

DIMENSIONS/WEIGHT

  • Monitor with Stand (WxHxD)
    20.0" x 15.2" x 7.1"
    Monitor without Stand (WxHxD)
    20.0" x 12.3" x 2.2"
  • Shipping Dimensions (WxHxD)
    22.7" x 15.0" x 4.6"
    Wall Mount Pattern
    75mm x 75mm
  • Monitor with Stand Weight
    6.2 lbs
    Monitor without Stand Weight
    5.7 lbs
  • Shipping Weight
    8.4 lbs

STANDARD

  • TCO6.x
    Yes
    UL(cUL)
    Yes
  • TUV-GS
    TUV-Type
    FCC-B, CE
    Yes
  • EPA
    Yes
    Microsoft Windows 8
    Yes

INCLUDED ACCESSORIES

  • Power Cable
    1
    D-Sub Cable
    1

WARRANTY / UPC

  • Limited Warranty
    1 Year Parts & Labor
    UPC
    719192191372
What people are saying
Rated 5 out of 5 by from Typical LG! I've had an LG 42" LCD HD TV for a few years now and have been completely satisfied with it. When I needed a full rebuild on my home built PC (including a dead monitor) it was a no-brainer to opt for an LG monitor. The colors on this display are incredible. I can't recommend it highly enough!
Date published: 2014-03-29
Rated 5 out of 5 by from Best picture for the price that I own. My old monitor was tough on my eyes. This is a low energy output, sharp picture, wide screen gem of a monitor. I wished I had bought two when it was on sale for my other computer. I will buy another LG monitor in the future. The stand could have been designed to be more sturdy but does the job.
Date published: 2014-03-28
Rated 5 out of 5 by from product is great This monitor has a sharp picture and is perfect size for my office desktop.
Date published: 2014-02-26
  • y_2019, m_7, d_21, h_24
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_11
  • loc_en_US, sid_MD05034980, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

I have recently bought a used 22ea53 monitor which was working OK for a couple of hours. It has noe gone dead. It was supplied with a 19 volt power lead showing &nbsp;3.4 amp. The monitor shows 19 volt 1.3 amp, has caused a problem?

Asked by: Robjr
Our offices, in the United States, do not have specific product information units released in the United Kingdom. In order to obtain such information, it is recommended to check our subsidiary&rsquo;s website, at http://www.lg.com/uk/support/contact/support-here-to-help.jsp.
Answered by: ShenaS
Date published: 2016-02-18

I have a new MacBook Pro laptop and I purchased the LG 22EA53 display as a dual display setup. Putting the tools on the laptop and my photos on the LG

Your Dual Smart Solution program will not work on my laptop. BestBuy assured me they were compatible. What's my solution? Phil
Asked by: Gibbonowski
We appreciate your interest in this monitor. We would be more than happy to assist in this matter. Please contact our Customer Interactive Center at 800-243-0000 to walk through the setup procedure, as some device setups vary from others. We would need to work at this, one-on-one.
Answered by: NeilE
Date published: 2013-11-27

How do I remove the base from the monitor? I want to mount it to the wall but don't see how to remove the base? Thank you.

There is a small hole (notch) with a symbol of a lock on the back of the monitor but there doesn't seem to be anything in there.
Asked by: booboo
Place the monitor set with the screen side down on a flat and cushioned surface. Pull out the Stand Body and Stand Base from the monitor set. Turn the screw, on the bottom of the base, to the left with a coin. This should release the lock on the base and body. This information can be viewed on page 5 of your owner&rsquo;s manual.
Answered by: NeilE
Date published: 2015-01-20

Linux Drivers for 22EA53 Monitors

I need a Linux driver, specifically Red Hat Linux, for the LG 22EA53 Monitors.
Asked by: darren13
We appreciate your interest in this monitor. The only specialized driver currently available for this unit allows compatibility with Window 8. For any other Operating System, the monitor will have to utilize Plug and Play generic drivers provided by the Operating System. We do not have any drivers available for Linux.
Answered by: NeilE
Date published: 2013-10-25

Hi I just bought the 22EA53T-P monitor your website shows it has a hdmi port but the unit I got, does not have that port?

22EA53T-P has no hdmi port was wondering if your website or my model the wrong one?
Asked by: MikeyM
We regret the inconvenience you have experienced with this monitor. According to the website information, viewed at http://www.lg.com/us/monitors/lg-22EA53T-P-led-monitor, this monitor has 2 INPUT connections: D-SUB/VGA and a DVI-D. The information in your owner&rsquo;s manual, on page 4, confirms this information.
Answered by: NeilE
Date published: 2017-01-27

Does this monitor have audio support?

The monitor itself doesn't have an audio port to connect peripheral speakers, it only has the ac/adapter port, VGA and DVI ports. If that is purposeful then do DVI ports have integrated audio support like hdmi ports?
Asked by: Tonyage
Thank you for inquiring about the 22EA53. Please contact our Customer Interactive Center at 1-800-243-0000 for further assistance.
Answered by: GlennM
Date published: 2017-12-20

What is in the box?

What is provided in the box (in addition to the monitor)? A power cord? A video cable? (What kind - VGA or DVI?) I looked for this information on the LG website under &quot;Technical Specifications&quot; but there is nothing there (using 2 different browsers). More detail is needed. The box itself does not provide any additional information.
Asked by: Anonymous
There is, besides the Monitor, a power cord, a VGA video cable, and a base stand.
Answered by: NatSov01
Date published: 2013-10-22

Where can I get a monitor stand that allows me to rotate monitor?

I want to purchase 2 monitors but they must be able to rotate from landscape to portrait.
Asked by: TheDad
