Black Stainless Steel

KEY FEATURES

  • 22 cu. ft. Capacity
  • InstaView™ Door-in-Door®
  • PrintProof™ Finish
  • ThinQ® Technology
  • Counter-Depth
  • Slim SpacePlus® Ice System

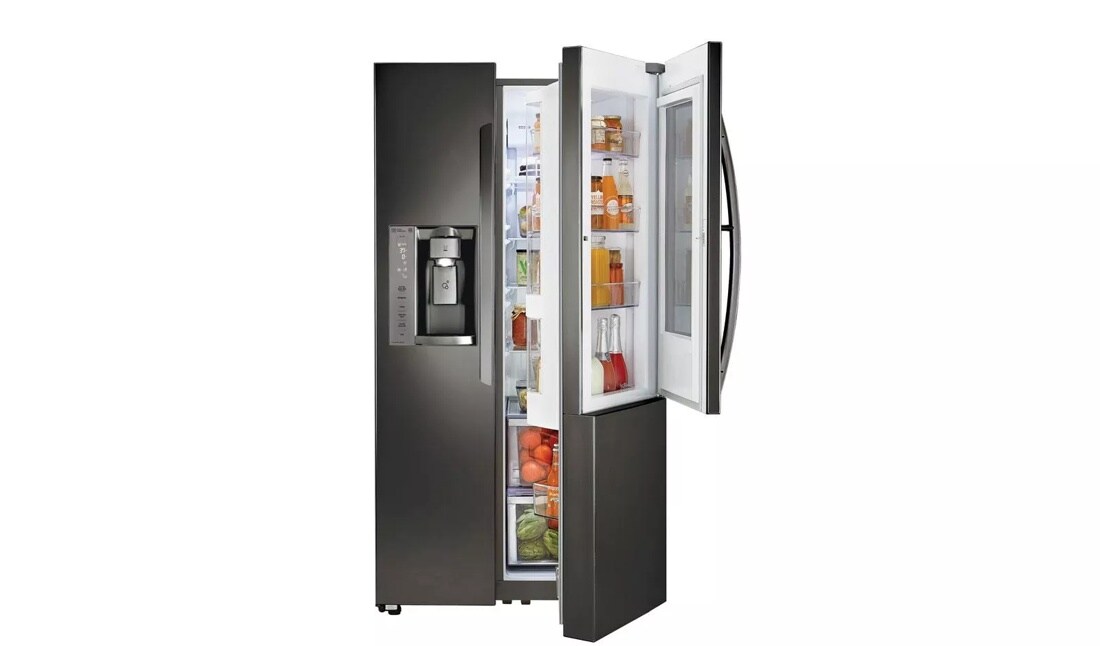

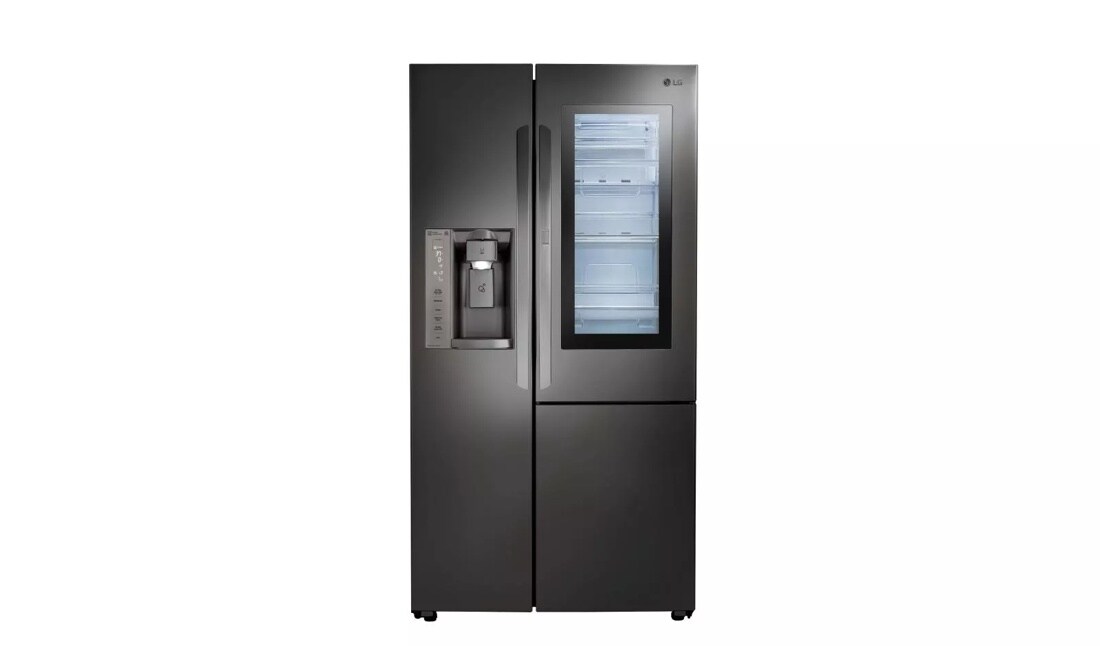

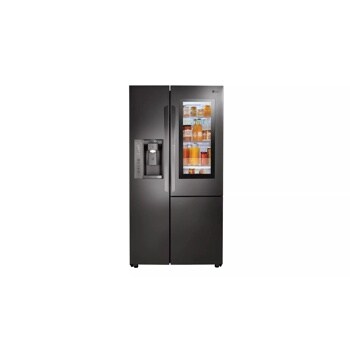

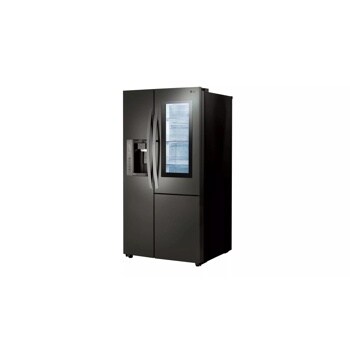

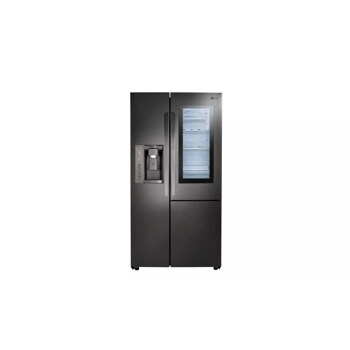

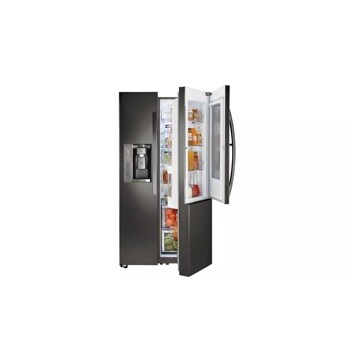

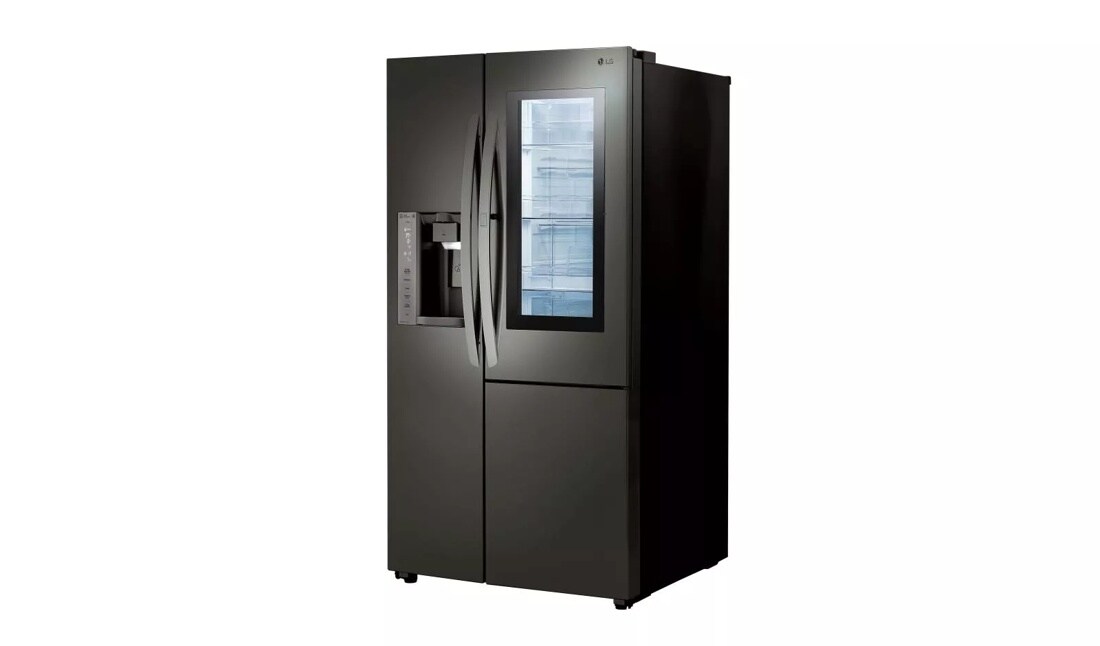

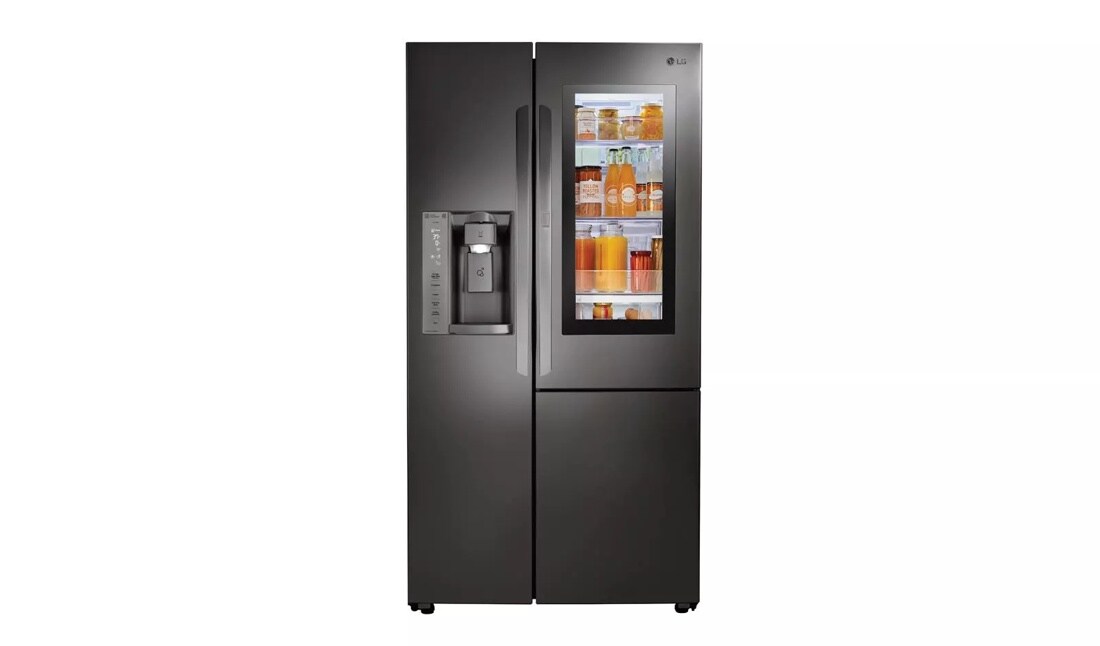

22 cu.ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator

SUMMARY

    • Refrigerator Type
    • InstaView™ Door-in-Door®
    • SmartThinQ®
    • Yes
    • wi-fi Enabled
    • Yes
    • Total Capacity
    • 21.7
    • Ice & Water Dispenser
    • Yes
    • ENERGY STAR® Qualified
    • Yes
    • Counter Depth (in.)
    • Yes

CAPACITY

    • Refrigerator:
    • 14.34 cu. ft.
    • Freezer:
    • 7.40 cu. ft.
    • Total:
    • 21.7 cu. ft.

FEATURES:

    • Multi Air Flow Cooling
    • Yes
    • Temperature Sensors
    • 5
    • Auto Closing Door Hinge
    • Yes
    • Water Filtration System
    • LT1000P
    • LoDecibel™ Operation
    • Yes
    • Ice & Water Dispenser
    • Yes
    • Dispenser Type
    • Vertical
    • Ice System
    • SpacePlus®
    • Display Type
    • Membrane / White LED
    • Temperature Controls
    • Digital
    • Door Alarm
    • Yes
    • Child Lock
    • Yes
    • Daily Ice Production
    • 3.5 lbs / 4.1 lbs (IcePlusTM)
    • Ice Storage Capacity
    • 4.5 lbs
    • ENERGY STAR® Qualified
    • Yes (638 kWh/Year)
    • InstaView™Door-in-Door®
    • Yes

REFRIGERATOR

    • No. of Shelves
    • 4 Total
    • Crisper Bins
    • 2
    • Refrigerator Light
    • Premium LED
    • Shelf Configuration
    • Tempered Glass

REFRIGERATOR DOOR:

    • No. of Shelves/Bin
    • 6 Total (no door bin in Door-in-Door)
    • Door Bin Construction
    • Clear
    • Dairy Corner
    • Yes

FREEZER

    • Freezer Light
    • Premium LED
    • No. of Shelves
    • 3
    • Shelf Construction
    • Tempered Glass
    • No. of Door Bins/Shelves
    • 3
    • Door Bin Contruction
    • Clear

THINQ® SMART FEATURES

    • Wi-Fi
    • Yes

MATERIALS & FINISHES:

    • Handle
    • Matching Commercial Handles
    • Available Colors
    • Black Stainless Steel (D), Stainless Steel (S)
    • Hidden Hinges
    • Yes
    • Surface
    • Coated Metal, Stainless Steel
    • Back
    • Flush & Metal cover over mechanical parts
    • Contour Door
    • Yes

DIMENSIONS/CLEARANCES/WEIGHT:

    • Depth with Handles
    • 31 13/16"
    • Depth without Handles
    • 29 3/8"
    • Depth without Door
    • 24 10/16"
    • Depth (Total with Door Open)
    • 46 5/8"
    • Height to Top of Case
    • 69 11/32"
    • Height to Top of Door Hinge
    • 70 5/16"
    • Width
    • 35 7/8"
    • Width (Door Open 90˚ with Handle)
    • 44 5/16"
    • Width (Door Open 90˚ without Handle)
    • 39 5/8"
    • Installation Clearance
    • Sides 1/8", Top 1", Back 2"
    • Weight (Unit/Carton)
    • 283.8 lbs / 307.8lbs
    • Carton Dimensions (WxHxD)
    • 38" x 72 5/9" x 33"

WARRANTY:

    • Limited Warranty
    • 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)
    • UPC
    • 048231794084

UPC CODES

    • UPC
    • 048231794084

What people are saying

Rated 1 out of 5 by from We bought this from PCRICHARDS earlier this year. It was delivered and installed in May. In the past few weeks it has gone from not dispensing water to the freezer and refrigerator being completely dead - no fan sounds at all - and everything is getting warm but the app diagnostic says everything is fine and the door claims the internal temps are 38 and 0. Service has been out a number of times - still not fixed. What a piece of junk! Sorry I replaced my last fridge of 25 years - with NO ISSUES...
Date published: 2022-10-07
Rated 5 out of 5 by from Great fridge Fits perfectly in our kitchen. Inside could be a little larger, but it's beautiful.
Date published: 2022-10-06
Rated 5 out of 5 by from Great Design & Features I've had this fridge for about a year and a half. I love the door in door feature. I live in AZ where the intense heat mandates lots of hydration, so I keep the front area of the fridge stocked with a lot of drinks. It's great to be able to access without opening the entire door. The see through panel is also convenient.
Date published: 2022-10-03
  • y_2023, m_1, d_30, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_235
  • loc_en_US, sid_MD05848975, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 17ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Our refrigerator (approx. 3 years old) makes a loud thumping sound periodically.

Asked by: Abnormal sounds
The thumping sound that you are referring to is what is known as water hammer and it is a potentially serious condition that can affect plumbing pipes in any part of your home. It happens because the water in your pipes is pressurized and incompressible. When you suddenly alter its flow by closing a valve, it sends shock waves through the pipes, causing a banging sound and potentially weakening joints. Plumbers stop the banging by installing a water hammer arrestor in the pipe near the valve from which the noise is emanating. Your ENERGY STAR® Qualified LG 22 cu.ft. Smart Wi-Fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LSXC22396S features an ice maker, and an easier way to install a water hammer arrestor that doesn't involve in-wall plumbing is to turn off the water to the refrigerator, unplug it and pull it far enough from the wall to get behind it. Turn off the shut-off valve and disconnect the copper tube that goes to the ice maker by loosening the compression nut that holds it with a wrench. Once the tube is disconnected, move the refrigerator completely out of the way. Put a bucket under the valve and open it all the way to let water drain. Unscrew the nut holding the valve to the supply pipe and remove the valve. Cut the compression ring and nut off the pipe with a hacksaw. If the valve is soldered onto the pipe, cut it off. De-burr the edges of the pipe with a file so you can install a new valve that has an extra port to which a water hammer arrestor is connected. You should be able to find such a valve at a plumbing supply outlet or online. Most have a 1/2-inch compression connection for the supply pipe and a 3/8-inch compression fitting for the ice maker tubing. Slide the compression nut onto the pipe with the threads facing out and slip on the compression ring. Thread the nut onto the valve, then hold the valve steady with adjustable pliers while you tighten the nut with a wrench. Turn off the valve, turn on the water and check for leaks. Move the refrigerator back toward the wall and connect the ice maker tube to the valve, tightening the connection with a wrench. Turn on the valve, plug in the refrigerator and move it all the way against the wall...^Ivan
Answered by: Ivanf
Date published: 2022-07-05

Do i need a water filter bypass? Or do i just remove the filter?  I have a home filtration sytem

Asked by: MicheleP3
The ENERGY STAR® Qualified LG 22 cu.ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LSXC22396S does not require a bypass filter...^IFV
Answered by: Ivanf
Date published: 2020-01-10

Is the LSXC22396S model fingerprint resistant?

Asked by: awill08
The Stainless Steel on the ENERGY STAR® Qualified LG 22 cu.ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LSXC22396S is not fingerprint or smudge resistant...^IFV
Answered by: Ivanf
Date published: 2019-08-12

I really love the LG model #LSXC 22396S with InstaView but unfortunately I live in a Co-op and this refrigerator can't fit threw my doorway it is 30 inches wide. Lg don't sell smaller InstaViews for families that live in Co-ops and regular tenement blogs

Asked by: Saramae1
Hi Saramae. The most common and recommended practice for getting a refrigerator through an opening that is too narrow is to remove the handles or the doors and move the refrigerator sideways through that opening. The ENERGY STAR® Qualified LG 22 cu.ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LSXC22396S has a depth of 29 3/8" without its handles and a depth of 23 10/16" without the doors...^IFV
Answered by: LGJoel
Date published: 2021-04-13

I cannot find the WiFi password to log into the fridge wifi, so that I can set it to my network. Anyone know the default password?

Asked by: MikeMattos
When you click WiFi followed by Settings you will need to locate the fridge. The password is the characters after LG_Smart_Fridge repeated twice. So for example LG_Smart_Fridge_D155 would be D155D155. ^CP
Answered by: ChrisPSM
Date published: 2019-09-05

Need dimensions nothing on the site

Asked by: Gster
Full dimensions may be found here: http://www.lg.com/us/refrigerators/lg-LSXC22396D-instaview-door-in-door Under the "Tech Specs" tab. Some general dimensions are listed below: Depth with Handles 31 13/16" Depth Total with Door Open 46 5/8" Height to top of Door Hinge 70 5/16" Width (Door Open with Handle) 44 5/16"
Answered by: Shena
Date published: 2017-10-11

Freezer goes from -6 to 8...what is the optimum setting

Asked by: Sherry51
The default temperature settings for this unit would be 37 for the fresh food section and 0 for the freezer. If you wish to have an increase in ice production the optimal freezer setting for maximum ice production would be -4. The temperature in the refrigerator/freezer will fluctuate when the doors are opened and closed. Once the unit recognizes the temperature has increased beyond the desired setting, the compressor and fans will turn on to lower the temperature back to the desired settings. For helpful hints and product support check us out on Twitter @LGUSSupport
Answered by: Shena
Date published: 2017-10-06

Tubing from brand new LG freezer door damaged repairman says need new door can one be ordered

Asked by: Papalori
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders and pricing information, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts.
Answered by: NeilE
Date published: 2017-08-06
