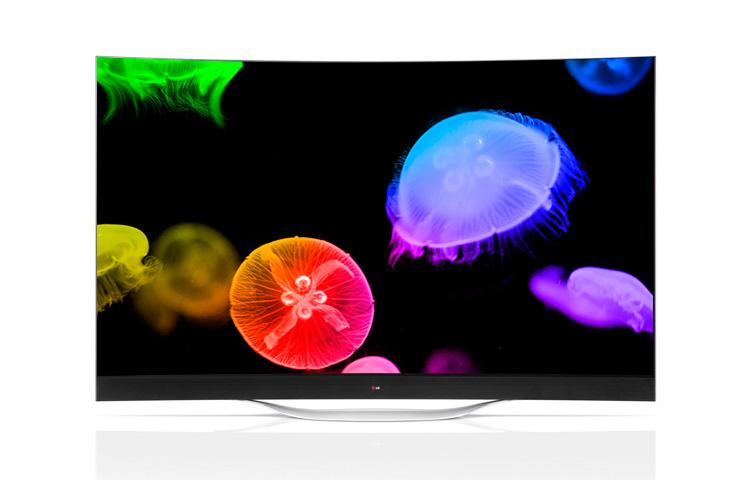

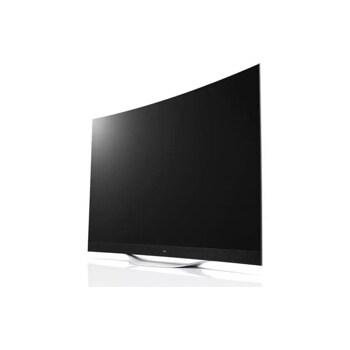

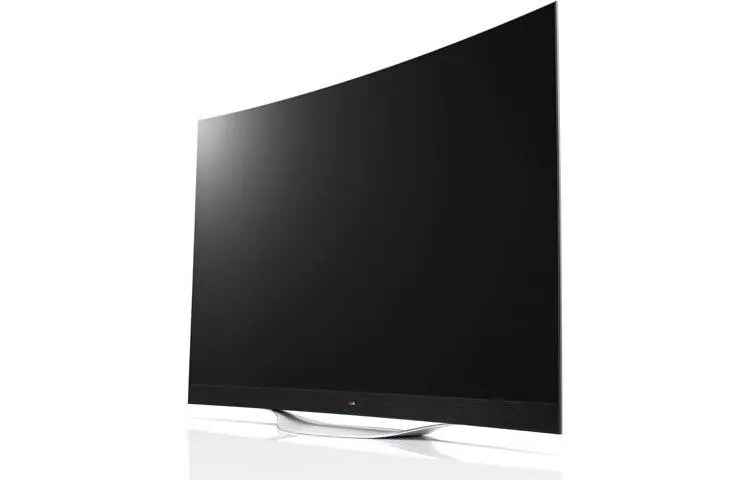

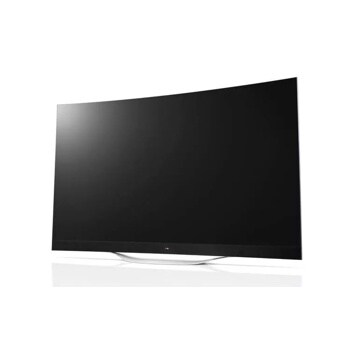

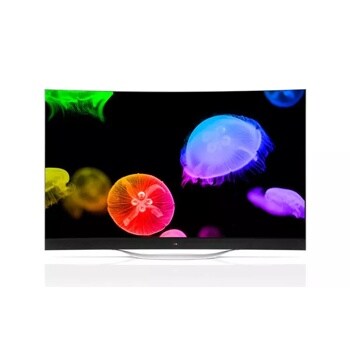

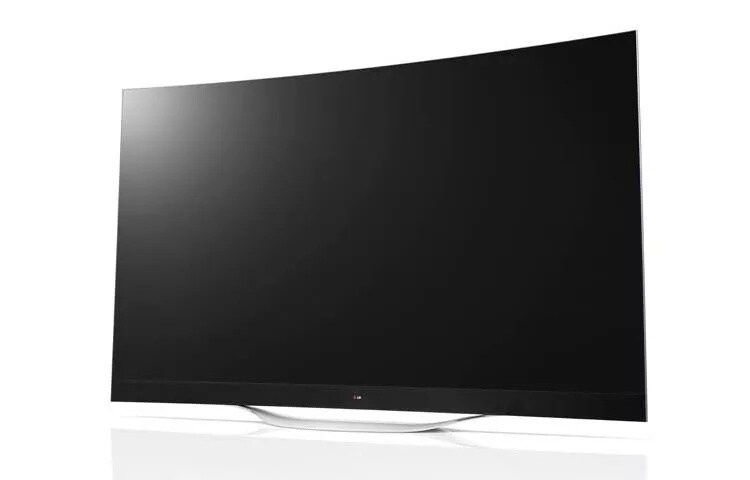

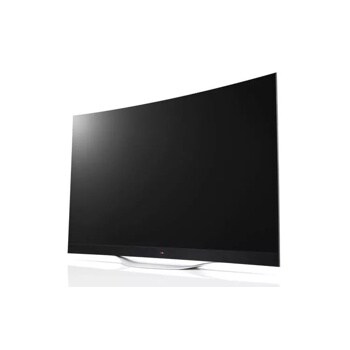

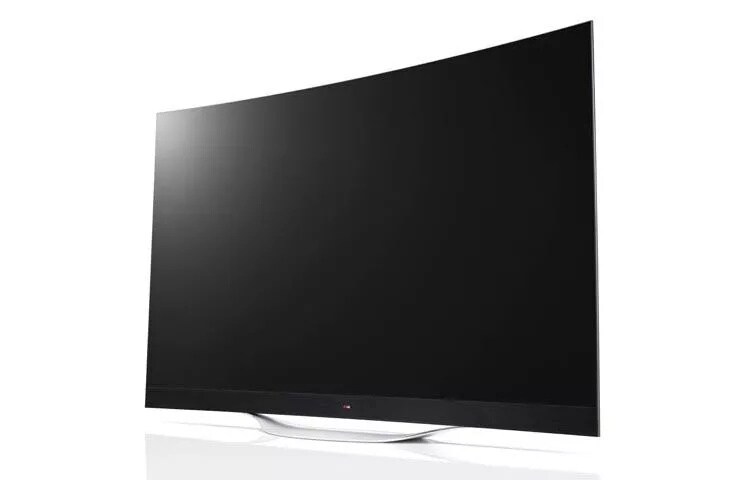

Curved OLED 4K Smart TV - 77" Class (76.7" Diag)
DISCONTINUED
Curved OLED 4K Smart TV - 77" Class (76.7" Diag)
77EG9700
Key features
- Curved OLED 4K TV
- webOS 2.0 Smart TV
- Magic Remote
- harman/kardon Sound
Specifications
PANEL SPECIFICATIONS
WARRANTY / UPC
VIDEO
CABINET / ACCESSORIES
LG CINEMA 3D FEATURES
INPUTS
SMART TV
SUMMARY
SMART SHARE
DIMENSIONS / WEIGHTS
AUDIO
CONNECTIVITY
POWER
See All
PANEL SPECIFICATIONS
Screen Size Class (diagonal)
77" Class (76.7" diagonal)
Resolution
3840 x 2160
Display Type
OLED
PANEL SPECIFICATIONS
Screen Size Class (diagonal)
77" Class (76.7" diagonal)
Resolution
3840 x 2160
Display Type
OLED
WARRANTY / UPC
Limited Warranty
1 Year Parts & Labor
UPC
719192596399
VIDEO
Picture Mode
9 Modes
Just Scan (1:1 Pixel Matching) 0% Overscan (HDMI/Component/RF)
HDMI/ 1080i, Component: 1080p, RF/ 720p
Tru-ULTRA HD Engine
Yes
Real Cinema 24p (2:2 pull down)
Yes
Tru Color Generator
Yes
4K Resolution Upscaler
Yes
Picture Wizard III
Yes
Smart Picture Mode
Yes
Tru-ULTRA HD Pro
Yes
CABINET / ACCESSORIES
Remote Control
Magic Remote Control
3D Glasses
F314 (Clip 2EA, F310 2EA)
VESA® Size (mm)
400 x 400
TV Camera Accessory
B/in
LG CINEMA 3D FEATURES
3D Type
FPR (Passive)
3D to 2D
Yes
2D to 3D
Yes
3D Image Correction
Yes
3D Depth Control
Yes
3D Viewpoint Control
20 Levels
INPUTS
RF In (Antenna/Cable)
1 (Rear)
Component Video In(Y, Pb, Pr + Audio)
1 (Rear)
Composite In (AV)
1 (shared w/Component)
Digital Audio Out (Optical)
1 (Rear)
LAN
1 (Rear)
RS-232 (mini jack)
1 (Rear)
HDMI®
4 HDMI (3 Side, 1 Rear)
USB 3.0/2.0 In
1/2 (Side)
SMART TV
Launcher Bar
Yes
Games
Yes
Easy Setup
Yes
Recent/Multitasking
Yes
LivePlus
Yes
Live Menu
Yes
Natural Voice Recognition
Yes
Universal Control Capability
Yes
LG Content Store (App Store)
Yes
Magic Remote Control
Yes
Full Web Browser
Yes
SUMMARY
Screen Size
77"
SMART SHARE
Media Share
Yes
- Remote App
Yes
- Network File Browser
Yes
Screen Share
Yes
- MHL (Mobile HD Link)
Yes
- WiDi
Yes
- YouTube Send-to-TV
Yes
- Miracast
Yes
DIMENSIONS / WEIGHTS
TV without Stand (WxHxD)
67.6” x 41.9” x 1.4”
TV with Stand (WxHxD)
67.6" x 43.7" x 12.7"
TV without Stand weight
87.9 lbs
TV with Stand weight
95.4 lbs
TV Shipping Dimensions (WxHxD)
73.6" x 48.4" x 16.1"
Shipping Weight
131.3 lbs
AUDIO
Mono/Stereo/Dual (MTS/SAP)
Yes
Audio Output Power (Watts - THD 10%)
70W
Dolby® Digital Decoder
Yes
Clear Voice II
Yes
Sound Mode
6 Modes
Sound Optimizer
3 Modes
Subwoofer
Yes
Smart Sound Mode
Yes
Optical Sound Sync
Yes
Wireless Sound Sync
Yes
Sound Designed by harman/kardon®
Yes
Sound System
ULTRA Surround
DTS Decoder
Yes
Speaker System
4 Ch Speaker System
CONNECTIVITY
SIMPLINK™ (HDMI™ CEC)
Yes
Wi-Fi Direct
Yes
Wi-Fi® Built-in
Yes
USB
Yes
- Video
DivX HD
- Photo
JPEG, JPS, MPO
- Audio
AC3 (Dolby Digital), EAC3, HE-AAC, AAC, MPEG, MP3, PCM, DTS
POWER
Standby Mode
0.3W
Power Consumption
TBD
Power Supply (Voltage, Hz)
100V ~ 240V, 50/60 Hz
