WM3477HS

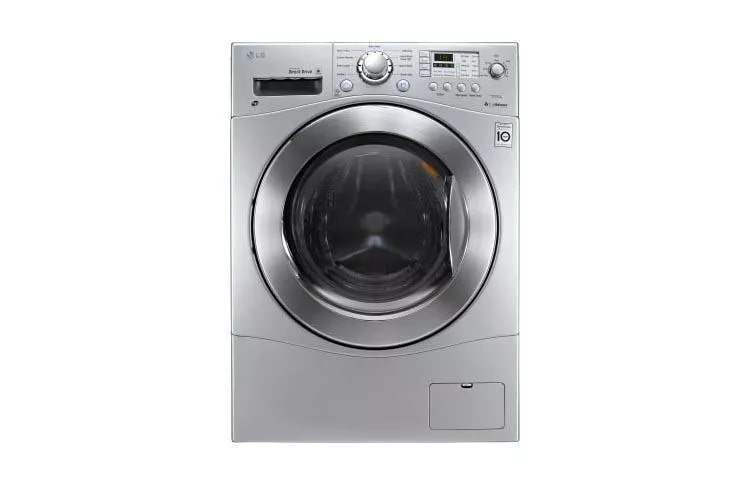

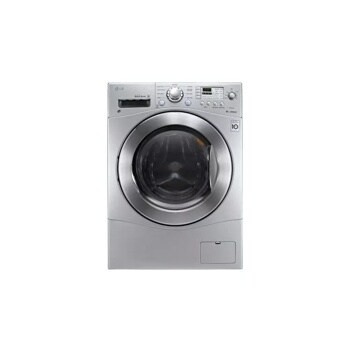

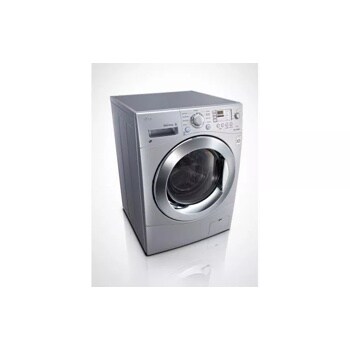

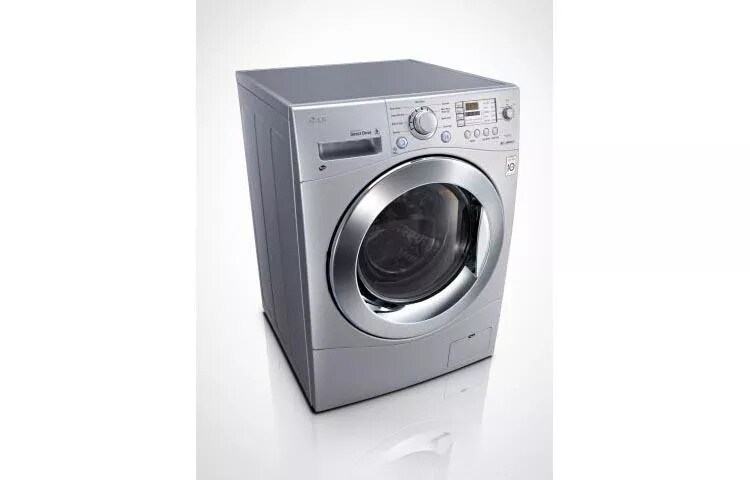

2.3 cu. ft. Large Capacity 24” Compact All-In-One Washer/Dryer Combo
  • Large 2.3 cu.ft. capacity
  • Ventless Condensing System
  • 24" Compact Design
  • Direct Drive Motor 10 Year Warranty
2.3 cu. ft. Large Capacity 24” Compact All-In-One Washer/Dryer Combo

CAPACITY

  • Capacity
    2.3 cu. ft.

APPEARANCE

  • Design Look
    Front Control

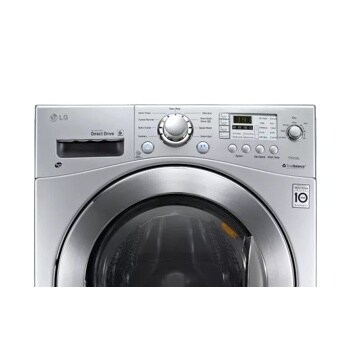

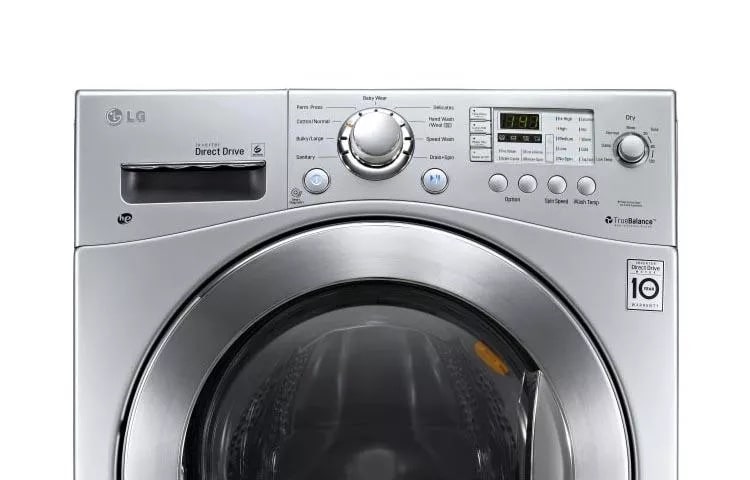

    Intelligent Electronic Controls with Dual LED Display
    Yes
  • Dial-A-Cycle™
    Yes

WASH PROGRAMS

  • No. of Programs
    9
    Wash Programs
    Cotton/Normal, Bulky/Large, Baby Wear, Perm. Press, Delicates, Hand Wash/Wool, Speed Wash, Sanitary, Drain+Spin
  • No. of Options
    10
    Options
    Prewash, Rinse+Spin, Delay Wash, Water Plus, Extra Rinse, Child Lock, Signal On/Off, Tub Clean, Stain Care, Custom Program
  • No. of Wash/Rinse Temps
    Hot, Warm, Eco Warm, Cold, Tap Cold (All Cold Rinses)
    Spin Speeds
    Extra High (1400 max.), High, Medium, Low, No Spin
  • No. of Water Levels
    Automatically adjusts to the size of load
    No. of Soil Levels
    1

DRY PROGRAMS

  • Sensor Dry
    More Dry, Normal Dry, Damp Dry, Low Temp Dry
    Manual Timed Dry
    30, 60, 120 mins

FABRIC CARE FEATURES

  • SenseClean™ System
    Yes
    Hand Wash / Wool Cycle
    Yes
  • Prewash
    Yes
    Water Plus
    Yes
  • StainCare™ Option
    Yes

CONVENIENCE FEATURES

  • Washer/Dryer Combo All-In-One
    Yes
    3 Tray Dispenser
    Prewash, Main Wash (with Liquid detergent cup), Fabric Softener
  • SmartDiagnosis™
    Yes
    LoDecibel™ Quiet Operation
    Yes
  • End of Cycle Beeper
    Yes
    Child Lock
    Yes
  • Load Sense
    Yes
    Auto Suds Removal
    Yes
  • Forced Drain System
    Yes
    Status Indicator(s)
    Yes
  • Internal Water Heater
    Yes
    Leveling Legs
    4 Adjustable
  • Easy Loading TilTub™
    Yes

MOTOR AND AGITATOR

  • Motor Type
    Direct Drive Motor
    Motor Speed
    Variable
  • Max RPM
    1,400
    Axis
    Horizontal

MATERIALS AND FINISHES

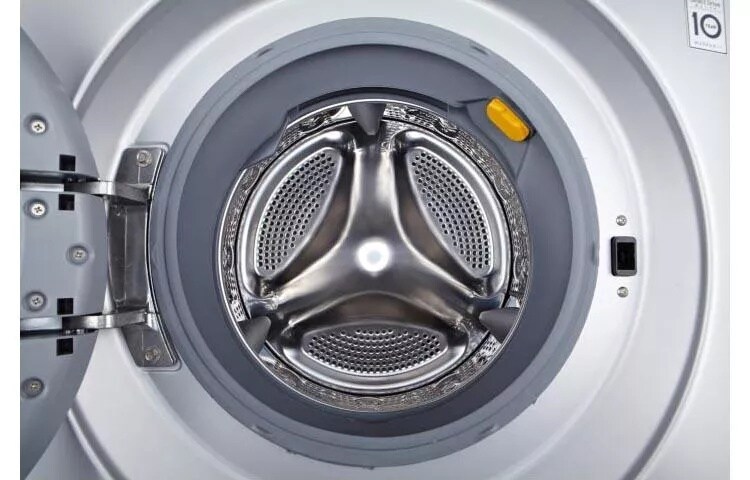

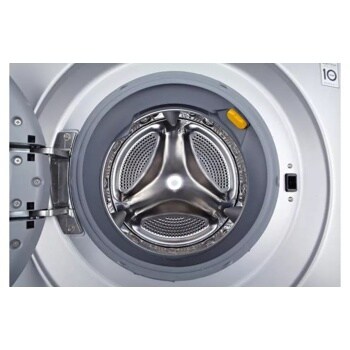

  • NeveRust™ Stainless Steel Drum
    Yes
    Cabinet
    PCM
  • Control Panel
    Plastic
    Transparent Door Glass
    Yes
  • Door Rim
    Chrome Rimmed Glass Door
    Available Colors
    White (W), Silver (S)

POWER SOURCE

  • Ratings
    UL Listed
    Electrical Requirements
    120V, 10 Amps
  • Type
    Electric

DIMENSIONS

  • Product (WxHxD)
    24” x 33 1/2” x 25 1/4” (45”D with door open)
    Carton (WxHxD)
    26” x 33 1/2” x 25 1/4”
  • Weight (Product/Carton)
    155.4 lbs/166.2 lbs

WARRANTY

  • Limited Warranty
    1 Year Parts and Labor, 10 Years Motor Lifetime on Drum
    UPC
    048231014359
What people are saying
Rated 1 out of 5 by from 2nd time is not pumping clothes take 2 long to dry Is the secontd time I buy the same machine, shame on me, it keeps breaking, I have no idea what is wrong with the pump IT DOESNT DRY CLOTHES RIGHT AT ALL IT TAKES ME 8 HOURS SOMETIMES TO DRY SIMPLE CLOTHING I replaced it twice. LG is not responsible for the parts after a while, very sad about this article, my income is limited & I cant buy it every two years.
Date published: 2019-02-25
Rated 5 out of 5 by from Should have done this so long ago I live in a loft with a closet for the washer and dryer; I had a stackable model. Great, but no real room to fold or anything else. Very crowded. AND the lint. In spite of having the dryer vented, the closet got pretty dusty. Now I have this unit. It's great. First the three downsides: The wash/dry cycle ranges from four hours to six, yes, six, hours. And some of my canvas work pants come out wrinkled. The rest of the cotton stuff comes out okay. Lastly, some of the cycle is a little loud. The upsides: Put the laundry in, start it, and go to bed, or work, or out. Come home, the laundry is DONE. No swapping machines. And DRY; like hot dry if you get the laundry out right away. No lint filter. AND absolutely dust free. Compact, yet it cleans just about as much as my old units.
Date published: 2018-06-16
Rated 5 out of 5 by from Small but powerful We named our washer/dryer combo "Wally" which is pretty indicative that we like him a lot, except for the cat. There's plenty of cycle choices and we love how soft the laundry comes out, even without softener. The drying cycle and cool down do take a bit longer than we like, but that's minor. However, it would be nice to have an approximate time cool down will take (so we can inform the cat). We also hooked him up so he could drain into a laundry tub with a hair catcher instead of directly into a drain. This has worked extremely well as we can avoid having a lot of gunk plugging the pipes and instead clean out the hair catcher into the trash can. I am amazed how much he pulls off out laundry and spits out into the tub - although I imagine a lot of it is cat hair which is why the cat doesn't like him.
Date published: 2017-09-24
  • y_2019, m_7, d_16, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_23
  • loc_en_US, sid_MD05115401, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 231ms
  • REVIEWS, PRODUCT
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Can you confirm the replacement part # for the water pump for this particular model. I looked through the manual but, did not find any reference to parts numbers.

Asked by: BeeNYC
Hello, there are 2 pumps, please see the links for the two. ^AC https://encompass.com/item/9267711/LG/EAU61383506/Motor_Assembly,ac,pump https://encompass.com/item/8278023/LG/4681EA2001T/Motor_Assembly,ac,pump
Answered by: Amber C
Date published: 2018-05-22

At what height do you recamend installing a washer box?

Asked by: Dog31
We appreciate your interest in this washing machine. It is uncertain to what is being referred as a “washer box”. If this would be the box containing the water valve and drain pipe, then the total height of the drain hose should never exceed 96” or 7 feet high. We might suggest a location of roughly 4 1/2 to 5 feet high.
Answered by: NeilE
Date published: 2017-02-15

We have this washer dryer combo and the clothes never get dry even if we just put some socks in to dry? What do you think that might be

Asked by: Paco Renee
We regret the trouble you have experienced with this washing machine combination unit. According to the information on page 22 of the owner’s manual, the capacity of the machine for washing clothes is twice as much as when drying them. If the machine is to be used to dry a load, then the wash load must be reduced by half for effective drying performance. If this does not resolve the matter, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2017-01-20

After one year of no problems or any changes this machine has been tripping the fuse during the dryer cycle a few times a week. Any solutions or reason? Thanks

Asked by: ChrisL24
We regret the trouble you have experienced with this washing machine. Be certain that the load size is reduced during the DRY cycle, so as to prevent an overload of the drying system. It is also recommended to check the breaker box for the possibility that the breaker may be weakening. If this does not resolve the matter, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2016-12-17

My machine works great when it's washing but as soon as it drains the water and gets ready to dry the machine starts shaking and moving out of its place. It does this even when it's empty. Does it have anything to do with the fact that it's placed tile?

Asked by: Alina88
When your LG 2.3 cu. ft. Large Capacity 24” Compact All-In-One Washer/Dryer Combo, Model # WM3477HS completes the wash cycle, it goes into the spin mode to try and extract as much water as possible from your laundry which saves you time and energy for drying. The machine spins at a very high rate, 1,400 RPM and if it is not leveled properly is will shake and vibrate excessively. You also want to check to make sure that the leveling feet have not been extended too high as that will also cause the machine to shake and vibrate excessively. The floor that the machine is install on should not have a slope of more than 1˚. Placing anti-skid pads on it will help with the 'walking' but that should not be an issue if the shaking and vibrations are eliminated...^IFV
Answered by: LGJoel
Date published: 2016-12-13

Does this dryer dry on hot temperature or is it just a cool tumble dry?

Asked by: Nettys
The LG 2.3 cu. ft. Large Capacity 24” Compact All-In-One Washer/Dryer Combo, Model # WM3477HS uses a Ventless Condensing Drying System. Water is needed in order for this combo unit to perform the dry function. The water is used to condense the moisture in the air. The capacity of the machine for washing clothes is twice as much as when drying clothes. If the machine is to be used to dry a load, then the wash load must be reduced by half for effective drying performance. If a full load is washed, remove half the clothes prior to starting the dry cycle...^IFV
Answered by: LGJoel
Date published: 2016-10-17

 my newly installed washer/Dryer does not spin after washing, when the timer gets to 12 mins and rinsing has started, the timer stays 12 mins forever till you get tired and switch it off or simply complete the process by hand.

Asked by: Rich Spintex manet
Our offices, in the United States, do not have specific product information units released in the Ghana. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/africa_en/support/contact-customer-support, or by phone at 302247770,71.
Answered by: NeilE
Date published: 2016-10-13

Having a problem with drying cloths....how do u set it to dry

Asked by: Vencon
We regret the trouble you have experienced with this washing machine combination unit. Check the size of the wash load. The capacity of the machine for washing clothes is twice as much as when drying clothes. If the machine is to be used to dry a load, then the wash load must be reduced by half for effective drying performance. If a full load is washed, remove half the clothes prior to starting the dry cycle. This information is listed on page 22 of the owner’s manual. If this does not resolve the matter, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2016-09-21
