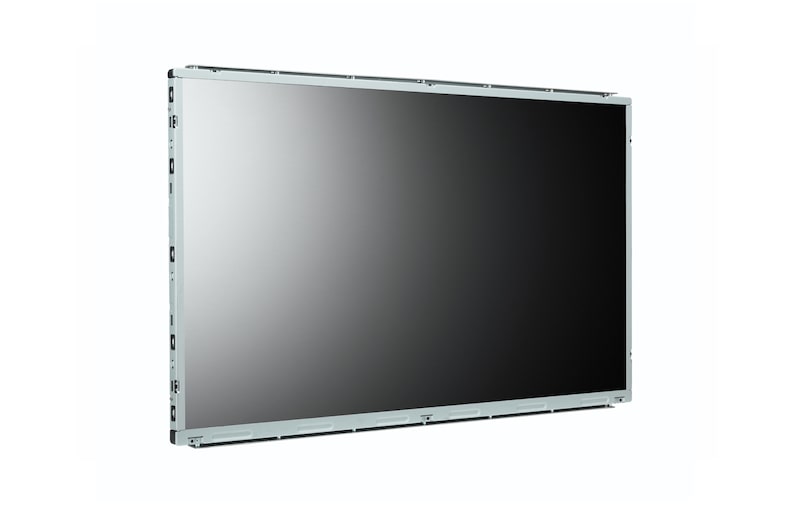

Open Frame Outdoor Panel
All Spec
ACCESSORIES
Basic
Remote Controller (4 Batteries Included), Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG)
Optional
Wi-Fi Dongle (AN-WF500)* Stand is not available

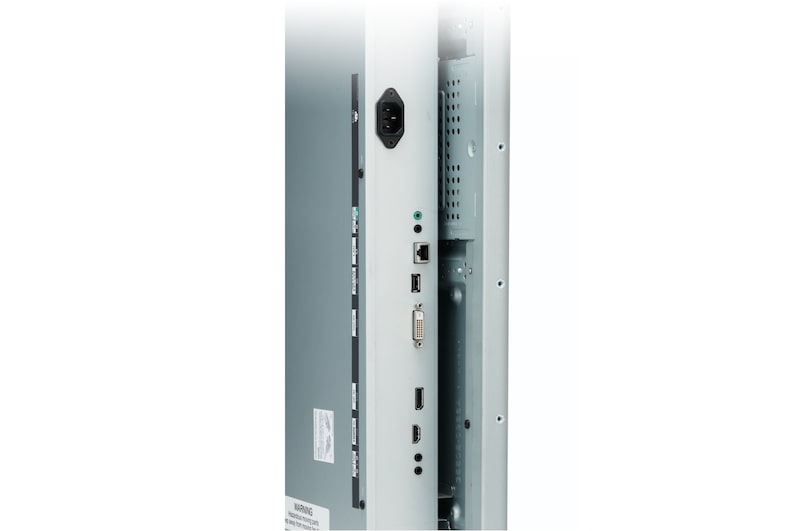

CONNECTIVITY
Input
HDMI (1), DP, DVI-D, Audio, USB
Output
Audio
External Control
RS232C In/out, RJ45 In, IR In
ENVIRONMENT CONDITIONS
Operation Temperature*
0°C to 50°C
Operation Humidity
10% to 80%
PANEL
Screen Size
32" (31.55" measured diagonal)
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Brightness
1,500 cd/m<sup>2</sup> (Typ.), 1,200 cd/m<sup>2</sup> (Min.)
Contrast Ratio (Typ.)
1,300 : 1
Viewing Angle (H x V)
178 x 178
Surface Treatment
hard Coating(2H),Anti-reflection treamnet of the front polariser(haze <1%)
Lifetime
50,000 Hrs
Operation Hours
24 Hrs
Orientation
Landscape & Portrait
PHYSICAL SPECIFICATION
Bezel Color
Silver
Bezel Width
16.1 mm (T), 23.2 mm (B), 10.9 mm (L/R)
Monitor Dimension (W x H x D)
727.4 x 439.5 x 95 mm
Weight (Head)
12.3 kg
Carton Dimensions (W x H x D)
810 x 545 x 207 mm
Packed Weight
13.5 kg
POWER
Power Supply
Built-In Power
Power Type
100-240V~, 50/60Hz
Power Consumption-Typ./Max
145 W / 175 W
Power Consumption-Smart Energy Saving
75 W
SOFTWARE COMPATIBILITY
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control /Control+
SPECIAL FEATURES
SPECIAL FEATURES

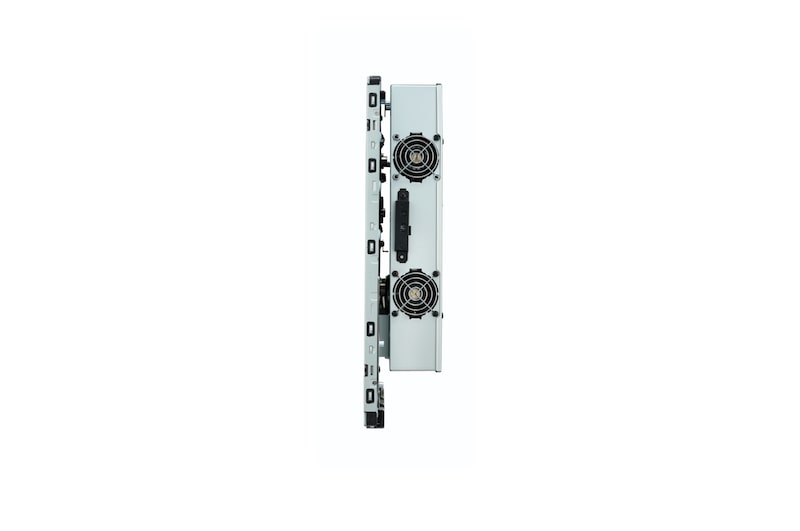

Temperature Sensor, Cooling Fan, Auto Brightness Sensor, Energy Saving, Smart Energy Saving, Tile Mode (up to 15 x 15), Natural Mode@Tile Mode, Source Selection, Brightness/Contrast/Backlight, DPM Select, File Play with USB, Internal Memory (8GB, System 4GB + Available 4GB), Wi-Fi Dongle Ready
STANDARD(CERTIFICATION)
Safety
AS/NZS 60950
EMC
AS/NZS CISPR32,RCM(Class A)
