Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
6.25
Module Resolution (W x H)
64 × 64
Module Dimensions (W x H, mm)
400 × 400
Weight per Module (kg)
2.45
No. of Modules per Cabinet (W × H)
2 × 4
Cabinet Resolution (W × H)
128 × 256
Cabinet Dimensions (W × H × D)
800 × 1600 × 143.5
Cabinet Surface Area (m²)
1.280
Weight per Cabinet (kg/cabinet)
40.0
Weight per Square Meter (kg/m²)
31.3
Physical Pixel Density (pixels/m²)
25,600
Flatness of Cabinet
±1.0 mm
Cabinet Material
Aluminum Sheet

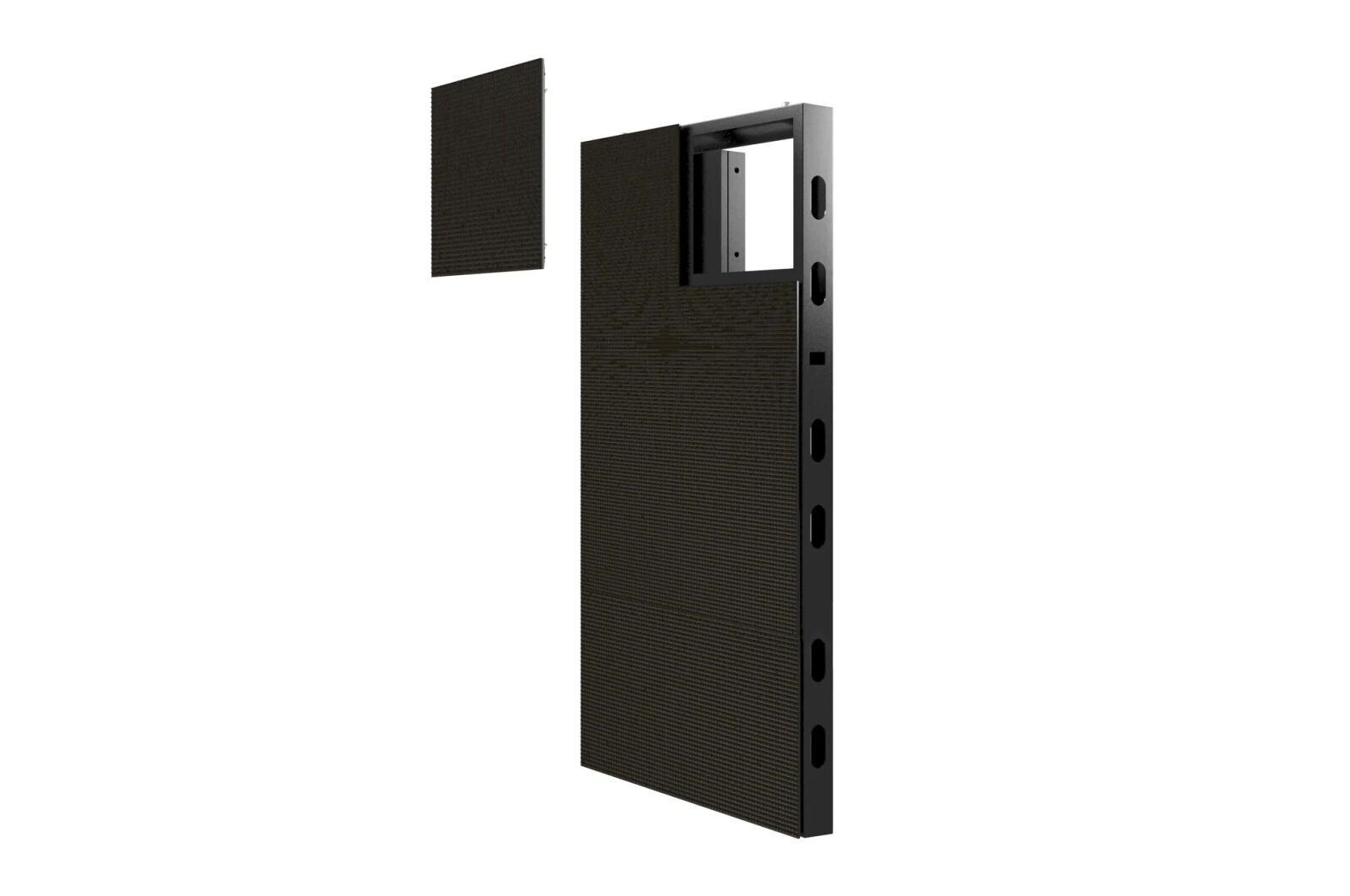

Service Access
Front and Rear
Min. Brightness (After Calibration)
6,000
Color Temperature
3500 ~ 8500
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
130
Brightness Uniformity
97%
Color Uniformity
±0.05Cx,Cy
Contrast Ratio
3,000
Processing Depth (bit)
16
Power Consumption (W/cabinet, Max.)
940
Power Consumption (W/cabinet, Avg.)
376
Power Consumption (W/m², Max.)
734
Heat Dissipation (BTU/h/Cabinet, Max.)
3,207
Heat Dissipation (BTU/h/Cabinet, Avg.)
1,283
Heat Dissipation (BTU/h/m², Max.)
2,504
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
4,000
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-30° to +50°
Operating Humidity
< 90%RH
Certification
CE,FCC,ETL
Environment
RoHS, REACH
Controller
LCLH001
To access more technical documentation and resources, please visit the LG B2B partner portal.
