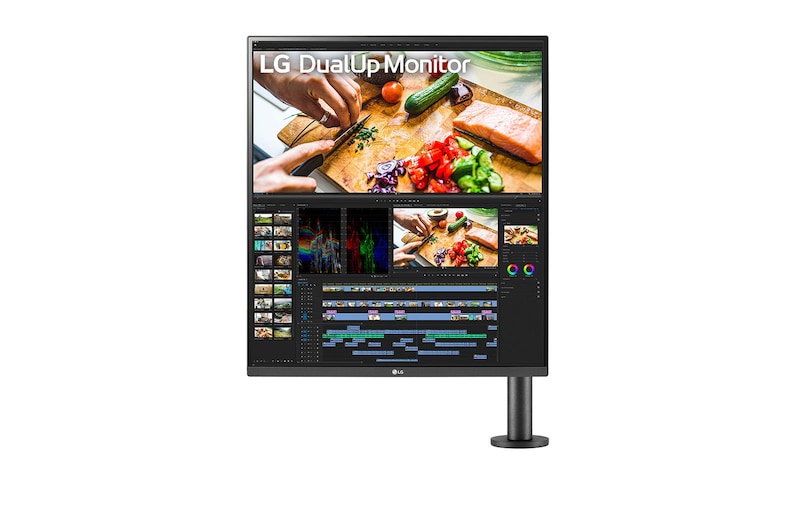

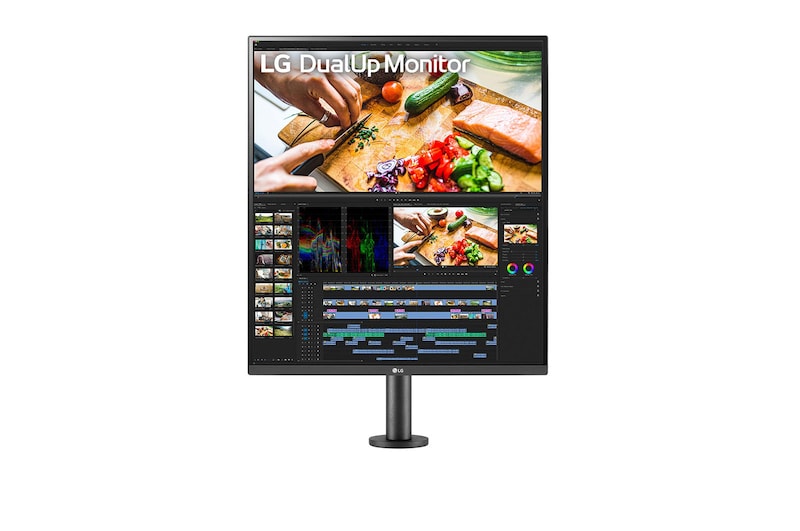

LG Dualup Ergo 27.6" SDQHD Nano IPS Display Monitor
![front view with the monitor arm on the right](/content/dam/channel/wcms/sg/images/consumer-monitors/28mq780-b_ahk_easl_sg_c/28MQ780-B_IPS_Monitor_Basic_450.jpg)
Stunning Image Quality
DCI-P3 98% (Typ.) & HDR10
Ergonomics
Various Movement of Display
User Convenience
USB Type-C™
Easy Installation
*The images simulated to enhance feature understanding. It may differ from actual use.
New DualUp Monitor UNBOXING and SETUP
*The product images in the video are for illustrational purposes only and might differ from the real product.
More Screen and Less Space
DualUp monitor only occupied compact space for one monitor but this 16:18 aspect ratio monitor support, two 21.5-inch monitors, at one screen.
*The images simulated to enhance feature understanding. It may differ from actual use.

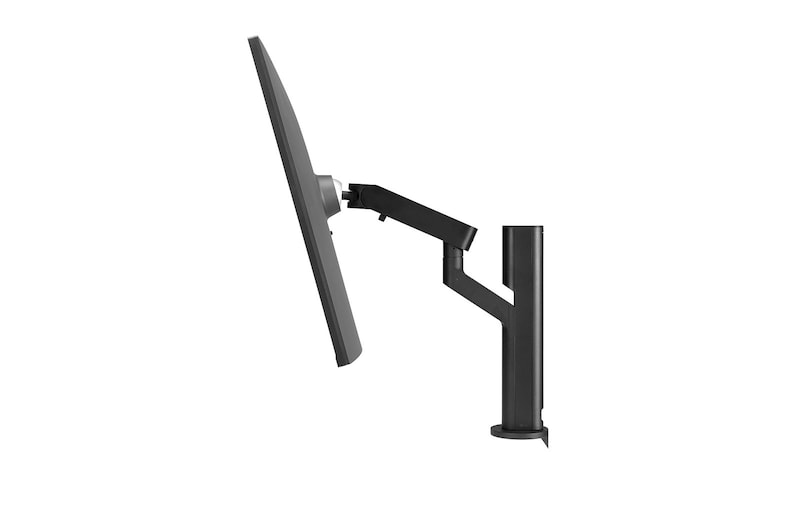

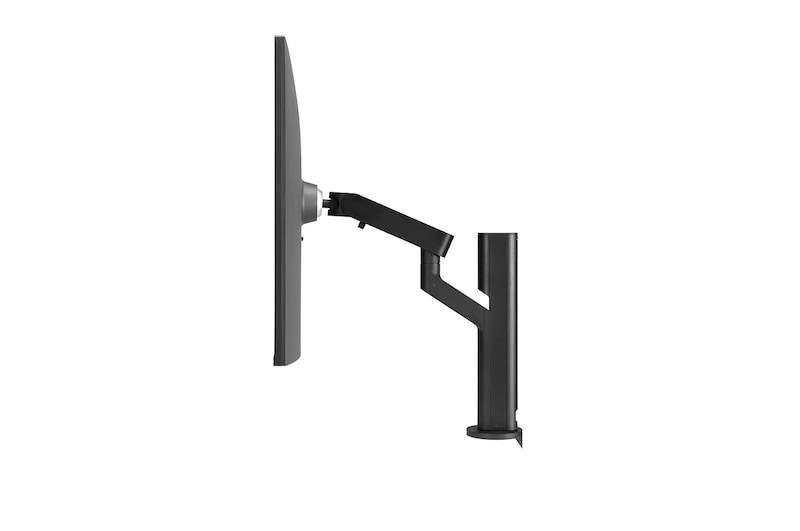

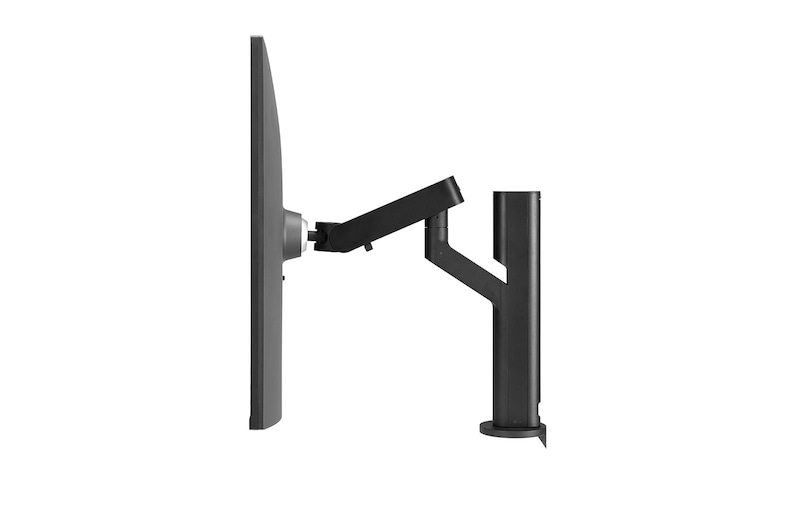

Ergonomic Movement within Eye Rotation Range
*Ergo Stand: Extend/Retract 210mm, Swivel ±335°, Pivot 90° (Counterclockwise), Height 130mm, Down Height 35mm, Tilt ±25°.
**The product images in the video are for illustrational purpose only and might differ from the real product.
*The images simulated to enhance feature understanding. It may differ from actual use.
*TÜV Rheinland certification ID (Low Blue Light - Hardware Solution): 1111250391.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
Ideal Monitor for Creating, Developing, and Multitasking
LG DualUp Monitor, a new style display of 16:18 aspect ratio, helps to boost efficiency and productivity. You can check more information at a glace within the extended upper and lower space.
*The images simulated to enhance feature understanding. It may differ from actual use.
USB Type-C™
Easy Control and Connectivity
USB Type-C™ port allows from display and data transferring to connected device charging (up to 90W), enabling support for your laptop all at the same time over a single cable.
USB Type-C™ offering easy control and connectivity
*To work properly, the USB Type-C™ cable included in the package is required to connect the USB Type-C™ port to the monitor.
How to Utilize DualUp Monitor Set-up
*KVM: Keyboard, Video Monitor, and Mouse.
**It can be connected via the USB Type-C™ cable, HDMI cable, and USB2.0 upstream cable included with the package.
**DisplayPort cable is NOT included with the package.
Space-saving and Flexible Workstation Setup
C-Clamp & Grommet
One Click Mount
*For detailed installation instructions, see the product manual at LG.com Support page.
*The product images in the video are for illustrational purposes only and might differ from the real product.

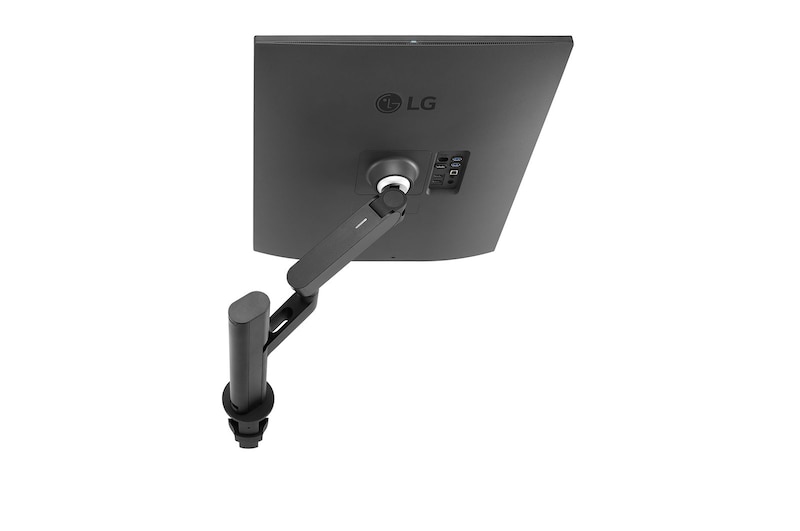

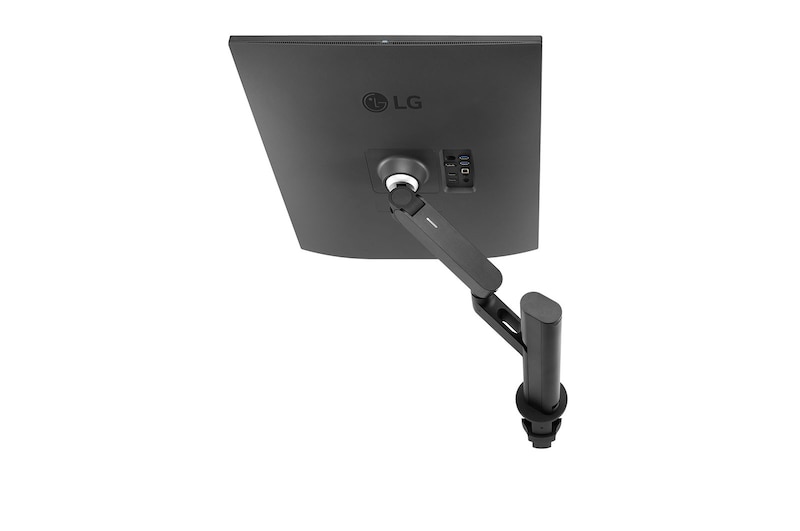

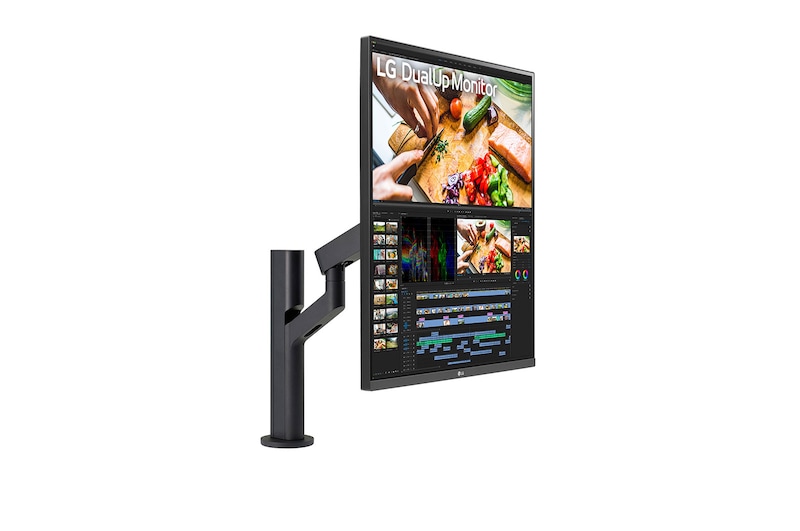

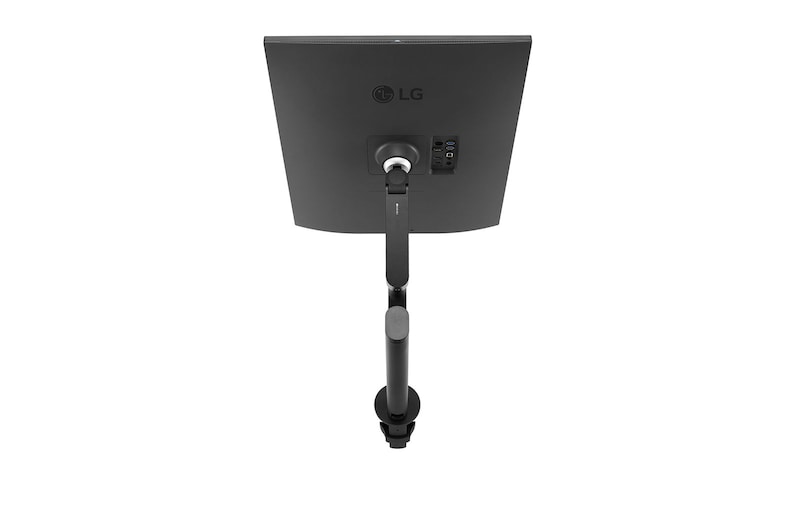

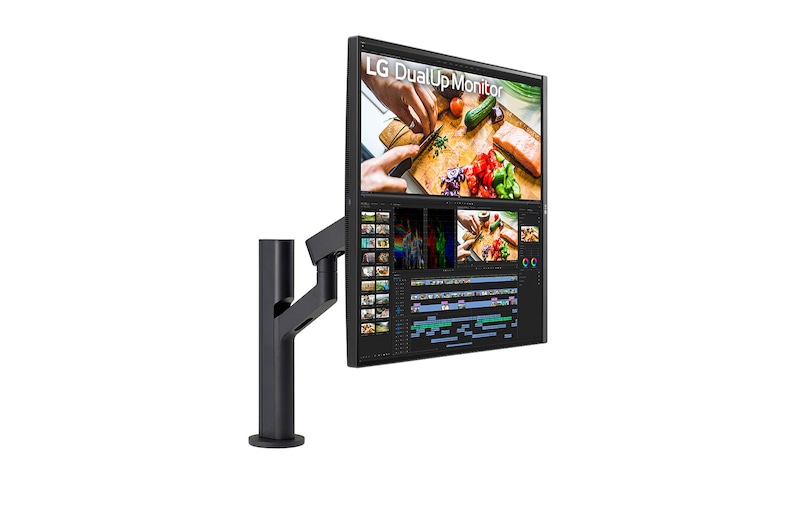

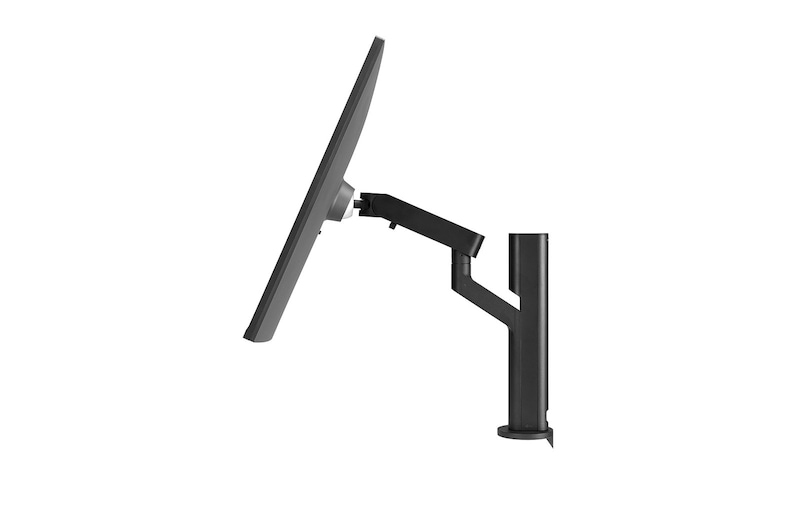

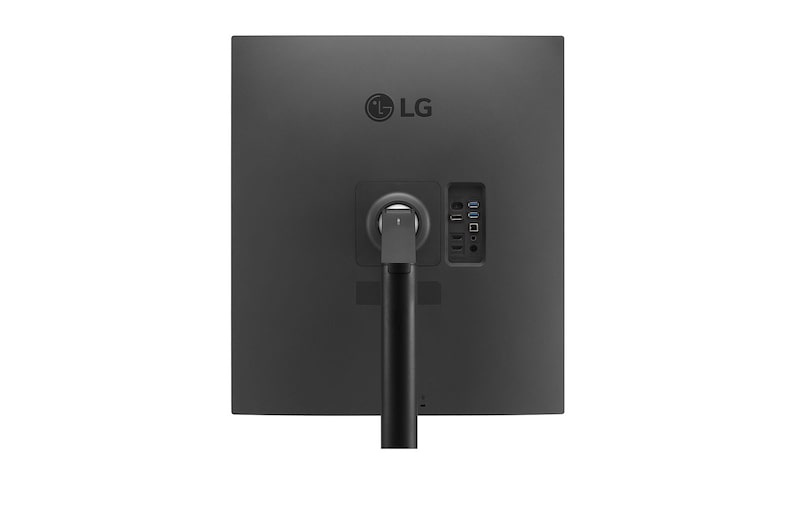

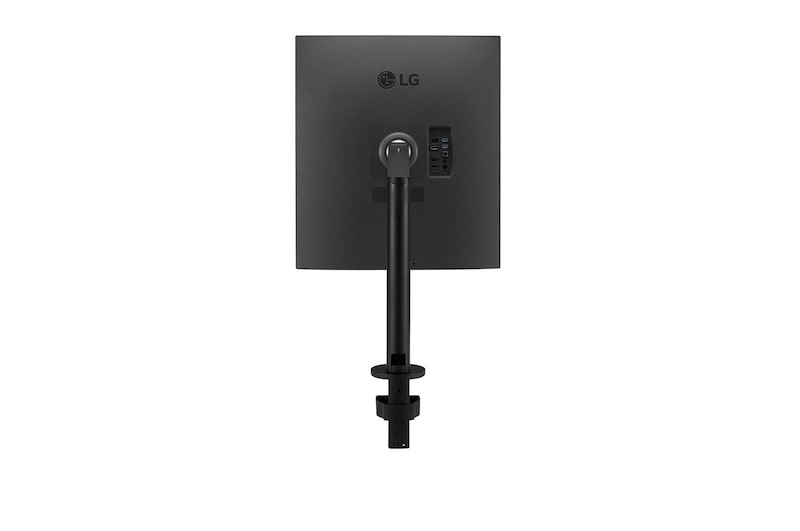

Gallery
Key Specs
-
Size [Inch]
27.6
-
Resolution
2560 x 2880
-
Panel Type
IPS
-
Aspect Ratio
16:18
-
Color Gamut (Typ.)
DCI-P3 98% (CIE1976)
-
Brightness (Typ.) [cd/m²]
300
-
Refresh Rate (Max.) [Hz]
60
-
Response Time
5ms (GtG at Faster)
-
Display Position Adjustments
Tilt/Height/Swivel/Pivot/Extend/Retract
All specs
INFO
-
Product name
DualUp
-
Year
2022
DISPLAY
-
Aspect Ratio
16:18
-
Brightness (Min.) [cd/m²]
240
-
Brightness (Typ.) [cd/m²]
300
-
Color Depth (Number of Colors)
1.07B
-
Color Gamut (Min.)
DCI-P3 90% (CIE1976)
-
Color Gamut (Typ.)
DCI-P3 98% (CIE1976)
-
Contrast Ratio (Min.)
700:1
-
Contrast Ratio (Typ.)
1000:1
-
Panel Type
IPS
-
Pixel Pitch [mm]
0.18195 x 0.18195
-
Refresh Rate (Max.) [Hz]
60
-
Resolution
2560 x 2880
-
Response Time
5ms (GtG at Faster)
-
Size [cm]
70.1
-
Size [Inch]
27.6
-
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
SW APPLICATION
-
OnScreen Control (LG Screen Manager)
YES
-
Dual Controller
YES
CONNECTIVITY
-
DisplayPort
YES(1ea)
-
Built-in KVM
YES
-
DP Version
1.4
-
HDMI
YES(2ea)
-
Headphone out
3-pole (Sound Only)
-
USB-C
YES(1ea)
-
USB-C (Data Transsmission)
YES
-
USB-C (Max. Resolution at Hz)
2560x2880 at 60Hz
-
USB-C (Power Delivery)
90W
-
USB Downstream Port
YES(2ea/ver3.0)
-
USB Upstream Port
YES(1ea/ver2.0)
SOUND
-
Maxx Audio
YES
-
Speaker
7W x 2
POWER
-
AC Input
100~240V (50/60Hz)
-
Power Consumption (DC Off)
Less than 0.3W
-
Power Consumption (Energy Star)
28.31W
-
Power Consumption (Max.)
190W
-
Power Consumption (Sleep Mode)
Less than 0.5W
-
Power Consumption (Typ.)
40W
-
Type
External Power(Adapter)
MECHANICAL
-
Display Position Adjustments
Tilt/Height/Swivel/Pivot/Extend/Retract
-
Wall Mountable [mm]
100 x 100
DIMENSIONS/WEIGHTS
-
Dimension in Shiping (W x H x D) [mm]
745 x 240 x 557
-
Dimension without Stand (W x H x D) [mm]
481.5 x 549.5 x 44.9
-
Dimension with Stand (W x H x D) [mm]
481.5 x 843.2 x 461.3
-
Weight in Shipping [kg]
13.2
-
Weight without Stand [kg]
4.3
-
Weight with Stand [kg]
9
FEATURES
-
Auto Brightness
YES
-
Auto Input Switch
YES
-
Black Stabilizer
YES
-
Color Calibrated in Factory
YES
-
Color Weakness
YES
-
Dynamic Action Sync
YES
-
Flicker Safe
YES
-
HDR 10
YES
-
HDR Effect
YES
-
Nano IPS™ Technology
YES
-
Others (Features)
Low Blue Light
-
PBP
2PBP
-
Reader Mode
YES
-
Super Resolution+
YES
-
User Defined Key
YES
ACCESSORY
-
HDMI
YES
-
Others (Accessory)
DC Extension cable 1.4m Black, Ergo+ stand, Body cable cover, Body top cover, Wrench
-
USB A to B
YES
-
USB-C
YES
