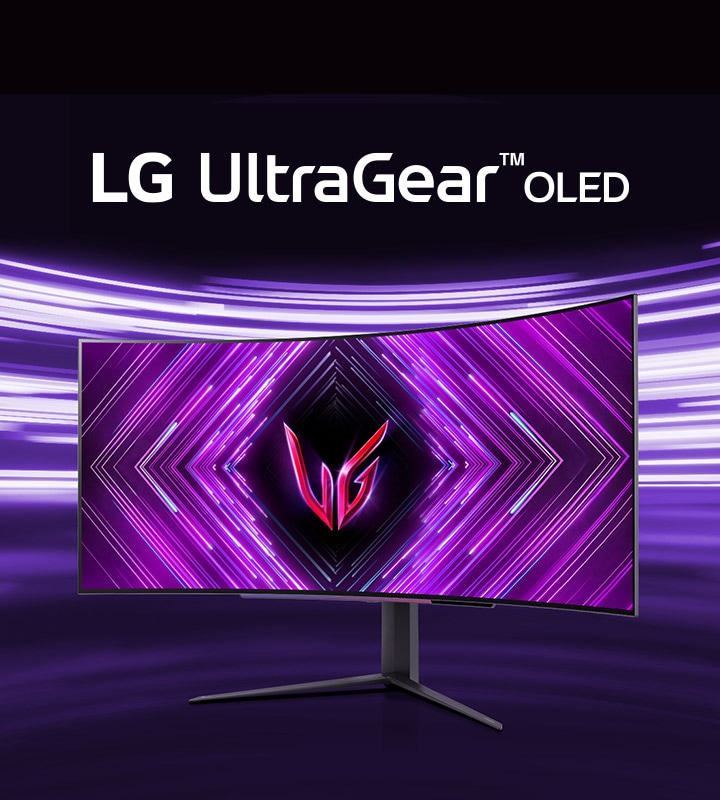

45” UltraGear™ OLED curved gaming monitor | 800R, Ultra-WQHD, DisplayHDR True Black 400, 240Hz, 0.03ms (GtG), USB Type-C™, DepthSound

45” UltraGear™ OLED curved gaming monitor | 800R, Ultra-WQHD, DisplayHDR True Black 400, 240Hz, 0.03ms (GtG), USB Type-C™, DepthSound

45GS96QB-B

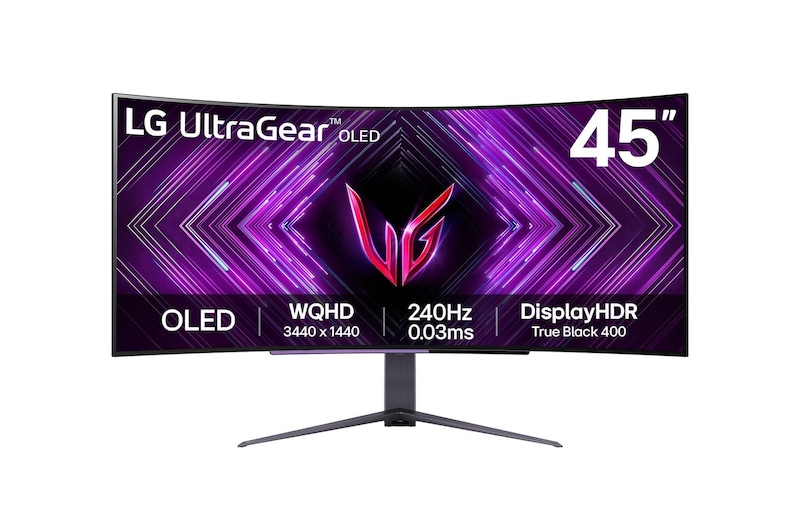

Front view

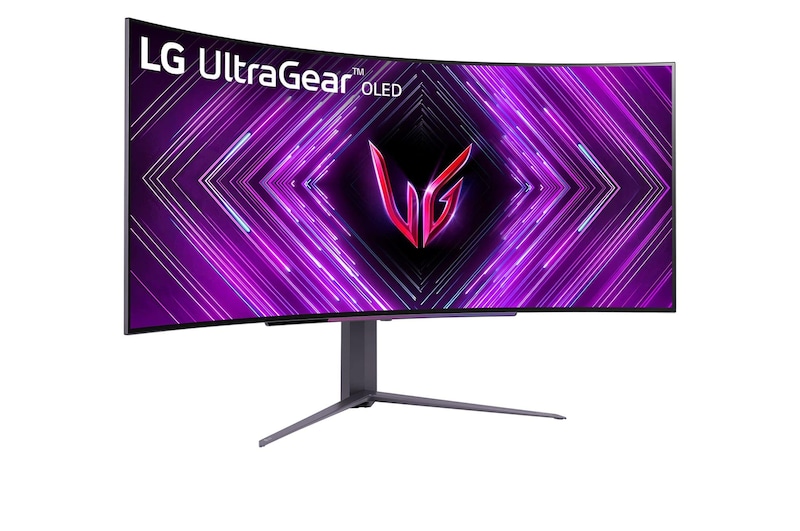

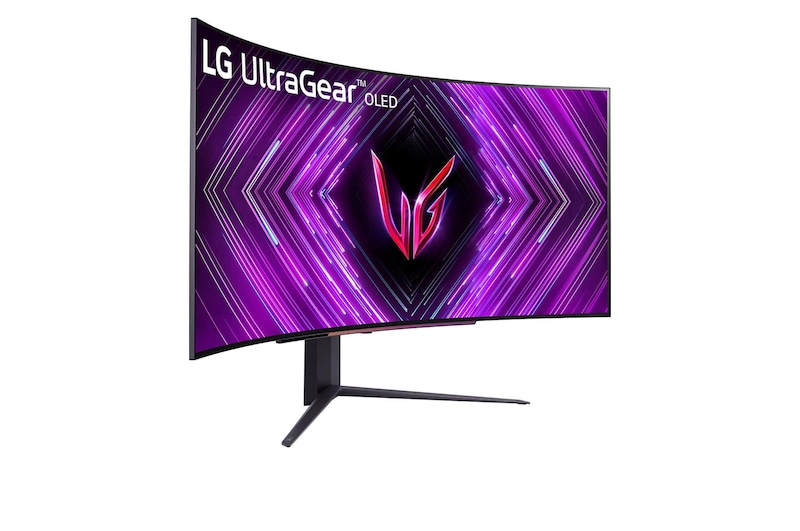

-15 degree rotated front-side view

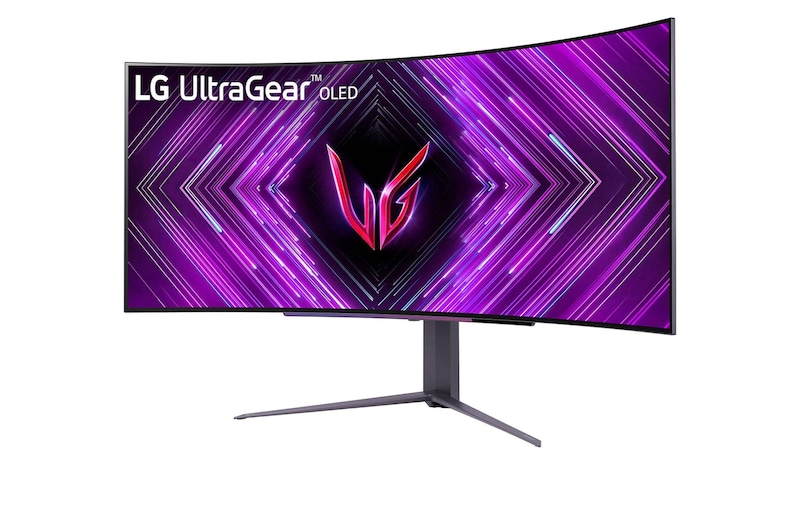

+15 degree rotated front-side view
+45 degree rotated front-side view
Side view with the light off
Side view with the light on

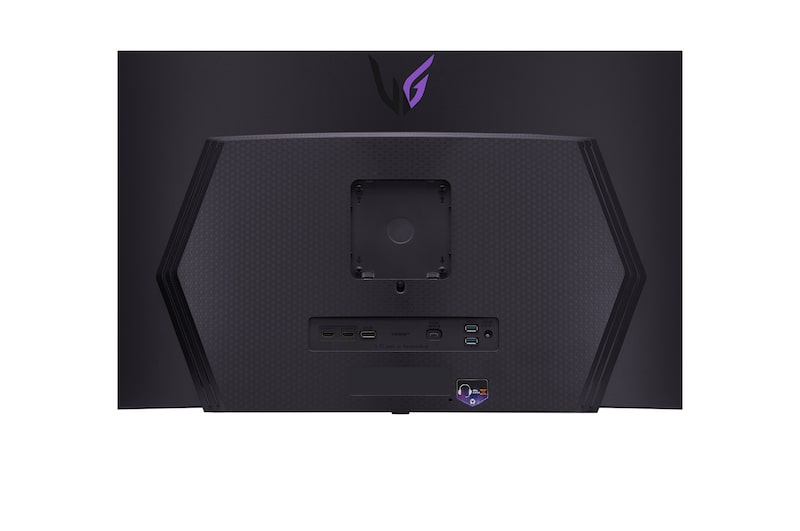

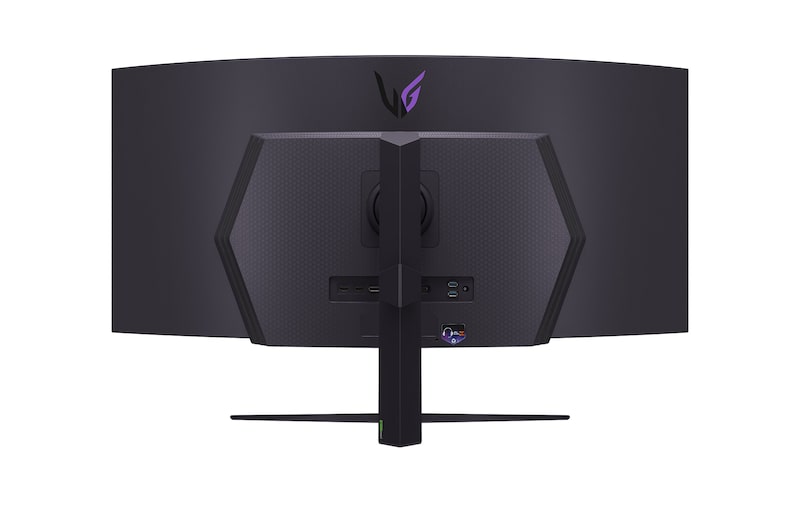

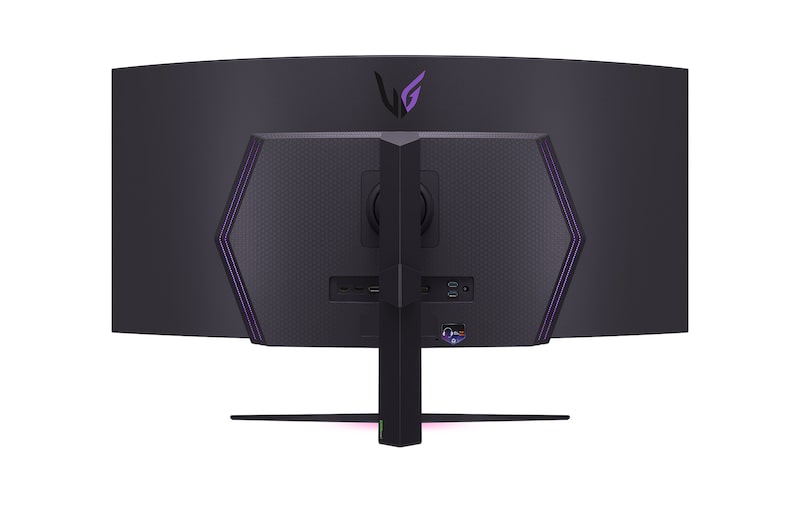

Rear view with lights off

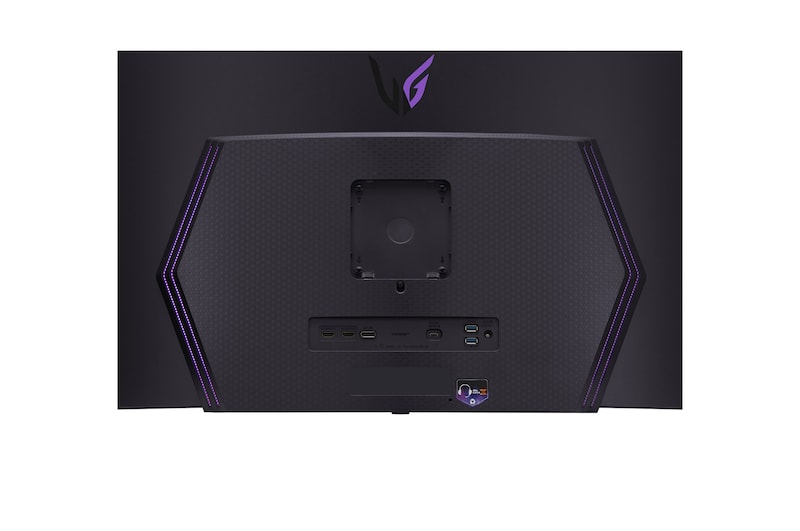

Rear view with lights on

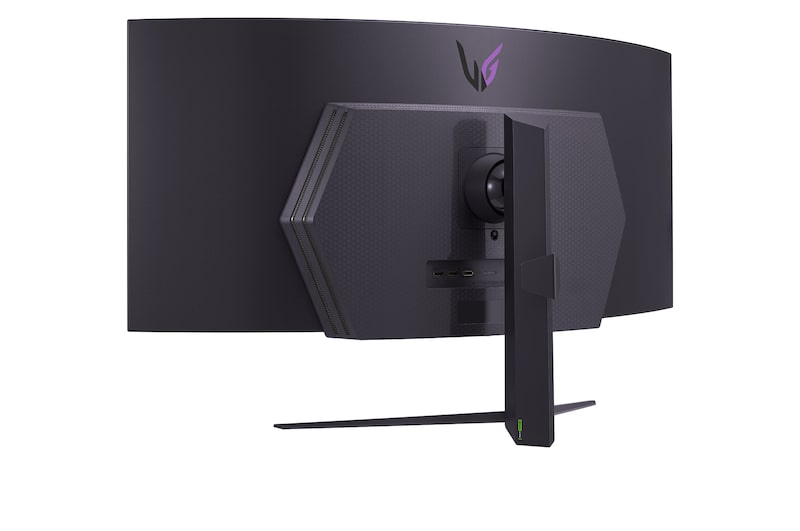

Rear perspective view lights off
Rear perspective view lights on
Zoomed-in rear view with lights off
Zoomed-in rear view with lights on

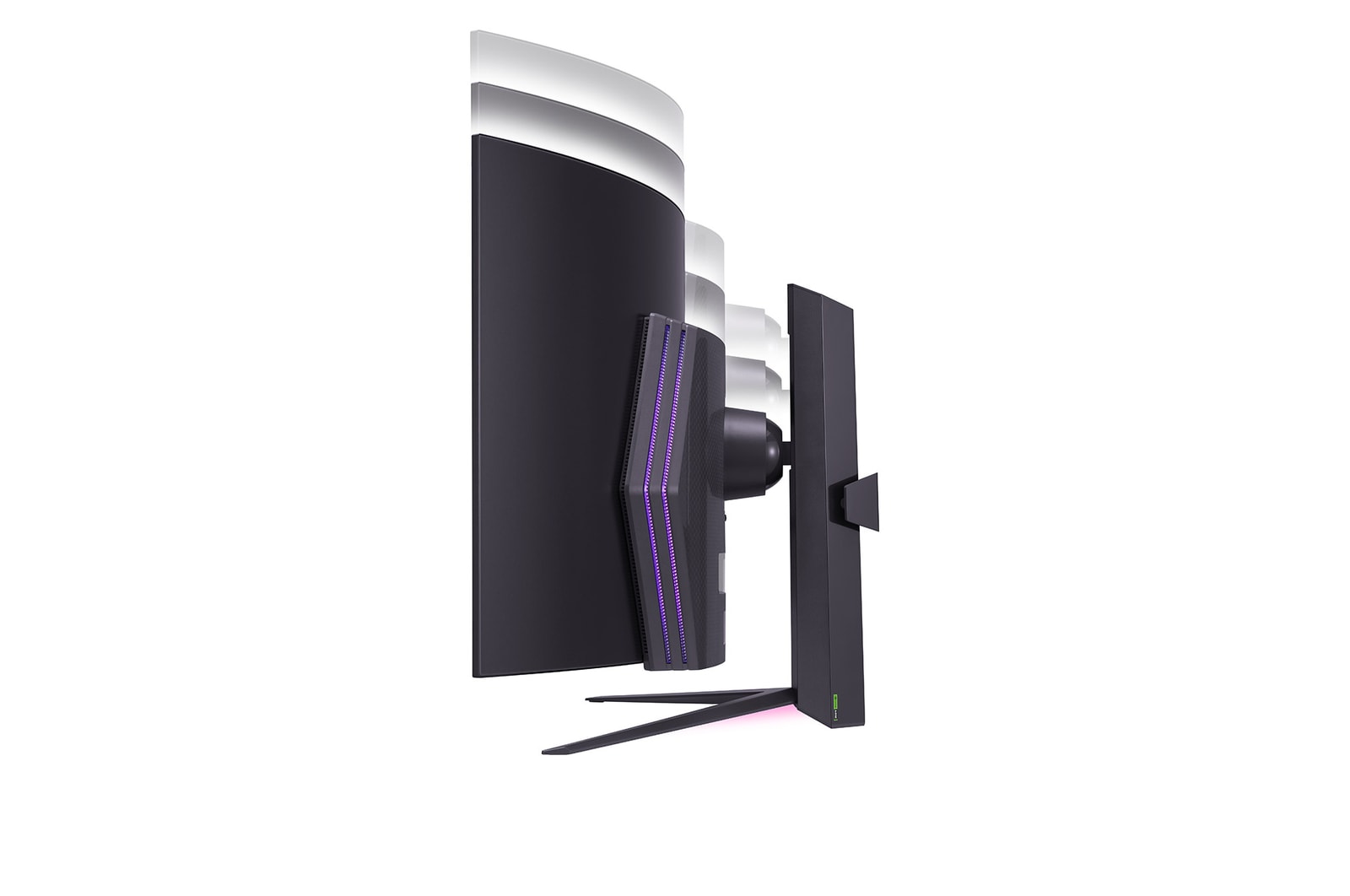

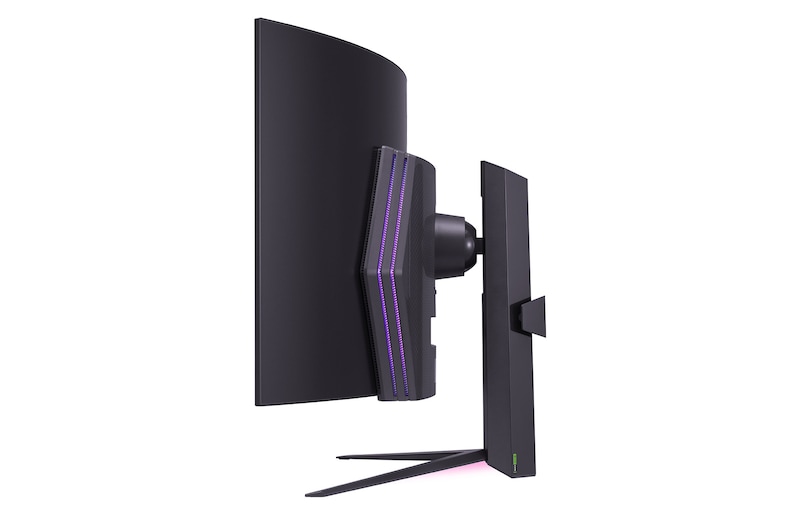

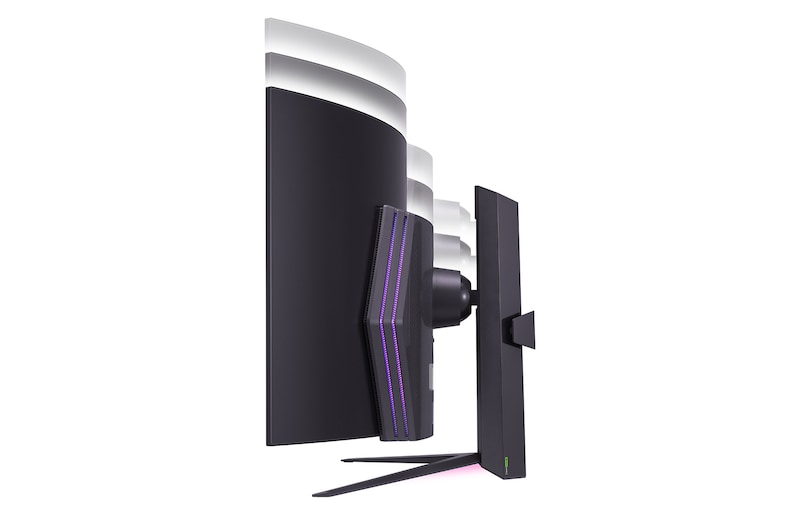

Side view of height adjustable stand with lights off
Side view of height adjustable stand with lights on
Front view
-15 degree rotated front-side view
+15 degree rotated front-side view
+45 degree rotated front-side view
Side view with the light off
Side view with the light on
Rear view with lights off
Rear view with lights on
Rear perspective view lights off
Rear perspective view lights on
Zoomed-in rear view with lights off
Zoomed-in rear view with lights on
Side view of height adjustable stand with lights off
Side view of height adjustable stand with lights on

Key Features

  • 44.5" Ultra-WQHD (3440x 1440) 21:9 800R Curved OLED

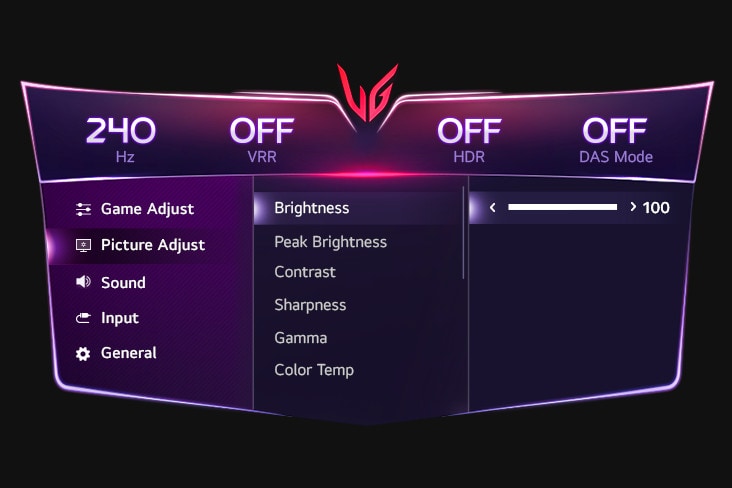

  • 275-1300 nits brightness
  • DisplayHDR True Black 400 / 1.5M:1 contrast ratio
  • OLED with 240Hz refresh rate / 0.03ms (GtG) response time
  • USB Type-C™ / DepthSound
  • NVIDIA® G-SYNC® Compatible / AMD FreeSync™ Premium Pro / VESA ClearMR
More
Print

Key Specs

  • Display - Size [Inch]

    44.5

  • Display - Resolution

    3440 x 1440

  • Display - Panel Type

    OLED

  • Display - Aspect Ratio

    21:9

  • Display - Color Gamut (Typ.)

    DCI-P3 98.5% (CIE1976)

  • Display - Brightness (Typ.) [cd/m²]

    275cd/m²

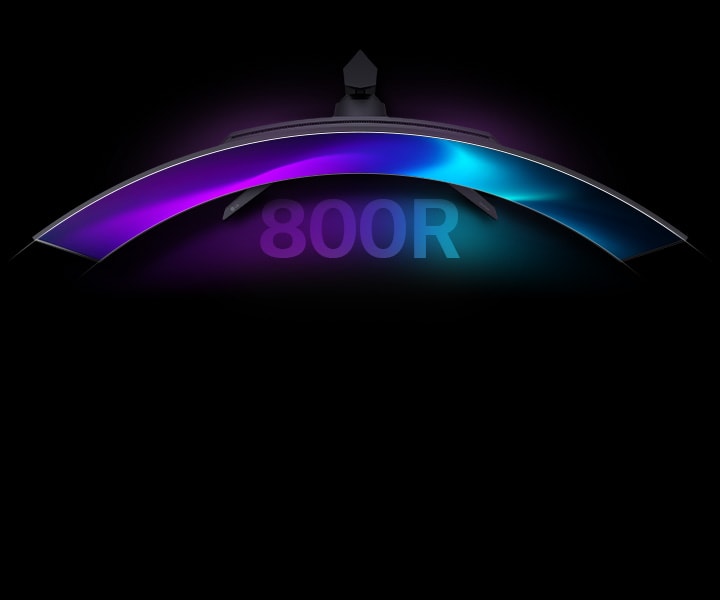

  • Display - Curvature

    800R

  • Display - Refresh Rate (Max.) [Hz]

    240

  • Display - Response Time

    0.03ms (GTG)

  • Mechanical - Display Position Adjustments

    Tilt/Height/Swivel

All specs

INFO

  • Product name

    UltraGear

  • Year

    Y24

DISPLAY

  • Aspect Ratio

    21:9

  • Brightness (Min.) [cd/m²]

    250cd/m²

  • Brightness (Typ.) [cd/m²]

    275cd/m²

  • Color Depth (Number of Colors)

    1.07B

  • Color Gamut (Min.)

    DCI-P3 90% (CIE1976)

  • Color Gamut (Typ.)

    DCI-P3 98.5% (CIE1976)

  • Contrast Ratio (Min.)

    1200000:1

  • Contrast Ratio (Typ.)

    1500000:1

  • Curvature

    800R

  • Panel Type

    OLED

  • Pixel Pitch [mm]

    0.303 x 0.303mm

  • Refresh Rate (Max.) [Hz]

    240

  • Resolution

    3440 x 1440

  • Response Time

    0.03ms (GTG)

  • Size [cm]

    113

  • Size [Inch]

    44.5

  • Viewing Angle (CR≥10)

    178º(R/L), 178º(U/D)

FEATURES

  • AMD FreeSync™

    FreeSync Premium Pro

  • Auto Input Switch

    YES

  • Black Stabilizer

    YES

  • Color Calibrated in Factory

    YES

  • Color Weakness

    YES

  • Crosshair

    YES

  • Dynamic Action Sync

    YES

  • FPS Counter

    YES

  • HDR 10

    YES

  • HDR Effect

    YES

  • HW Calibration

    HW Calibration Ready

  • NVIDIA G-Sync™

    G-SYNC Compatible

  • PBP

    2PBP

  • PIP

    YES

  • Reader Mode

    YES

  • RGB LED Lighting

    Hexagon Lighting

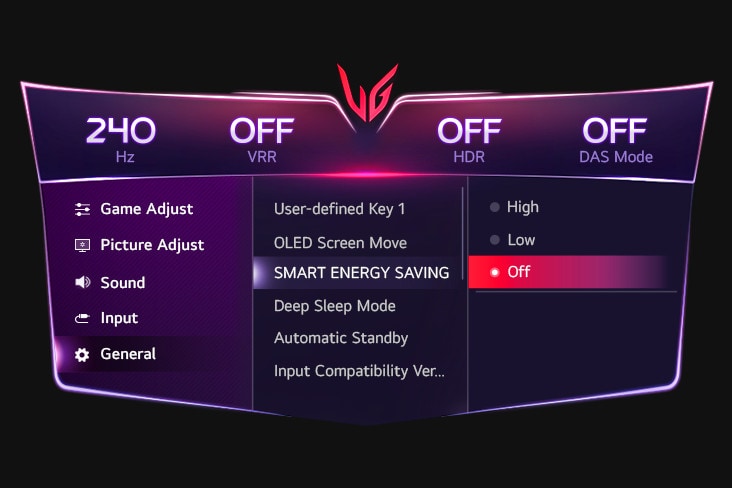

  • Smart Energy Saving

    YES

  • User Defined Key

    YES

  • VESA DisplayHDR™

    DisplayHDR™ TRUE BLACK 400

  • VRR

    YES

SW APPLICATION

  • OnScreen Control (LG Screen Manager)

    YES

  • Dual Controller

    YES

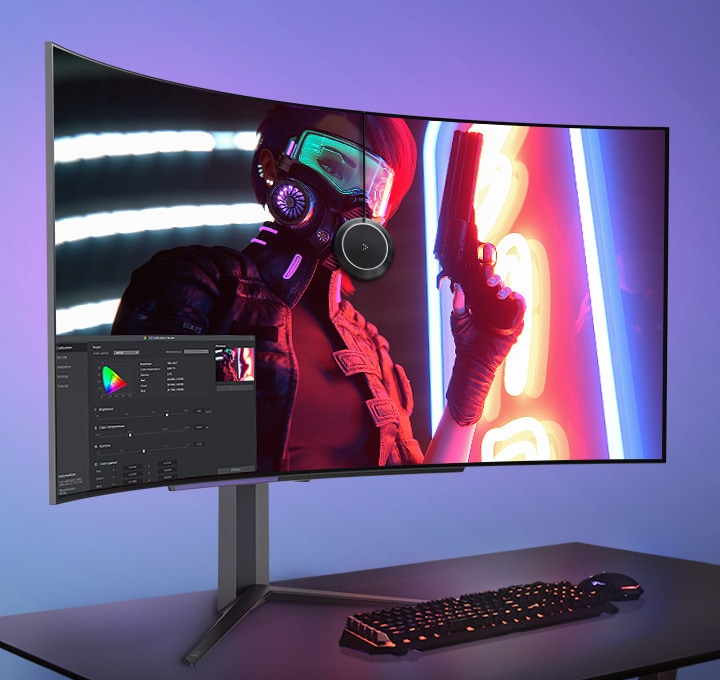

  • LG Calibration Studio (True Color Pro)

    YES

CONNECTIVITY

  • DisplayPort

    YES(1ea)

  • DP Version

    1.4 (DSC)

  • HDMI

    YES(2ea)

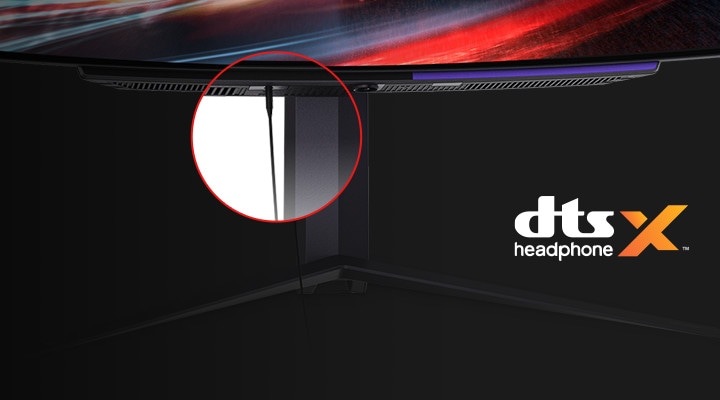

  • Headphone out

    4-Pole(Sound+Mic)

  • USB-C

    YES(1ea)

  • USB-C (Data Transsmission)

    YES

  • USB-C (Power Delivery)

    65W

  • USB Downstream Port

    YES(2ea/ver3.0)

SOUND

  • DTS HP:X

    YES

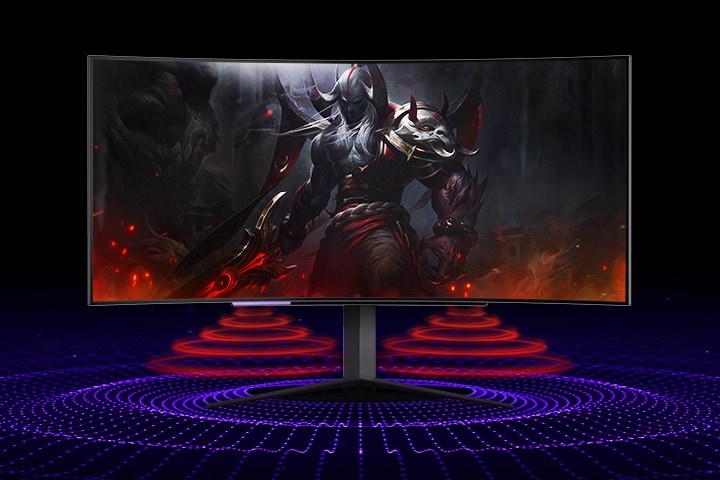

  • Speaker

    7W x 2

POWER

  • AC Input

    100~240V (50/60Hz)

  • Power Consumption (DC Off)

    Less than 0.5W

  • Power Consumption (Sleep Mode)

    Less than 0.3W

  • Type

    External Power(Adapter)

MECHANICAL

  • Display Position Adjustments

    Tilt/Height/Swivel

  • Wall Mountable [mm]

    100 x 100mm

DIMENSIONS/WEIGHTS

  • Dimension in Shiping (W x H x D) [mm]

    1100 x 317 x 550mm

  • Dimension without Stand (W x H x D) [mm]

    992.7 x 457 x 218mm

  • Dimension with Stand (W x H x D) [mm]

    992.7 x 647.7 x 362.5mm(UP) / 992.7 x 537.7 x 362.5mm(Down)

  • Weight in Shipping [kg]

    17.0kg

  • Weight without Stand [kg]

    9.0kg

  • Weight with Stand [kg]

    11.3kg

ACCESSORY

  • Display Port

    YES

  • HDMI

    YES (ver 2.1)

  • USB-C

    YES
