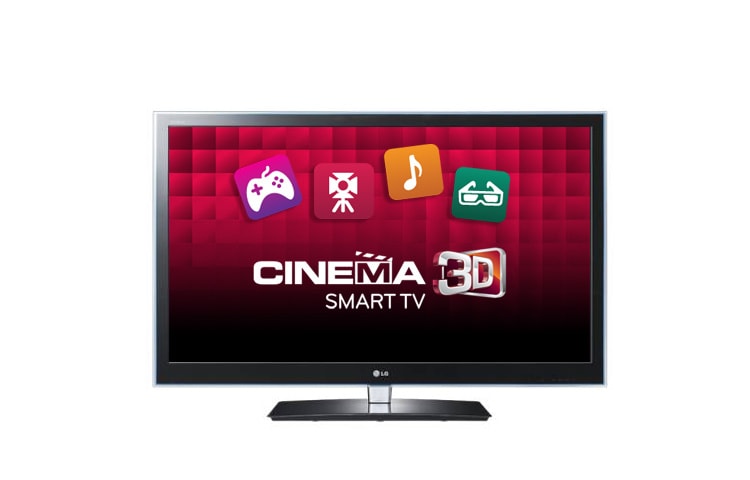

LG 47LW6500 LED, Cinema 3D – Smart TV

47LW6500

Key Features

The Next Generation 3D TV
More Comfort for Your Eyes
Comfortable CINEMA 3D Glasses
Brilliant 3D Pictures

Motion Clarity Index

Motion Clarity Index is a comprehensive indicator of the genuine clarity of high speed motion display, incorporating more than just frame rates. LG's detailed backlight scanning, advanced local dimming technology, and superb XD engine contribute to a superb performance in enhancing clarity and realism of fast-moving pictures.

Micro Pixel Control

Micro Pixel Control provides individual control of every LED block behind the screen, enabling the deepest, darkest and most natural of colors. Providing an infinite contrast ratio, images with deep black and natural colors can be achieved with efficient energy consumption.

TruMotion 200Hz

TruMotion 200Hz processes 200 frames per second, all but eliminating image blur on even the fastest action sequences. A great addition of HD 2D images, TruMotion 200Hz also helps produce the sharpest of 3D pictures.

The Next Generation 3D TV

Get ready for the finest, most cinematic 3D entertainment you've ever experienced in the comfort of your home. Forget the heavy, uncomfortable glasses and the dizzying picture quality of conventional 3D technology. You can now indulge in what 3D was meant to be, just like at the movies. The LG CINEMA 3D TV. The new standard in 3-dimensional excellence.

Flexible Positions for Greater Comfort

LG's CINEMA 3D gives you the freedom to enjoy consistently clear and bright 3D pictures in any position. Unlike conventional 3D TVs, LG's CINEMA 3D enables you to lie down or lean back without any image blackout. LG's CINEMA 3D technology provides a 3D viewing angle that is wide enough to allow bigger audiences.

All specs

VIDEO

Aspect Ratio Correction
7 Modes (16:9/JustScan/Original/4:3/14:9/Zoom/CinemaZoom)
24p Real Cinema(24p 5:5/2:2 Pull down Mode)
Yes
Expert Mode / ISF Ready
Yes
xvyCC
Yes
Picture Wizard II
Yes
Just Scan (0% overscan)
Yes

POWER

Voltage, Hz
100 ~ 240V 50/60Hz
Consumption (IEC62087 dynamic broadcast-content video signal)
150
Standby (Off mode)
0.1W↓

SPECIAL

DVR (Built-in/Ready)
Yes
Magic Motion Remote Control
Yes
Intelligent Sensor
Yes
1080p Source Input
HDMI 60p/50p/30p/24p Component 60p/50p
AV Input Navigation/ EZ Input searching
Yes
Input Labeling
Yes

TIME/CLOCK

Auto/ Manual Clock
Yes
On Time/ Off Time
Yes
Sleep Timer
Yes
Auto Off/ Auto Sleep
Yes

INTERFACE

USB 2.0
2
HDMI In
4
RF In
Yes
AV In
Yes
Component in (Y,Pb,Pr) + Audio
1
RGB In (D-sub 15pin) - PC
Yes
PC Audio Input
Yes
RS-232C (Control / SVC)
Yes
RGB In (D-sub 15pin)
Yes
LAN (For Modem)
Yes
Digital Audio Out
Yes
Phone Jack(component)
Yes
Wireless Control
Yes

3D INPUT MODE

Component
2D to 3D
RGB
T/B, S/S (1920x1080@60Hz)
USB
T/B, S/S, C/B (1080p@30Hz)
Composite
2D to 3D
RF
T/B, S/S (720p@60Hz/50Hz, 1080i@60Hz/50Hz)

WIRELESS FUNCTIONS

Wireless HD Ready
Yes
Network Solution
Amimon
Video Resolution
1080p / 60f
DRM / Content Protection
HDCP - ART
Compress / Decompress
Semi-Uncompressed
Distance
* NLOS 30m = 98.4ft
Network (Frequency)
WHDI (5GHz)

BROADBAND

NetCast™ Entertainment Access
Yes
Application Store
Yes
Search & Recommended
Yes
SKYPE Ready
Yes (NSU, 3Q)

NETWORK

Wifi
Yes (Ready, No Dongle in the Box)
PC contents Sharing (CIFS/DLNA)
Yes (DLNA Certified)
Windows 7 Certified
Yes
SIMPLINK (HDMI CEC)
Yes

EZ OSD(MENU SYSTEM)

Language
EN/FR/TH/MA/IN/AR/HE/RU/Kurd/Far/VN/SP/PO
Quick Menu
Aspect Ratio, Picture Mode, Sound Mode, Sleep Timer, Audio, Energy Saving, AV Mode, Skip On/Off, USB Device
UI Version
Yes (2011 New UI)

USB 2.0

Audio
mp3
jpeg
Video Codec
DivX3.11, DivX4.12, DivX5.x, DivX6, Xvid1.00, Xvide1.01, Xvid1.02, Xvid1.03, Xvid 1.10-beta-1/beta-2, Mpeg-1, Mpeg-2, Mpeg-4, H.264, AVC
Audio Codec
AC3(Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM
DivX Caption Fomat
smi/*.srt/*.sub(MicroDVD, SubViewer1.0/2.0)/*.ass/*.ssa/*.txt(TMPlayer)/*.psb(PowerDivx)
DiVX (SD/HD/HD Plus)
Yes (HD Plus)

3D GLASSES

Model Number
AG-F210
Light Transmittance
70%
Weight
16g
Charging time / Using time
free
Viewing distance
free
color variation(△uv)
±15


BLU Type
Edge LED Plus
Resolution
1920x1080
TruMotion
200Hz (MCI: 850Hz)
Dynamic Contrast Ratio
9,000,000:1
Response Time(MPRT)
2ms
WCC (Wide Color Control)
Yes

SOUND

Audio Output
10W+10W
Speaker System
1 Way 2 Speakers
Infinite Sound
Yes
Bass/Treble/Balance
Yes
Auto Volume
Yes
Sound Mode
5 Modes (Standard, Music, Cinema, Sport, Game)
Clear Voice II
Yes

FEATURE

3D
Yes
SIMPLINK (HDMI CEC)
Yes
USB MP3 / JPEG / DivX
Yes / Yes
USB 2.0
MP3/JPEG
DLNA
Yes

DIMENSION

SET (w/o stand)
18.2
with stand
21.0
Packing
24.8
SET (w/o stand)
1119x684x29.9
with stand
1119x749x255
Packing
1314x795x125

CINEMA 3D SPECIFCATION

SG / Cinema
Cinema
Module
FPR
Module Maker
LGD
Frequency
FHD T200Hz
3D MEMC
Yes
3D Local Dimming
Yes
Cross talk
1%
Infinite 3D Sound
Yes
Horizontal viewing angle
Yes
Head tilt angle (available to watch lying)
Yes
Converting 2D to 3D
Yes (RF, HDMI, USB, DLNA, Component, Composite, RGB)
Converting 3D to 2D
Yes (RF, HDMI, USB, DLNA, RGB)
Depth Control: 2D to 3D
'0~+20 (default : 10)
Viewpoint Control: 3D contents
-10~+10 (default : 0)
Viewpoint Control: 2D to 3D
-10~+10 (default : 0)
UI Type
2D
3D camera still picture (MPF type)
Yes
3D moving picture
3D WMV single stream

CHANNEL(PROGRAM)

Auto Tuning / Programming
Yes
Program (Channel) Edit (Add / Delete)
Yes
Program (Channel) Labeling (Name Edit)
Yes
Favorite Channel Programming
Yes
