Discontinued
BE08LU20

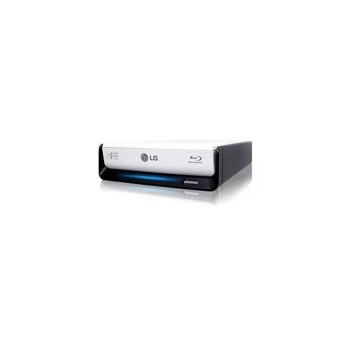

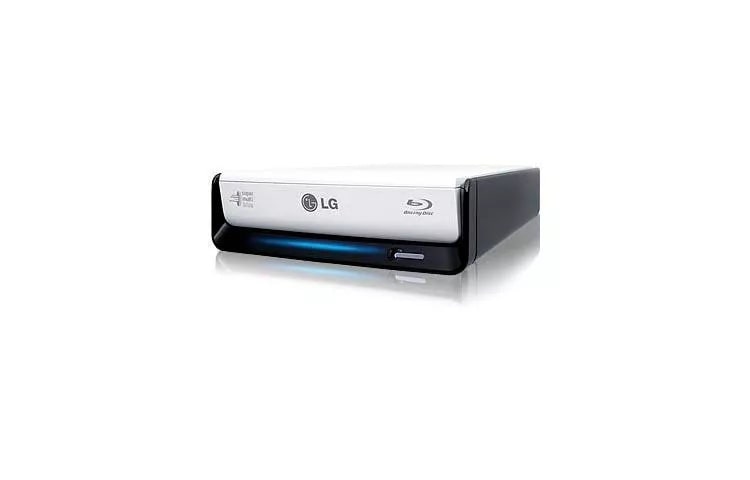

Blu-ray™ Disc Rewriter External eSATA 8x Super-Multi Blue LightScribe

Blu-ray™ Disc Rewriter External eSATA 8x Super-Multi Blue LightScribe

TYPE

    • Type
    • External Blu-ray Disc Rewriter

TRANSFER RATES - WRITE

    • BD-R (SL/DL)
    • 2x, 4x CLV, 6x, 8x PCAV / 2x,4x CLV, 6x PCAV, 8X CAV
    • BD-RE (SL/DL)
    • 2x CLV/ 2x CLV
    • CD-R
    • 8x, 16x CLV, 24x, 32x, 40x PCAV, 48x CAV
    • CD-RW
    • 4x, 10x, 16x CLV, 24x ZCLV
    • DVD+R
    • 2.4x, 4x CLV, 8x, 12x PCAV, 16x CAV
    • DVD+R DL
    • 2.4x, 4x CLV
    • DVD+RW
    • 2.4x, 4x, 6x CLV, 8x ZCLV
    • DVD-R
    • 2x, 4x CLV, 8x, 12x PCAV, 16x CAV
    • DVD-R DL
    • 2x, 4x CLV
    • DVD-RAM
    • 2x, 3x CLV, 3-5x PCAV
    • DVD-RW
    • 1x, 2x, 4x, 6x CLV
    • BD-R (SL L to H)
    • 2x CLV

TRANSFER RATES - READ

    • DVD-Video (CSS CompliantDisc)
    • 4.8x CAV (SL/DL)
    • 80mm CD
    • 16x CAV
    • BD-R (SL/DL)
    • 8x / 8x CAV
    • BD-R (SLLto H)
    • 4x CAV
    • BD-RE (SL/DL)
    • 4.8x / 4.8x CAV
    • BD-ROM (SL/DL)
    • 8x / 8x CAV
    • BDMV (AACSCompliantDisc)
    • 4.8x CAV
    • CD-DA (DAE)
    • 40x CAV
    • CD-R/RW/ROM
    • 48x / 40x / 48x CAV
    • DVD+R (SL/DL)
    • 16x / 8x CAV
    • DVD+RW
    • 10x CAV
    • DVD-R (SL/DL)
    • 16x / 8x CAV
    • DVD-RAM
    • 2x, 3x CLV, 3x-5x PCAV
    • DVD-ROM (SL/DL)
    • 16x / 12x CAV
    • DVD-RW
    • 10x CAV

LIGHTSCRIBE

    • Color
    • Mono, Color BG
    • Max Laser Write Power
    • 35mW as Objective emissio nlight of 780nm wavelength
    • Pixel Resolution
    • Best Mode: 745 TPI, Normal Mode: 535 TPI, Draft Mode: 400 TPI
    • Printing Time
    • 745 TPI: Full Label - less than 28 min. 745 TPI: Title Label - less than 3:30 min.
    • Supported disc formats
    • LightScribe MV1.2-N Single Layer DVD +/ - R Media LightScribe MV1.2-N CD-R Media

ACCESS TIME

    • BD-ROM
    • 180ms typ.
    • DVD-ROM
    • 160ms typ.
    • DVD-RAM
    • 180ms typ.
    • CD-ROM
    • 150ms typ.

SUSTAINED RATE

    • CD-ROM
    • 7,200 kB/s (48x) max.
    • DVD-ROM
    • 22.16 Mbytes/s (16x) max.
    • BD-ROM
    • 287.72 Mbits/s (8x) max.

BURST TRANSFER RATE

    • Burst Transfer Rate
    • 1.5Gbps bits/s (10b side), 1.2Gbps bits/s (8b side)

BUFFER SIZE

    • Buffer Size
    • 4MB Buffer Under-run prevention function embedded

HOST INTERFACE

    • External (Host)
    • eSATA & USB 2.0 (480Mbits/s)
    • Internal (Drive)
    • X3T13 ATA/ATAPI7 / 1532D, INF-8090i Ver.6.1, INCITS xxx T10/1675D Revision4

OPERATING SYSTEMS

    • Operating Systems
    • Windows Vista™, Windows XP

SYSTEM REQUIREMENTS

    • System Requirements
    • CPU: Pentium 4 D 3.2GHz or Higher (with USB 2.0), Pentium 4 Core 2 Duo TE6300 or higher, IBM PC or Compatible for basic performance, Graphic: AACS Compliance, RAM: 1GB or Higher, HDD: 60GB or more of available space

DIMENSIONS (WxHxD)

    • Dimensions (WxHxD)
    • 6.4" x 2.0" x 10.2" (163 x 50 x 260 mm)

WEIGHT

    • Weight
    • 3.3lbs (1500G)

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

What is the power supply requirement for an external bluray disc recorder model BEO6 LU 10 e.g. Volts and Amps

Asked by: Alan1
Please contact our Customer Interactive Center at 800-243-0000 for additional information.
Answered by: LGJoel
Date published: 2013-10-22
