Discontinued
LMHM2017SB

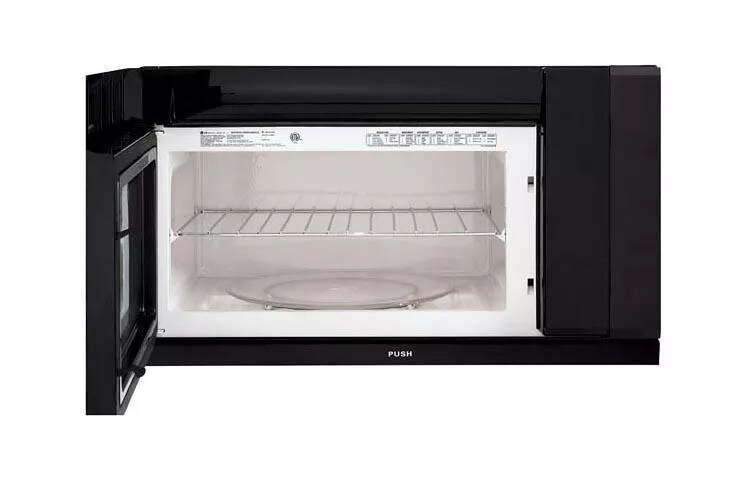

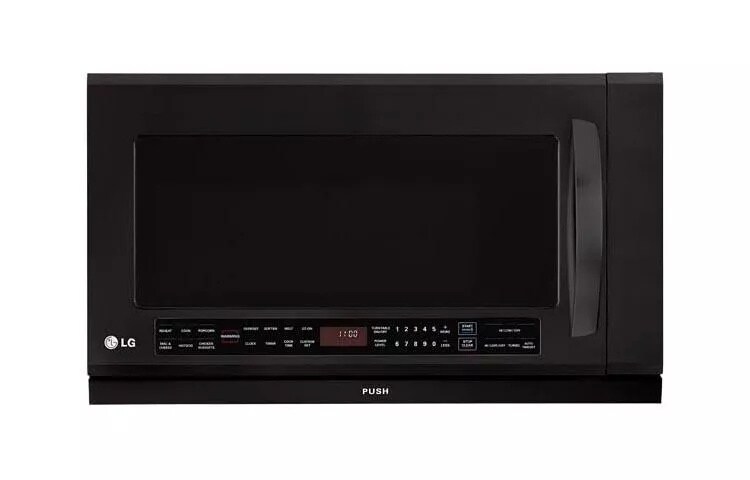

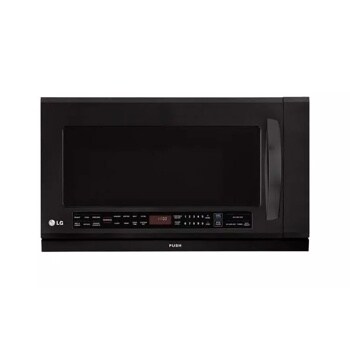

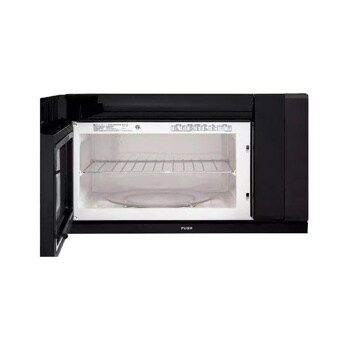

2.0 cu. ft. Over the Range Microwave Oven with Extenda™ Vent and Warming Lamp

  • Warming Lamp
  • Extenda™ Vent
  • QuietPower™ Ventilation System
  • Sensor Cooking
2.0 cu. ft. Over the Range Microwave Oven with Extenda™ Vent and Warming Lamp

COOKING FEATURES

    • Sensor Cook Options
    • 7
    • Power Levels
    • 10
    • Auto and Rapid Defrost
    • Yes
    • Popcorn Key
    • Yes
    • EZ-On
    • Yes
    • More/Less
    • Yes
    • Custom Set
    • Yes
    • Custom Cook
    • Yes

CONVENIENCE FEATURES

    • Cooking Rack
    • Bi-Level
    • Turntable Type
    • DDS
    • Turntable Diameter
    • 14.2"
    • Clock
    • Yes
    • Timer
    • Yes
    • Completion Beeper
    • Yes

LIGHTING

    • Cooktop Lighting
    • Incandescent (2)

VENTING SYSTEM

    • Filtration
    • Charcoal Filter
    • Vent Grill Type
    • Slide-Out Vent
    • Vent Air Flow (CFM)
    • 400

DIMENSIONS

    • Cavity (WxHxD)
    • 21 3/4" x 10 5/8" x 14 5/8"
    • Exterior (WxHxD)
    • 29 7/8" x 17 3/4" x 15 7/8"
    • Weight (Shipping)
    • 73.5 lbs.

SUMMARY

    • Capacity
    • 2.0 cu. ft.
    • Wattage
    • 1100
    • Exterior Design
    • WideView
    • Color
    • Stainless Steel
    • Type
    • Over-the-Range
    • Control Type
    • Digital
    • Display
    • VFD
    • Sensor Cook
    • Yes
    • Sensor Reheat
    • Yes
    • Melt/Soften
    • Yes
    • Child Lock
    • Yes
    • Warranty
    • 1 Year Parts and Labor, 10 Year Limited on Magnetron
    • Other Colors
    • White, Black

What people are saying

Rated 5 out of 5 by from Great Picture This TV has the best picture out there. The colors are very sharp. I like the remote with the pointer it makes navigating very easy. I also like the many App options available.
Date published: 2017-12-19
Rated 4 out of 5 by from It Fits! Needed microwave to fit above range. LG is perfect. Only feature I would add is a cook timer.
Date published: 2017-09-24
Rated 4 out of 5 by from GREAT FEATURES I HAVE ONLY BEEN ABLE TO USE THE DISHWASHER FOR 2 WEEKS SO FAR, THE REFRIGERATOR FOR 4 WEEKS AND THE MICROWAVE FOR 3 WEEKS. MY HUSBAND IS INSTALLING. BETWEEN WORK AND PLANNED VACATIONS IT HAS TAKEN A WHILE TO GET THE APPLIANCES HOOKED UP. STILL WAITING ON COOKTOP AND OVEN. HOPEFULLY TOMORROW ELECTRICIAN WILL GET THOSE HOOKED UP.
Date published: 2017-09-21
  • y_2020, m_9, d_17, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_27
  • loc_en_US, sid_MD00001008, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 246ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

I bought a lmhm2017SB microwave and there isn't enough room between the range and cabinet. Can I use it on the countertop?

Asked by: MLCamaro
We regret the trouble you have experienced with this microwave oven. An over the range product should never be run while sitting on the counter. This will hinder proper operations. It should be properly installed according to the installation instructions.
Answered by: NeilE
Date published: 2016-11-10

suddenly today the display is not working. no control is working. inside light comes on. what could be the problem. fuse is fine. checked.

yesterday it was working. left somethin in the oven and forgot to take it out.. today, display is off and NO control is workimg. checked the panel in the garage. it is not off. I think i may be missing something that needs reset. want to check BEFORE i call a service technician.
Asked by: mavcowboy
We regret the trouble you have experienced with this microwave oven. It is recommended to deactivate the outside circuit breaker, and then reset it. Check to see if the controls start operating again. If they do not, then the unit will likely require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2020-05-23

I would like to review the installation manual for LMHM2017SB

I do not see it online. I am considering buying it. I am replacing an existing over the range GE microwave, vented inside (recirculates). I want to review space requirements as well as understand how inside venting would be set up. Thank you
Asked by: Thrilled
Lowes has all this info available on their site.
Answered by: Carolyn11
Date published: 2014-03-13

LG lmhm2017 venting

Does the microwave come with the necessary attachments to enable external venting as some website indicate a separate external venting kit? I plan to vent out side from the top. Does this accept a standard 10"x3" rectangular vent
Asked by: Ajaynin
You can use a 3 1/4" x 10" rectangular duct or a 6" round duct. The kit is included, and the installation manual lists all the additional tools you will need to install the kit: Clear Tape (for taping the templates to the wall) Stud Finder Phillips Screwdriver Pencil Flat Blade Screwdriver Measuring Tape Small Side Cutters or Tin Snips Gloves Keyhole Saw (for the power cord hole) 3/8" and 3/4" wood drill bits 1/2" and 3/16" drill bits Plumb Line Duct Tape Caulking Gun Thank you. We appreciate your feedback, please give us a “thumbs up” if this answer is helpful to you; and please let us know if we can assist you with anything else. Have a lovely week!
Answered by: Nadine
Date published: 2013-10-22

can the LMHM2017 vent be exhausted to the outside via a duct from the top, or does it only exhaust into the kitchen?

Asked by: Anonymous
They give you two options. One to vent from the back or the top. Just depends on how your existing kitchen range is setup. It's pretty simple to adjust to either option.
Answered by: kjlang127
Date published: 2014-03-26

What is the required minimum distance between the bottom of the LMHM2017ST microwave and the top of the gas range LRG2095ST?

Asked by: PJLema
There is no definite minimum distance. We recommend checking with your local building inspector to see what the recommended distance is.
Answered by: LGJoel
Date published: 2013-10-22

Microwave thought a fire might start, now fan inside micro won't stop running

Something got overcooked in micro, and the system started a cooling fan (internal) and it has been going on for 6 hours straight. How do I turn it off?
Asked by: kath2188
Turn off at you home's circuit breaker box.
Answered by: neilolder
Date published: 2013-10-22

Does the necessary mounting hardware come with the LMHM2017SB over the range microwave?

Asked by: Chuck
yes, everything we needed was in the box...
Answered by: jude37
Date published: 2013-10-22
