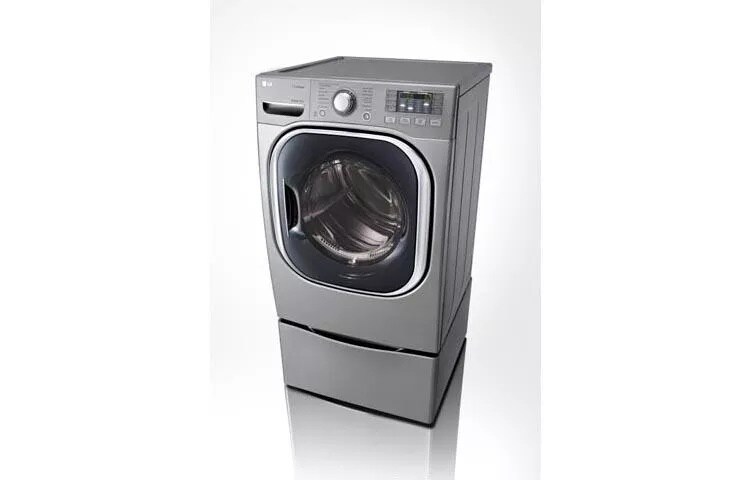

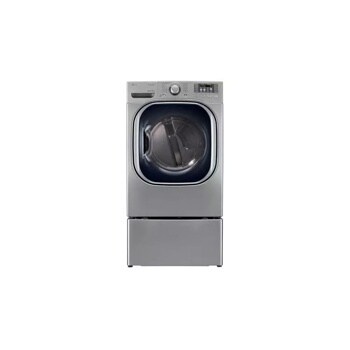

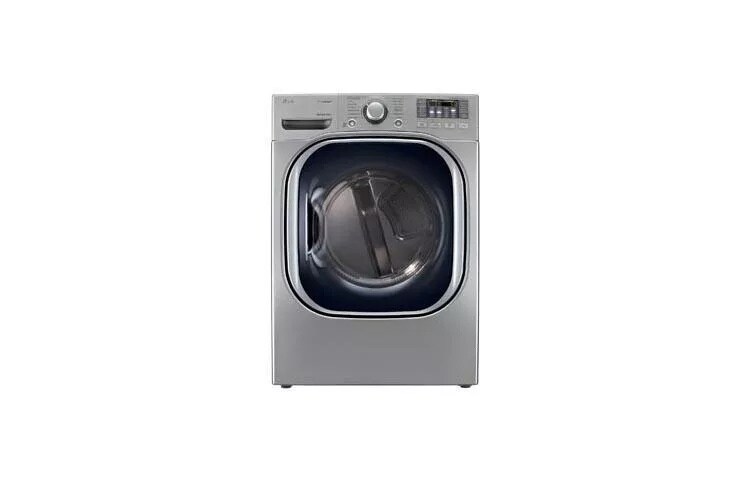

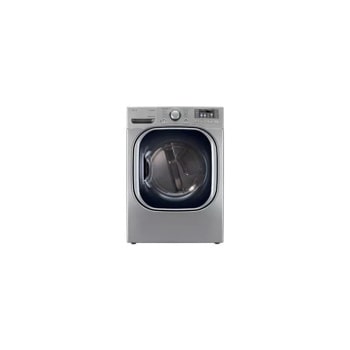

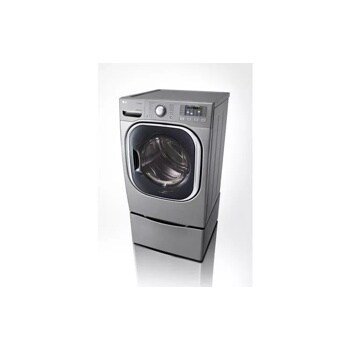

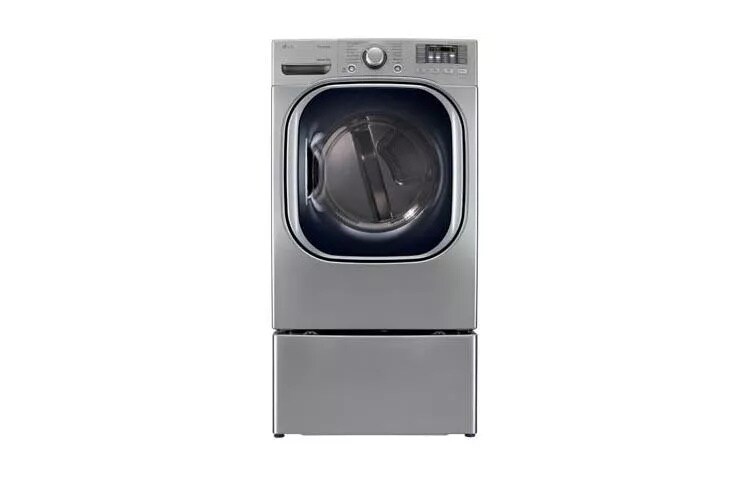

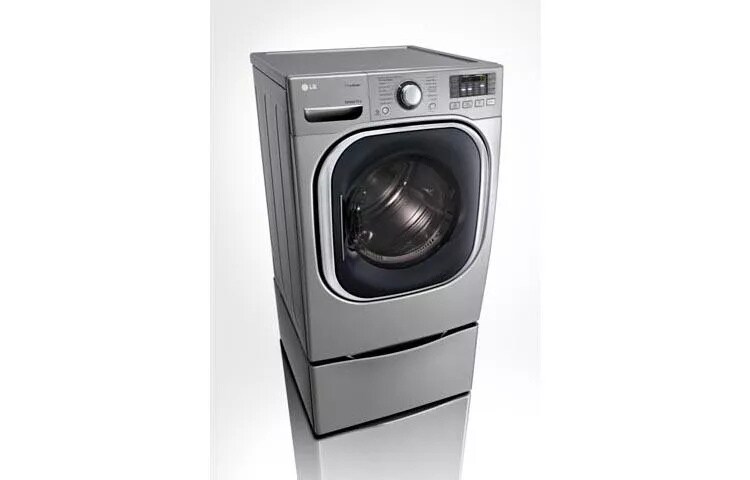

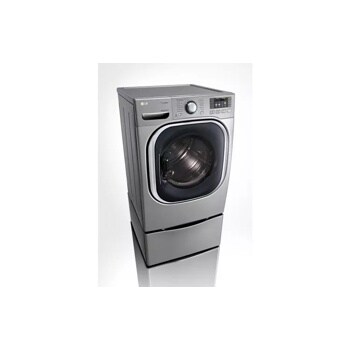

7.4 cu. ft. Ultra Large Capacity SteamDryer™ (Electric)

  • DLEX4070V

  • Graphite Steel

Key Features

  • 7.4 cu. ft. Ultra Large Capacity
  • TrueSteam™ Technology
  • SteamFresh™ Cycle
  • SteamSanitary™ Cycle
AVAILABLE COLORS:
Big time saver

Big time saver

Do laundry a little less often. With 7.4 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

Smooth operator

Smooth operator

A lot of those drying headaches can be a thing of the past. Our TrueSteam™ Technology generates real steam to reduce wrinkles and odors, and practically eliminates the need for ironing.

The quick fix

The quick fix

Late for the party and no time to iron your favorite outfit? The SteamFresh™ Cycle refreshes, and reduces wrinkles in up to five garments at a time with one 20-minute dryer cycle.

Wash the unwashable

You probably wish you could clean your throw pillows or children’s toys. With the SteamSanitary™ Cycle, you can. It uses steam to safely sanitize items marked as non-washable.

Really dry clothes

Really dry clothes

What’s worse than pulling clothes out of the dryer and finding they’re still damp? Our Sensor Dry system measures the moisture levels during the cycle and automatically adjusts the drying time, to help ensure you get dry laundry every time.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

SUMMARY
Dryer Type Electric
Stackable Yes
SteamDryer™ Yes
CAPACITY
Capacity 7.4 cu. ft.
APPEARANCE
Design Look Front Control
Intelligent Electronic Controls with Dual LED Display Yes
Dial-A-Cycle™ Yes
DRYING PROGRAMS
No. of Programs 14
Programs (Sensor Dry) Cotton/Normal, Perm. Press, Towels, Delicates, Heavy Duty, SteamFresh™, SteamSanitary™, Bulky/Large, Anti-Bacterial, Eco Dry, Sports Wear
Programs (Manual Dry) Speed Dry, Air Dry, Rack Dry
No. of Options 11
Options More Time, Less Time, Custom Program, Damp Dry Signal, Wrinkle Care, Child Lock, ReduceStatic™, EasyIron™, Rack Dry, End of Cycle Signal, Drum Light
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
FABRIC CARE FEATURES
SteamFresh™ Cycle Yes
SteamSanitary™ Cycle Yes
ReduceStatic™ Option Yes
EasyIron™ Option Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Anti-Bacterial Cycle Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
3 Minute Installation Check Yes
Drying Rack Yes
Drum Light Yes
Venting Option 4 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
MATERIALS AND FINISHES
NeveRust™ Stainless Steel Drum Yes
Top Plate Painted Steel
Cabinet Painted Steel
Control Panel Plastic
Transparent Glass Door Yes
Available Colors White (W), Graphite Steel (V)
Door Rim Large Square Chrome Rimmed Glass Door with Dark Blue Tinted Cover
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 240V, 30 Amps
Type Electric
OPTIONS
Pedestal WDP4V
Pedestal (WxHxD) 27" x 13 3/5" x 28 2/5"
Stacking Kit KSTK1
Side Venting Kit 3911EZ9131X
DIMENSIONS
Product (WxHxD) 27" x 38 11/16" x 29 3/4" (51" D with door open)
Carton (WxHxD) 29 1/2" x 42 1/4" x 31 1/4"
Weight (Product/Carton) 147.4 lbs./165 lbs.
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor
UPC 048231 012843

What People Are Saying

Rated 4.6 out of 5 by 36 reviewers.
Rated 5 out of 5 by Very Happy I love my new dryer. It works so well and has so many options. My clothes dry quickly, it's quiet and I am very happy I bought the unit. August 18, 2015
Rated 5 out of 5 by We love LG We are more prone to buy LG because of the reliability and the products are user friendly August 4, 2015
Rated 5 out of 5 by Efficient and Speedy Love the dryer for its speed and efficiency. I runs quiet and does a really nice job on drying clothes just the way you'd like them to be dried. I love the flat drying rack for sweaters. Very nicely designed and has an array of features for every drying need. I highly recommend this item. May 5, 2015
Rated 5 out of 5 by Great dryer This dryer is fantastic if your house is not equipped with a gas line. We had the gas equivalent in my previous house. Much more efficient but that is normal. This electric dryer is a solid second to the gas version. I would definitely spend the cash for this dryer if you don't have a gas hook up. February 18, 2015
Rated 5 out of 5 by Dryer is fast This dryer is fast and clothes come out wrinkle free. I like the features and the look of my washer and dryer. We have had units for a couple of months and so far everything has been great. Washing clothes is no longer a chore. I get my laundry done super fast and don't have as much ironing now. February 10, 2015
Rated 5 out of 5 by Super quiet! Bought as a replacement for a dryer that had always given us problems...now we actually know what a properly working dryer is like. It's so super quiet that we don't even know it's on. Love that it actually dries our clothes in the anticipated time. It's our first LG...but it won't be our last! January 17, 2015
Rated 5 out of 5 by Great dryer!! I LOVE this dryer. It dries the load very quickly and the steam cycle is AWESOME. October 14, 2014
Rated 5 out of 5 by Satisfied customer This dryer is the best thing since sliced bread. It dry's clothes in half the time my other dryer did. It is easy to set the dryer for what you are drying. I like the rack that you can put shoes on. It looks great next to my matching washer. October 23, 2014
  • 2015-08-27T13:35:37.011-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_36, tr_36
  • loc_en_US, sid_MD05020440, prod, sort_default
2 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

12 Questions & 14 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Do you need a seperate water source to the dryer for the steam feature to work? Or does it use the wetness of the clothes to make it produce the steam. If a water source is needed do I have to use the steam option. I wish I could find a dryer like this with out the steam dry option. Thank you
Category: I do not own this product
Interested in: Specifications

Products related to my question

DLGX2802W
5 out of 5(5)






1 year, 10 months ago
User Name:
purdyenough

Please wait while more information about purdyenough is loaded.
Additional information about purdyenough could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
No. There is a reservoir that you will have to periodically fill. Be sure to use filtered water to reduce the amount of scale build up from regular water. Do not use distilled water (check with the Owner's Manual first). I would recommend downloading the Owner's Manual as 90% of questions will be answered there.
Gender: male
6 months ago
User Name:
Toonces
Lumberton, TX, USA

Please wait while more information about Toonces is loaded.
Additional information about Toonces could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
No
Gender: female
1 year, 9 months ago
User Name:
MomMary1
Milford, CT, USA

Please wait while more information about MomMary1 is loaded.
Additional information about MomMary1 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

2 answers

clearance

What should the clearances be on the sides and back of this product?
Category: I do not own this product
1 year, 5 months ago
User Name:
Noraleon

Please wait while more information about Noraleon is loaded.
Additional information about Noraleon could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Your best best is to download the Owner's Manual.
Gender: male
6 months ago
User Name:
Toonces
Lumberton, TX, USA

Please wait while more information about Toonces is loaded.
Additional information about Toonces could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
We appreciate your interest in this electric dryer. According to the information on page 13 of your owner’s manual, it will be necessary to allow 5” of clearance behind the dryer, and a minimum of 1” on both the left and right sides of the unit itself.
1 year, 4 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

2 answers

can I change the right side henged door to a left side henged door

Tis is an LG 7.4 Ultr Large Capacity Steamdryer DLEX4070V
Category: I own this product
1 year, 4 months ago
User Name:
shicks
Orlando, FL, USA

Please wait while more information about shicks is loaded.
Additional information about shicks could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Your best bet is to download the owner's manual
Gender: male
6 months ago
User Name:
Toonces
Lumberton, TX, USA

Please wait while more information about Toonces is loaded.
Additional information about Toonces could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
We appreciate your interest in this electric dryer. The dryer door can be reversed according to the directions listed on page 16 of the owner’s manual. These pages have pictures to help walking through this procedure, step by step.
1 year, 4 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
1 year, 3 months ago
User Name:
Exdev

Please wait while more information about Exdev is loaded.
Additional information about Exdev could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
YES.
Gender: female
3 months, 3 weeks ago
User Name:
DesertDiva
Chandler, Arizona

Please wait while more information about DesertDiva is loaded.
Additional information about DesertDiva could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
I don't think so. Most electric dryers are not E-star certified. It's CSA listed but that is not the same.
Gender: male
6 months ago
User Name:
Toonces
Lumberton, TX, USA

Please wait while more information about Toonces is loaded.
Additional information about Toonces could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
Interested in: Specifications

Products related to my question


2 years, 8 months ago
User Name:
BCM1

Please wait while more information about BCM1 is loaded.
Additional information about BCM1 could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
This model requires 240V, 30 Amps
Thank you, have a great day!
2 years, 6 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
-2points
0out of 2found this answer helpful.
HelpfulNot Helpful
