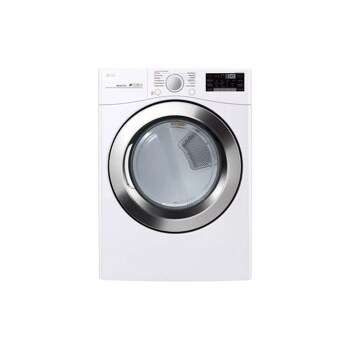

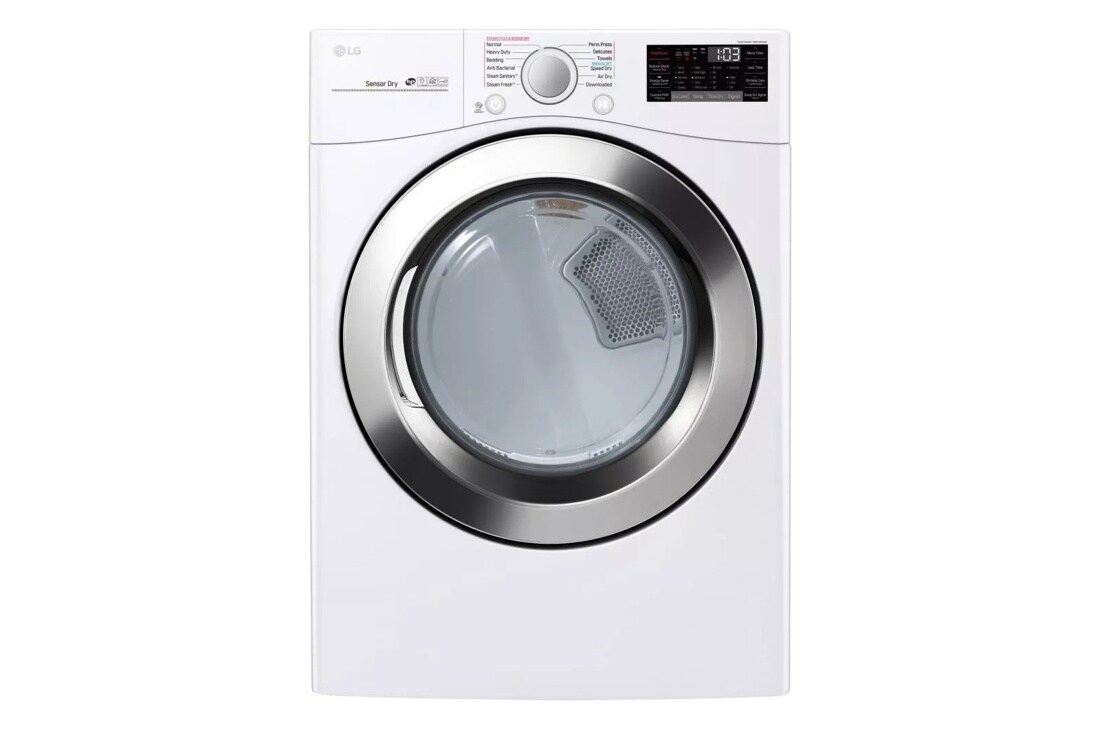

DLGX3701W

7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled SteamDryer™

KEY FEATURES

  • 7.4 cu. ft. Ultra Large Capacity
  • TurboSteam™ Technology
  • ThinQ® Technology
  • Sensor Dry
  • FlowSense™ Duct Clogging Indicator
  • ENERGY STAR® Certified
7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled SteamDryer™

SUMMARY

    • Type
    • Front Load Dryer
    • Capacity
    • 7.4 cu. ft.

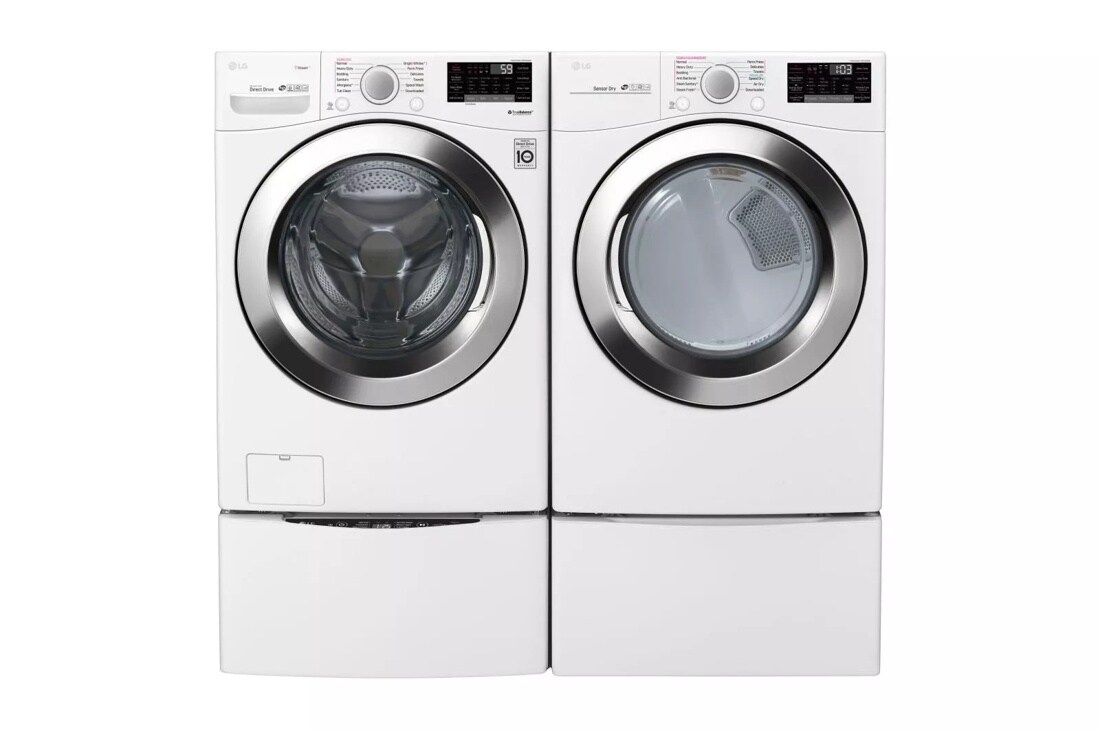

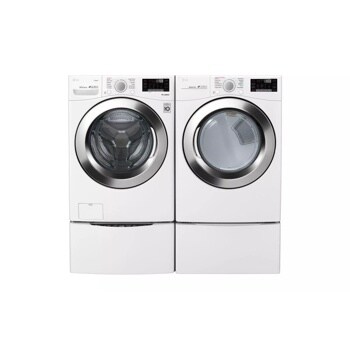

    • Matching Washer
    • WM3700HWA
    • Sensor Dry
    • Yes
    • Steam
    • Yes
    • Colors
    • White (W), Graphite Steel (V)

APPEARANCE

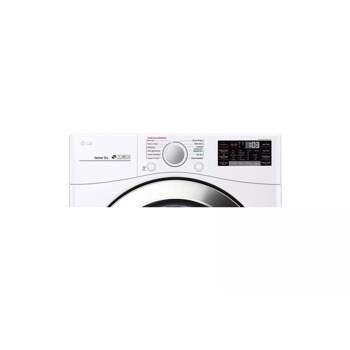

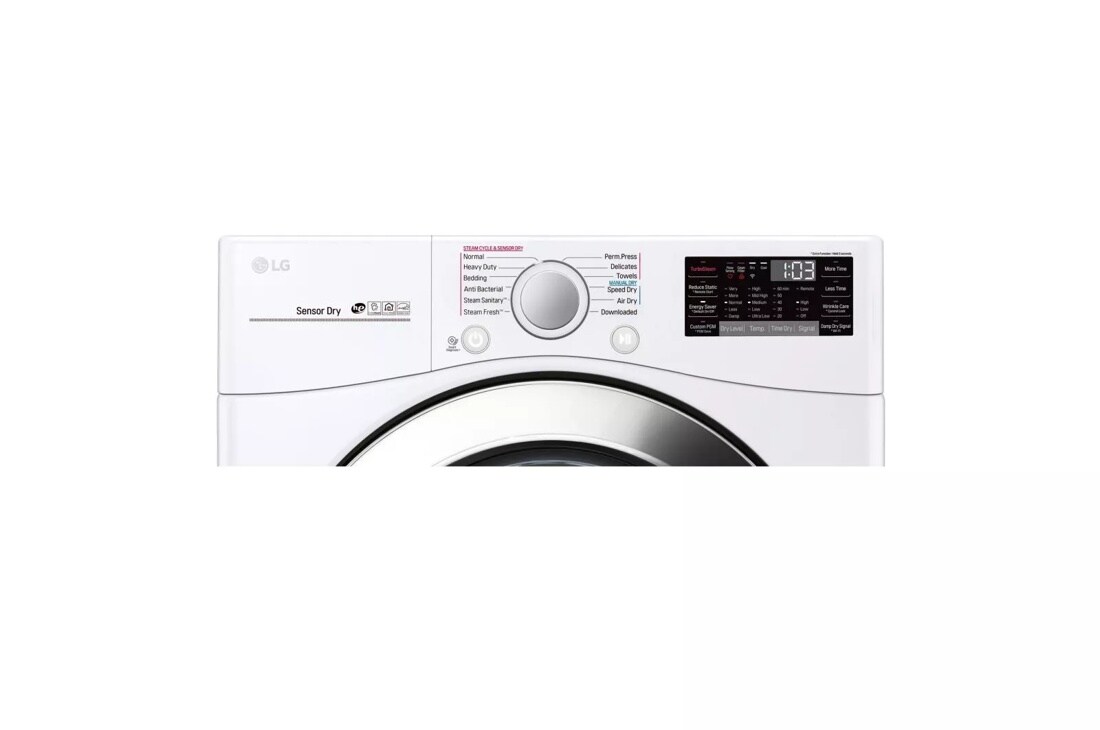

    • Intelligent Electronic Controls with LED Display
    • Yes
    • Dial-A-Cycle™
    • Yes
    • Touch Buttons
    • Yes

DRYER PROGRAMS

    • No. of Programs
    • 12
    • Programs
    • Normal, Heavy Duty, Bedding, Anti Bacterial, SteamSanitary™, SteamFresh™, Perm. Press, Delicates, Towels, Speed Dry (Manual Dry), Air Dry (Manual Dry), Downloaded

DRYER OPTIONS

    • No. of Options
    • 12
    • Options
    • More Time, Less Time, Damp Dry Signal, Wrinkle Care, Control Lock, Custom Program, PGM Save, Wi-Fi Connect, Energy Saver, TurboSteam™, Reduce Static, Remote Start
    • Temperature Settings
    • High, Medium High, Medium, Low, Ultra Low
    • Drying Levels
    • Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
    • Manual Dry Times
    • 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time

FABRIC CARE FEATURES

    • Sensor Dry
    • Yes
    • Precise Temperature Control with Variable Heater
    • Yes
    • Steam
    • TurboSteam™

CONVENIENCE FEATURES

    • 3 Minute Installation Check
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes
    • End of Cycle Signal
    • Yes
    • Drum Light
    • Yes
    • Reversible Door
    • Yes
    • FlowSense™ Duct Clogging Indicator
    • Yes
    • Wrinkle Care Option
    • Yes
    • Child Lock
    • Yes
    • Venting Option
    • 3 Way Venting
    • 4 Adjustable Legs
    • Yes
    • Remaining Time Display/Status Indicator(s)
    • Yes

THINQ® SMART FEATURES

    • SmartDiagnosis™
    • Yes
    • Wi-Fi
    • Yes
    • Remote Start
    • Yes
    • Cycle Monitoring and Notification
    • Yes
    • Energy Monitoring
    • Yes (WiFi)

ENERGY

    • ENERGY STAR® Qualified
    • Yes
    • CEF
    • 3.49

MATERIALS AND FINISHES

    • Aluminized Alloy Steel Drum
    • Yes
    • Tub Rear
    • Painted
    • Cabinet
    • Painted Steel
    • Door
    • Round w/ Chrome trim
    • All Available Colors
    • White (W), Graphite Steel (V)

POWER SOURCE

    • Ratings
    • CSA Listed
    • Electrical Requirements
    • 120V, 15 Amps
    • Type
    • Gas
    • BTU Rating
    • 10,000 Feet

OPTIONS

    • LP Conversion Kit
    • LPK1
    • Side Venting Kit
    • 383EEL9001B

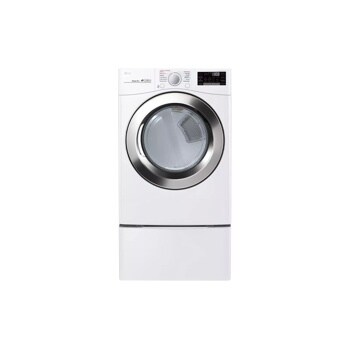

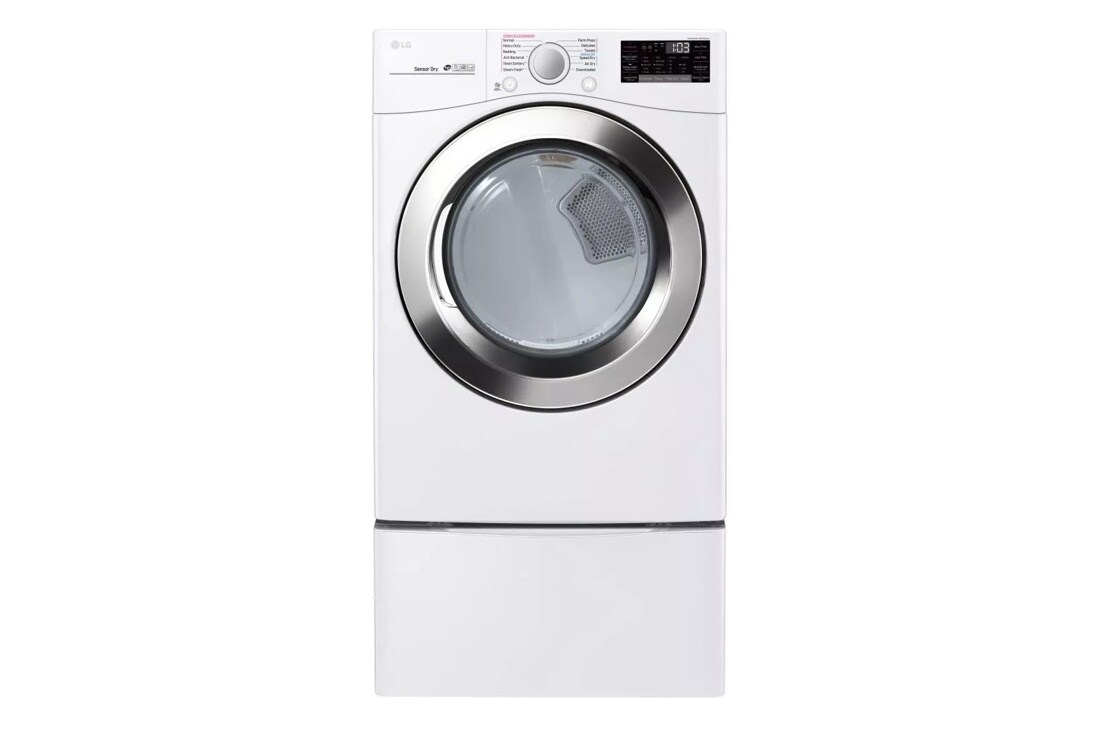

    • Pedestal
    • WDP4W
    • Pedestal (WxHxD)
    • 27" x 14 1/8" x 30 3/4" (50 1/2" D with door open)

DIMENSIONS/CLEARANCES/WEIGHTS

    • Product (WxHxD)
    • 27" x 38 11/16" x 30"
    • Depth with Door Open
    • 51"
    • Carton (WxHxD)
    • 29 19/32” x 43 3/8” x 31 3/8”
    • Weight (Product)
    • 125.7
    • Weight Carton
    • 138.9

WARRANTY

    • Parts & Labor
    • 1 Year

UPC CODES

    • UPC
    • 048231024976

What people are saying

Rated 5 out of 5 by from LG Electronics - DLGX3701W This dryer is awesome. I would recommend this dryer to my friend. I already have several LG products and have always been satisfied.
Date published: 2021-04-02
Rated 5 out of 5 by from Great washer and dryer I bought this combo from Costco, I trust LG. From my experience if you buy LG you don’t need to worry about quality, durability and warranty service. I only used old regular washer and dryer. It’s my first smart washer and dryer. They sense load of laundry and use right amount water, washing time and heat amount. Very quiet and sturdy.
Date published: 2021-03-23
Rated 1 out of 5 by from Great features when it’s working! I bought this machine thinking that I wouldn’t have to worry, it cost enough.But I was wrong,, haven’t had it 6 months it began to make noise.LG tech came out said rollers where bad replaced rollers and pulley.Noise came back 10 day later, Tech called yesterday and said he had to order new upgrade rollers!! This machine doesn’t run much makes loud noises. Sound like drum bouncing! Waiting on new parts so we will see he said motor next if this doesn’t fix problem!! He told me I happen to get a one percent her it has problems
Date published: 2021-03-20
  • y_2021, m_4, d_10, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_285
  • loc_en_US, sid_MD05981697, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 5ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

My dryer is not getting hot I’ve been on hold wit lG for 40 min is there anything I can do myself to fix it

Asked by: Cocoachanel
I had the same issue with my dryer and the reason it was not getting hot was that the ducts were clogged with lint and until I cleaned them out, the dryer would not get hot. You can check to see if your ducts are clogged to see if they need cleaning. The ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled SteamDryer™, Model # DLGX3701W has a Flow Sense™ duct blockage sensing system that detects and alerts you to restrictions in the installed household ductwork that reduce exhaust airflow through the dryer. If you see the alert: Clean or repair the ducts to remove the restrictions. Keeping your ducts clean helps increase efficiency and reduce long drying times caused by blocked ducts. Page 27 of your installation manual has explicit instructions for how to use the Flow Sense™ duct blockage sensing system. If you need another copy of the owner's manual, please visit us at https://www.lg.com/us/support/product/lg-DLGX3701V.ASSEEUS where you can download and printout a PDF copy of the owner's manual...^IFV
Answered by: Ivanf
Date published: 2020-10-02

I need a 90 degree dryer elbow vent for this unit. What would work for this dryer?

Asked by: lowkey
Use only 4-inch (10.2 cm) rigid, semi-rigid or flexible metal ductwork inside the dryer cabinet and for venting outside. To reduce the risk of fire, combustion, or accumulation of combustible gases, DO NOT exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling, crawl space, chimney, gas vent, or concealed space of a building. To reduce the risk of fire, DO NOT exhaust the dryer with plastic or thin foil ducting.The exhaust duct must be 4-inch (10.2 cm) in diameter with no obstructions. The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer. Rigid, semi-rigid or flexible metal ducting is recommended for use between the dryer and the wall. All non-rigid metal transition duct must be UL-listed. Use of other materials for transition duct could affect drying time. DO NOT use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efficiency of the exhaust system. Secure all joints with duct tape.
Answered by: ChrisPSM
Date published: 2020-09-04

When looking at it from the front, can DLGX3701 vent through the right side panel? I see a knock-out in the metal on both the right and left side.

Asked by: DIY SS
Right-side venting is not available on the ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart Wi-Fi Enabled SteamDryer™, Model # DLGX3701W or on our Gas Dryers (that would be the left-side if standing in front of the dryer)...^IFV
Answered by: Ivanf
Date published: 2020-03-05

Does the DLGX3701 dryer have a stainless interior?  Also can it be converted to LP gas?

Asked by: TeriC
The ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled SteamDryer™, Model # DLGX3701W has an Aluminized Alloy Steel Drum. For the LP Conversion Kit order part number 383EEL3002D...^IFV
Answered by: Ivanf
Date published: 2020-01-20

I want to replace my LG dlg2526w with the dlgx3701w. I have the pedestal model wdp3w. Can I use that with the dlgx3710w?

Asked by: Jawblahblah
Yes, the WDP3W is compatible with the DLGX3701W.
Answered by: ChrisPSM
Date published: 2020-01-03

I have a tight closet, will this appliance fit in a closet with a depth of 35inches?

Asked by: CitySlicker19
The ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled SteamDryer™, Model # DLGX3701V has a depth of 30" and the recommended installation clearance spacing for the rear is 5"...^IFV
Answered by: Ivanf
Date published: 2020-01-29

Is this model compatible with the WDP3W pedestal?

Asked by: Mark45
You can install the 27" LG Laundry Pedestal, Model # WDP3W under the ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled SteamDryer™, Model # DLGX3701W...^IFV
Answered by: Ivanf
Date published: 2019-11-07

DLGX3701W Gas Dryer. How does the exhaust gas vent? Does the 'exhaust gases' vent through the clothes dryer vent or does this gas dryer require a separate natural gas exhaust vent?

Asked by: Endo27
The ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled SteamDryer™, Model # DLGX3701W has to be connected to a vent duct so the lint and any excess gasses in the dryer escape to the outside of your home. That is why it is important for the dryer to be vented properly to an outside location, and the vent hose must be a flexible or rigid metal pipe and not a nonmetallic flexible hose...^IFV
Answered by: Ivanf
Date published: 2019-10-23
