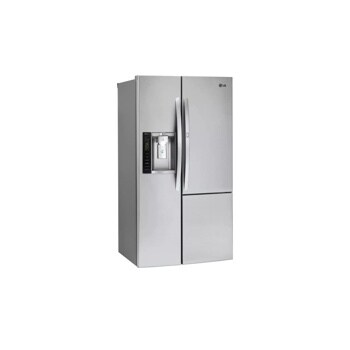

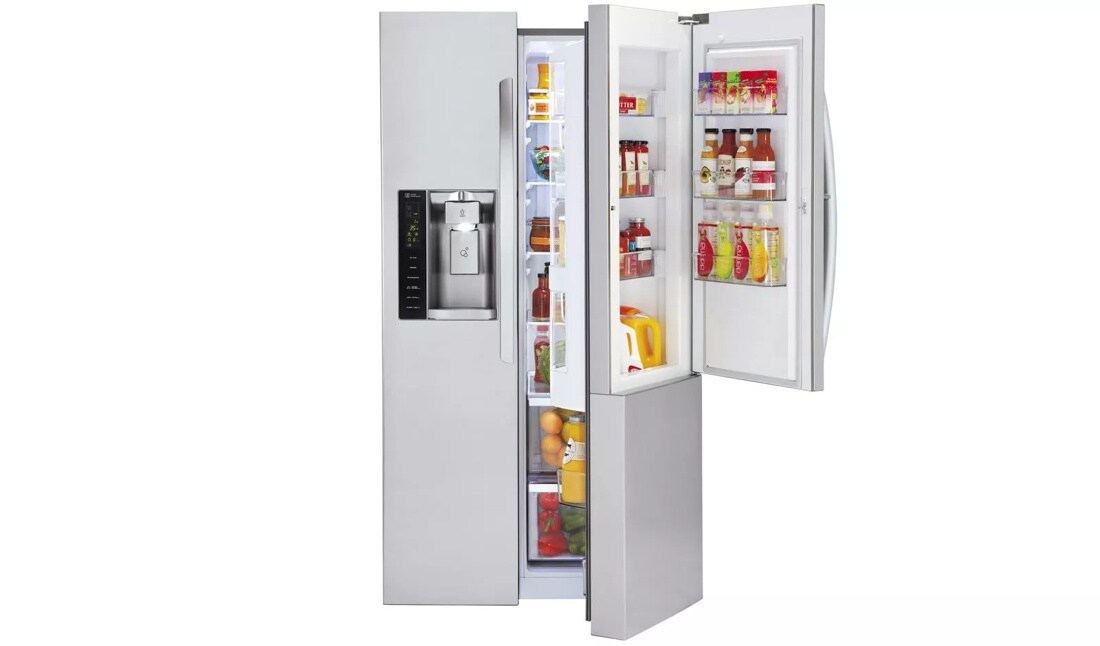

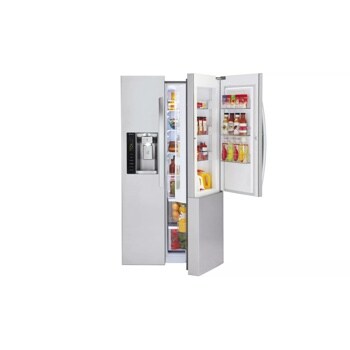

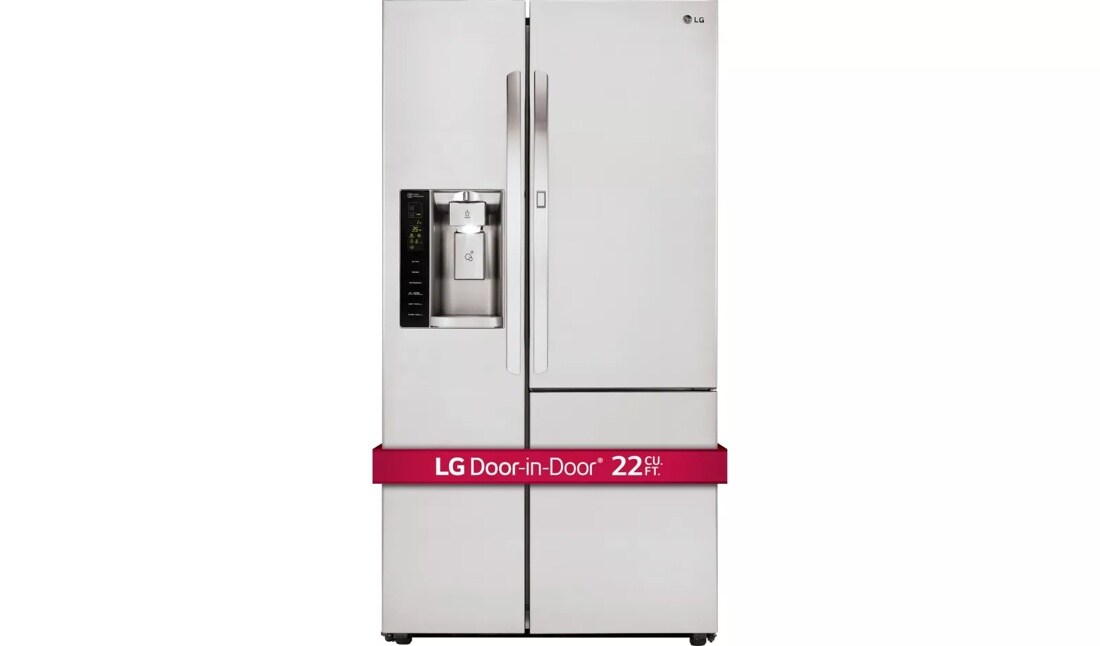

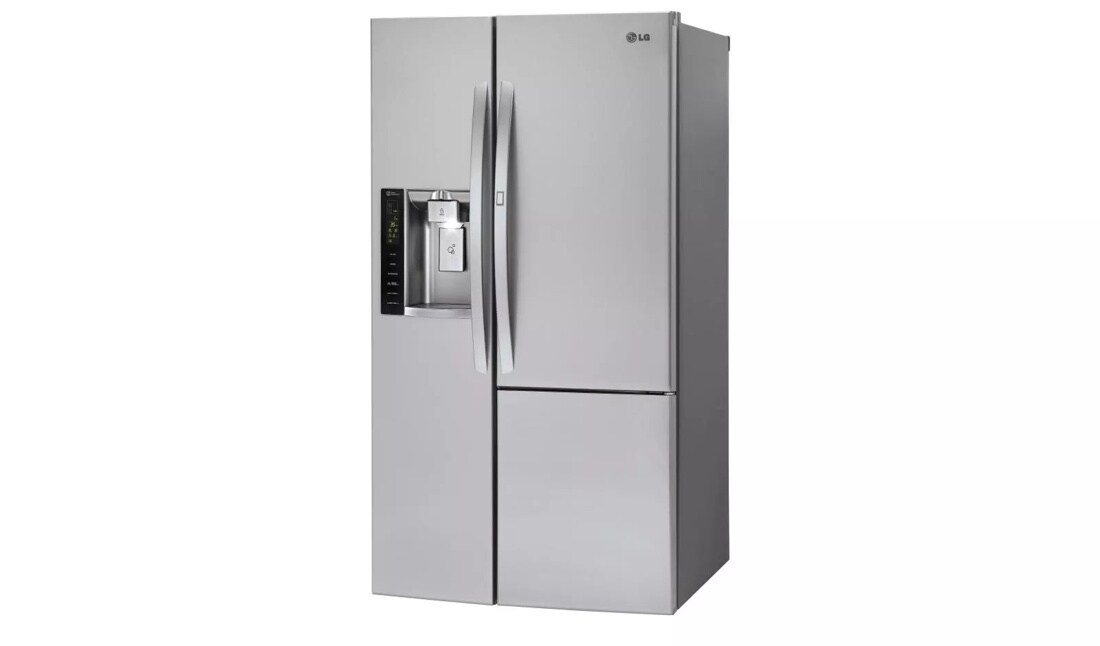

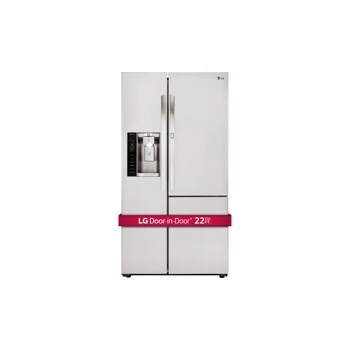

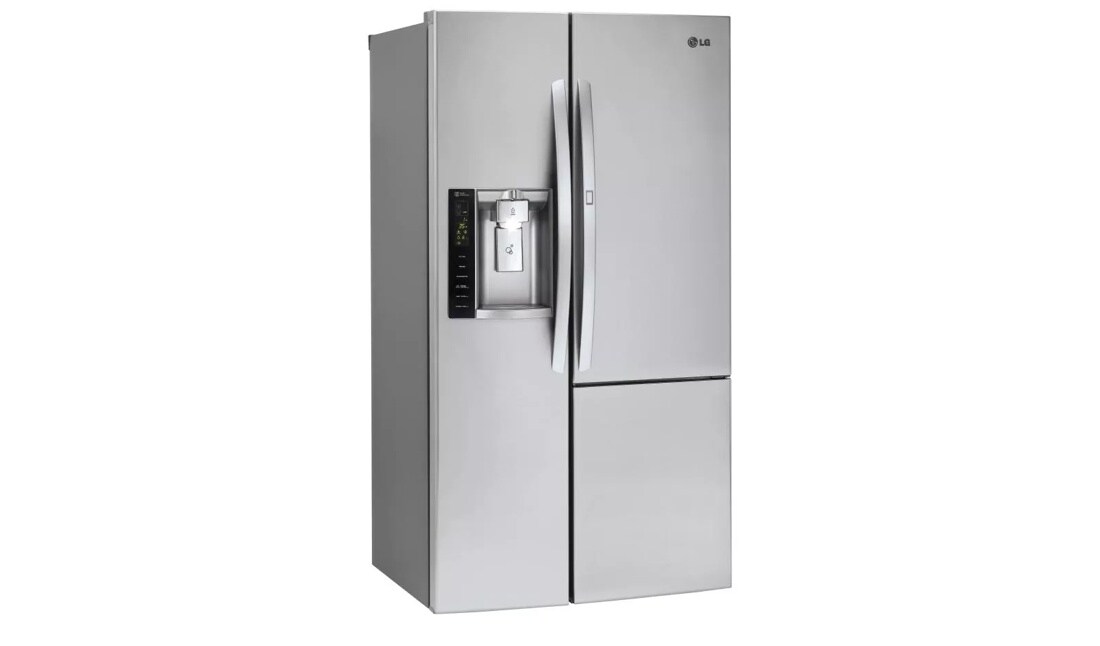

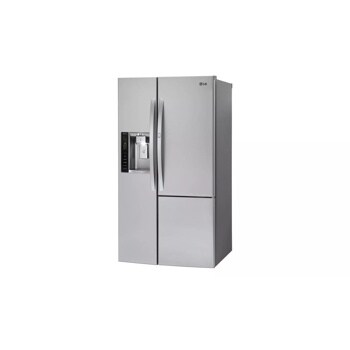

22 cu. ft. Smart wi-fi Enabled Door-in-Door® Counter-Depth Refrigerator


  • 22 cu. ft. Capacity
  • SmartThinQ® Technology
  • Door-in-Door®
  • Counter-Depth
  • SpacePlus® Ice System
22 cu. ft. Smart wi-fi Enabled Door-in-Door® Counter-Depth Refrigerator


    • Refrigerator Type
    • Door-in-Door®
    • SmartThinQ®
    • Yes
    • wi-fi Enabled
    • Yes
    • Total Capacity
    • 21.70
    • Ice & Water Dispenser
    • Yes
    • ENERGY STAR® Qualified
    • Yes
    • Counter Depth (in.)
    • Yes


    • Multi Air Flow Cooling
    • Yes
    • Temperature Sensors
    • 5
    • Auto Closing Door Hinge
    • Yes
    • Water Filtration System
    • Filter LT800P
    • LoDecibel™ Operation
    • Yes
    • Ice & Water Dispenser
    • Yes
    • Dispenser Type
    • Vertical
    • Ice System
    • SpacePlus®
    • Display Type
    • Membrane / Green LED
    • Temperature Controls
    • Digital
    • Door Alarm
    • Yes
    • Daily Ice Production
    • 3.5 lbs / 4.1 lbs (IcePlus™)
    • Ice Storage Capacity
    • 4.5 lbs
    • Door-in-Door®
    • Yes
    • ENERGY STAR® Qualified
    • Yes (638 kWh/Year)


    • No. of Shelves
    • 4 Total
    • Shelf Construction
    • Tempered Glass
    • Crisper Bins
    • 2
    • Refrigerator Light
    • Premium LED


    • No. of Shelves/Bin
    • 9 Total (Including Door-in-Door®)
    • Door Bin Construction
    • Clear, Silver Trim
    • Dairy Corner
    • Yes


    • Freezer Light
    • Premium LED
    • No. of Shelves
    • 3
    • Shelf Construction
    • Tempered Glass
    • No. of Door Bins/Shelves
    • 3
    • Door Bin Contruction
    • Clear


    • Depth with Handles
    • 31 13/16"
    • Depth without Handles
    • 29 3/8"
    • Depth without Door
    • 24 10/16"
    • Depth (Total with Door Open)
    • 46 5/8"
    • Height to Top of Case
    • 69 11/32"
    • Height to Top of Door Hinge
    • 70 5/16"
    • Width
    • 35 7/8"
    • Width (Door Open 90˚ with Handle)
    • 44 5/16"
    • Width (Door Open 90˚ without Handle)
    • 39 5/8"
    • Installation Clearance
    • Sides 1/8", Top 1", Back 2"
    • Weight (Unit/Carton)
    • 277.8 lbs. / 301.8 lbs.
    • Carton Dimensions (WxHxD)
    • 38" x 72 5/9" x 33"


    • Limited Warranty
    • 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)
    • UPC
    • 048231788809


    • Handle
    • Matching Commercial Handles
    • Available Colors
    • Black Stainless Steel (D), Stainless Steel (S)
    • Hidden Hinges
    • Yes
    • Surface
    • Coated Metal, Stainless Steel
    • Back
    • Flush & Metal Cover Over Mechanical Parts
    • Contour Door
    • Yes


    • Refrigerator
    • 14.34 cu. ft.
    • Freezer
    • 7.40 cu. ft.
    • Total
    • 21.70 cu. ft.

What people are saying

Rated 4 out of 5 by from Great features except for one small recommendation The refrigerator is an excellent one with great features, especially the door in door design. The only thing I would change is the in door water dispenser. The water squirts ahead of the dispenser instead of behind it where the ice is dispensed. I’ve had to clean up water from the floor many times because most people hold the glass inside instead of outside the dispenser. Not a very intuitive design. Other than that it’s a great refrigerator!
Date published: 2021-05-04
Rated 5 out of 5 by from LG side by side I bought this refrigerator about 3 weeks ago and I will tell you this one of the best refrigerators on the market thank you lg for such a great product
Date published: 2021-05-03
Rated 3 out of 5 by from Cheaply built The water and ice dispenser are plastic and feel and look cheap when they have watermarks. They are very hard to clean because as soon as you push on them lightly, they dispense water or ice. Inside the shelves can't be relocated. We do like the third door that opens to let you access the most common items without opening the whole fridge. At the end of the second year, the ice maker stopped working so good thing we always get the extended warranty or it would have cost hundreds of dollars to fix. Also, the metal is not magnetic so we can't post pictures on it. The fridge looks great from afar but cheap and shabby when you get close and we have taken good care of it.
Date published: 2021-04-30
  • y_2021, m_5, d_8, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.15
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_154
  • loc_en_US, sid_MD05801370, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 7ms


Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

ice maker issues

Asked by: lolreno
Please contact our Support Center at (800) 243-0000 and give them a detailed account of the "ice maker issues" that you are experiencing with the ENERGY STAR® Qualified LG 22 cu. ft. Smart wi-fi Enabled Door-in-Door® Counter-Depth Refrigerator, Model # LSXC22486D so they can better assist you in resolving the issues or advise you on if a repair service will be required...^IFV
Answered by: Ivanf
Date published: 2021-04-27

Will this refrigerator fit into a 36 inch opening?

Asked by: hsir
The ENERGY STAR® Qualified LG 22 cu. ft. Smart wi-fi Enabled Door-in-Door® Counter-Depth Refrigerator, Model # LSXC22486S has a depth of 31 13/16" (including handles). It can be turned on its side to move it through a 36" opening...^IFV
Answered by: Ivanf
Date published: 2020-03-23

We don't have a water line near the refrigerator. Can we manually pour water into the ice maker in the refrigerator to make ice? Thanks.

Asked by: RileyJ
In order for the Automatic Ice Maker in the ENERGY STAR® Qualified LG 22 cu. ft. Smart wi-fi Enabled Door-in-Door® Counter-Depth Refrigerator, Model # LSXC22486S to produce ice, the water pressure must be between 40 and 120 psi (276-827 kPa). Pouring water manually into the ice maker will not produce the required water pressure for the ice maker to work...^IFV
Answered by: LGJoel
Date published: 2019-02-19

The freezer side of my LG isn’t working it blows are but not cold.  The refrigerator side is fine.  What can be done or do I need to get a technician in.  The item is 2 year old.

Asked by: William Ricketts
Sorry to see that your refrigerator is have trouble with the freezer after 2 years! We definitely want to get it fixed and running for you again. So that we can grab some information and see how we can help, please shoot us a message at We'll gather some information and see what options we have to take care of this for you. ^CP
Answered by: ChrisPSM
Date published: 2018-10-02

Door in door models. How come on the French door model the inside door opening is full length but on the side by side it is half the size?

Asked by: Amyo31
Hello, part of the convenience of the door in door is being able to have the items that you need the most easily accessible. Having to bend down to grab items from the bottom of the refrigerator would defeat this purpose. Also, opening more of the door would result in more cooling loss and would make the unit less energy efficient. ^AC
Answered by: Amber C
Date published: 2018-03-13

My new refrigerator is not giveing me water or ice when I push the bottoms I know the water is connected right because I have ice, it is something wrong with it?

Asked by: Aharo
Let's have you take a look at the following article to troubleshoot both the no-water and no-ice issues -'t-dispense If the issue persists, please jump over to our Twitter Support team, @LGUSSupport, and drop a direct message so we can look into it further.
Answered by: Shena
Date published: 2017-10-10

Can you tell me the shelf sizes for the side by side door in door refrigerator please? Is it possible to fit a 10 x 13 or 9 x 13 dish on the refrigerator shelves?

Asked by: MetalRoof
Regrettably, we do not have the dimensions for the shelves in the ENERGY STAR® Qualified LG LG Black Stainless Steel Series 22 cu. ft. Side-By-Side Counter-Depth Refrigerator w/Door-in-Door®, Model # LSXC22486D. Please contact our Support Center at (800) 243-0000 for assistance with your inquiry...^IFV
Answered by: LGJoel
Date published: 2017-09-18

I'm not sure what the problem is, my refrigerator is not freezing and due to that the ice is melting and the freezer is not freezing.. Please help. What is the model for the air filter?

Asked by: rollingwood
We regret the trouble you have experienced with this refrigerator. The air filter of the machine should not make any restrictions to the cooling performance. It is recommended to check around the vents along the walls of the freezer to make sure there is no blockage. Such interference could restrict air flow in the freezer, including the cooling performance, and will affect the air flow in the refrigerator as well. If this does not resolve the matter, then it may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at
Answered by: NeilE
Date published: 2017-04-17
