Discontinued
LSW600B

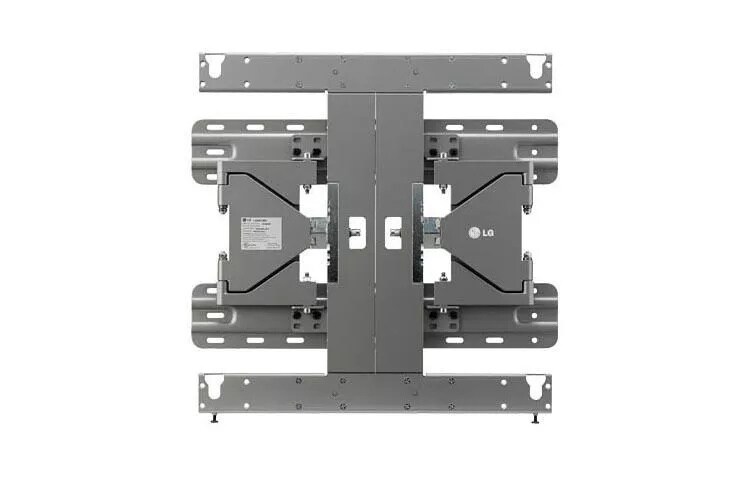

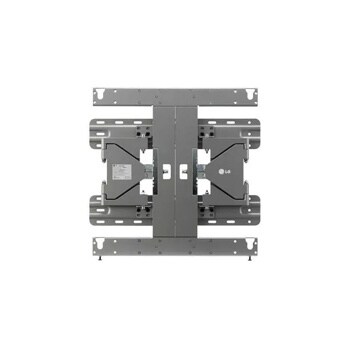

EZ Slim Wall Mount For 65'' ~ 72'' Class TVs
  • Ultra Slim 0.98” Depth
  • 600 x 400 VESA
  • For LED Series 65” ~ 72” Class TVs
  • Dry Wall Ready
EZ Slim Wall Mount For 65" ~ 72" Class TVs

SUMMARY

  • Slim 0.98” Depth
    Yes
    600 x 400 VESA
    Yes
  • Compatible LED LCD Models
    LED Series 65" ~ 72" Class TVs
    Dry Wall Ready
    Yes

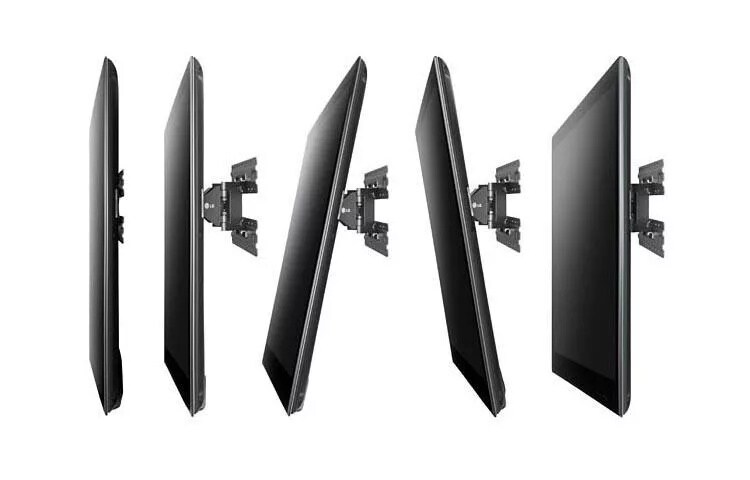

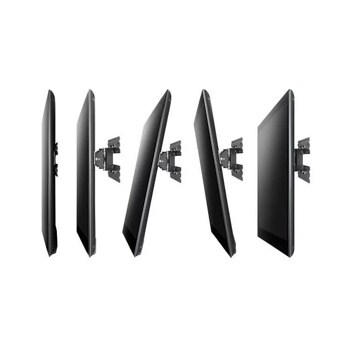

  • ±14º Tilt/±12º Swivel
    Yes
    8.7'' Forwarding
    Yes
  • Net Dimensions (WxHxD)
    25.9” x 18.3” x 1.2”
    Package Dimensions (WxHxD)
    27.2” x 19.8” x 2.0”
  • Net Weight
    17.9 lbs
    Package Weight
    20.1 lbs
  • Warranty
    1 Year Replacement
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

What slim wall mount do you recommend for the OLED77C8PUA?  I’m having the hardest time finding one.

Asked by: Lolliebp
The LG EZ Slim Wall Mount for OLED and Premium UHD LED TVs, Model # OTW420B supports the VESA Wall Mount Pattern on the LG C8PUA 4K HDR Smart OLED TV w/ AI ThinQ® - 77" Class (76.8" Diag), Model # OLED77C8PUA which has a VESA Wall Mount Pattern of 400 x 200 mm so it will work for the TV...^IFV
Answered by: Ivanf
Date published: 2019-04-16

Will this mount be compatible with TV model 70UK6570AUB ? My TV owner's manual recommends wall mount LSW640B but I can't find it on the LG website. Also how wide is this wall mount? (I need to install on 3 studs that are 16" apart to center on wall).

Asked by: StudioLaurent
The LG UK6570AUB 4K HDR Smart LED UHD TV w/ AI ThinQ® - 70" Class (69.5" Diag), Model # 70UK6470AUB has a VESA Wall Mount Interface Pattern of 600 x 400 mm and the LG EZ Slim Wall Mount For 65" ~ 72" Class TVs, Model # LSW600B supports that VESA Wall Mount Interface pattern so it would be compatible. However, the LSW600B is a discontinued product. It had a width of 25.9"...^IFV
Answered by: LGJoel
Date published: 2019-03-04

I need a slim wall mount for the 75SJ8570. This says it's only good for up to 72" however is still VESA 600x400 which the manual says is okay for my TV. I can't find the wall mount suggested for this TV (LSW640B) anywhere. Please advise - thank you

Asked by: joolive2
Looking for an LG EZ slim mount if it exists though.
Answered by: joolive2
Date published: 2018-01-26

What wall mount is recommended for the OLED65C7P?

Asked by: Ctstarr83
The OLED65C7P requires a 300 x 200 Vesa pattern in order to be mounted on the wall. ^CP
Answered by: ChrisPSM
Date published: 2017-12-13

What wall mount do you recommend for TV model 65UH615A?

Asked by: FrankTheTank517
The LG Wall Mount Bracket recommended in your owner's manual for the ENERGY STAR® Qualified LG 4K UHD HDR Smart LED TV - 65" Class (64.5" Diag), Model # 65UH615A is the LG EZ Slim Wall Mount, Model # LSW350B. The TV has an A x B VESA Wall Mount Pattern of 300 x 300 and any VESA Compatible Wall Mount Bracket with the same Wall Mount Pattern, regardless of brand or manufacture or if its' a Fixed Wall Mount, a Tilting Wall Mount or a Full Motion (Articulating) Wall Mount, will fit...^IFV
Answered by: LGJoel
Date published: 2017-01-30

Will the LSW600B fit the 60PA6500 and if not, what will?

Asked by: mamajo
We appreciate your interest in this television and its accessories. The wall mounting bracket you have mentioned is not designed for Plasma Televisions. We recommend the use of either the PSW600B or the PSW600BG, with a 600x400 bolt spacing.
Answered by: NeilE
Date published: 2013-10-22

Mounting the display in portrait mode

I would like to use the 65" TV for a museum display and will have the video filmd and edit to suit. Can this bracket safely mount the 65LW6500 in portrait mode (vertical)? I am not sure how the mechanism locks to the back of the TV unit.
Asked by: Johnd
It is not recommended to use this television or this wall mount for vertical mounting. First, this television is not designed for vertical operations. We might recommend a commercial model television, which are designed for the possibility of vertical installation. Also, this wall mount is designed so that the mounting bolts can be set into the mounting points on the bracket. See the image of this mount, as it is listed on our website at http://www.lg.com/us/tv-accessories/lg-LSW600B-wall-mount.
Answered by: NeilE
Date published: 2013-10-22

Will it support plasma lg60pv450

Asked by: gcannon149
I apologize, but no; the LSW600B is a mounting bracket designed for compatibility with a LCD television. This plasma television has been designed for compatibility with either the PSW600B or the PSW600BG.
Answered by: NeilE
Date published: 2013-10-22
