- Brightness(Typ.) : 350 cd/m²
- Touch Type : In-Cell

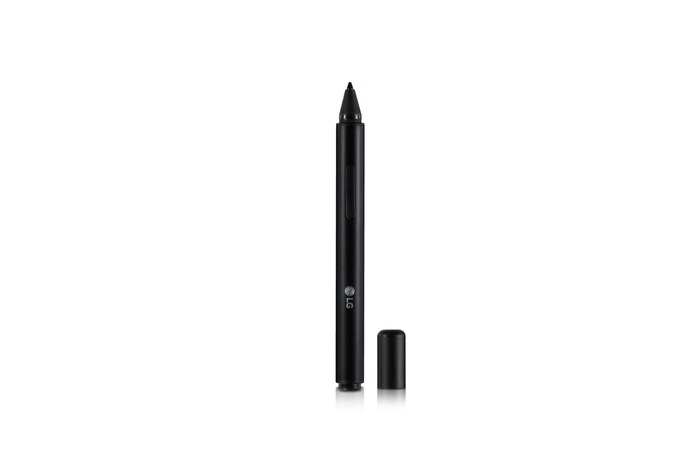

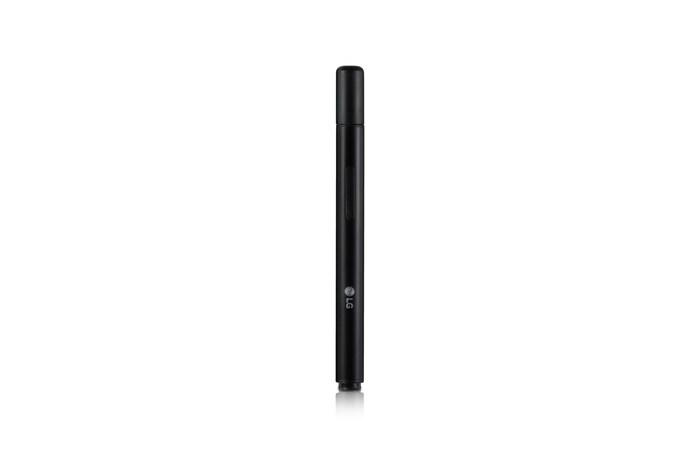

- Multi Touch: 20 Point, Active Pen: Max 2 Point
- Depth : 86.5 mm
- Interface : HDMI (2), DP, DVI-D, USB Type C / Audio-in,RS232C In/Out,USB 2.0 (2), USB Type C(USB2.0), Touch Out(USB2.0,B Type)(2)
All Spec
AUDIO
Built-in Speaker
20 W (10W × 2)
CONNECTIVITY
Input
HDMI(2),DP,DVI-D,USB Type C(DP interface), USB Type C(USB2.0), USB Type A (USB 2.0)(2)
Output
Touch USB (2)
External Control
RS232C in/out, RJ45 in
ENVIRONMENT CONDITIONS
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
Yes
optional
OPS Kit (KT-OPSF)
PANEL
Screen Size
85.6"
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
3,840 × 2,160 (UHD)
Brightness (Typ.)
350cd/m2 (w/Protection Glass)
Viewing Angle (H × V)
178 × 178
Surface Treatment
Anti Glare(coating, 4%)
Lifetime (Typ.)
30,000 Hrs
Operation Hours
16 Hrs
Orientation
Landscape
PHYSICAL SPECIFICATION
Bezel Colour
Black
Bezel Width
(T/L/R/B) 28.8mm
Monitor Dimension (W × H × D)
1952.6 x 1164.1 x 86.4 mm
Weight (Head)
66.7 kg
VESA™ Standard Mount Interface
600 × 400 mm
POWER
Power Supply
100-240V~, 50/60Hz
Power Type
Built-in Power
Power Consumption (Typ.)
≤ 360 W
Power Consumption (Smart Energy Saving)
≤ 108 W
STANDARD(CERTIFICATION)
Safety
CB / NRTL
EMC
AS/NZS CISPR32,RCM(Class A)
TOUCH SPECIFICATIONS
Touch Type
In-Cell
Available Object Size for Touch
Ø 5 mm ↑
Accuracy
1.5 mm
Interface
USB 2.0
Protection Glass Thickness
1.85T (Anti-Glare)
Protection Glass Transmission
88%
Multi Touch Point <sup>1)</sup>
Max. 20 Points
