Pro:Centric Hospitality TV with Integrated Pro:Idiom

Share This Content.

You Can Share The Items You Like With Your Friends

Pro:Centric Hospitality TV with Integrated Pro:Idiom

32LN570HBUA
  • Front view with infill image
  • Front view
  • -45 degree side view
  • -90 degree side view
  • +45 degree side view
  • +90 degree side view
  • Top view
Front view with infill image

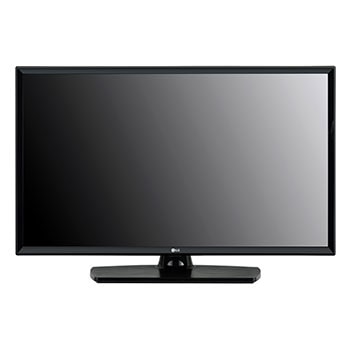

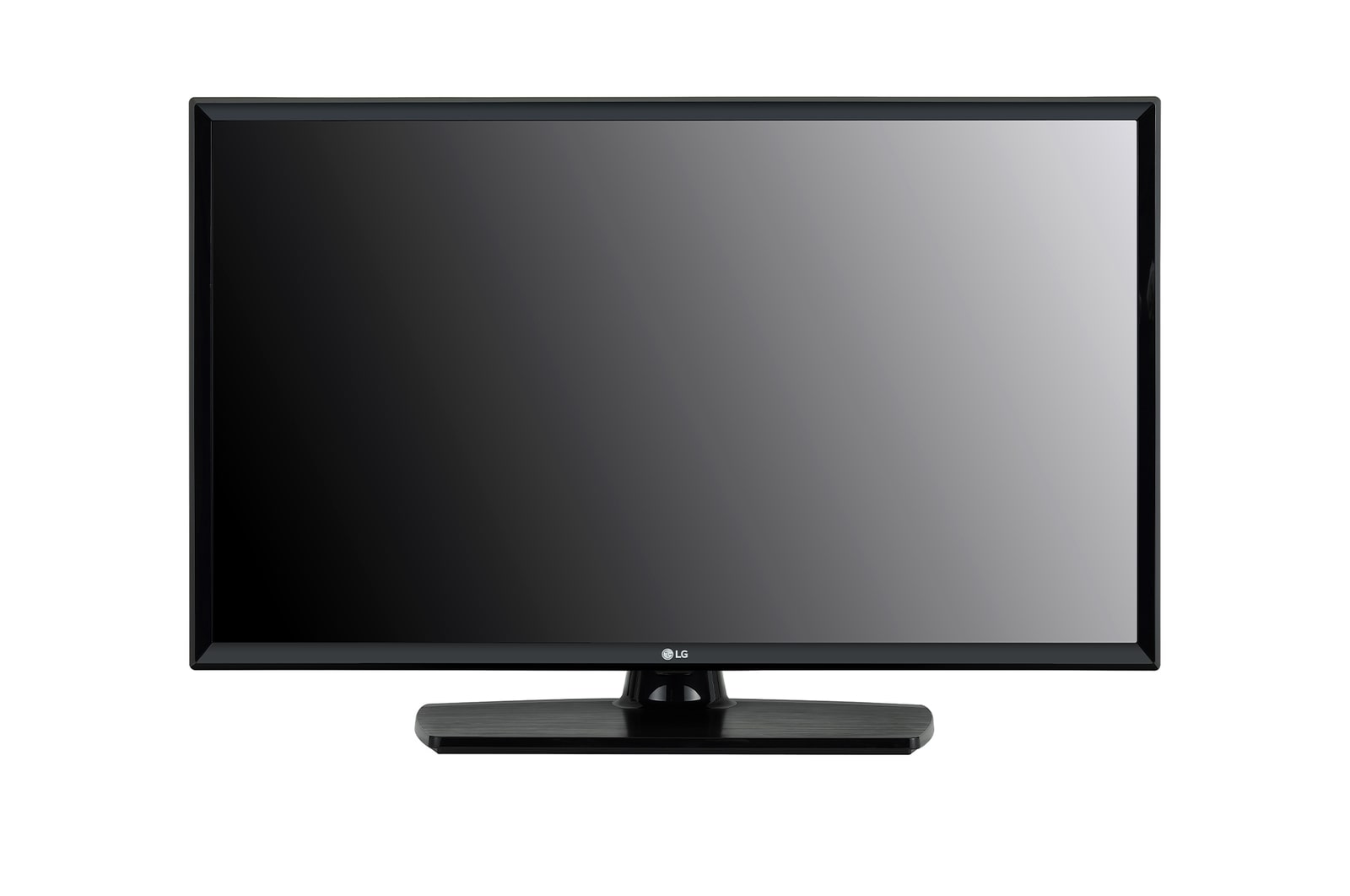

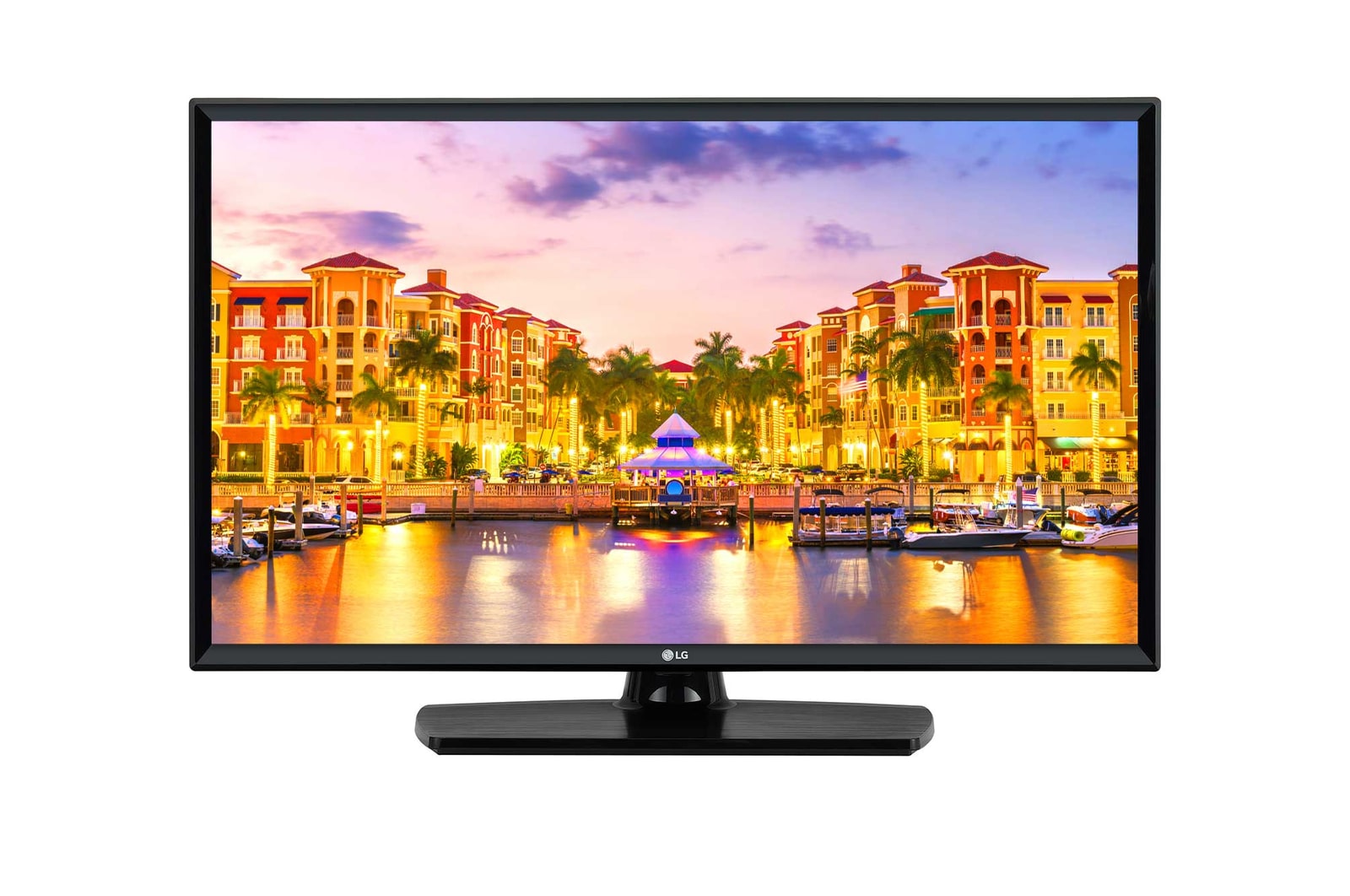

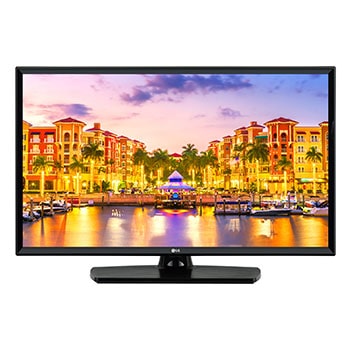

Front view

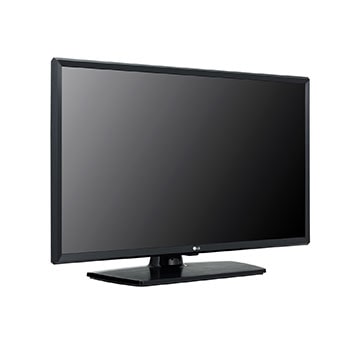

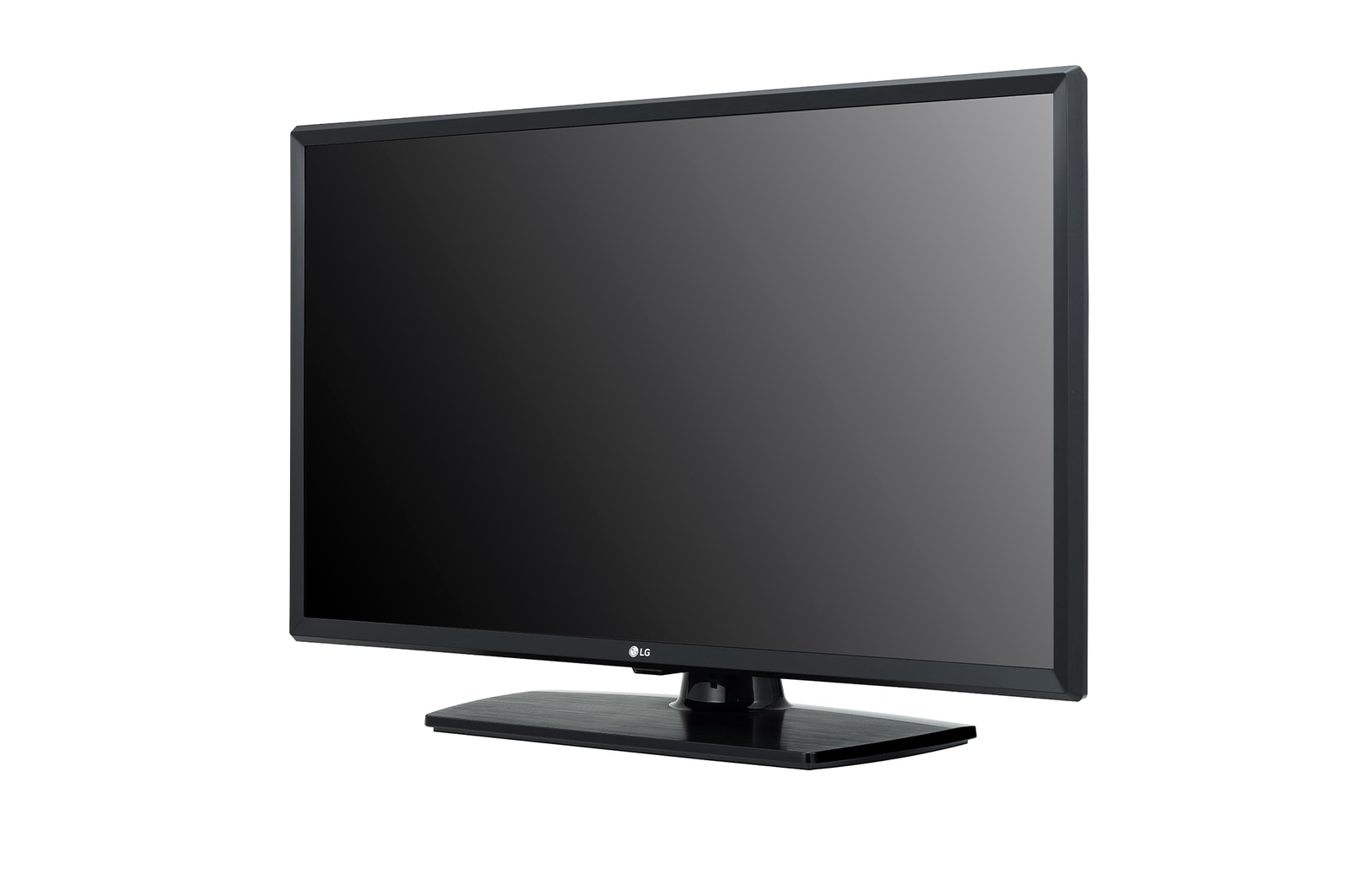

-45 degree side view

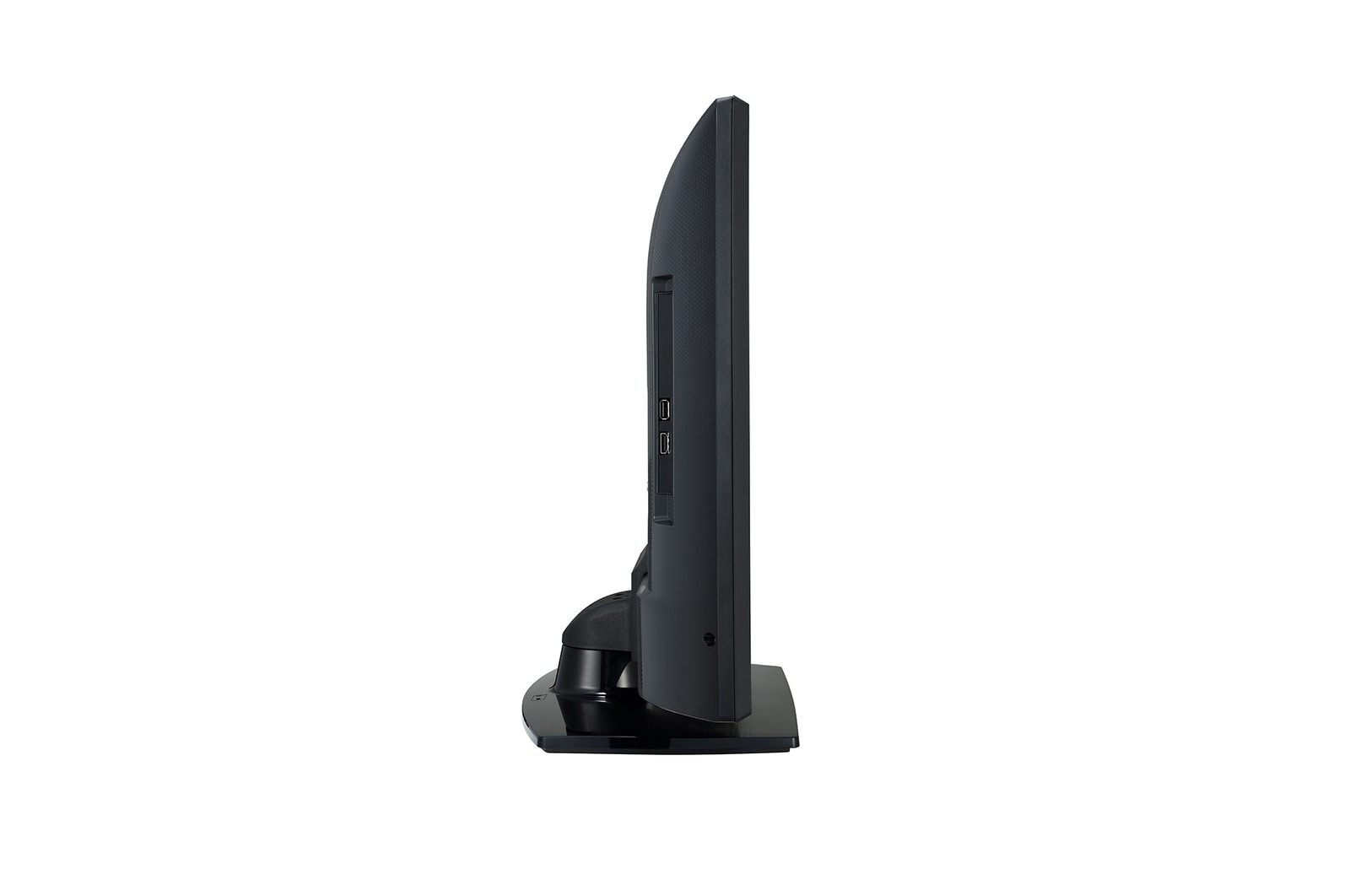

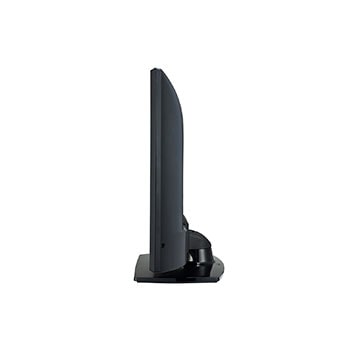

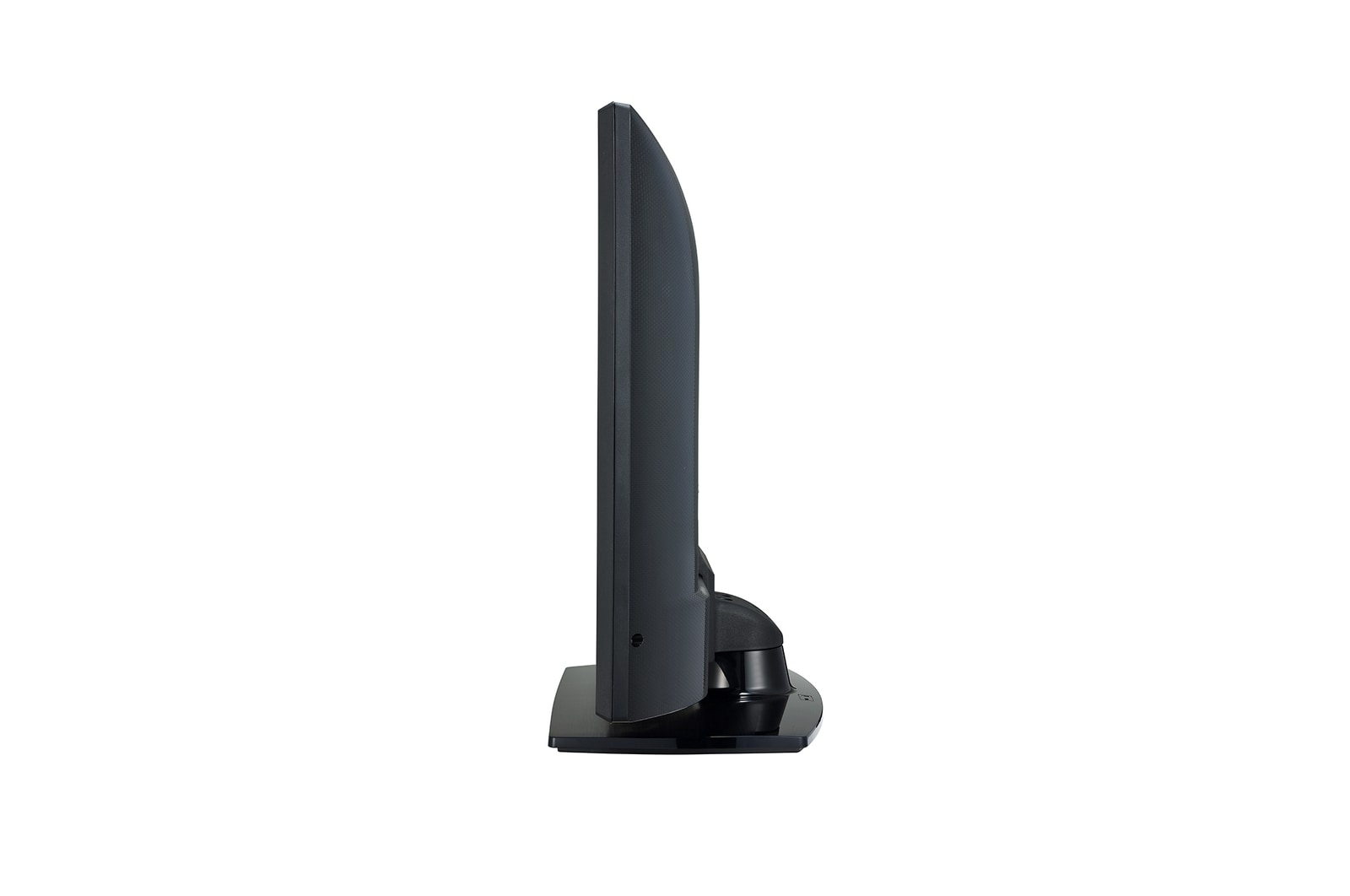

-90 degree side view

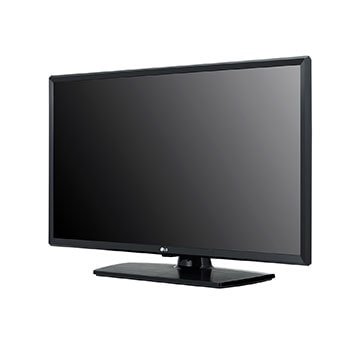

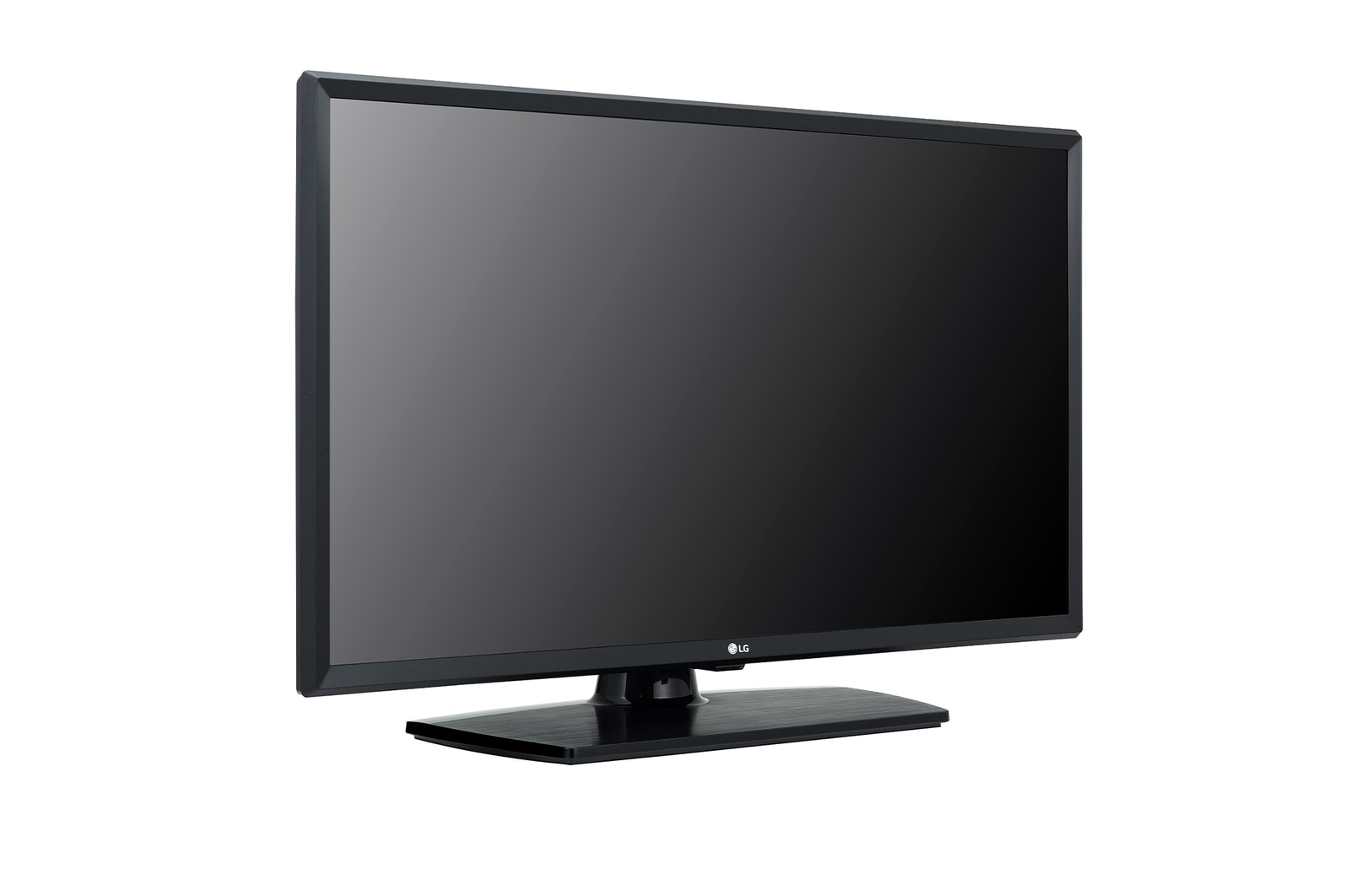

+45 degree side view

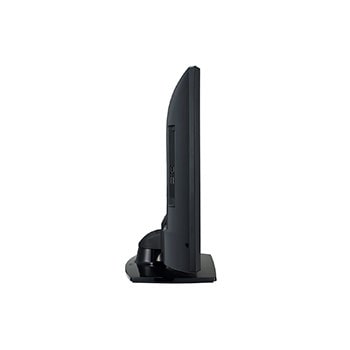

+90 degree side view

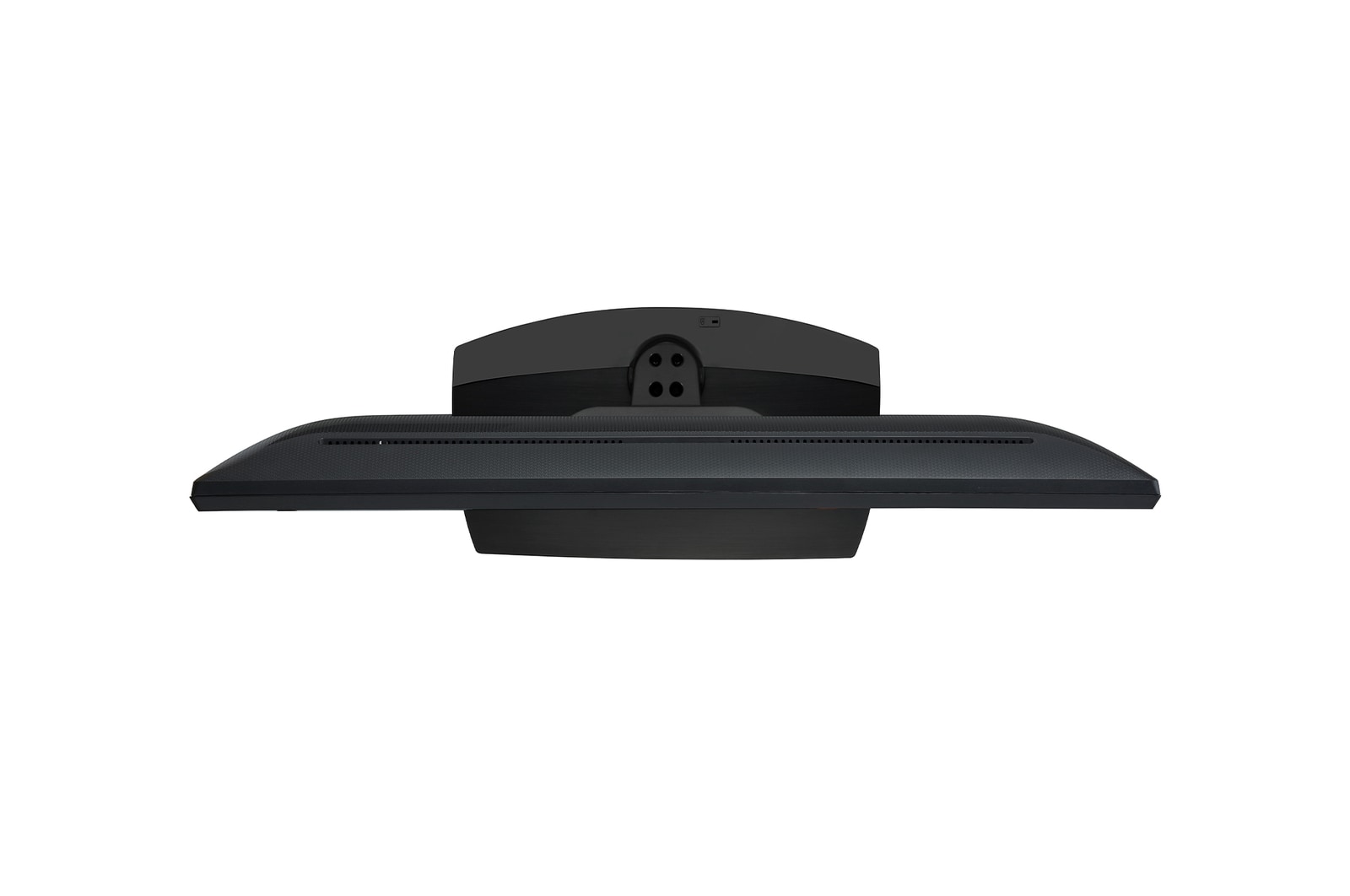

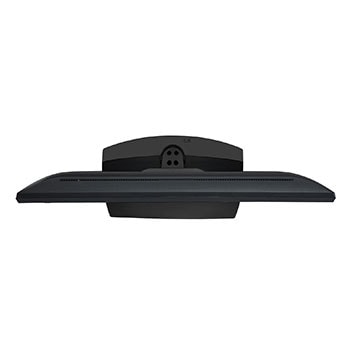

Top view

Key Features

  • Pro:Centric Solutions
  • Commercial Swivel Stand
  • Game Optimizer
  • Pro:Idiom
More

Pro:Centric Hospitality TV with Integrated Pro:Idiom

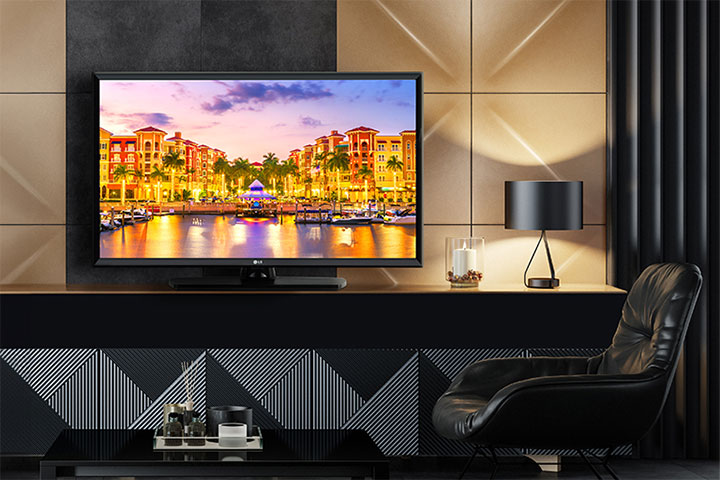

A TV is installed in the hotel room, and a vivid sunset scenery is displayed on the screen.

*All images in this page are for illustrative purposes only.

Pro:Centric Direct

The hotel content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management with a single click. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages all TVs in the room. The latest PCD version provides IoT-based in-room control as well as voice control function through LG Natural Language Processing (NLP). These IoT and voice-related functions will be your starting point to prepare for the hotel rooms of next generation through artificial intelligence.

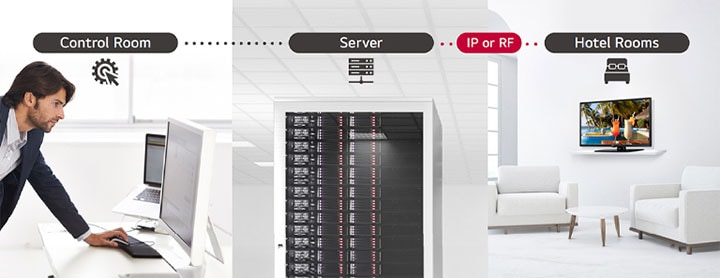

A man is managing content and settings of TVs in the hotel using the Pro:Centric Direct solution through server.

*Some features may not be supported based on PCD versions.

Game Optimizer

LG Game Optimizer will get you and keep you in the action through selection of game mode, picture adjustment and etc.

The man and woman are playing games, and the game's scene shown on the TV screen is realistically expressed.

Pro:Idiom

Digital Rights Management (DRM) technology provides access to premium content to help assure rapid and broad deployment of HDTV and other high-value digital content.

Using Pro:Idiom can prevent illegal copying of content.

Key Feature

  • Pro:Centric Solutions
  • Commercial Swivel Stand
  • Game Optimizer
  • Pro:Idiom
Print

All Spec

POWER SPEC.

  • Power Consumption(Typ)

    38 W

  • Power Consumption(Max)

    45 W

  • Power Supply (Voltage, Hz)

    AC 120V 50/60Hz

  • Standby Power Consumption

    Under 0.5W

ACCESSORIES

  • Power Cable

    Yes (1.8M / Angle type)

  • Remote type

    S-Con

AUDIO (SOUND)

  • AI Sound

    Yes

  • Speaker (Audio Output)

    10W

BROADCASTING SYSTEM

  • Analog (NTSC / SECAM / PAL)

    NTSC

  • Digital

    ATSC / Clear QAM

CONNECTIVITIES

  • AV In

    Yes

  • Digital Audio Out (Optical)

    Yes

  • External Speaker Out(3.5mm Phone jack)

    Yes

  • HDMI In

    Yes (3ea)

  • LG SVC only (Phone jack type)

    Yes

  • MPI Port (RJ12 jack)

    Yes

  • RF In

    Yes (1ea)

  • RJ45 (Usage Purpose)

    1 (Pro:Centric)

  • RS-232C (D-Sub 9pin / Phone jack)

    Yes (Phone jack)

  • TV link Configuration (Phone jack type)

    Yes

  • USB (Ver.)

    Yes (1ea / 2.0)

DESIGN

  • Front Color

    Ceramic Black

  • Stand Type

    1 Pole (Swivel)

  • Tool Name

    LJ61

DIMENSIONS/WEIGHT

  • Bezel Width (L/R/U/B, Off Bezel)

    18.8/18.8/18.8/21.6 mm

  • Bezel Width (L/R/U/B, On Bezel)

    20.7/20.7/20.6/23.4 mm

  • Dimension in Shipping (W x H x D)

    905 x 530 x162 mm

  • Dimension without Stand (W x H x D)

    739 x 441 x 84 mm

  • Dimension with Stand (W x H x D)

    739 x 495 x 241 mm

  • Weight in Shipping

    7.35 kg

  • Weight without Stand

    4.85 kg

  • Weight with Stand

    6.05 kg

DISPLAY

  • Brightness (Typ.)

    240 nit

  • Resolution

    HD (1,366 x 768)

  • Size (Inch)

    32

HOSPITALITY FEATURE

  • Diagnostics

    Yes (Self Diagnostics(USB))

  • b-LAN

    Yes

  • Energy Saving mode

    Yes

  • External Speaker Out / Line Out

    Yes (Ext. Speaker Out)

  • EzManager

    Yes

  • Hotel Mode / PDM / Installer Menu

    Yes

  • HTNG-CEC (Version)

    Yes (1.4)

  • Insert Image

    Yes

  • Instant ON

    Yes

  • IR Out

    Yes (RS-232C, MPI)

  • Lock mode

    Yes (Limited)

  • Multi IR Code

    Yes

  • One Channel Map

    Yes (LCM)

  • Port Block

    Yes

  • RJP (Remote Jack Pack) Compatibility

    Yes

  • Simplink(HDMI-CEC) (Version)

    Yes (1.4)

  • SNMP

    Yes

  • USB Cloning

    Yes

  • Wake on RF

    Yes

  • Welcome Screen (Splash Image)

    Yes

HOSPITALITY SOLUTION

  • Pro:Centric Direct

    Yes

  • Pro:Centric Server

    Yes

  • Pro:Centric Smart

    Yes

  • Pro:Centric V

    Yes

  • Pro:Idiom (DRM)

    Yes

  • Pro:Idiom Media (DRM)

    Yes

INFO

  • Category

    Pro:Centric V

MECHANICAL

  • Kensington Lock

    Yes

  • Credenza/Security Screw Hole

    Yes (Need Stand)

  • Lock Down Plate (for easy installing)

    Yes (Need Stand)

  • VESA Compatible

    200 x 200 mm

SMART FUNCTION

  • HDMI-ARC

    Yes (HDMI2)

  • webOS version

    webOS 22

STANDARD

  • EMC

    FCC

  • Safety

    UL

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • NTP sync timer

    Yes

  • Video Tag

    Yes (2 Video)

VIDEO

  • HDR_HDR 10 Pro

    Yes

  • Game Optimizer

    Yes

  • HDR_HLG (Hybrid Log Gamma)

    Yes

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
