49" class (49"/1231.9mm diagonal) LX310C Commercial Lite HDTV

Share This Content.

You Can Share The Items You Like With Your Friends

49" class (49"/1231.9mm diagonal) LX310C Commercial Lite HDTV

49LX310C
()
  • Front view of 49" class (49"/1231.9mm diagonal) LX310C Commercial Lite HDTV 49LX310C
  • LG 49" class (49"/1231.9mm diagonal) LX310C Commercial Lite HDTV, 49LX310C
  • LG 49" class (49"/1231.9mm diagonal) LX310C Commercial Lite HDTV, 49LX310C

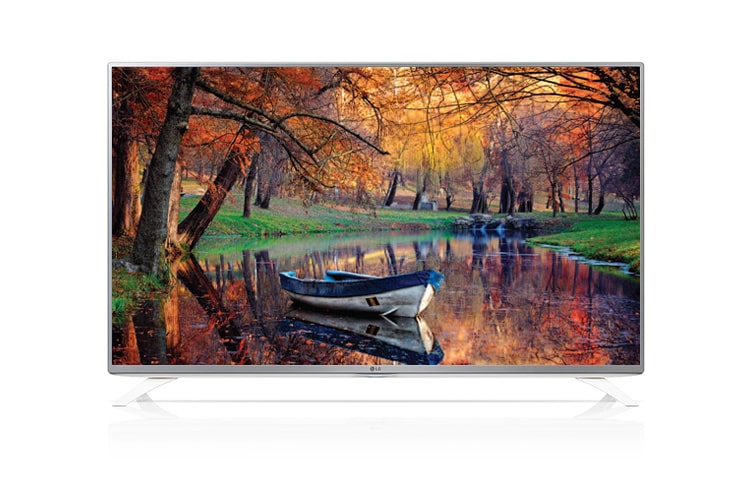

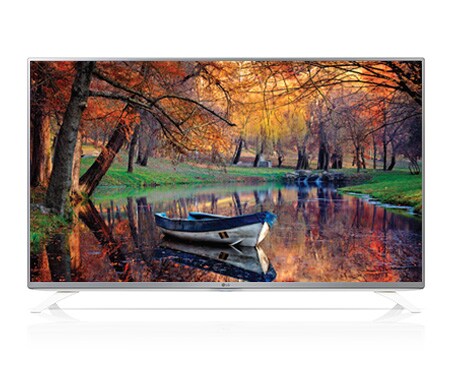

Front view of 49" class (49"/1231.9mm diagonal) LX310C Commercial Lite HDTV 49LX310C

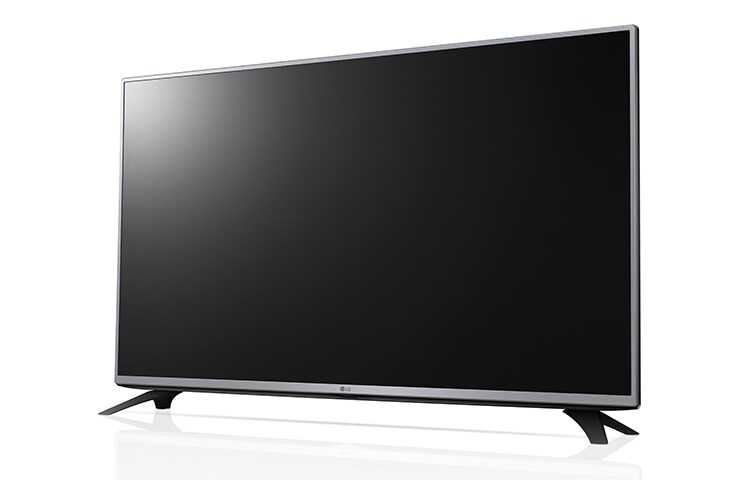

LG 49" class (49"/1231.9mm diagonal) LX310C Commercial Lite HDTV, 49LX310C

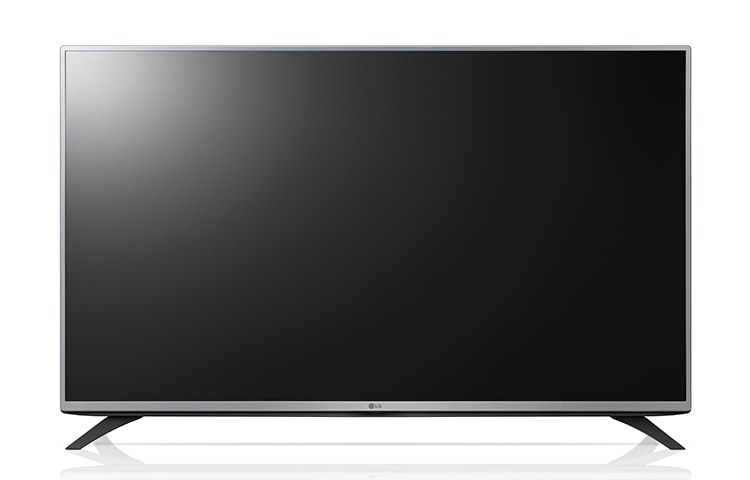

LG 49" class (49"/1231.9mm diagonal) LX310C Commercial Lite HDTV, 49LX310C

Key Features

  • USB Cloning
  • Welcome Screen
  • Multi IR
  • RS232C Control
More

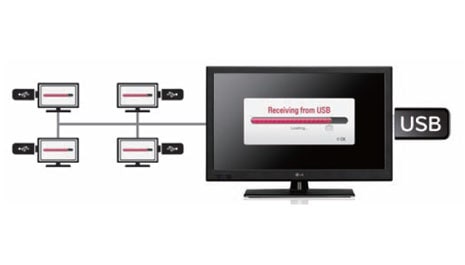

USB CLONING

The USB Cloning feature allows you to simply copy the TV settings onto all TVs using a USB stick, a process that is fully automated to save time without having to set each TV one by one.

WELCOME SCREEN

Welcome visitors with a warm greeting message that includes your business name and logo.

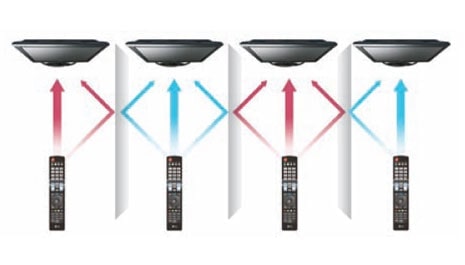

MULTI IR

Multi IR function eliminates the remote control signal interference between TVs in multiple dwelling rooms. This system will work using the same LG TV model.(Optional 124-213-10 required)

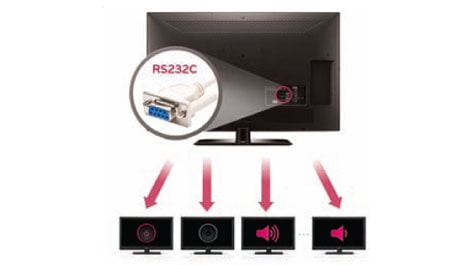

RS232C CONTROL

Via the TV's RS-232C port, you can remotely control multiple TVs' power and volume settings simultaneously.

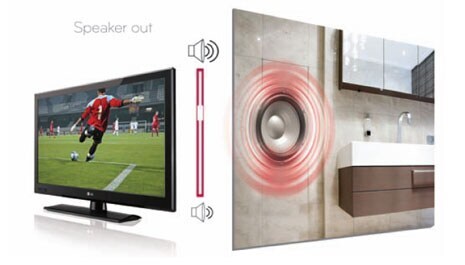

EXTERNAL SPEAKER OUT

Enhance the entertainment experience by adding an additional speaker, visitors to listen to and control the TV audio from anywhere in your business area, including restrooms.

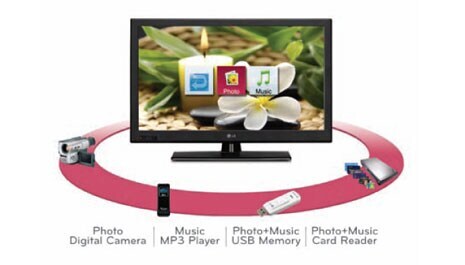

USB 2.0

You can play images and videos from and record TV programs to external storage devices. Immediate recording and reserved recording options are available.

Key Feature

  • USB Cloning
  • Welcome Screen
  • Multi IR
  • RS232C Control
Print

All Spec

LCD PANEL SPECIFICATION

  • Panel Size

    49" Class

  • Backlight Type

    Direct LED

  • Resolution

    1920 x 1080 (FHD)

  • Panel Brightness (cd/m2l, Typ)

    200

  • Dynamic Contrast Ratio (Dynamic MCI (Hz))

    1,000,000:1

  • Static (Panel) Contrast Ratio

    1200

  • Viewing Angle Degree

    178x178

  • Response Time(G to G)

    8ms

  • Frame Rate

    60Hz

  • Life Span(Hrs)

    30000

BROADCASTING SYSTEM

  • Analog

    Yes (NTSC)

  • Digital

    Yes - ATSC/QAM/VSB

VIDEO

  • Triple XD Engine

    Yes

  • Dynamic Color Enhancer

    Yes

  • Real Cinema 24p (3:3 pull down)

    Yes

  • Aspect Ratio

    Yes - 6 modes ( 16:9, Just scan,Set by program, 4:3,Zoom,Cinema zoom1)

  • Tru 4K Upsacaler

    –

AUDIO

  • Audio Output

    5W+5W

  • Speaker System

    2.0 ch

  • Sound Mode

    Yes - 6 modes (Standard, News, Music, Cinema, Sport, Game)

  • Sound Optimizer

    Yes

  • Optical Sound Sync

    Yes - 3 modes (Normal, Wall-Mount Type, Stand Type)

  • Clear Voice

    Yes

FEATURE

  • Remote Diagnosis

    Yes (Self Diagnosis(USB))

  • HDMI-CEC

    Yes (Without ARC)

  • HTNG-CEC

    Yes

  • Hotel Mode / PDM / Installer Menu

    Yes

  • Lock mode

    Yes

  • External Speaker Out

    –

  • RJP Interface

    Yes (RS232C,HDMI)

  • RJP Compatibility

    Yes - LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)

  • USB

    Yes (USB 2.0)

  • USB Auto Play back

    Yes

  • Moving Picture Playback (SD/HD/Plus HD)

    Divx HD

  • Picture

    JPEG

  • Audio Codec

    MP3, AC3, MPEG, AAC,HEAAC, CDDA, LPCM

  • USB Cloning

    Yes

  • Multi IR Code

    Yes

  • Welcome Screen (Splash Image)

    Yes

  • Auto Off / Auto Sleep

    Yes

  • Motion eye care

    Yes

INTERFACE

  • HDMI In

    1

  • USB (2.0)

    1

  • RF In

    1

  • AV In

    1 (Sharing with Component in)

  • Component in (Y,Pb,Pr) + Audio

    1

  • Digital Audio Out (Coaxial / Optical)

    1 (Optical)

  • HDMI/HDCP Input

    1

  • RGB In (D-sub 15pin) - PC

    1

  • PC Audio Input

    1(Sharing with Component Audio)

  • RS-232C(D-Sub 9pin)

    1

  • External Speaker Out(3.5mm phone jack)

    -

ACCESSORY

  • Remote type

    L-Con

  • Cable

    Power cord (1.55m, Angle Type)

  • Manual / ESG

    Simple Manual

POWER

  • Voltage, Hz

    100 ~ 240V, 50/60Hz

  • Stand-by

    0.5W↓

REQUIRED LISTING(CERTIFICATION)

  • Safety

    UL

  • EMC

    FCC

CABINET

  • Bezel Width(L/R, U, B) - on bezel

    10.2, 10.2, 18.3

  • Bezel Width(L/R, U, B) - Off bezel

    7.9, 16.0, 30.9

  • Weight (W/O Stand,kg)

    1103 *650* 58.7

  • Weight (with stand, kg)

    1103 *698*198

  • Weight (Packing)

    16.9

  • WxHxD (w/o stand, mm)

    1103 *650* 58.7

  • WxHxD (with stand, mm)

    1103 *698*198

  • WxHxD (Packing, mm)

    1197*760*142

  • VESA Compatible

    300x300

UPC CODE

  • UPC Code

    719192 198142

WARRANTY

  • Warranty

    2 Year Limited Warranty (Parts/Labor/Backlight)
