Digital Media Player - External

Share This Content.

You Can Share The Items You Like With Your Friends

Digital Media Player - External

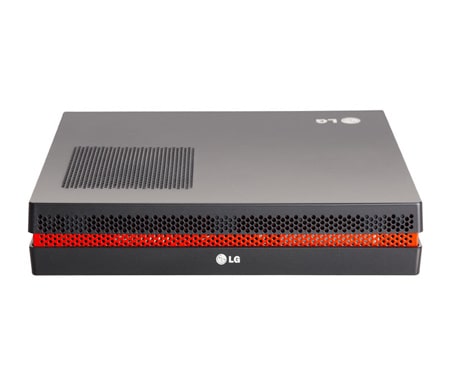

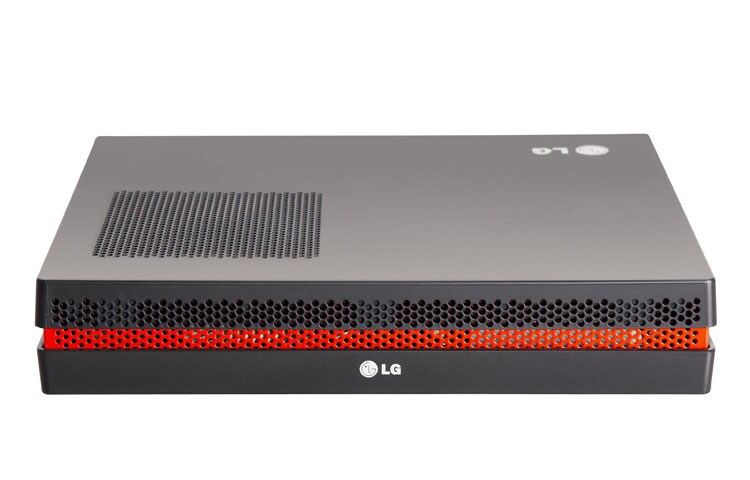

NC1000
()
  • Digital Media Player External Kit View
Digital Media Player External Kit View

•Designed to Load and Play Industry StandardSignage Software and Media Types

3 Year Limited Warranty

Analog and Digital Audio Outputs

ATSC/NTSC Tuner

Built-In

Clear Voice II

Dynamic contrast ratio

50,000:1
Print

All Spec

GENERAL SPECIFICATIONS

  • Dimensions (W x H x D)

    9.8” x 1.7” x 8.1” (only Set)

  • Weight

    3.2 Ibs (only Set)

  • CPU

    "Intel ATOM Processor 339 1.6GHz(Dual Core), FSB 533 MHz"

  • Chip Set

    Nvidia MCP7A-ION

  • Main Memory

    "DDR3 1066 1024 MB SODIMM type,1G (Option:2048MB,2G)"

  • Secondary Storage Device

    SATA SSD 8G(Option:32G)

  • O/S

    Windows Embedded Standard

MULTI I/O PORT

  • Serial Port

    One external RS-232 serial port

  • USB Port

    Hi-Speed USB 2.0 port 480 Mbps rate (x5)

  • LAN Port

    "REALTEK RTL8103E 10/100MB ethernetcontroller"

  • VGA / HDMI

    "Nvidia MCP7A - ION integrated Graphicchipset"

  • 4-in-1 Card

    "Secure Digital (SD) / Multimedia Card(MMC/MMC4.0) / Memory Stick (MS/MSPro)/ xD Memory Card"

  • PCI Express Card Slot

    Supported

  • LINE Out

    Supported

  • SPDIF (Digital Audio Out)

    "5.1 Channel supported (depending on sourcesignal)"

OPERATIONAL SPECIFICATION

  • Resolution

    "Maximum - 1920 x 1080 @ 60HzRecommended - 1920 x 1080 @ 60Hz"

POWER

  • Rated Voltage

    AC 100-240V ~ 50/60Hz 1.2A

ENVIRONMENTAL CONDITIONS

  • Operational Temperature

    "51°F ~ 95°F (5°C ~35°C)Humidity 10% ~ 80%"

  • Storage Temperature

    -4°F ~140°F(-20°C~60°C)

LIMITED WARRANTY

  • LIMITED WARRANTY

    3 Year (Parts/Labor)

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
