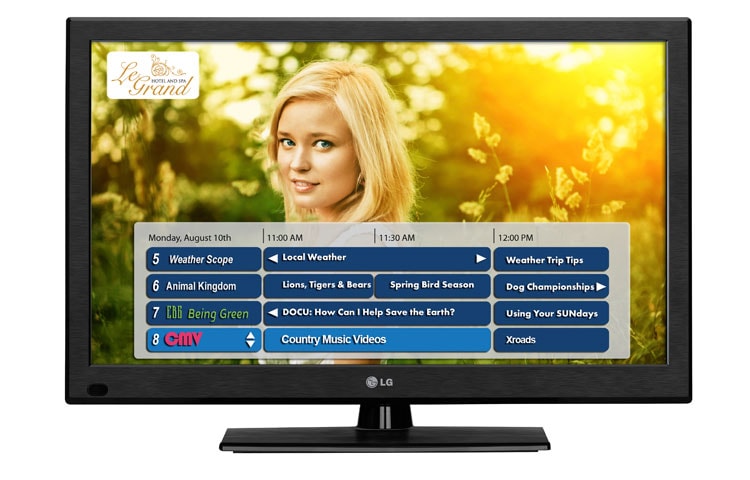

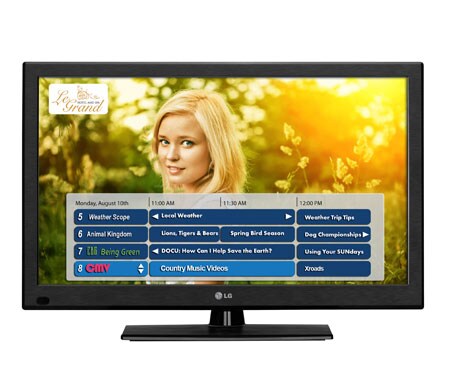

42" class (42.0" measured diagonally) Commercial Widescreen Integrated HDTV with Integrated Pro:Centric SMART and Pro:Idiom

42" class (42.0" measured diagonally) Commercial Widescreen Integrated HDTV with Integrated Pro:Centric SMART and Pro:Idiom

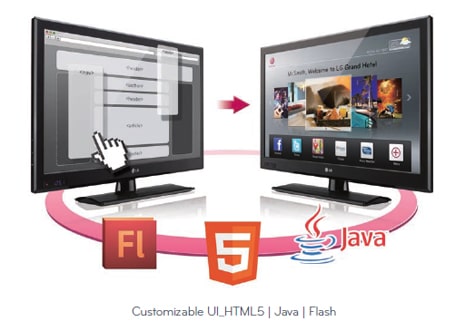

Pro:Centric® SMART

The finest and smartest mode of control and customization for Hotel TVs, LG Pro:Centric® Smart offers all the customizable tools needed to optimize a property's TVs with IP based programs including HTML5, Java and Flash. With this expansion of control comes the ability to provide premium hotel services without the need for a set-top box. Additionally, enhanced connectivity and display sharing are available to the guests with LG Smart TV technology.

Pro:Idiom

Global Leading Digital Rights Management SystemPro:Idiom unlocks access to premium content to help assure rapid and broad deployment of HDTV and other high value digital content.Pro:Idiom has been designed specifically for users of premium HDTV content from cable, satellite, or video on demand (VOD) services, and is thus designed to lower costs and reduce maintenance needs. This leading DRM system is embraced for its security solution, which prevents illegal copying of copyrighted content.

Energy Guide

The estimated annual energy cost determined in accordance with 16 CFR Part 305.5 for models 47LT770H, 42LT770H, and 37LT770H are $16, $13, & $12 respectively.Your energy cost depends on your utility rates and use. The estimated cost is based on 11 cents per kWh and 5 hours of use per day. For more information, visit www.ftc.gov/energy.1 1FTC Television labeling rule (18 CFR Part 305, as added by 76 Fed. Reg. 1038 (Jan 6, 2011)).

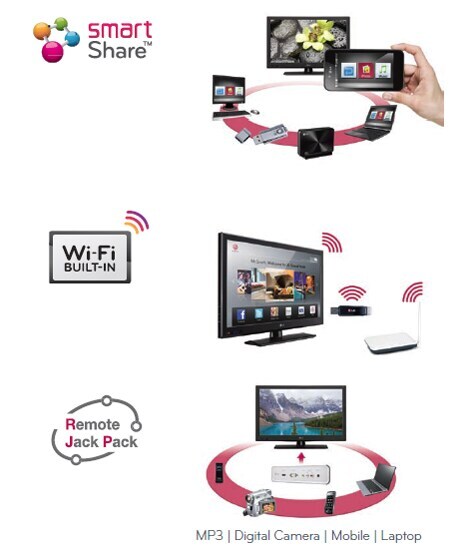

Extend Connectivity

Enjoy and share content stored on your laptop, digital cameras, smart phones and other devices to your TV conveniently and seemlessly.*Video playback only - content on phones may be played on TV through the Smart Share app on LGmobile phonesSimilar to a smart phone, LG's Pro:Centric smart TVs have WiFi built-in, allowing greater connectivity and access to and from the TV.The plug and play function of the Remote Jack Pack enables guests to view media from their portable devices on the hospitality TV screen seemlessly.

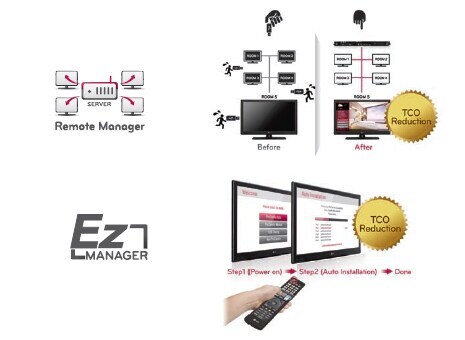

Reduced Total Cost of Ownership

Using LG's optional Pro:Centric server, you can remotely manage cloning and channel mapping for TVs in guest rooms without having to visit each room.EzManager's auto configuration function makes installation quick and easy. EzManager guides the installer to set up the TV with simple steps without having to set up the menu manually, saving time and cost.

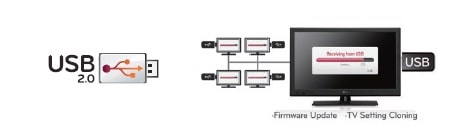

Effectively Manage In-Room TVs

The USB Cloning feature allows you to simply copy the TV settings onto all TVs using a USB stick, a process that is fully automated to save time without having to set each TV one by one.

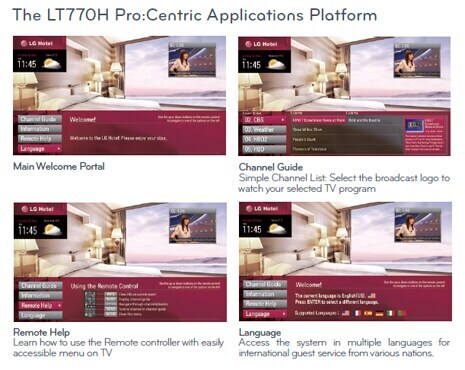

Pro:Centric Applications Platform

The LT770H is the latest in the line of Pro:Centric Televisions that provides a unique and dedicated hotel data broadcasting platform for hosting of LG's SI (System Integrator) partners' interactive applications, enabling delivery for a wide range of custom applications tailored to both hotel management and guest needs.The LT770H extends the choice of applications available to hoteliers through the introduction of HTML5 support in addition to the current Adobe Flash-Lite and Java support. The LT770H is also a full IPTV platform with built-in IP video decoding supporting both IP and RF connectivity. By leveraging the Pro:Centric IPTV platform, SI partners can integrate their STB (Set Top Box) client software directly on to the Television, eliminating the need for the additional STB hardware.The LT770H supports embedded Wi-Fi for streaming of content to the Television or back channel communications, or can be used simply as an access point. The LT770H platform includes support tools for the SI partners to manage their systems such Simple Network Management Protocol (SNMP), to enable monitoring of the TV's on the network by the head-end or cloud based server for maintenance and admin purposes. The Wake-on-LAN features allows the TV to communicate in a background mode while the TV is powered off and without disruption to the guest, providing the ability to deliver remote software updates from the head end server.

Key Feature

  • Pro:Centric® SMART & Pro:Idiom
  • Extend Connectivity
  • Reduced Total Cost of Ownership
  • Effectively Manage In-Room TVs

All Spec

SERVICE/LIMITED WARRANTY

  • Remote Jack Panel Compatibility (RJP)

    G-LINK, teleadapt

  • Compatible Interactive systems

    LodgeNet, Enseo, swisscom, Guesttek, NEVOTEK, KoolConnect, NXTV|Quadriga, acentic, ROOMLINX, nSTREAMS

  • Limited Warranty (Parts/Labor/Backlight)

    2 Years

UPC

  • 47LT770H

    7 19192 90414 9

  • 42LT770H

    7 19192 90413 2

POWER

  • Power Source

    100~240V 50/60Hz

  • Power Consumption (typ.) with Power Saving Modes Disabled

    72.7W

  • EcoSmart Static Power Savings

    Yes

  • Stand-by

    Under 1W

  • EcoSmart Dynamic Power Savings

    Yes

  • EcoSmart Intelligent Sensor & Backlight Control

    Yes

PANEL

  • Response Time (G to G)

    8ms

  • Native Display Resolution

    1920 x 1080

  • Viewing Angle (HxV)

    178° x 178°

  • LED Backlighting

    Edge lit

  • Frame Rate

    60Hz

  • Dynamic Contrast Ratio

    4,000,000:1

AUDIO

  • Audio Power

    20W (10W x 2)

  • Clear Voice II

    Yes

  • Invisible Speaker

    Yes

  • Speaker System

    1 Way 2 Speakers

  • Supporting Codec

    AC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM, DTS

  • Surround System

    Infinite Sound

INPUTS/OUTPUTS

  • RGB In (D-sub 15 pin) - PC

    1 Rear

  • RS-232C

    1 Rear (Service)

  • RJ45 for RJP Interface

    1 Rear

  • USB 2.0

    2 Side

  • RF In

    1 Rear

  • AV In

    1 Rear

  • Digital Audio Out(Optical)

    1 Rear (Optical)

  • External Speaker Out (3.5mm phone jack)

    1 Rear

  • Game Port/MPI Jack

    1 Rear

  • HDMI/HDCP Input

    2 Rear / 1 Side

  • LAN Port

    2 Rear

  • PC Audio Input

    1 Rear

VIDEO

  • MPEG2/MPEG4

    Yes

  • XD Engine

    Yes

  • 24p Real Cinema (24p 5:5/2:2 Pull down)

    Yes

  • Built-In Tuner

    ATSC/NTSC/Clear QAM

  • Eye Care (Anti Dazzling)

    Yes

REQUIRED LISTINGS

  • CEC Compliant

    Yes

  • ENERGY STAR 5.3

    Yes

  • RoHS Compliant

    Yes

  • UL, c-UL, NOM

    Yes

CABINET

  • VESA Standard Mount Interface

    400mm x 400mm

  • Weight with Packaging

    48.3 Ibs

  • Color

    Flat Black

  • Dimensions with Stand (W×H×D)

    43.3" x 28.7" x 10.8"

  • Dimensions without Stand (W×H×D)

    39.1" x 23.7" x 2.2"

  • Flame Retardant

    Yes

  • Unit Weight

    with Stand 34.2 Ibs, without Stand 29.8 lbs

  • Table Stand Included

    ±90° swivel

  • Packaging (W×H×D)

    46.5” x 29.3” x 5.3”

SPECIAL FEATURES

  • Anti-theft System

    Yes

  • Auto Off / Auto Sleep

    Yes

  • Embeded b-LAN

    Yes

  • External Power

    Yes (RS-232C)

  • External Speaker Out

    Yes (Variable, 3.5mm, Stereo, 1W with 8Ω)

  • EzManager

    Yes

  • Hybrid Streaming (IP & RF)

    Yes

  • IR Out

    Yes (MPI Jack)

  • Intelligent Sensor

    Yes

  • Kensington Lock

    Yes

  • Multi IR Code

    Yes

  • One Channel Map/Logical Channel Map

    Yes

  • PC Content Sharing

    Yes

  • PIP

    Yes

  • Pro: Centric Platform

    Yes (Supports Java/Adobe Flash/HTML 5 application)

  • Pro:Idiom

    Yes

  • RF

    2 Tuner

  • RJP Compatibility

    LG (RJ45, HDMI), Teleadapt/G-Link (HDMI)

  • RJP Interface

    Yes (RJ45, HDMI)

  • SI Compatible (TVLink Protocol)

    Yes

  • SIMPLINK

    Yes

  • SNMP

    Yes

  • Smart Energy Saving

    Yes (Backlighting)

  • Splash Image-Logo (on startup)

    Yes

  • USB (2.0)

    Yes (MP3 / JPEG/ HD DivX)

  • USB Cloning

    Yes

  • Video Mute

    Yes

  • WOL (Wake on LAN)

    Yes

  • WiFi

    Yes (built-in)

  • Credenza/Security Screw Hole

    Yes
