Screen Size
26”
Viewing Angle
178°/178°
Dynamic Contrast Ratio
50,000:1
Frame Rate
60Hz
LED Backlighting
Edge lit
Native Display Resolution
1366 x 768
Response Time (typ.)
6ms
22LQ630H
7 19192 90380 7
Service/Limited Warranty
2 Years (Parts/Labor)
Required Approvals
UL, cUL, NOM
Lead Free
Yes
ENERGY STAR 5.3
Yes
CEC Compliant
Yes
Mercury Free
Yes
Media Host
JPG/MP3/DivX
System Upgrade
Yes
Back Up
Yes
Patient Remote
124-213-08 (Bed 1/Bed 2)
Clone Programmer
TLL-1100A
Installer Remote
124-213-07 (Bed 1/Bed 2, TV menu & navigation buttons)
ATSC/Clear QAM
Yes
Analog (NTSC)
Yes
MPEG4
Yes
Just Scan 0% over scan
Yes
Picture Status Mode
5 modes (Vivid/Standard/Cinema/Sport/Game)
XD Engine
Yes
xvyCC
Yes
24p Real Cinema (24p 5:5/2:2 Pull down)
Yes
Aspect Ratio Correction
5 Modes (16:9/Just scan/set by program/4:3/Zoom)
DTV Signal Strength Indicator
Yes
Film Mode (3:2 Pull down)
Yes
Color Temperature Control
3 Modes (101 steps W50(warm)~C50(cool))
Clear Voice II
Yes
Dolby Digital Decoder
Yes
Internal TV Speaker on/off
Yes
Invisible Speaker (Bottom)
Yes
Sound Mode
5 Modes (Standard, Music, Cinema, Sport, Game)
Speaker System
1 Way 2 Speakers
Surround System
Infinite Sound
Audio Output Power
5W + 5W
Auto Programming
Yes
Program Add/Del
Yes
Channel Labels
Yes
Sleep Timer/On/Off Timer
Yes
Auto Off/Auto Sleep (When no video is present)
Yes
Clock
Yes
Function Menu
Yes
Power On Splash Image (Welcome Screen)
Yes
Pro:Centric Single Tuner
Yes (Java/Flash)
Pro:Idiom (Integrated)
Yes
TVLink Commercial
Yes
USB Cloning
Yes
b-LAN
Yes
Commercial Installation Menu
Yes
Bed 1/Bed 2
Yes
6 foot Hospital Grade Power Cord
Yes
Cabinet Color
Matte Black
Cable Management
Yes
Cloning Capable (USB or TLL-1100A)
Yes
Flame Retardant Cabinet Material
Yes
Kensington Lock
Yes
Owner’s Manual (CD/Simple Book)
Yes (Quick Guide Only)
Pillow Speaker Codes (Zenith, Philips, RCA)
Yes
Power Indicator
Yes
Remote Control
Not Included (Optional)
Soft Touch Keys
Yes
Stand
Not Included
VESA® Standard Mount Compatible (WxH)
100mm x 100mm
Shipping Dimensions (WxHxD)
29.2" x 19.5" x 5.8"
TV without stand weight
12.1 Ibs
TV without stand (WxHxD)
25.9” x 16.8” x 2.3”
Shipping weight
16.1 Ibs

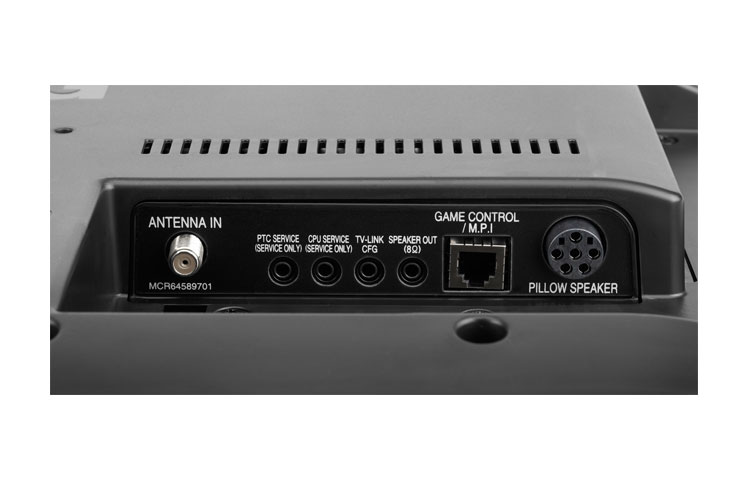

AV In (Gender Cable Incl.)
1 (side) 3.5mm Jack
External Speaker Out
1 (rear) 3.5mm, Mono, 1W, Fixed
HDMI/HDCP Input
2 (side)
MPI Jack (RJ-12)
1 (rear) Game Port/MPI
PC Audio Input
1 (side) 3.5mm Jack
PTC/CPU Service Only
2 (rear) 3.5mm Jacks
Pillow Speaker Jack (6-Pin)
1 (rear)
RF In
1 (rear)
RGB In (D-Sub 15pin) - PC
1 (side)

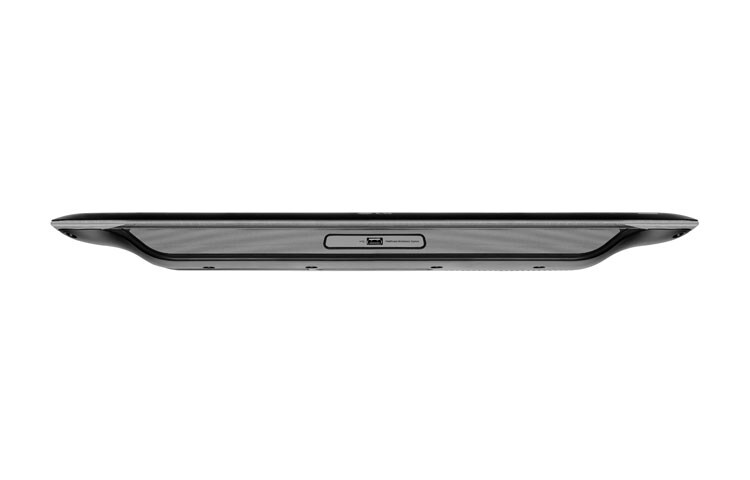

USB 2.0
1 (bottom)
Input Labeling
Yes
Parental Control
Yes
Quick View (Flashback)
Yes
A/V Input Navigation
Yes
Smart Energy Saving
Yes (Backlight Control+Intelligent Sensor)
Subtitle (Caption)
Yes
e-streamer
Yes
Intelligent Sensor
Yes
Key Lock
Yes
OSD Language
4 (English, French, Spanish, Korean)
Power Consumption
Max 60W Typical 35W
Dynamic Power Saving
Yes
Voltage, Hz
120V, 50/60HZ
Stand-by Mode
Under 1W
