42" class TV Tuner Built-In Digital Signage (42.2"/1071mm diagonal)

Specs

Support

Resource

42" class TV Tuner Built-In Digital Signage (42.2"/1071mm diagonal)

Share This Content.

You Can Share The Items You Like With Your Friends

42" class TV Tuner Built-In Digital Signage (42.2"/1071mm diagonal)

42LX530S

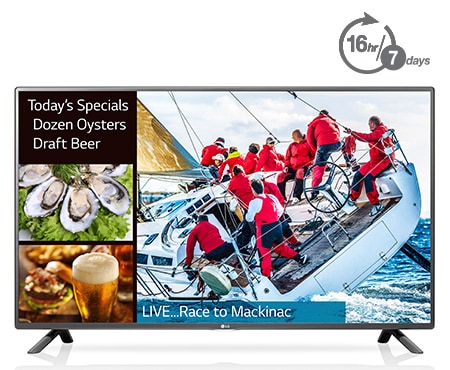

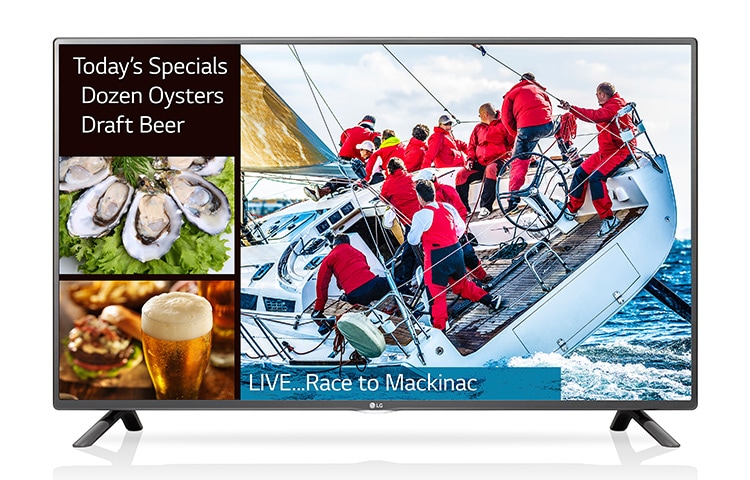

  • Front view of 42" class TV Tuner Built-In Digital Signage (42.2"/1071mm diagonal) 42LX530S
Front view of 42" class TV Tuner Built-In Digital Signage (42.2"/1071mm diagonal) 42LX530S

Key Features

  • INSTANT MESSAGE DELIVERY
  • ALL-IN-ONE DIGITAL SIGNAGE SOLUTION
  • SIMPLE CONNECTION
  • EMBEDDED SUPERSIGN W-LITE SOFTWARE
More
Print

All Spec

PANEL

  • Size

    42"

  • Backlight Type

    LED (Direct)

  • Brightness (cd/m2)

    300

  • Dynamic Contrast Ratio (Dynamic MCI (Hz))

    1,000,000 : 1

  • Static (Panel) Contrast Ratio

    1,200 : 1

  • Viewing Angle(HxV)

    178° x 178°

  • Response Time

    8 ms

  • Frame Rate

    60Hz

  • Lift span (hrs)

    30000

BROADCASTING SYSTEM

  • Analog

    Yes (NTSC)

  • Digital

    Yes (ATSC/QAM/VSB)

VIDEO

  • Resolution

    1920 x 1080 (FHD)

  • Triple XD Engine

    Yes

  • Picture Mode

    Yes, 8 modes (Vivid, Standard, Eco, Cinema, Sport, Game, Expert1, Expert2)

  • Aspect Ratio

    Yes, 6 modes ( 16:9, Just scan, Set by program, 4:3,Zoom, Cinema zoom1)

AUDIO

  • Audio Output

    10W + 10W

  • Sound System

    2.0 ch

  • Sound Mode

    Yes, 6 modes (Standard, News, Music, Cinema, Sport, Game)

  • Virtual Surround

    Yes

  • Clear Voice II

    Yes

  • Sound Optimizer

    Yes, 3 modes (Normal, Wall-Mount Type, Stand Type)

FEATURE

  • Lock Mode

    Yes

  • Multi IR Code

    Yes

  • Public Display Mode

    Yes

  • USB Cloning

    Yes

  • IR Out

    Yes (RS-232C)

  • USB

    Yes

  • - USB Auto Play Back

    Yes

  • - Moving Picture Playback (SD/HD/Plus HD)

    asf, wmv,3gp,3gp2,divx, avi,mp4,m4v,mov,mkv,ts,trp,tp,mts,m2ts,vob,mpg,mpeg,mpe

  • - Picture

    jpeg,jpg,jpe,BMP,PNG

  • - Audio Codec

    mp3,AAC,M4A,OGG,WMA,WMA 10 Pro

  • External Speaker Out

    Yes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω)

  • RJP Compatibility

    Yes (RS232C,HDMI)

  • RJP Interface

    Yes LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)

  • Auto Off / Auto Sleep

    Yes / Yes

  • Smart Energy Saving

    Yes

  • Anti-theft System

    Yes (b/cover)

  • RTC(Real Time Clock)

    Yes

  • Wi-Fi

    Yes (Wi-Fi dongle ready)

  • Internal memory

    -

  • SuperSign SW Compatibility

    Yes

  • - Lite

    Yes

  • - W

    Yes

  • - C

    Yes

INTERFACE(SIDE)

  • HDMI In

    1

  • USB(2.0/3.0)

    2(2.0)

INTERFACE(REAR)

  • RF In

    1

  • AV In(Composite)

    1 (Sharing with Component in)

  • Component In(Y, Pb,Pr) + Audio(L/R)

    1

  • Digital Audio Out(Optical)

    1

  • RGB In (D-sub 15pin)

    1

  • PC Audio Input

    1 (Sharing with Component in)

  • RS-232C (D-Sub 9pin)

    1

  • HDMI In

    1

  • LAN(RJ45)

    1

  • Ext SPK out (3.5mm Phone Jack)

    1

ACCESSORIES

  • Remote type

    L-Con

  • Cable

    Power cable

  • Manual / ESG

    Simple book

POWER

  • Voltage, Hz

    110 ~ 240V, 50/60Hz

  • Typical (Watts)

    35.5W

  • Stand-by

    0.5W↓

CABINET

  • Bezel Width (on Bezel) (mm)

    11.0/11.0, 11.0, 16.5

  • Bezel Width (off Bezel) (mm)

    8.5/ 8.5, 8.5, 14.0

  • Set Size (W/O Stand, WxHxD, mm)

    42" : 961 X 567 X 55.5

  • Set Size (With Stand, WxHxD, mm)

    42" : 961 X 610 X 218

  • Set Weight (With Stand, Set, kg)

    9.5

  • Packing Size (With Stand, WxHXD, mm)

    1054 X 645 X 146

  • Packing Weight (With Stand,Packing, kg)

    11.6

TOOL

  • VESA Compatibility

    400 x 400

STANDARD APPROVAL

  • Safety

    UL, FCC

  • Environment

    RoHS

  • Etc.

    cUL, NOM, Energy Star 7.0

UPC CODE

  • UPC

    719192 198067

WARRANTY

  • Warranty

    2 Year Limited Warranty (Parts/Labor/Backlight)

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
