49" class (48.5" diagonal) Standard Performance SM5KC Series

Features

Gallery

Specs

Support

Resource

Find a Dealer
Contact Us

49" class (48.5" diagonal) Standard Performance SM5KC Series

Share This Content.

You Can Share The Items You Like With Your Friends

49" class (48.5" diagonal) Standard Performance SM5KC Series

49SM5KC-B
()

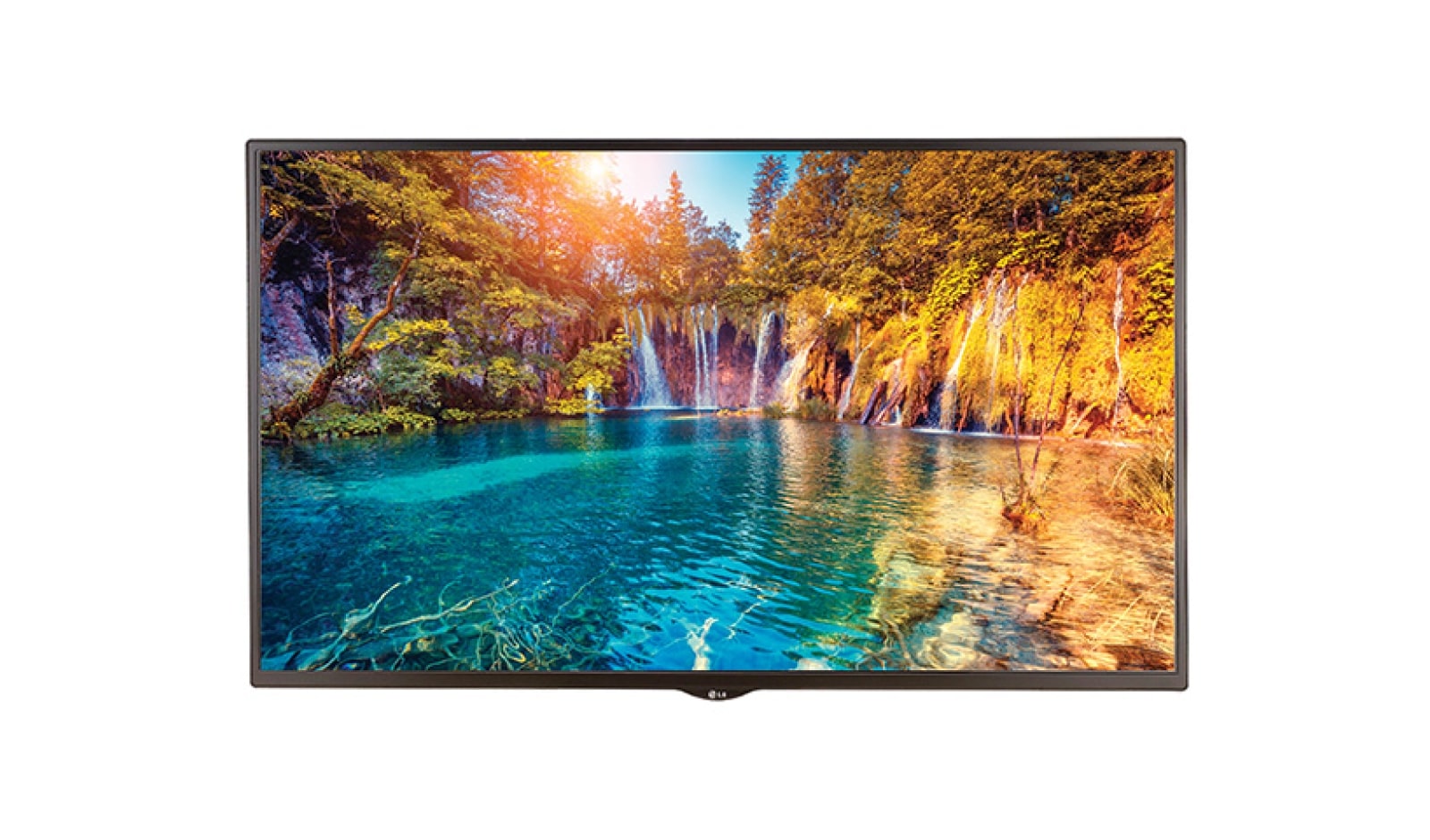

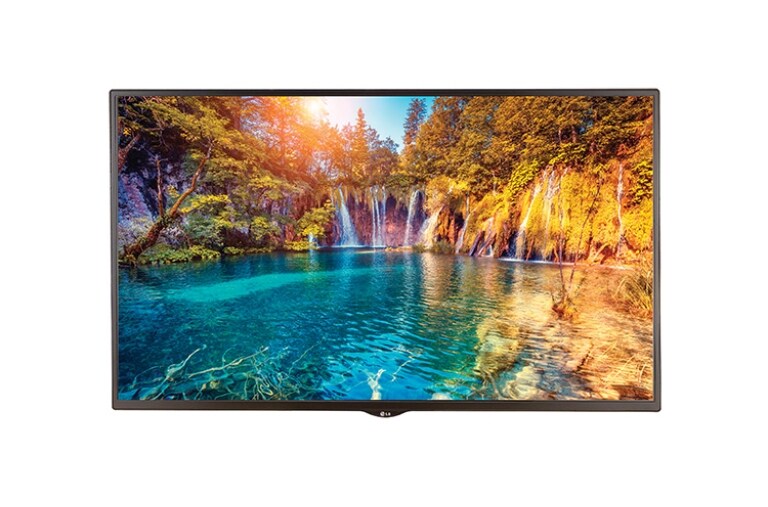

  • Front view of 49" class (48.5" diagonal) Standard Performance SM5KC Series 49SM5KC-B

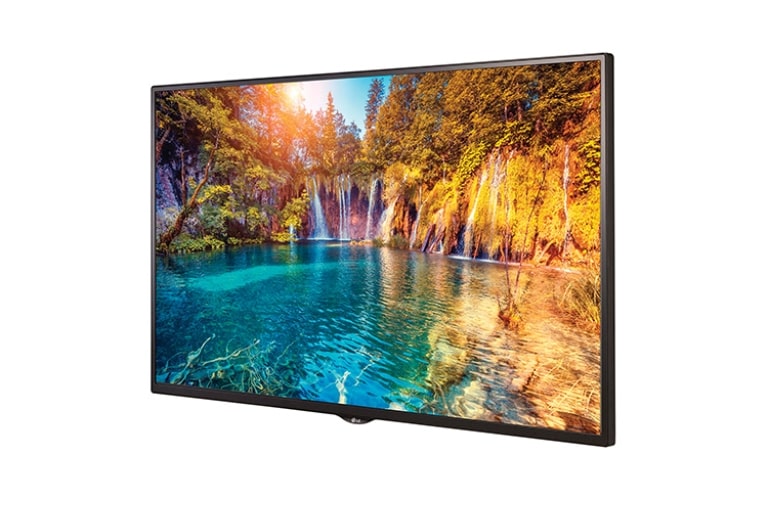

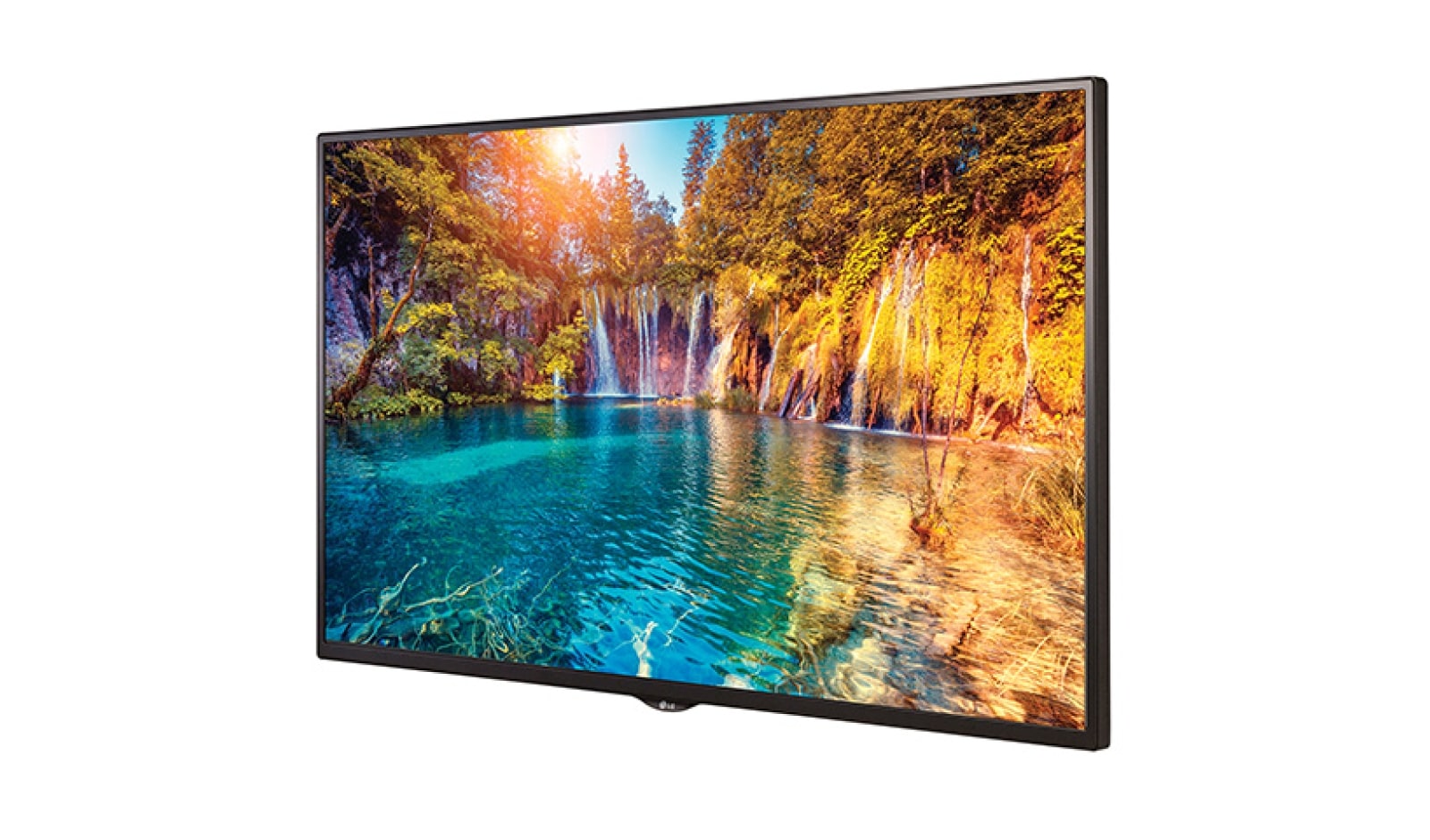

  • LG 49" class (48.5" diagonal) Standard Performance SM5KC Series, 49SM5KC-B

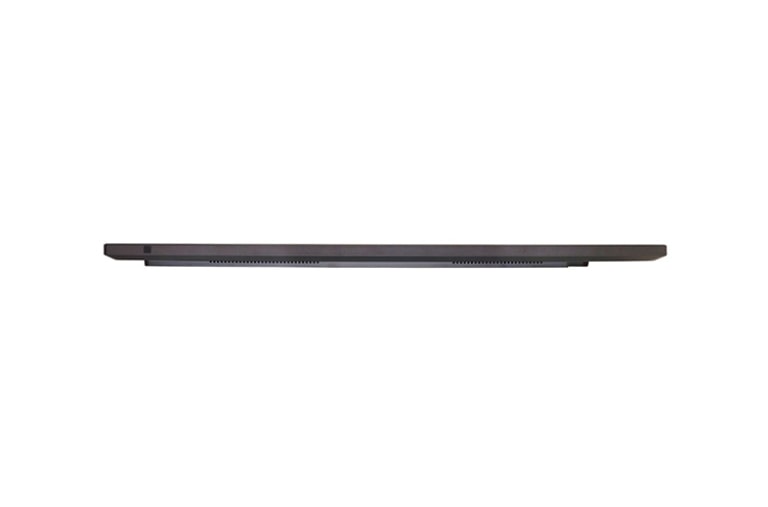

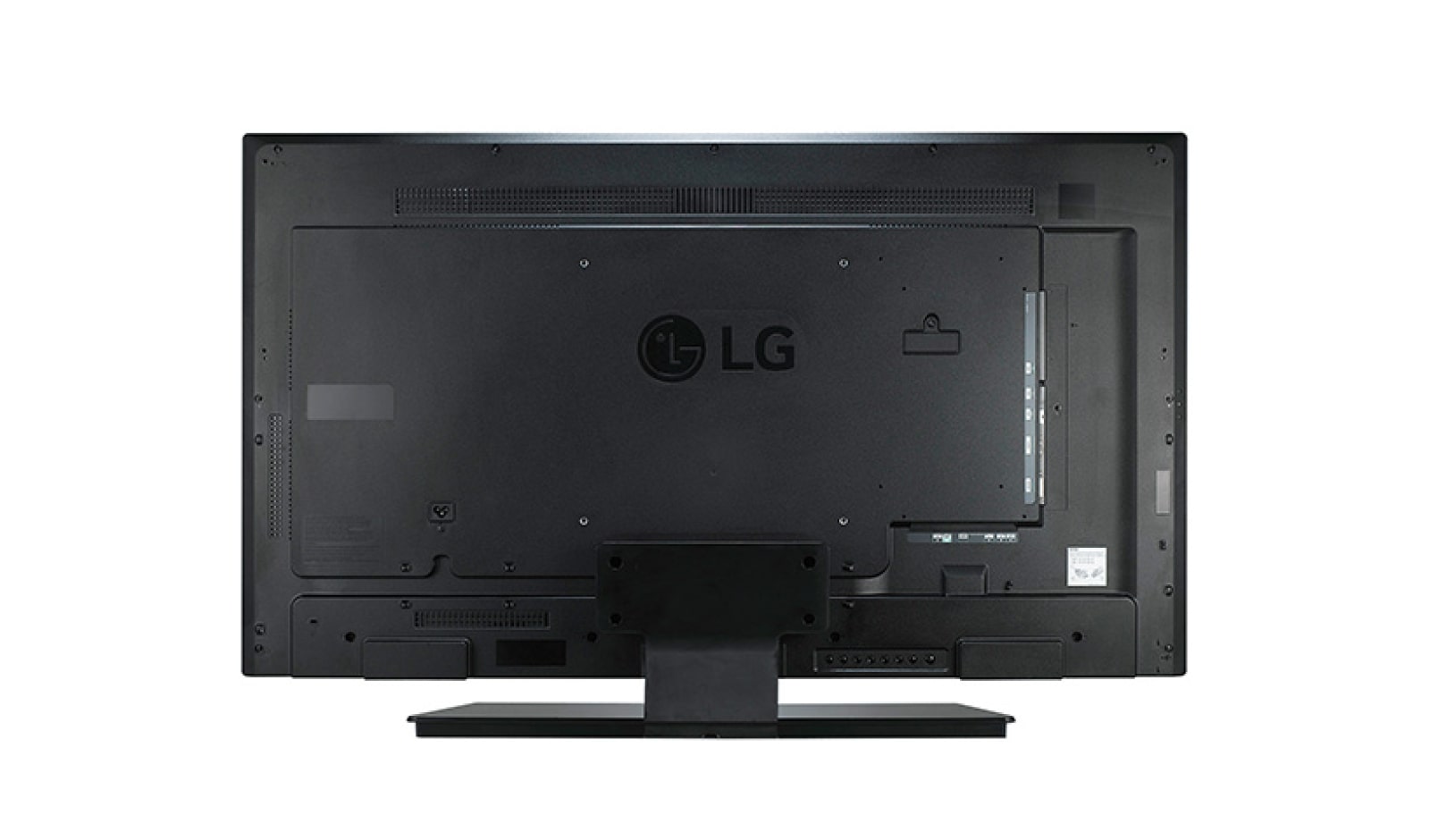

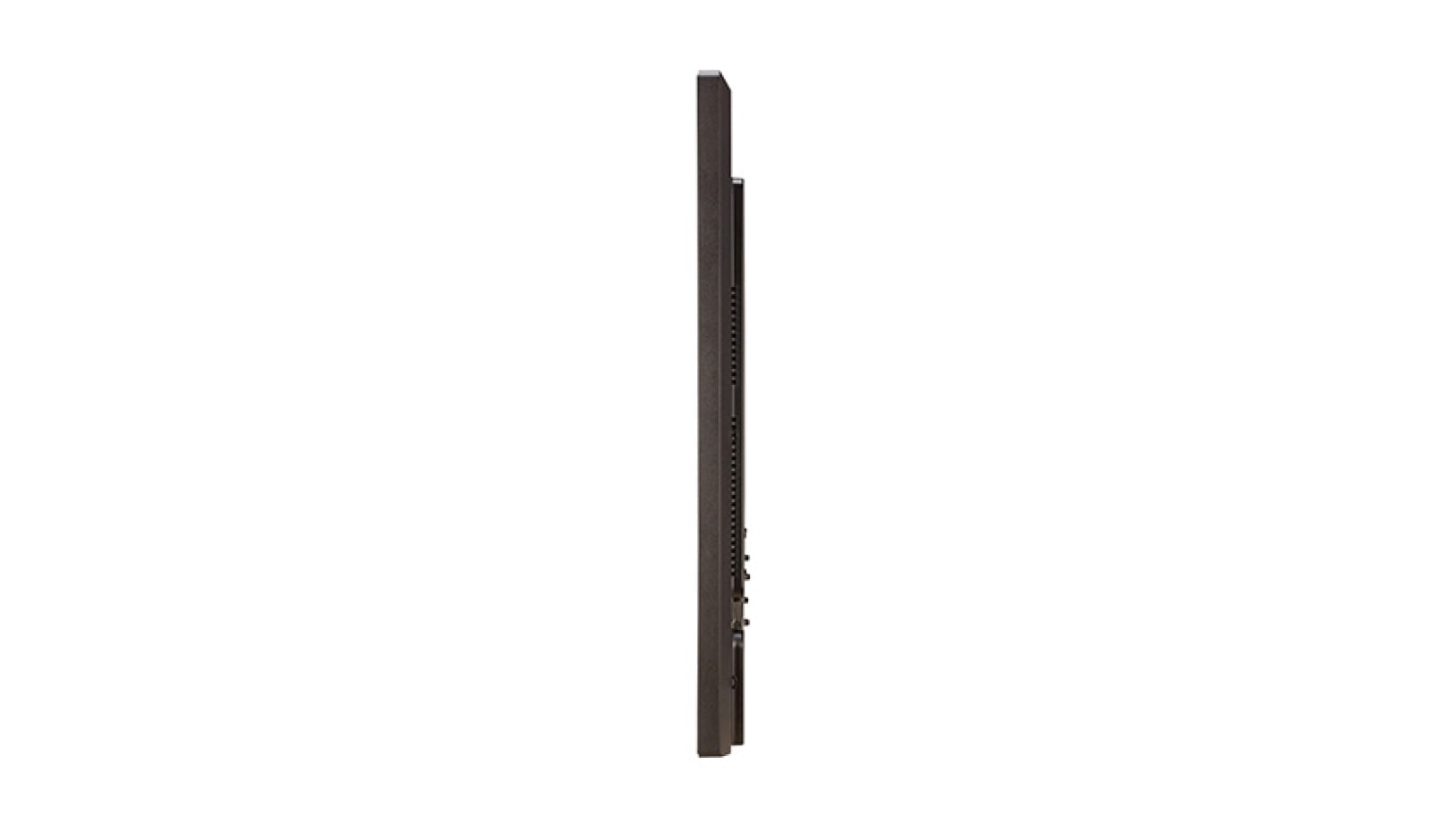

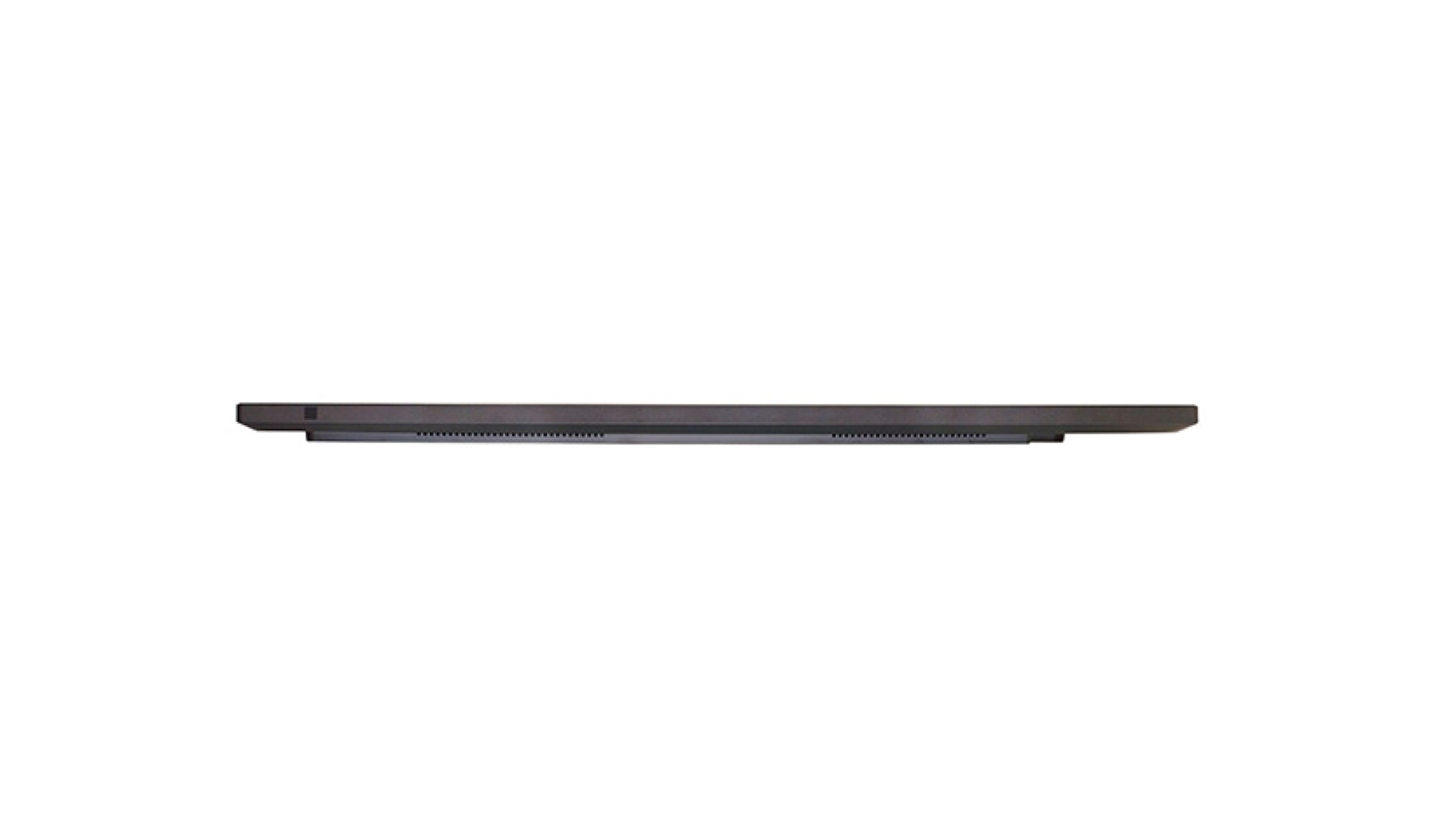

  • LG 49" class (48.5" diagonal) Standard Performance SM5KC Series, 49SM5KC-B
  • LG 49" class (48.5" diagonal) Standard Performance SM5KC Series, 49SM5KC-B
  • LG 49" class (48.5" diagonal) Standard Performance SM5KC Series, 49SM5KC-B
  • LG 49" class (48.5" diagonal) Standard Performance SM5KC Series, 49SM5KC-B
  • LG 49" class (48.5" diagonal) Standard Performance SM5KC Series, 49SM5KC-B
Front view of 49" class (48.5" diagonal) Standard Performance SM5KC Series 49SM5KC-B
LG 49" class (48.5" diagonal) Standard Performance SM5KC Series, 49SM5KC-B
LG 49" class (48.5" diagonal) Standard Performance SM5KC Series, 49SM5KC-B
LG 49" class (48.5" diagonal) Standard Performance SM5KC Series, 49SM5KC-B
LG 49" class (48.5" diagonal) Standard Performance SM5KC Series, 49SM5KC-B
LG 49" class (48.5" diagonal) Standard Performance SM5KC Series, 49SM5KC-B
LG 49" class (48.5" diagonal) Standard Performance SM5KC Series, 49SM5KC-B

Key Features

  • Quad Core SoC*
  • WebOS
  • Group Manager
  • PBP (Picture-By-Picture) / PIP (Picture-In-Picture)
More

IP Streaming Protocol

Various types of IP video streaming protocol are supported, such as RTSP/RTP, MMS, HLS and MPEG-2 TS*.

*RTSP (Real-Time Streaming Protocol),
RTP (Real-time Transport Protocol),
MMS (Microsoft Media Server), HLS (http live streaming)

Secure Communication Protocol

By supporting HTTPS* protocol, communication between server and signage is more secure.

*HTTPS: Hypertext Transfer Protocol over Secure Socket Layer

Proxy Server

Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for requests from clients seeking resources from other servers.)

Mirroring

Content sharing is more convenient on a Wi-Fi network.

Soft AP

The SM5KC with Soft AP software can operate as a wireless access point for mobile devices.

Simple Installation

Installation has been simplified by removing the external media player and Ethernet/ RS232C cables.

Wi-Fi: (removing Ethernet or RS232C cables)
802.11n (2.4 GHz/5 GHz)

BEACON

With BEACON and Bluetooth Low Energy (BLE) supported by SM5KC*, retail stores can provide coupons and information in real time.

* SM5KC is enhanced to support ibeacon** and Eddystone***
** iBeacon: Bluetooth Low Energy beacon profile released by Apple in 2013
*** Eddystone: Bluetooth Low Energy beacon profile released by Google in 2015

Dust & Humidity Protection

Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.

Detachable logo

The detachable logo allows for installation in the desired orientation: landscape or portrait mode.

Key Feature

  • Quad Core SoC*
  • WebOS
  • Group Manager
  • PBP (Picture-By-Picture) / PIP (Picture-In-Picture)
Print

All Spec

PANEL

  • Screen Size

    49" (48.5" diagonal)

  • Panel Technology

    IPS

  • Aspect Ratio

    16 : 9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness

    450cd/m2

  • Viewing Angle (HxV)

    178 x 178

  • Response Time

    12 ms (G to G BW), 10.1 ms (WOT)

  • Surface Treatment

    Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1% (Typ.)

  • Life time (Typ.)

    50,000 Hrs (Typ.)

  • Guaranteed Operating Hour

    24 Hours

  • Orientation

    Portrait & Landscape

CONNECTIVITY

  • Input

    HDMI, DP, DVI-D, RGB, Audio, SD card, USB 3.0

  • Output

    DP, Audio

  • External Control

    RS232C in/out, RJ in, IR Receiver, Pixel Sensor

PHYSICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    0.5" mm (T/R/L), 0.7" mm (B)

  • Monitor Dimension (W x H x D)

    43.4" x 25.1" x 2.1"

  • Weight (Head)

    31.5 lbs

  • Weight (Head + Stand)

    38.8 lbs

  • Monitor with Optional Stand & Speaker Dimensions (W x H x D)

    43.4" x 27.4" x 8.6"

  • Carton Dimensions (W x H x D)

    47.1" x 29.9" x 6.5"

  • Packed Weight

    38.4 lbs

  • VESA TM Standard Mount Interface

    300 x 300 mm

SPECIAL FEATURES

  • Yes

    Temperature Sensor, Auto Brigtness Sensor, Tile Mode (Up to 15x15), DPM Select, DPM wake up, Energy Saving, Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory (8 GB), USB Cloning, Easy Brightness Control, Holiday Schedule, Limited Mode, Wake on LAN, Fail over, Mirroring, SoftAP, BEACON, Embedded Template

ENVIRONMENTAL CONDITIONS

  • Operating Temperature

    32°F to 104°F

  • Operating Humidity

    10% t o 80%

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

  • Power Switch

    No

POWER CONSUMPTION

  • Typ.

    85 W

  • Smart Energy Saving

    60 W

STANDARD(CERTIFICATION)

  • Safety

    UL / cUL / CB / TUV / KC

  • EMC

    FCC Class "A" / CE / KCC

  • ErP / Energy Star

    NA / ENERGY STAR® Qualified

  • Audio Power

    20 W (10 W x 2) for Internal Speaker (6 ohm)

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible

    Yes

  • External Media Player Attachable

    Yes (MP500/MP700)

SOFTWARE COMPATIILITY

  • SuperSign W/Lite

    Yes

  • SuperSign C

    Yes

ACCESSORIES

  • Basic

    Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover

  • Optional

    Speaker (SP-5000), Stand (ST-492T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch overlay (KT-T490)

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
