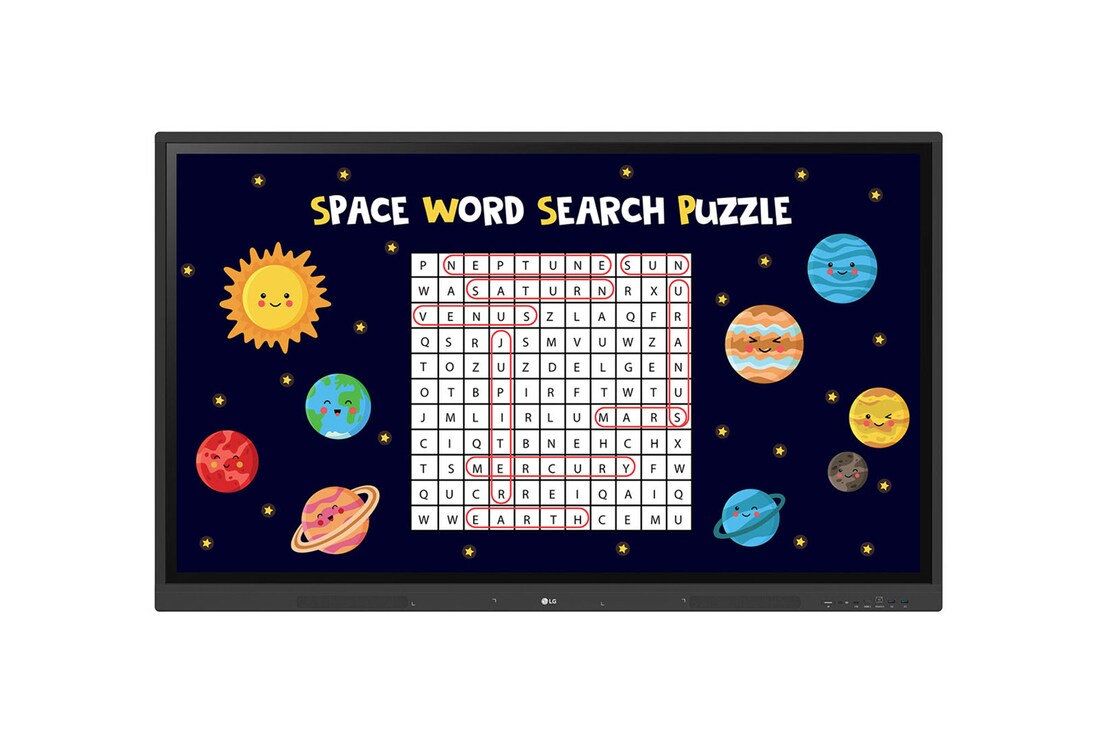

LG CreateBoard

98TR3DK-B

Key Features

Internal Memory : 64GB (Storage) / 8GB (RAM)
Brightness (w/o Glass) : 440 nit (Max.), 390 nit (Typ.)
Resolution : 3,840 × 2,160 (UHD)
Multi-Touch Point : 40 Points (Max.)

All Spec

ACCESSORY

Basic: Power Cord 3 M*1, USB Cable(Type A-Type B) 5 M*1, USB Type-C Cable(C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

Optional: Wall Mount(WM-L000S), Floor Stand(ST-000F)

CERTIFICATION

EMC: FCC Class "A" / CE / KC

ERP / Energy Star: Yes / Yes

Safety: CB / NRTL

CONNECTIVITY

Audio In: Yes (1)

Audio Out: Yes(1), Optical O(1, SPDIF)

HDMI In: Yes (3) HDCP2.2

HDMI Out: Yes(1)

RGB In: Yes (1, VGA)

RJ45(LAN) In: Yes (1)

RJ45(LAN) Out: Yes(1)

RS232C In: Yes (1)

Touch USB: Yes(2)

USB In: USB3.0 Type A(4), USB2.0 Type A(1), USB Type-C(1, USB-PD, DP-Alt)

DEDICATED FEATURE - CREATE BOARD

Bluetooth: Bluetooth 5.0

CPU: Quad core A55

GPU: Mali G52MP2

LAN: Gigabit LAN

Memory(RAM): 8GB

OS ver. (Android): Android 11

Storage: 64GB

Wi-Fi: 802.11a/b/g/n/ac/ax (WiFi 6)

DEDICATED FEATURE - TOUCH

Accuracy (Typ.): ±1.5mm

Available Object Size for Touch: Ø2 mm ↑

Interface: USB2.0

Multi Touch Point: Max 40 points (Windows),
Max 32 points (Android)

Operating System Support: Windows 7/8/10/Linux/Mac/Android
(Linux/Mac Support one point touch)

Protection Glass Thickness: 4T(Anti-Glare)

Protection Glass Transmission: 88%

Response Time ('Paint' app on Windows 10 PC): ≤5ms

ENVIRONMENT CONDITIONS

Operation Humidity: 10% to 90%

Operation Temperature: 0 °C to 40 °C

FEATURE - HARDWARE

Auto Brightness Sensor: Yes

Internal Memory (eMMC): 64GB

Power Indicator: Yes

Wi-Fi/BT (Built-in): Yes (Slot type)

FEATURE - SOFTWARE

Booting Logo Image: Yes

OS Ver. (webOS): Android 13

PBP: Yes (1) external source

PIP: Yes (1) external source

Screen Share: Yes (CreateBoard Share)

Smart Energy Saving: Yes (Energy Saving)

Wake on LAN: Yes

LANGUAGE

OSD: English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Qajaq, Catalan, Basque

MECHANICAL SPECIFICATION

Bezel Color: Black

Bezel Width: T/R/L/B : 30/27/27/45mm

Carton Dimensions (W x H x D): 2406 × 1474 × 280mm

Handle: Yes

Monitor Dimensions (W x H x D): 2244 × 1323 × 91mm

Packed Weight: 133.2Kg

VESA Standard Mount Interface: 800×600mm

Weight (Head): 103.6Kg

OPS COMPATIBILITY

OPS Power Built-in: Yes

OPS Type compatible: Yes(Slot)

PANEL

Aspect Ratio: 16:9

Back Light Type: Direct

Brightness: 440nit(w/o Glass, max),
390nit (w/o Glass, typ)

Color Depth (Number of Colors): 1.07B(10bit)

Color Gamut: NTSC 72%

Contrast Ratio: 1200:1

Dynamic CR: 3000:1

Life time: 30,000 Hrs(L50, Min.), 50,000 Hrs (L30)

Native Resolution: 3840x2160 (UHD)

Operation Hours (Hours/Day): 16/7

Panel Technology: IPS

Portait / Landscape: No / Yes

Refresh Rate: 60Hz

Response Time: 8ms

Screen Size (Inch): 98"

Surface Treatment (Haze): 25%

Viewing Angle (H x V): 178°(H/V)

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-In Power

POWER CONSUMPTION

BTU (British Thermal Unit): 1348 BTU/Hr(Typ.), 2081 BTU/Hr(Max)

DPM: ≤0.5W

Max.: 610W

Power off: ≤0.5W

Typ.: 395W

SOFTWARE COMPATIBILITY

Connected Care: Yes / Yes(DMS)

SOUND

Speaker (Built-in): Yes (15W x 2)

SPECIAL FEATURE

Conformal Coating (Power Board): Yes(Partial)
