Digital Media Player - External

Overview

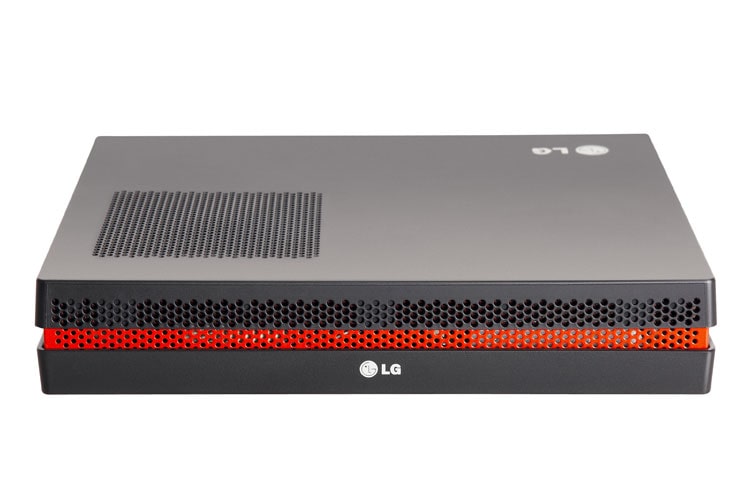

The LG NC1100 and NC2100 are innovative Solid State Media Players that function as an integral component of LG's Public Display Solutions. The NC1100 is an external unit that attaches to the back of a display while the NC2100 is a card that slides into the port of a compatible LG LCD monitor. Once connected to multiple screen options, these Media Players can transmit content such as way finding, dynamic advertising, information boards, and broadcast video in Full HD. Included Management Software is intuitive and user-friendly and allows you to quickly navigate through menus to control your networked displays and simultaneously run media files such as video, images, audio, and flash. LG makes it simple with Media Players optimized for Digital Signage Networks.

All Spec

MEDIA PLAYER

Input

(USB Port) Hi-Speed USB 2.0 port 480 Mbps rate (x4) (4-in-1 Card) "Secure Digital (SD) / Multi-media Card (MMC/MMC4.0) / Memory Stick(MS/MS-Pro) /xD Memory Card" (PCI Express Card Slot) supported
Weight

3.4 Ibs. (only Set)
System memory

DDR3 1066 2GB (2,048MB) SODIMM type
Storage

32 GB
CPU

Intel®Celeron® P4500 Processor Cache-L1/L2/L3 32K/256K/2M, 1.86 GHz
Chip Set

Mobile Intel®QM57 Express chipset
Dimensions (WxHxD)

9.8” x 1.8” x 8.7”
LAN

Intel® 82577LM Gigabit(10/100/1000 Mbps) Ethernet PHY
Operating System

Microsoft®Windows® Embedded Standard (XP)
Output

(Serial Port)One external RS-232C Serial port (Display Out) DP/ D-SUB / HDMI (LINE Out) Supported

UPC CODES

NC1100-DAQA.AUS

7.19192189348E11
NC1100-DAQB.AUS

719192190146 (equipped with Supersign Elite S/W)
NC2100-DAQA.AUS

7.19192587663E11
NC2100-DAQB.AUS

719192189515 (equipped with Supersign Elite S/W)

OPERATIONAL SPECIFICATION

Applicable Software

Elite-s / Elite-w / Elite-w lite
Operating Conditions

Operating Temperature -10ºC to 40ºC Operating Humidity 10% to 80% Storage Temperature -20ºC to 60ºC Storage Humidity 5% to 95%
Power Consumption (Off)

Under 1W(without WOL)
Resolution

Maximum - 1920 x 1080 @ 60Hz, Recommended - 1920 x 1080 @ 60Hz
Applicable Models

42WS10, 47WS10, 55WS10, 72WS70, 42VS20, 47VS20, 55VS20, M3704C, 65VS10, M4210L, 47VL10, 47WV30, 55WV70, M2901S, M3801S
Power Consumption (Max)

Under 50W(without Peripheral Device)
Power

Rated Voltage AC 100-240V~, 50/60Hz, 1.2A
