Digital Media Player - Internal

Overview

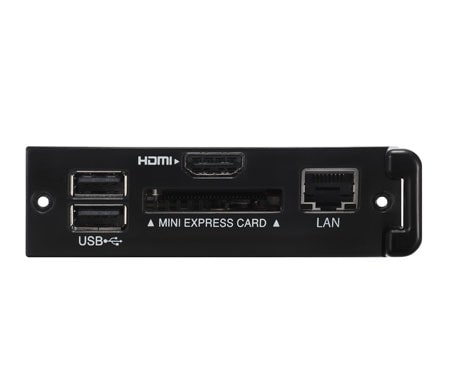

The LG NC1100 and NC2100 are innovative Solid State Media Players that function as an integral component of LG's Public Display Solutions. The NC1100 is an external unit that attaches to the back of a display while the NC2100 is a card that slides into the port of a compatible LG LCD monitor. Once connected to multiple screen options, these Media Players can transmit content such as way finding, dynamic advertising, information boards, and broadcast video in Full HD. Included Management Software is intuitive and user-friendly and allows you to quickly navigate through menus to control your networked displays and simultaneously run media files such as video, images, audio, and flash. LG makes it simple with Media Players optimized for Digital Signage Networks.

All Spec

MEDIA PLAYER

Operating System

Microsoft®Windows® Embedded Standard (XP)
CPU

Intel®Celeron® P4500 Processor Cache-L1/L2/L3 32K/256K/2M, 1.86 GHz
Chip Set

Mobile Intel®QM57 Express chipset
System memory

DDR3 1066 2GB (2,048MB) SODIMM type
Storage

32 GB
LAN

Intel® 82577LM Gigabit(10/100/1000 Mbps) Ethernet PHY
Weight

0.5 Ibs. (only Set)

OPERATIONAL SPECIFICATION

Resolution

Maximum - 1920 x 1080 @ 60Hz, Recommended - 1920 x 1080 @ 60Hz
Power

Rated Voltage AC 100-240V~, 50/60Hz, 1.2A
Power Consumption (Off)

Under 1W(without WOL)
Power Consumption (Max)

Under 50W(without Peripheral Device)
Operating Conditions

Operating Temperature -10ºC to 40ºC Operating Humidity 10% to 80% Storage Temperature -20ºC to 60ºC Storage Humidity 5% to 95%
Applicable Software

Elite-s / Elite-w / Elite-w lite
Applicable Models

32VS10, 42VS10, 47VS10
