webOS UHD Signage

43UL3J-M

(3)

Key Features

Brightness(Typ.) : 300 nits
Resolution : ULTRA HD (3,840 x 2,160)
webOS-based High Performance
Built-in Speaker
Compatible with LG's One:Quick Share
Compatible with AV Control Systems

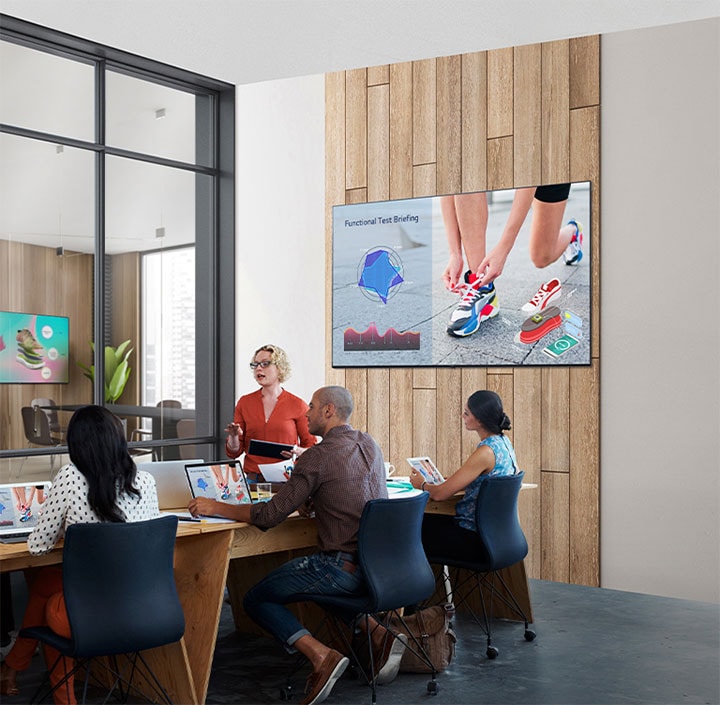

There are five people conducting a meeting in a room with UL3J series installed on the wall. There is another UL3J series installed across the meeting room on the wall past the window on the left.

* All images in this web page are for illustrative purposes only.

Presenting a vivid and lively screen quality by magnifying the display’s content.

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the colour and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents.

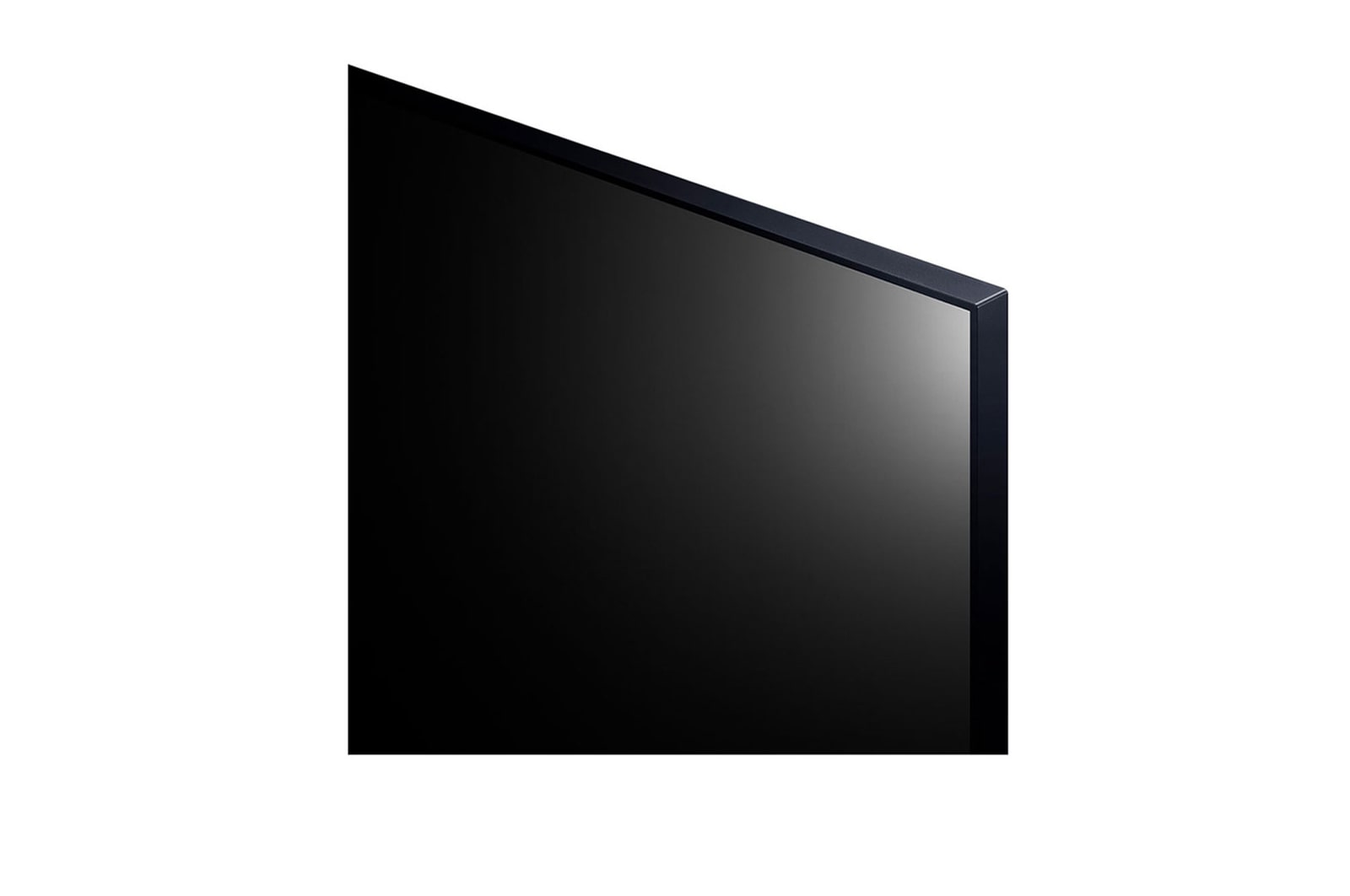

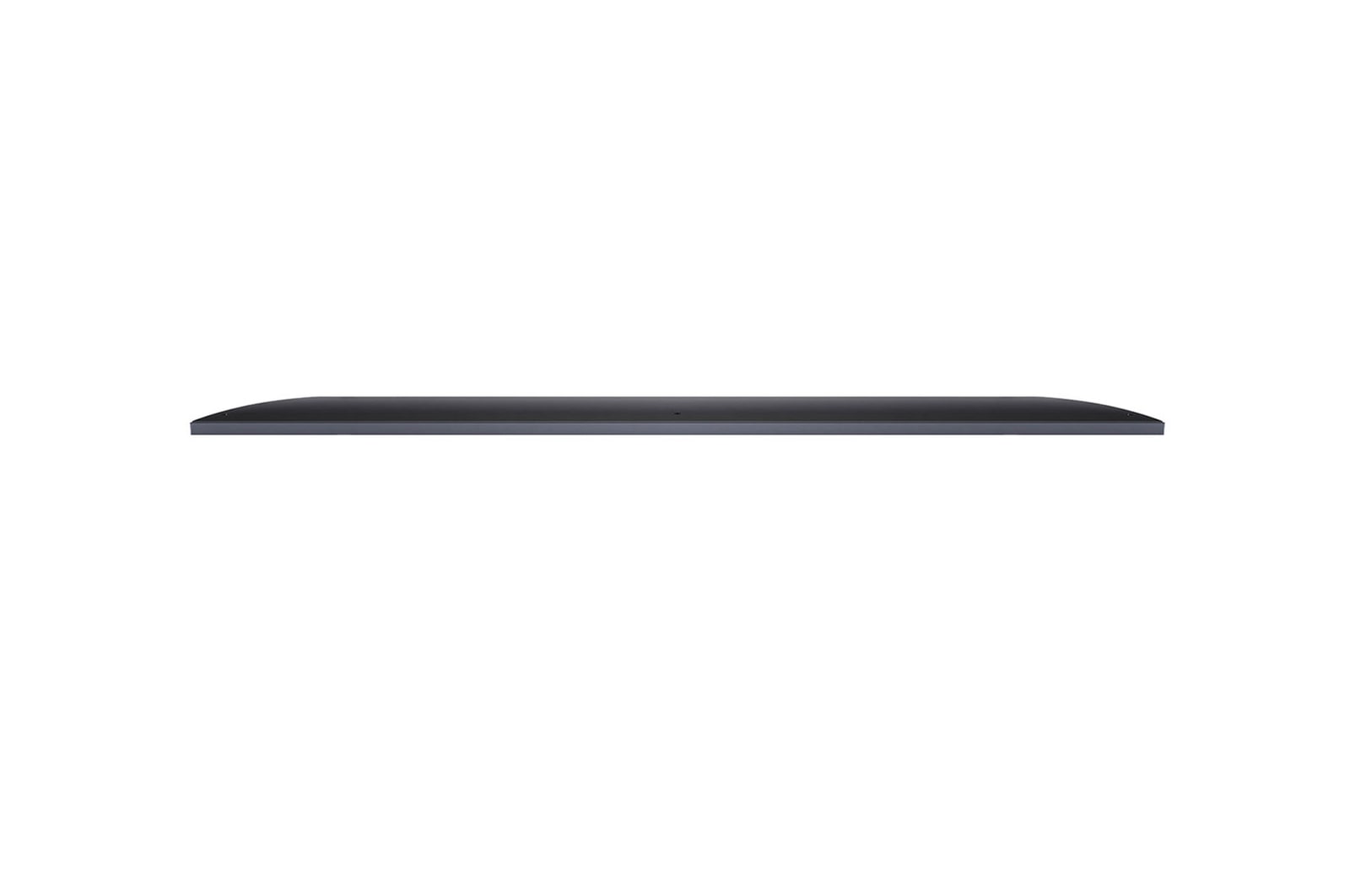

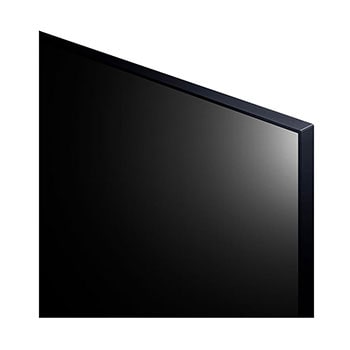

It is displaying the bezel size as 6.9mm by 18.4mm and demonstrating its thinness at 57.5mm depth.

Sophisticated Slim Design

This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

* Compared to LG's UL3G series

A number of tasks that can be done simultaneously are easily arranged through the web OS platform.

High-Performance with LG webOS 6.0

LG webOS 6.0, upgraded in SoC* and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**

* SoC : System On Chip
** GUI : Graphical User Interface

Various external sensors and signage can be connected through a USB plug-in, providing easy value-added solutions.

Various Sensor Connection

LG webOS smart signage platform helps to easily provide value-added solutions* by supporting simple connections with external sensors** such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

*e.g. showing specific promotional information according to weather change to store visitors
**External sensors need to be purchased separately and tested for compatibility with webOS platform.

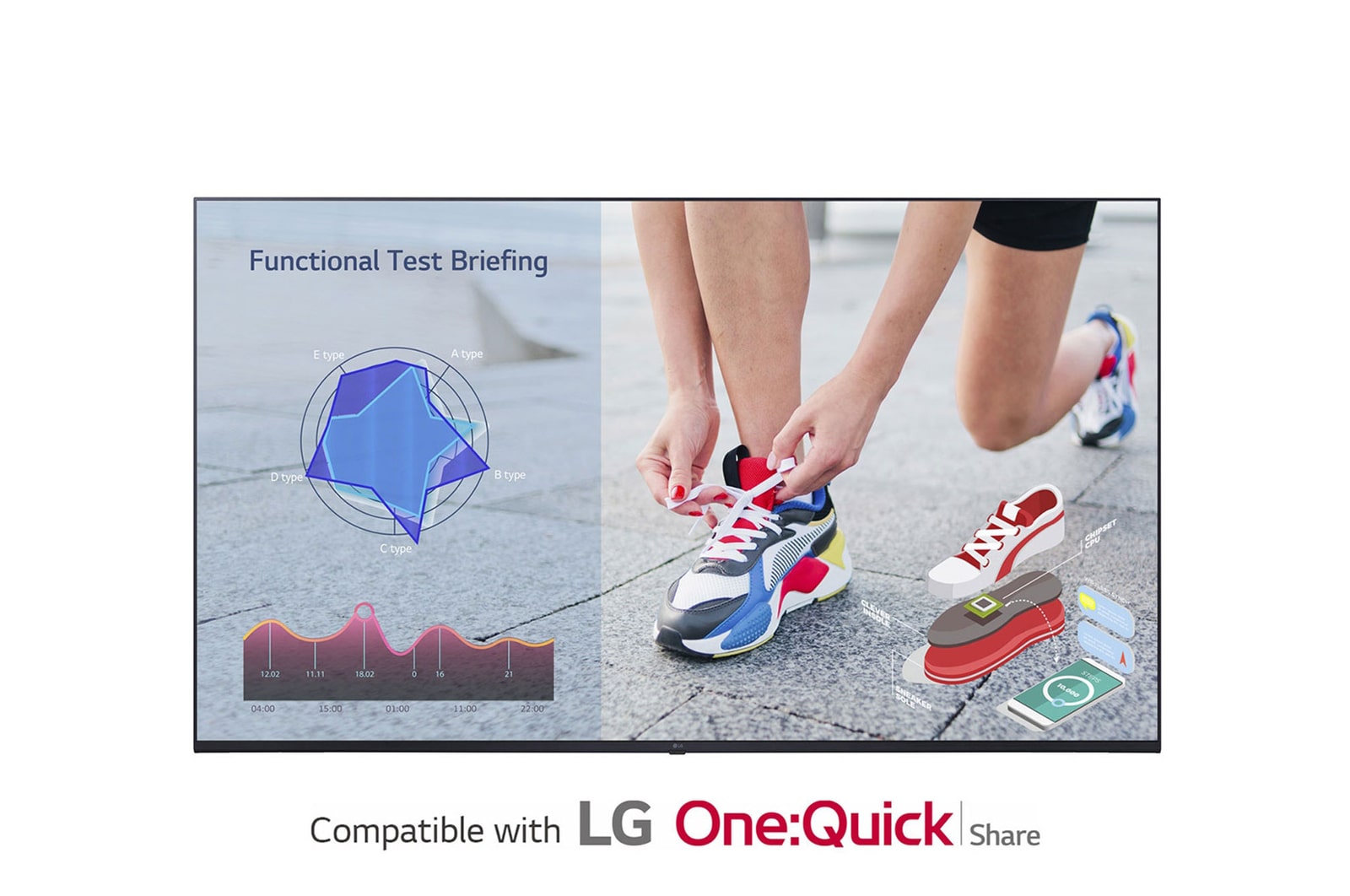

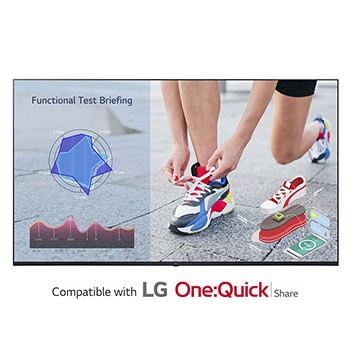

LG’s Wireless Screen Sharing Solution, LG One:Quick Share

LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.

This consist of images displaying the 3-step instructions on installing LG One:Quick Share USB Dongle and sharing the personal screen. The first image pairs the USB Dongle and the LG signage. The second image describes a person holding the USB dongle, attempting to connect it to the PC. The last image consists of people having a meeting by connecting an USB dongle device to a laptop, then sharing the screen through the UL3J on the wall.

*Users need to set up Soft AP enabled at Network Menu of the Signage.
**Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.

UL3J series is remotely controlled and monitored in a remote location through Control Manager on mobile devices and/or laptops.

Remote Monitoring and Control

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

There are one in the meeting rooms with the signage and one of AV control system which helps users control the UL3J series.

Compatible with AV Control Systems

The UL3J series supports Crestron Connected^®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

*Initial setting from display is required for Crestron Connected^® compatibility
**Network based control

A video conference is being held as people are screened on signage installed on the wall.

Compatible with Video Conference System

For effective visual meeting, the UL3J series supports its compatibility with Cisco solutions that offers powerful and integrated control* for a smarter video conference.

* Using an HDMI cable connection (HDMI cable is optional)

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

Conveniently distributing content through Wi-Fi.

Easy Content Distribution
& SW Update

UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network.

The UR3J series is on the wall and a woman is using a personal PC and mobile phone. This image shows that the signage can be connected wirelessly to the PC and mobile phone which she is holding.

Wireless Access Point

UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

The LG employee is remotely monitoring the UL3J series installed in a different place.

Real-Time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.
So please contact the LG sales representative in your region for more details.

It is demonstrating that UL3J series is EPEAT verified.

EPEAT Registered

The Electronic Product Environmental Assessment Tool (EPEAT) is a method for several layers of customers to evaluate the effect of a product on the environment. UL3J is EPEAT Bronzecertified* display which means that it meets all the required criteria in Computers and Displays category.

*Registered on April, 2021

Brightness(Typ.) : 300 nits
Resolution : ULTRA HD (3,840 x 2,160)
webOS-based High Performance
Built-in Speaker
Compatible with LG's One:Quick Share
Compatible with AV Control Systems

All Spec

PANEL

Aspect Ratio

16:9
Back Light Type

Direct
Brightness

300nit (Typ.)
Color Depth (Number of Colors)

1.07G (8bits + FRC)
Color Gamut

DCI 80%
Contrast Ratio

1,200:1
Dynamic CR

1,000,000:1
Life time

30,000Hrs (Min)
Native Resolution

3840x2160 (UHD)
Operation Hours (Hours/Day)

16/7
Panel Technology

ADS
Portait / Landscape

Yes/ Yes
Refresh Rate

60Hz
Response Time

8ms(G to G)
Screen Size (Inch)

43"
Surface Treatment (Haze)

1%
Viewing Angle (H x V)

178 x 178

FEATURE - HARDWARE

Auto Brightness Sensor

Yes
Internal Memory (eMMC)

16GB
Local Key Operation

Yes(Power On/Off only)
Temperature Sensor

Yes
Wi-Fi/BT (Built-in)

Yes

FEATURE - SOFTWARE

Auto Set ID

Yes
Beacon

Yes
Booting Logo Image

Yes
Control Manager

Yes
External Input Rotation

Yes
Fail over

Yes
Gapless Playback

Yes
Group Manager

Yes
HDMI-CEC

Yes
ISM Method

Yes
Local Contents Scheduling

Yes
Local Network Sync

Yes
Network Ready

Yes
No Signal Image

Yes
OS Ver. (webOS)

webOS6.0
Play via URL

Yes
PM mode

Yes
Pro:Idiom

Yes
RS232C Sync

Yes
Screen Rotation

Yes
Screen Share

Yes
Setting Data Cloning

Yes
SI Server Setting

Yes
Smart Energy Saving

Yes
SNMP

Yes
Status Mailing

Yes
Tile Mode Setting

Yes
USB Plug & Play

Yes
Video Tag

Yes(4, Max One HDMI input)
Wake on LAN

Yes
webRTC

Yes

SPECIAL FEATURE

Conformal Coating (Power Board)

Yes

SOFTWARE COMPATIBILITY

Connected Care

Yes
SuperSign CMS

Yes
SuperSign Control+

Yes
SuperSign WB

Yes

CONNECTIVITY

Audio Out

Yes(1)
HDMI In

Yes(3), HDCP2.2/1.4
HDMI Out

Yes
RJ45(LAN) In

Yes(1)
RS232C In

Yes(1), 4pin Phone-jack
RS232C Out

Yes(1), 4pin Phone-jack
USB In

USB2.0 Type A(2)

SOUND

Speaker (Built-in)

Yes(10W X 2)

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-In Power

POWER CONSUMPTION

BTU (British Thermal Unit)

273 BTU/Hr(Typ.), 409 BTU/Hr(Max.)
DPM

0.5W
Max.

120W
Power off

0.5W
Smart Energy Saving (70%)

56W
Typ.

80W

MECHANICAL SPECIFICATION

Bezel Color

Ashed Blue
Bezel Width

Off : 6.9/6.9/6.9/18.4
On : 12.8/12.8/12.8/19.9
Carton Dimensions (W x H x D)

1055 x 660 x 142
Monitor Dimensions (W x H x D)

967 x 564 x 57.1
Packed Weight

10.9
VESA Standard Mount Interface

200 x 200
Weight (Head)

8.8

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski
