SE3KD Series

Specs

Support

Resource

SE3KD Series

Share This Content.

You Can Share The Items You Like With Your Friends

SE3KD Series

55SE3KD-B
()
  • Front view of SE3KD Series 55SE3KD-B
  • LG SE3KD Series, 55SE3KD-B
  • LG SE3KD Series, 55SE3KD-B
  • LG SE3KD Series, 55SE3KD-B
  • LG SE3KD Series, 55SE3KD-B
  • LG SE3KD Series, 55SE3KD-B

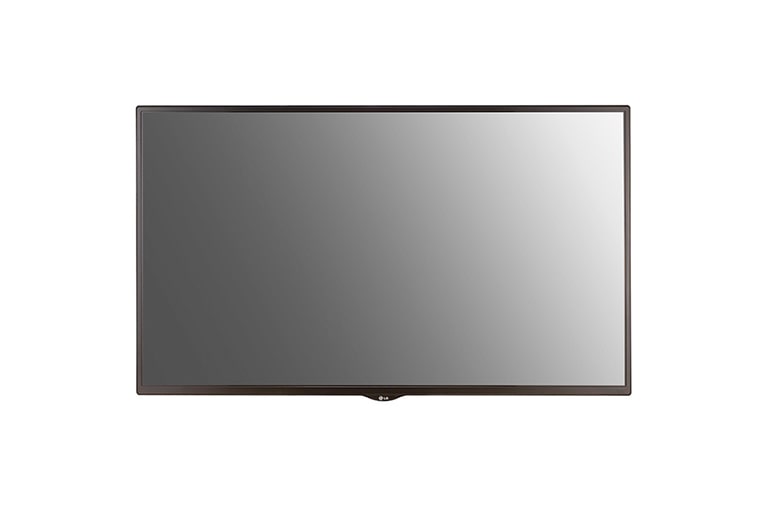

Front view of SE3KD Series 55SE3KD-B
LG SE3KD Series, 55SE3KD-B
LG SE3KD Series, 55SE3KD-B
LG SE3KD Series, 55SE3KD-B
LG SE3KD Series, 55SE3KD-B
LG SE3KD Series, 55SE3KD-B

Key Features

  • Brightness(Typ.) : 350 cd/m²
  • Bezel : Top/Left/Right 11.9 mm (Bottom 18.0 mm)
  • Depth : 54 mm(38.6mm:Thinnest Part)

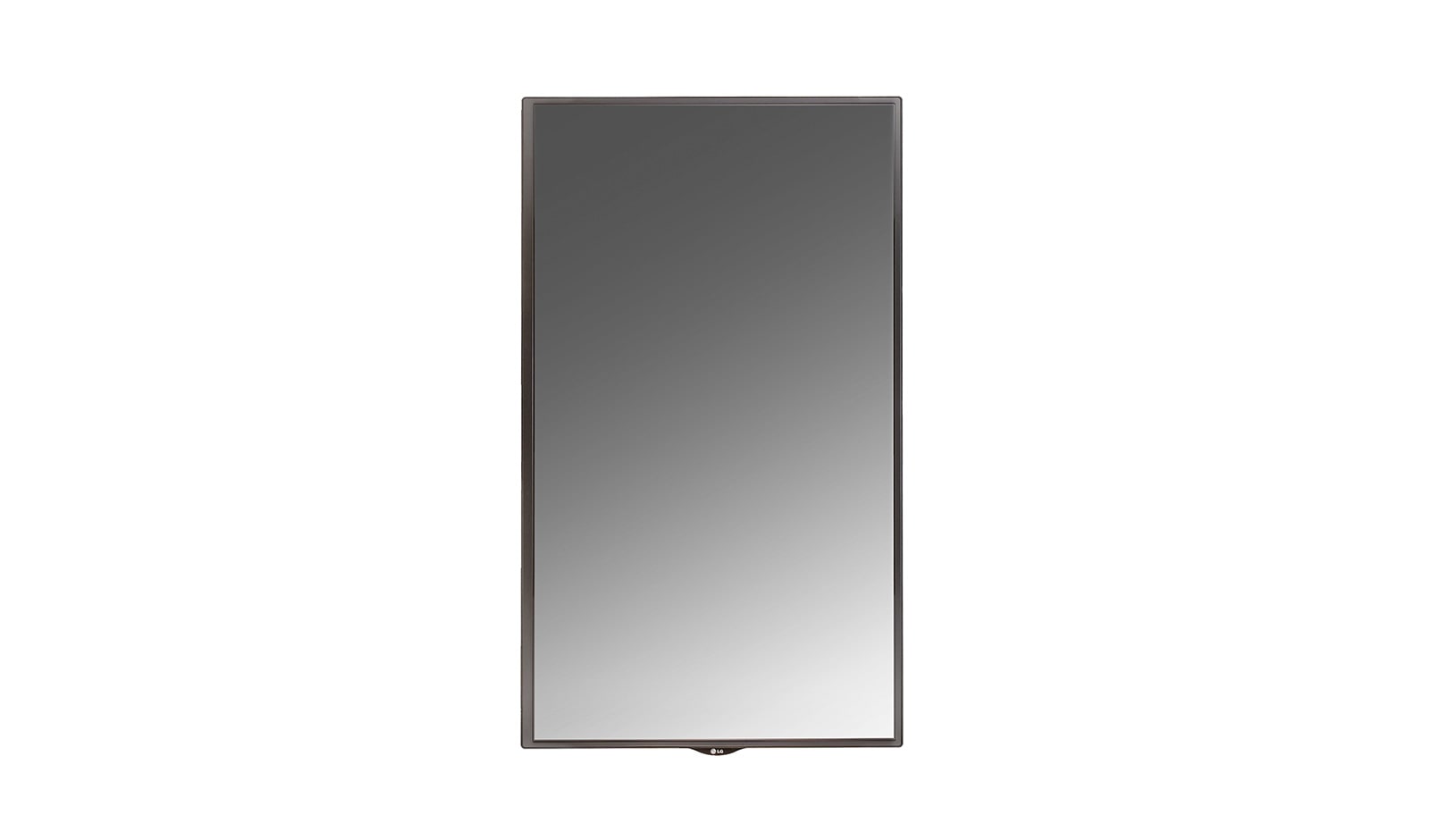

  • Orientation : Landscape & Portrait mode
  • Interface : HDMI, DVI, RGB, RJ45, IR, RS232C, USB
  • Speacker : Built-in
More
Print

All Spec

PANEL

  • Screen Size

    55"

  • Resolution

    1,920 x 1,080 (FHD)

  • Brightness(Module, Typ., cd/m²)

    350

CONNECTIVITY

  • Input

    HDMI(2), DVI-D, RGB, Audio

  • Output

    Audio

  • External Control

    RS232C in/out, RJ in, IR Receiver, USB

PHYSICAL SPECIFICATION

  • Bezel Width

    11.9mm (T/R/L), 18mm (B)

  • Monitor Dimension (W x H x D)

    1238mm x 714.9mm x 54mm(38.6mm:Thinnest Part)

  • Weight (Head)

    17.5kg

  • VESA™ Standard Mount Interface

    300 x 300

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    70W

  • Smart Energy Saving

    55W

STANDARD(CERTIFICATION)

  • Safety

    UL / cUL / CB / TUV / KC

  • EMC

    FCC Class "A" / CE / KCC

  • ErP / Energy Star

    NA / Yes(Energy Star 7.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    No

  • External Media player Attatchable

    Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign W

  • Control and Monitoring Software

    SuperSign C

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver

  • Optional

    Stand(ST-492T), Media player, Wall bracket(LSW350B), VESA Adapter(AM-B330S)
