IPS Edge LED Super Narrow Bezel Display

Share This Content.

You Can Share The Items You Like With Your Friends

IPS Edge LED Super Narrow Bezel Display

55WV70MS-B
()

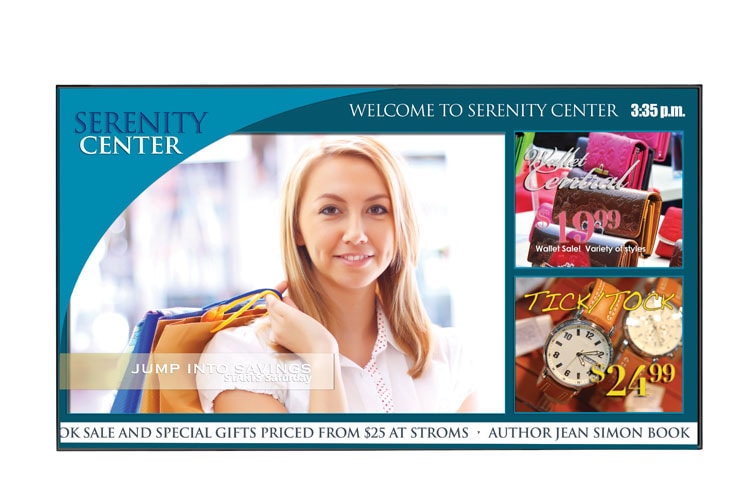

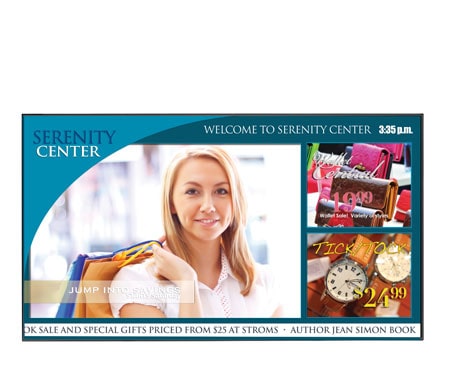

  • Front view of IPS Edge LED Super Narrow Bezel Display 55WV70MS-B
Front view of IPS Edge LED Super Narrow Bezel Display 55WV70MS-B

Key Features

  • NATIVE DISPLAY RESOLUTION 1920 X 1080 (FHD)
  • HIGH BRIGHTNESS
  • VIEWING ANGLE and LIFE EXPECTANCY (Portrait and Landscape Mode)
  • 3-YEAR LIMITED WARRANTY (parts/labor/backlight)
More

Overview

This innovative Direct LED video wall solution (55WV70MS-B) provides an incredible visual experience for anyone who comes across the display. Advertisements, information and broadcast video are in sync with your target needs, while picture quality and performance is enhanced by LG display technology. Discover the numerous advantages of our virtually seamless Multi-Vision Display series.

Key Feature

  • NATIVE DISPLAY RESOLUTION 1920 X 1080 (FHD)
  • HIGH BRIGHTNESS
  • VIEWING ANGLE and LIFE EXPECTANCY (Portrait and Landscape Mode)
  • 3-YEAR LIMITED WARRANTY (parts/labor/backlight)
Print

All Spec

PANEL

  • Response Time

    10ms (G to G), 8ms (G to G, WOT)

  • Panel Technology

    IPS

  • Native Resolution

    1920 x 1080 (FHD)

  • LCD Panel Type

    55”

  • Aspect Ratio

    16:9

  • Brightness

    800 cd/m2

  • Viewing Angle

    178°/178°

  • Contrast Ratio

    1,400:1 (Typ.), 500,000:1(DCR)

  • Display Area

    54.6” measured diagonally

INPUT(REAR)

  • Digital

    DVI-D (1), HDMI (1), Display Port (1) with HDCP for all input

  • Audio

    PC Audio In (1)

  • Analog

    RGB (1), Shared Component (1), AV (1)

  • External Control

    RS232C (1), RJ45 (1), IR Receiver (1)

  • USB

    USB (1)

OUTPUT(REAR)

  • External Control

    RS232C (1)

  • Audio

    External speaker (1)

  • Analog

    RGB (1)

  • Digital

    DVI-D (1)

SPECIAL FEATURES

  • 2 Pairs of Handle

    Yes

  • USB Playback

    Yes

  • Temperature Sensor

    Yes

  • Split Zoom (Self Video Wall, 15 x 15 Max)

    Yes

  • Shine Out

    Yes

ENVIRONMENT CONDITIONS

  • Operation Tempature

    0° C ~ 40° C

  • Operation Humidity

    10% ~ 80%

CABINET

  • Monitor Dimension (W x H x D)

    47.8” x 27.0” x 3.89”

  • Weight (head)

    73.6 Ibs.

  • Bezel Width

    3.4 (left/ top)/1.9 (right/bottom) mm

  • VESA™ Standard Mount Interface

    600mm x 400mm

  • Packed Weight

    93.5 Ibs.

  • Carton Dimensions (W x H x D)

    55.1” x 31.7” x 13.0” (Box outer size)

POWER

  • Power Consumption DPMS Off

    1.0W (RGB)/1.0W (HDMI)

  • Power Consumption Normal

    210W (Typ)

  • Power Consumption Power Off

    0.5W

  • Power Consumption Smart Energy Saving

    120W(Typ)

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-in Power

STANDARD(CERTIFICATIONS)

  • Erp/ENERGY STAR

    Yes / Yes

  • EMC

    FCC / CE / KCC

  • Safety

    UL / c-UL / CB / TUV / KC

MEDIA PLAYER COMPATIBILITY

  • External Media player Attatchable

    Yes

SOFTWARE COMPATIBILITY

  • Supersign Compatibility

    Elite-W / Elite-W lite (Only control)

ACCESSORIES

  • Accessory

    Remocon, Power cable, RGB Cable,Manual (CD), Bolt (8Unit), IR Receiver, RS232C cable

LIMITED WARRANTY

  • Limited Warranty

    3 Years (Parts/Labor)

UPC CODE

  • 55WV70MS-B

    7 19192 18940 9
