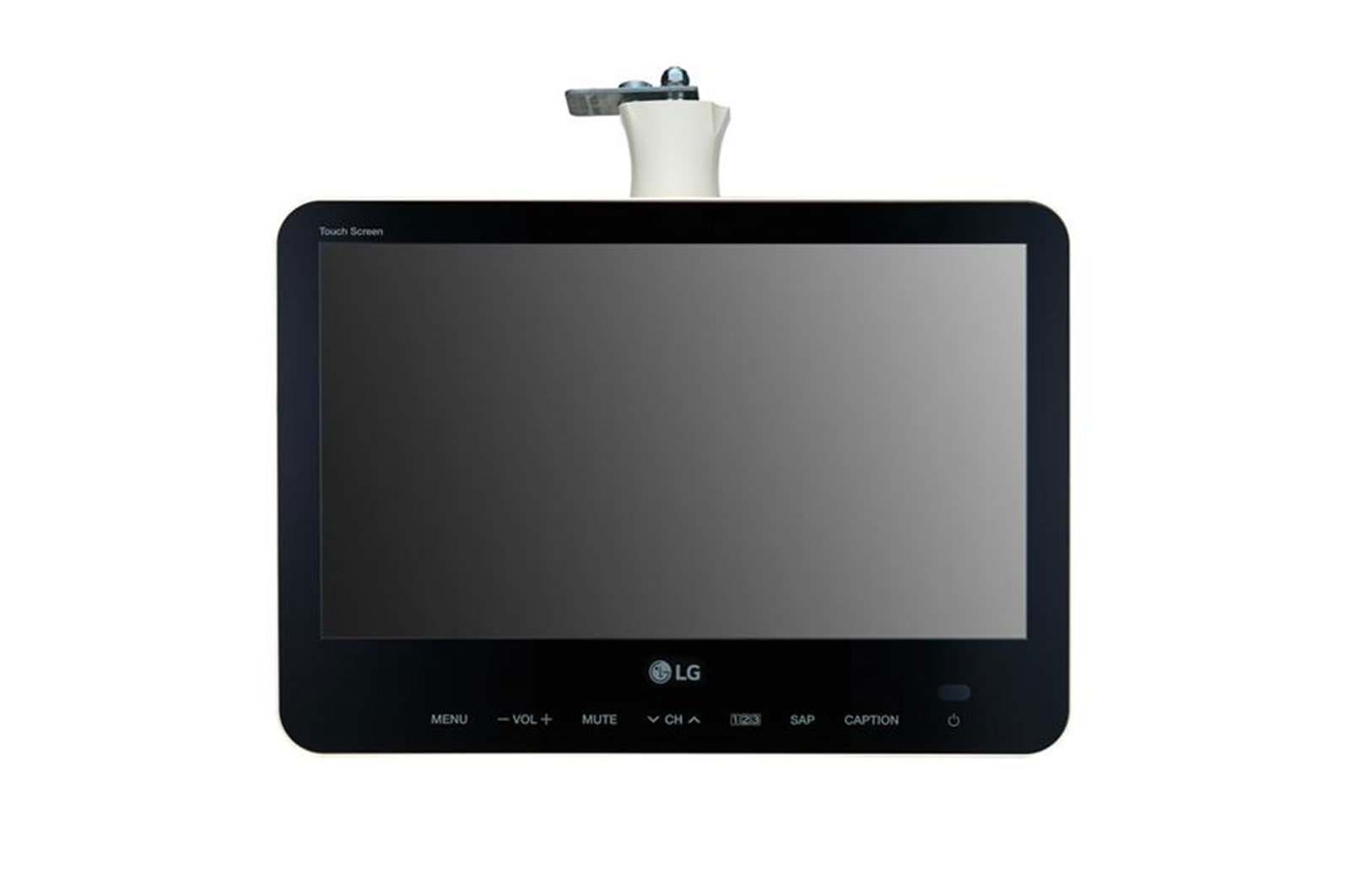

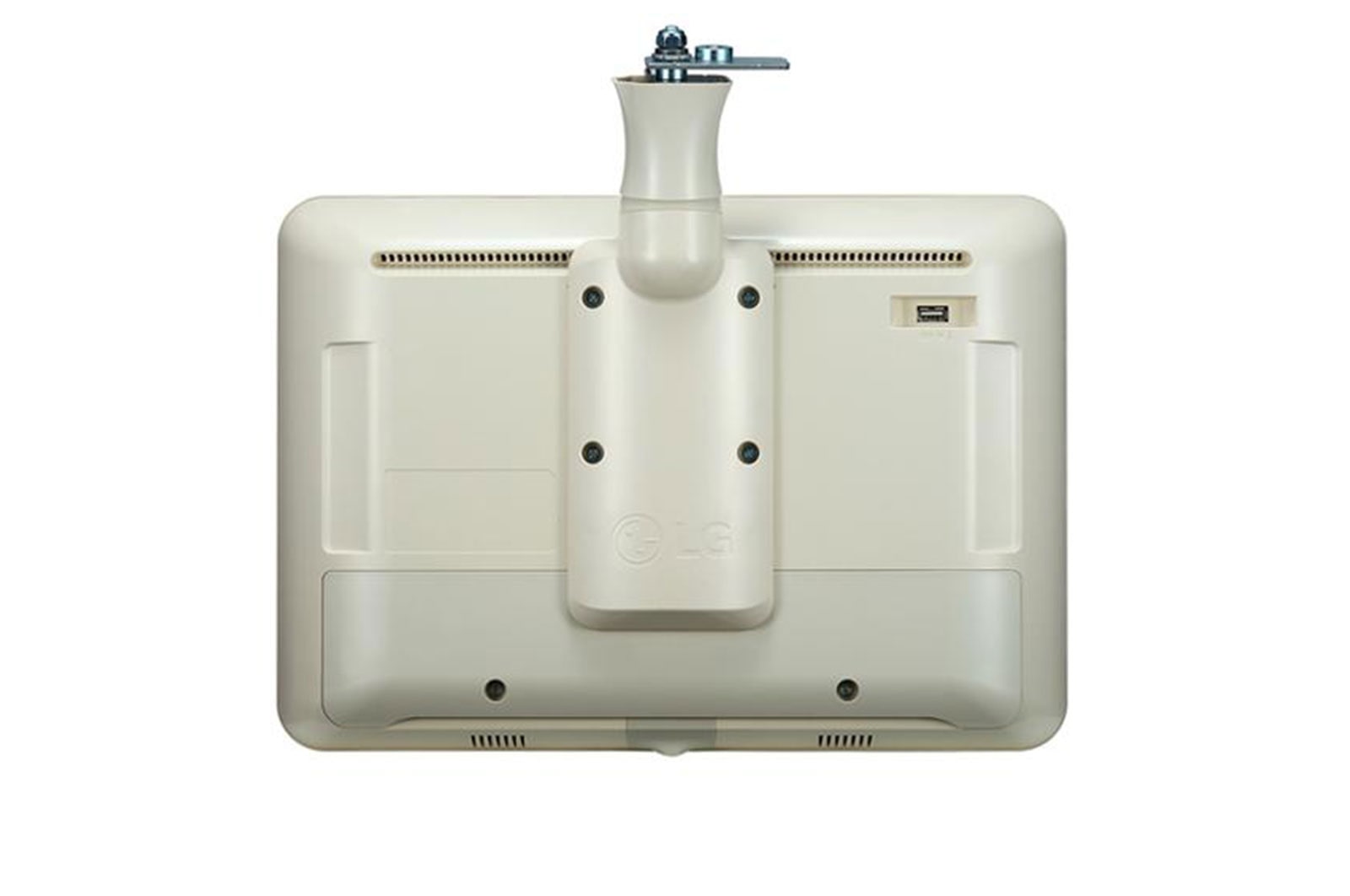

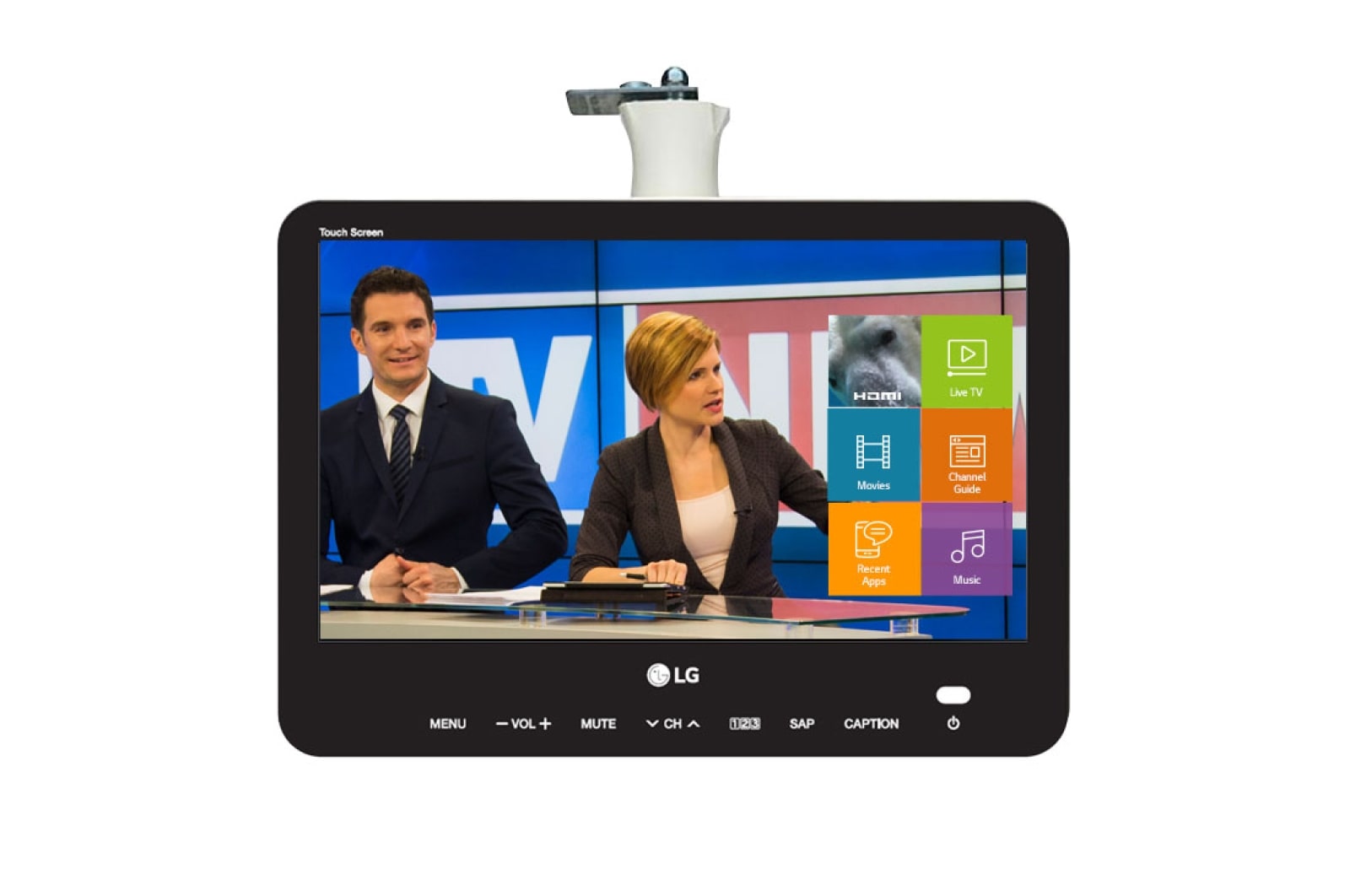

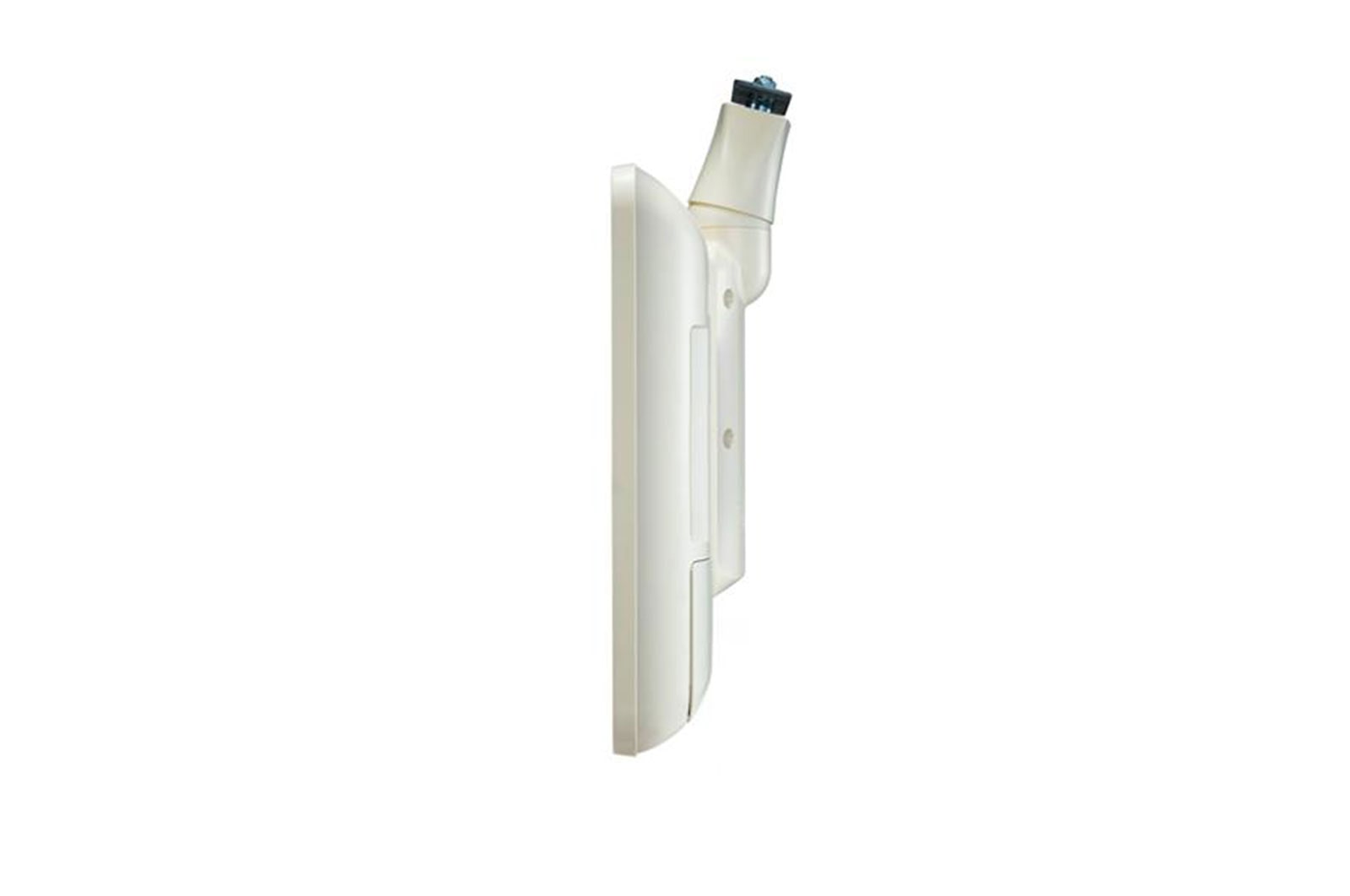

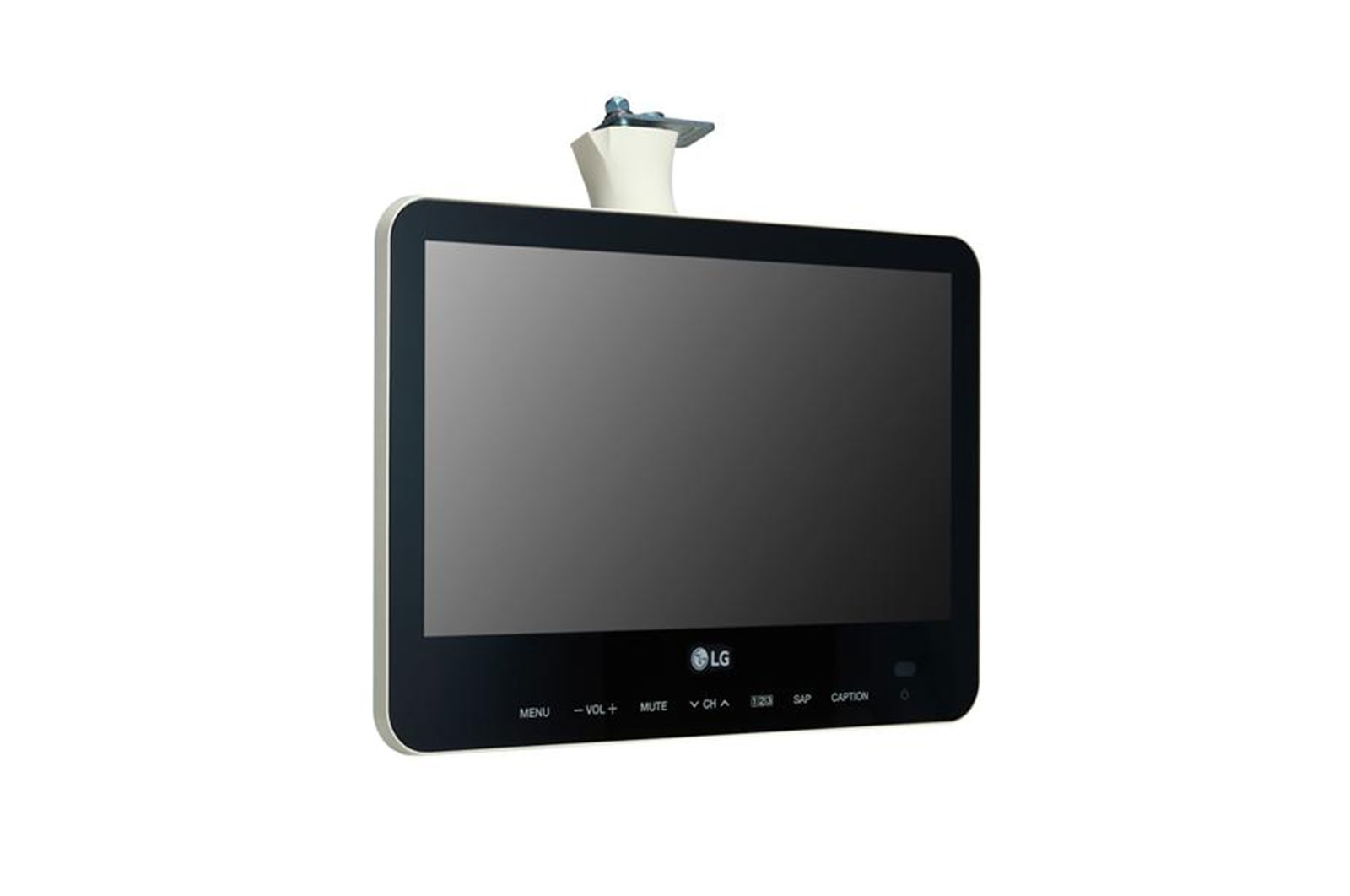

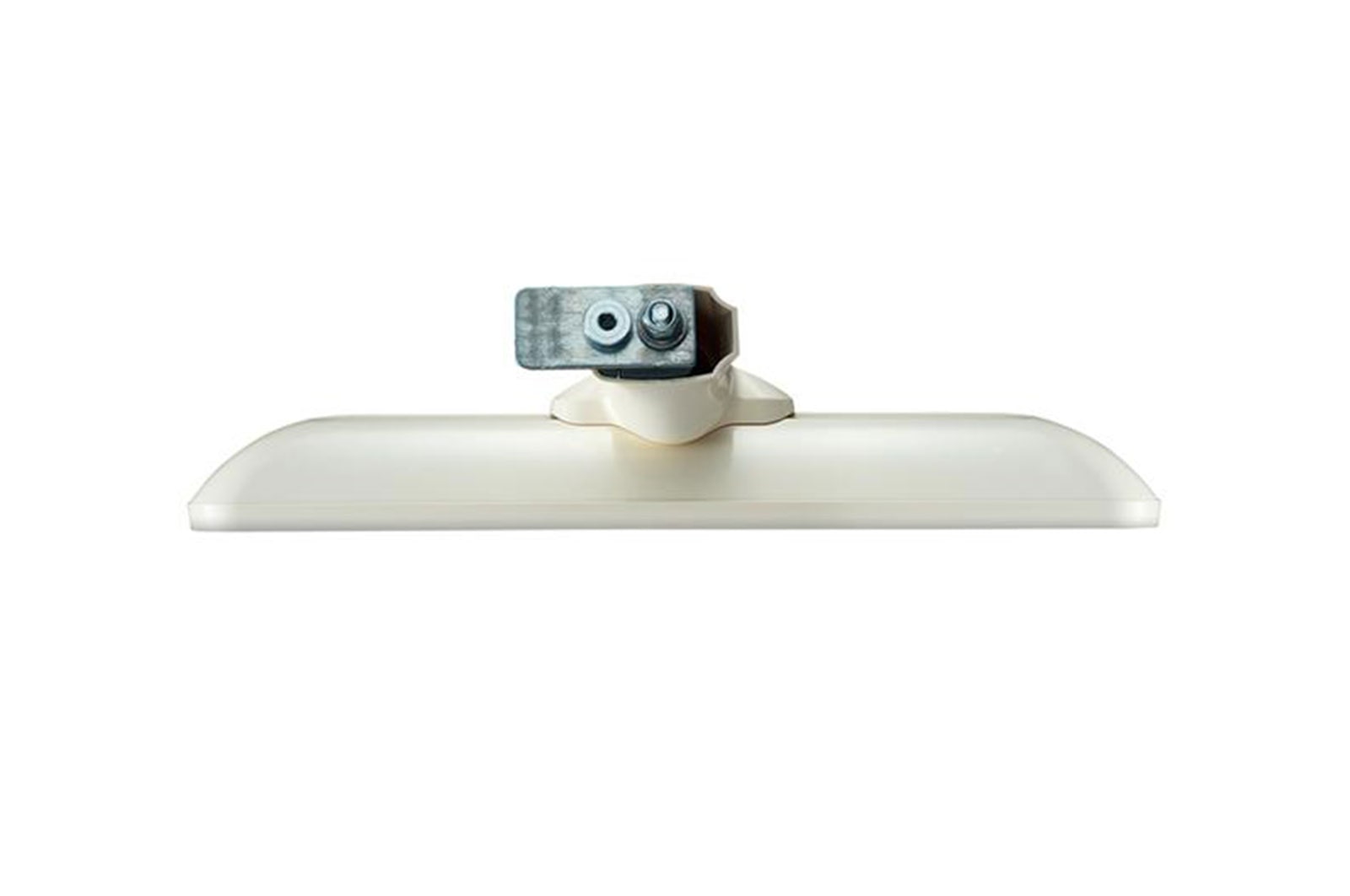

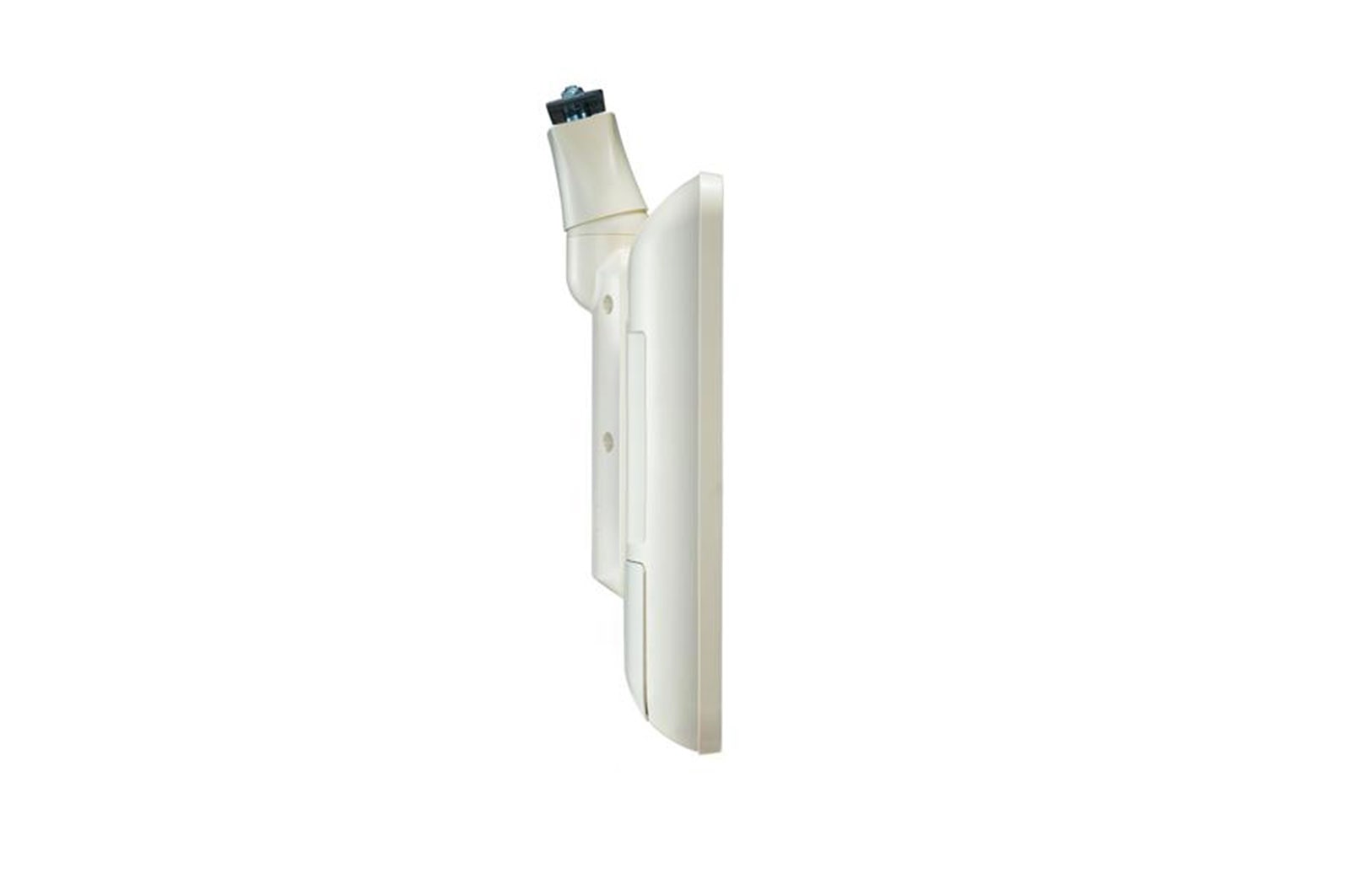

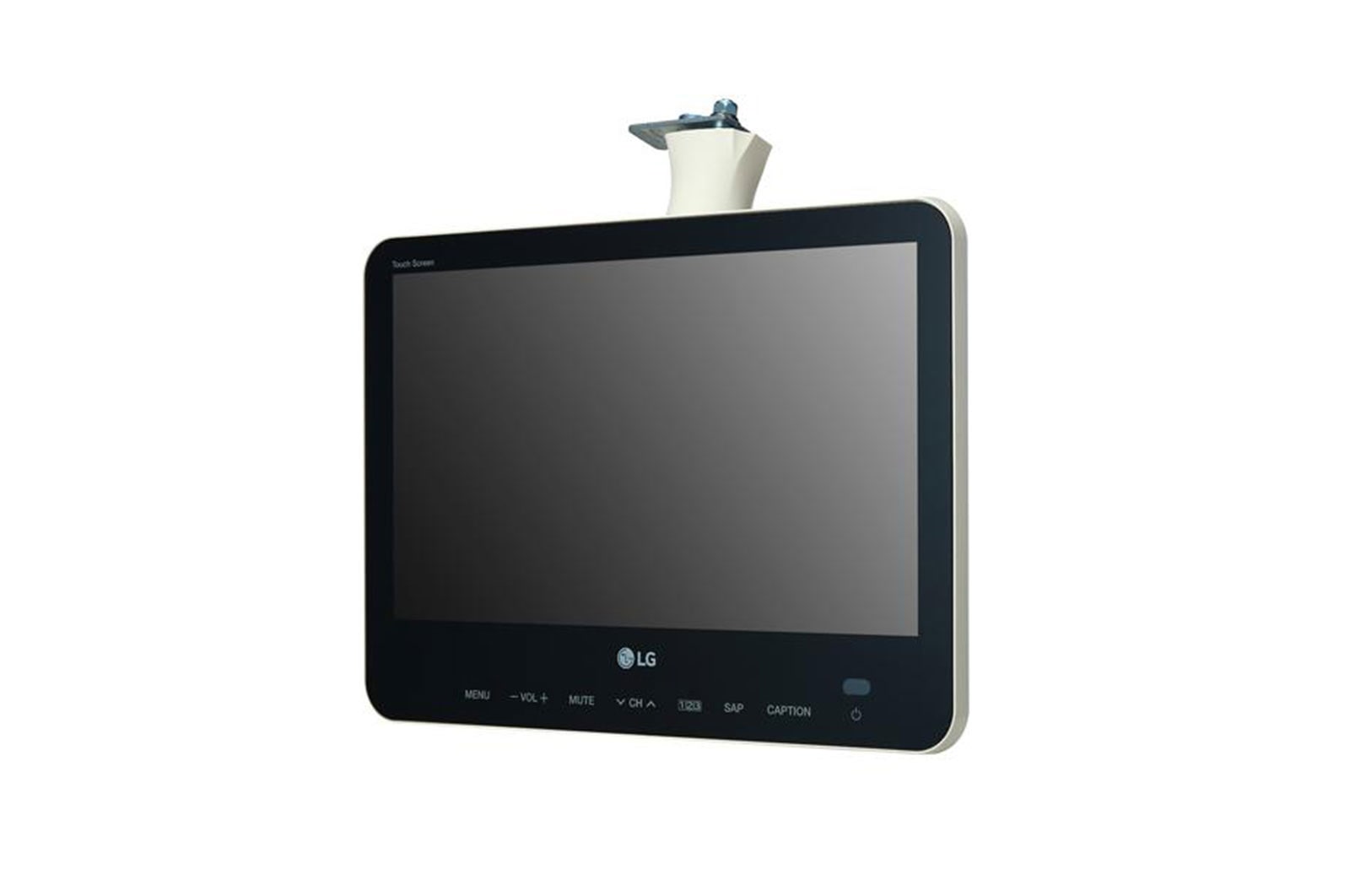

15” LS766 IPS Full HD Personal Healthcare Smart Touch TV with Pro:Centric Direct Management Solution, Pro:Idiom Digital Right Management, and preloaded applications
Provide your patients with LG’s 15.6” Full HD Smart Touch Arm TV for a superior hospital experience. The LS766 series enables personalized interactive service with its multi-touch screen, webOS™ (version 3.5) operating system, and preloaded applications, making it an optimal platform for Patient Engagement Providers in the industry. Its industrial IPS panel is durable and will sustain long operation. LG’s IPS panel technology provides great viewing angles for multiple viewers in a virtually any hospital environment.
Power Consumption(Typ)
33W
Power Consumption(Max)
35W
Power Supply (Voltage, Hz)
POC : 28V 60Hz or 24V/1.4A, DC IN : 19V/1.6A
Standby Power Consumption
Adapter less than 0.5W under PoC less than 0.5W under
AI Acoustic Tuning
YES (Ready,mmR Required)
AI Sound
YES
LG Sound Sync
YES
Speaker (Audio Output)
4W
Analog (NTSC / SECAM / PAL)
NTSC
Digital
ATSC / Clear QAM
DC Adapter In
YES
EXT. IR In
YES
HDMI In
YES (1ea)
Headphone Out
YES
LG SVC only (Phone jack type)
YES
MPI Port (RJ12 jack)
YES
PoC (Power over Coax)
YES
RF In
YES (1ea)
RJ45 (Usage Purpose)
1 (Ethernet)
USB (Ver.)
YES (1ea / 2.0)
Front Color
Front: Black/Back: Ivory
Stand Type
No Stand (Wall Mount Only)
Tool Name
LU76
Bezel Width (L/R/U/B, Off Bezel)
23.3/23.3/23.3/59.7mm
Bezel Width (L/R/U/B, On Bezel)
23.6/23.6/23.6/60.0mm
Dimension in Shipping (W x H x D)
470 x 201 x 356mm
Dimension without Stand (W x H x D)
391.4 x 278.6 x 46.1mm
Weight in Shipping
4.5kg
Weight without Stand
2.9kg
Brightness (Typ.)
400 nit
Resolution
Full HD (1,920 x 1,080)
Size (Inch)
15.6
Diagnostics
YES (IP Remote)
Energy Saving mode
YES
EzManager
YES
Full Touch Screen
YES
Hotel Mode / PDM / Installer Menu
YES
HTNG-CEC (Version)
YES (1.4)
Insert Image
YES
Instant ON
YES
IR Out
YES (MPI)
Lock mode
YES
Mobile Remote
YES
Multi IR Code
YES
Port Block
YES
Simplink(HDMI-CEC) (Version)
YES (1.4)
SNMP
YES
USB Cloning
YES
Wake on RF
YES
Welcome Screen (Splash Image)
YES
WOL
YES
Pro:Centric Direct
YES
Pro:Centric Server
YES
Pro:Centric Smart
YES
Pro:Centric V
YES
Pro:Idiom (DRM)
YES
Pro:Idiom Media (DRM)
YES
Quick Menu (Customizable Portal)
YES
webRTC (Real Time Communication)
YES
Category
Pro:Centric Smart
Kensington Lock
YES
VESA Compatible
75 x 75mm
Bluetooth
YES
Bluetooth Audio Playback
YES
DIAL
YES
HDMI-ARC
YES (HDMI)
Screen Share
YES
Soft AP
YES
webOS version
webOS 5.0
Web Browser
YES
Wi-Fi
YES
EMC
FCC
Safety
UL Hospital
BEACON
YES
NTP sync timer
YES
Video Tag
YES (2 Video)
Healthcare Headphone Mode
YES
Protection Cover (Glass)
YES
