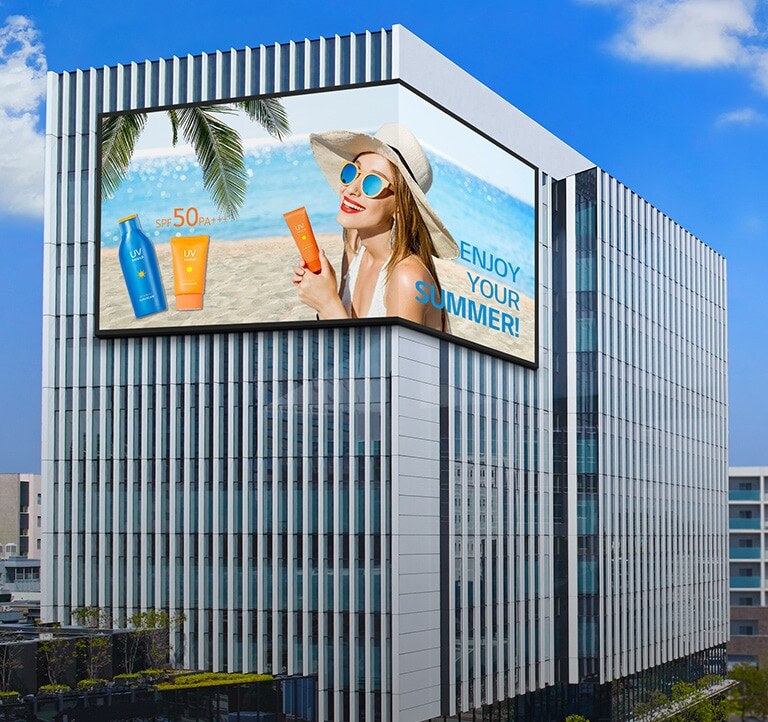

There is a screen installed on the corner of the building.
*GSCD100-GR series only
*Require purchase of 90° corner installable model.

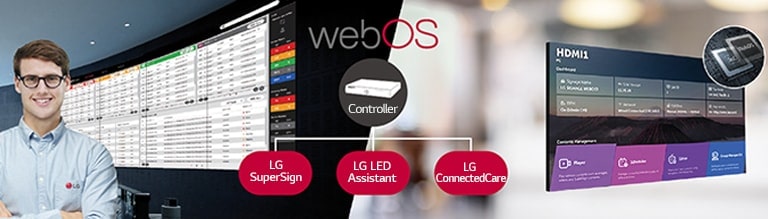

The LG employee is remotely monitoring the GSCD series installed in a different place by using a cloud-based LG monitoring solution. System controller with web OS enables GSCD series to be compatible with LG software solutions.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
10.41
Module Resolution (W x H)
48 × 24
Module Dimensions (W x H, mm)
500 × 250
Weight per Module (kg)
1.30
No. of Modules per Cabinet (W × H)
2 × 4 / 2 × 2 (Half-sized)
Cabinet Resolution (W × H)
96 × 96 / 96 × 48 (Half-sized)
Cabinet Dimensions (W × H × D)
1,000 × 1,000 × 85.1 mm / 1,000 × 500 × 85.1 mm (Half-sized)
Cabinet Surface Area (m²)
1.000 / 0.500 (Half-sized)
Weight per Cabinet (kg/cabinet)
19.0 / 10.6 (Half-sized)
Weight per Square Meter (kg/m²)
19.0 / 21.2 (Half-sized)
Physical Pixel Density (pixels/m²)
9,216
Flatness of Cabinet
±0.5 mm
Cabinet Material
Aluminum Profile
Service Access
Front or Rear (One Option Only)
Max Brightness (After Calibration)
5,000/7,000 cd/m² (GN/GR Series)
Colour Temperature
3,200-9,300 (K)
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
136
Brightness Uniformity
97%
Colour Uniformity
± 0.003 Cx,Cy
Contrast Ratio
10,000
Processing Depth (bit)
16
Power Consumption (W/cabinet, Max.)
650 / 330 (Half-sized)
Power Consumption (W/cabinet, Avg.)
216 / 110 (Half-sized)
Power Consumption (W/m², Max.)
650 / 660 (Half-sized)
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-30°C to +50°C
Operating Humidity
10-99%RH
IP rating Front / Rear
IP65 / IP65
Connectivity - Input
HDMI (HDCP 2.2), DP (HDCP 2.2, HDCP 1.4), OPS, USB 2.0
Connectivity - Output
Gigabit Ethernet × 16, RS-232C In/Out (4 Pin Phone-jack)
Connectivity - Control
RJ45 In (LAN)
Video - Resolution
3,840 × 2,160 @ 60Hz
Video - Format
RGB / YCbCr4:4:4 / YCbCr4:2:2
Feature
8 GB (System 4 GB + Available 3.6 GB), Temperature Sensor, Local Key Operation, Signal Redundancy, HDR10
Software - Platform
webOS 4.0 w / Open API Support
Software - Setup and Maintenance
LG LED Assistant
Software - Content Management
LG SuperSign CMS
Software - Cloud Monitoring
LG ConnectedCare
Physical Specs - Dimensions (W × H × D, mm)
443 × 63 × 307.5 → EIA Standard Rack (2U)
Physical Specs - Weight (kg)
4.9
Power Specs - Power Supply (V)
AC 100-240 V, 50/60 Hz
Power Specs - Power Type
Built-in Power
Power Specs - Power Consumption (W)
50 (Max.)
Environmental Conditions - Operation Temperature
0°C to 40°C
Environmental Conditions - Operation Humidity
10% to 80%
Certifications - Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
Certifications - EMC
FCC Class "A" / CE / KC
