Digital X-Ray Detector (DXD) 3072 x 3072

Share This Content.

You Can Share The Items You Like With Your Friends

Digital X-Ray Detector (DXD) 3072 x 3072

17HK700G-W
()

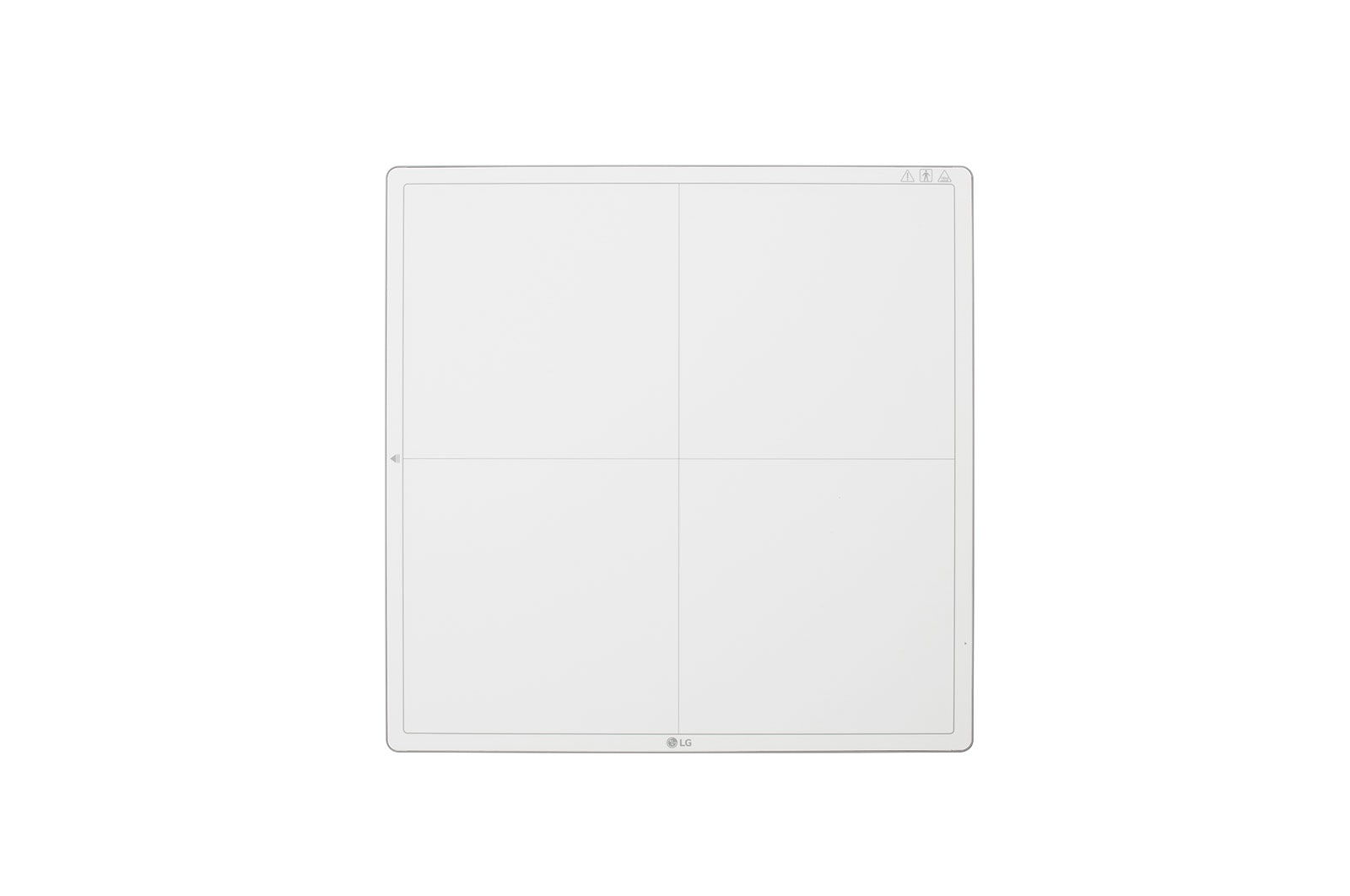

  • 17HK700G-W-Front view

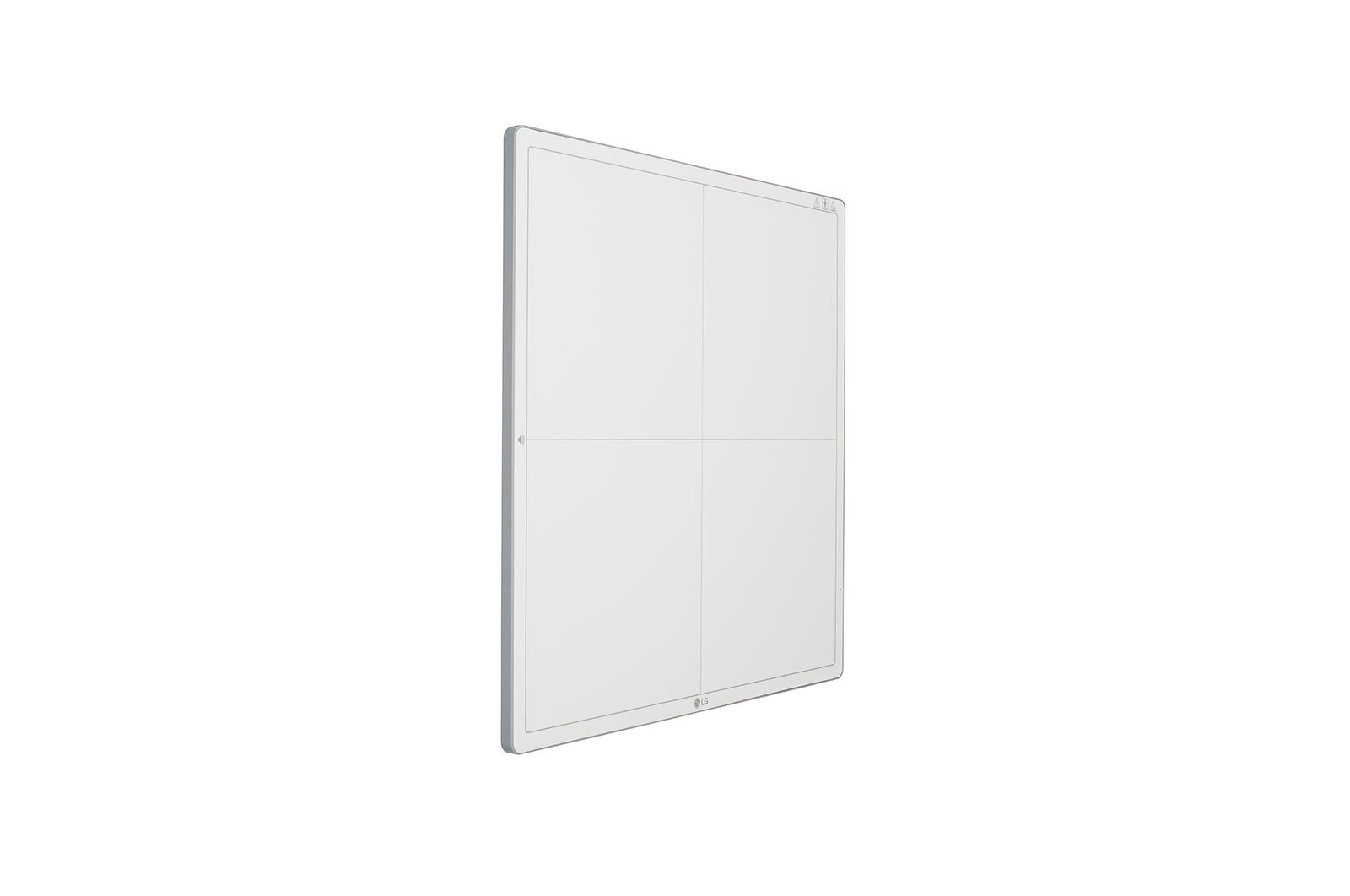

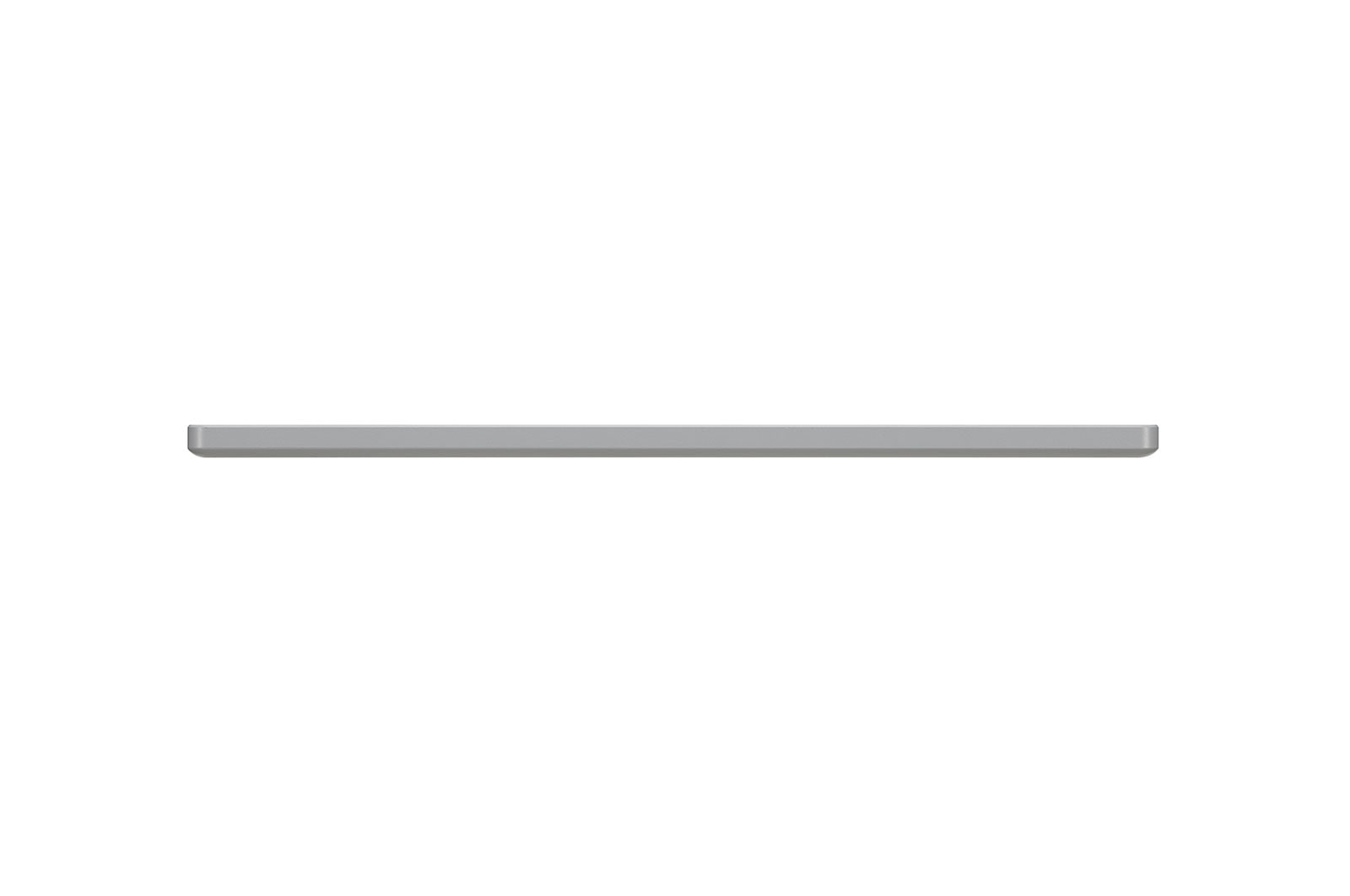

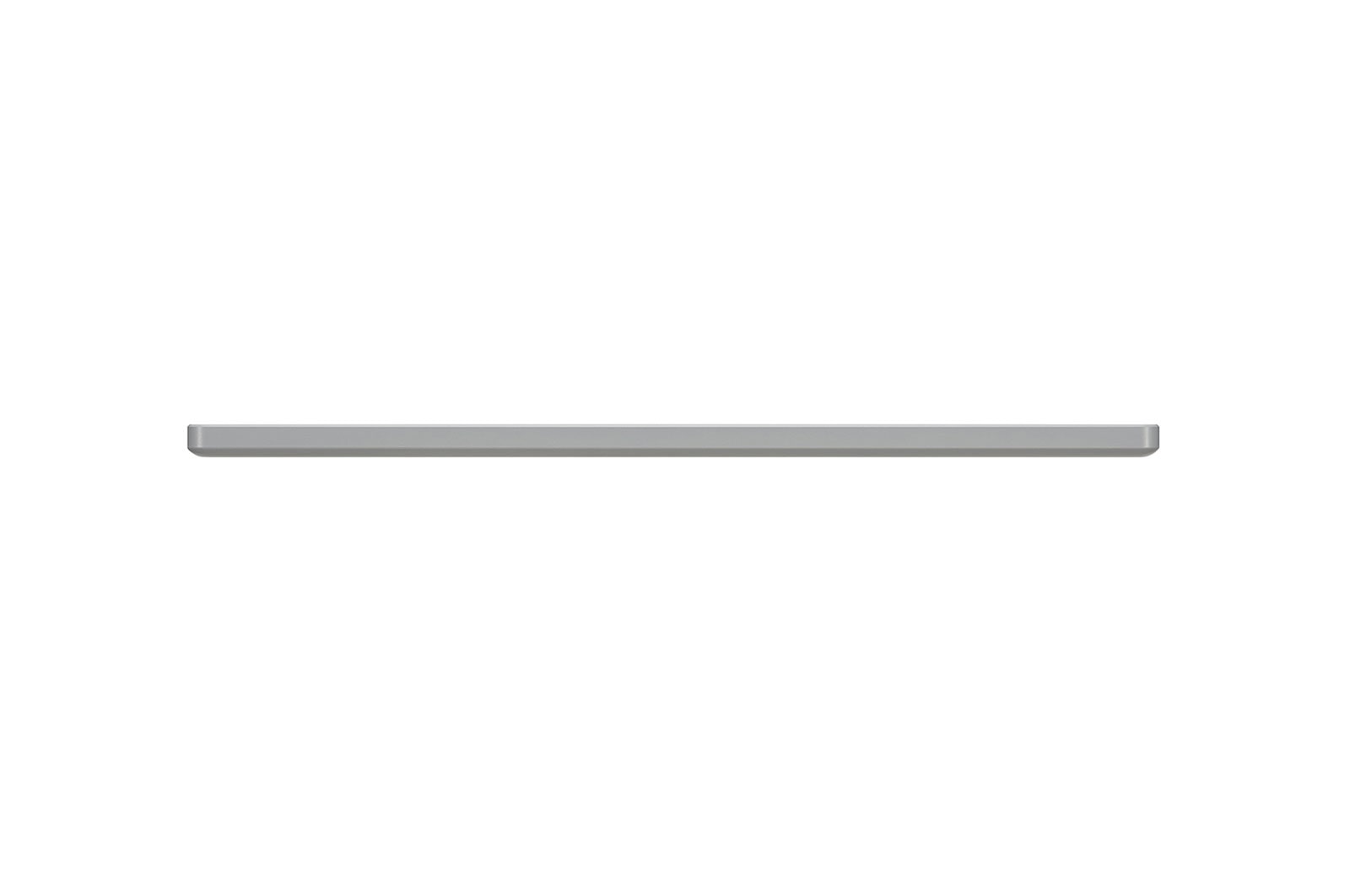

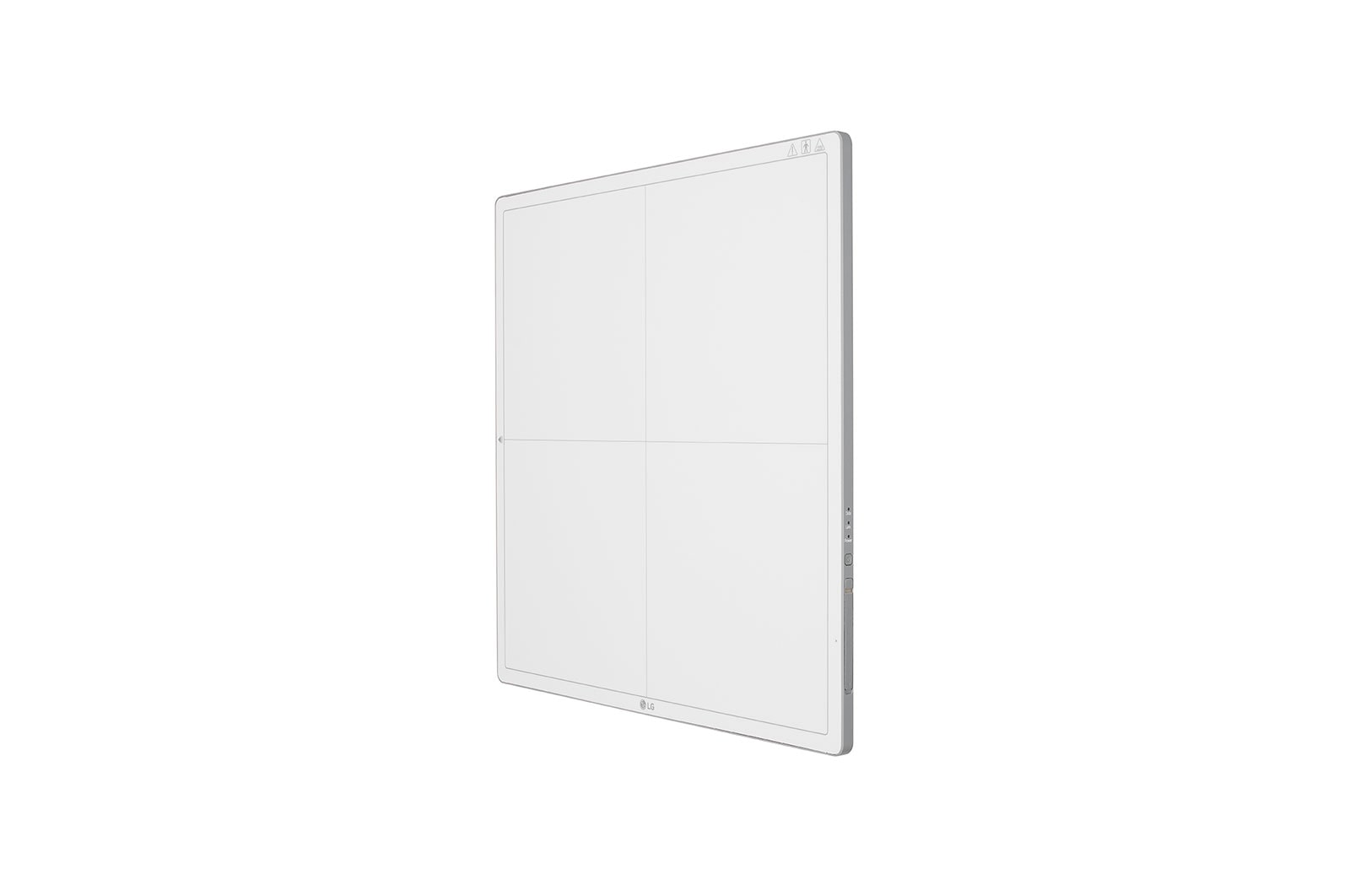

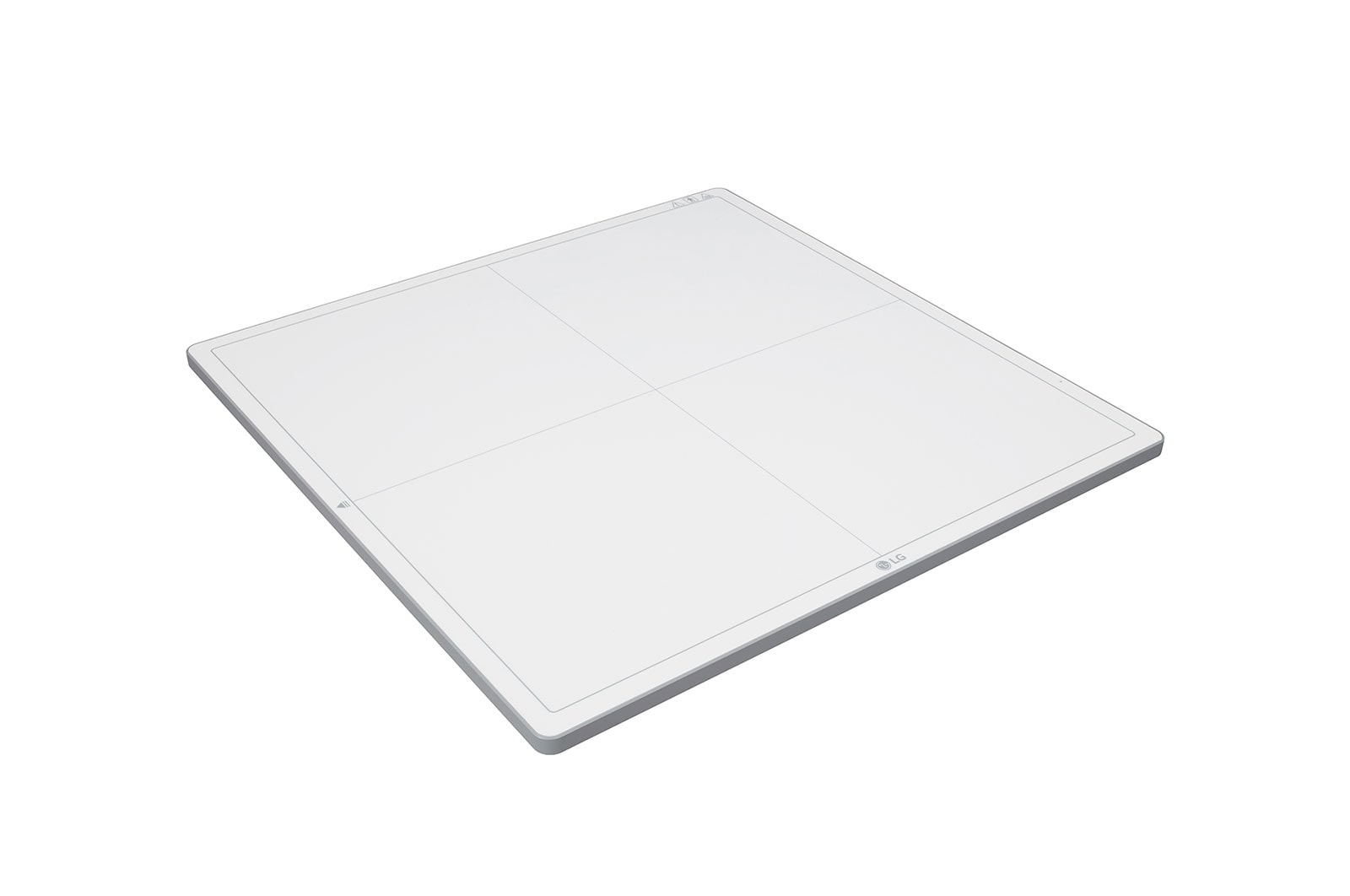

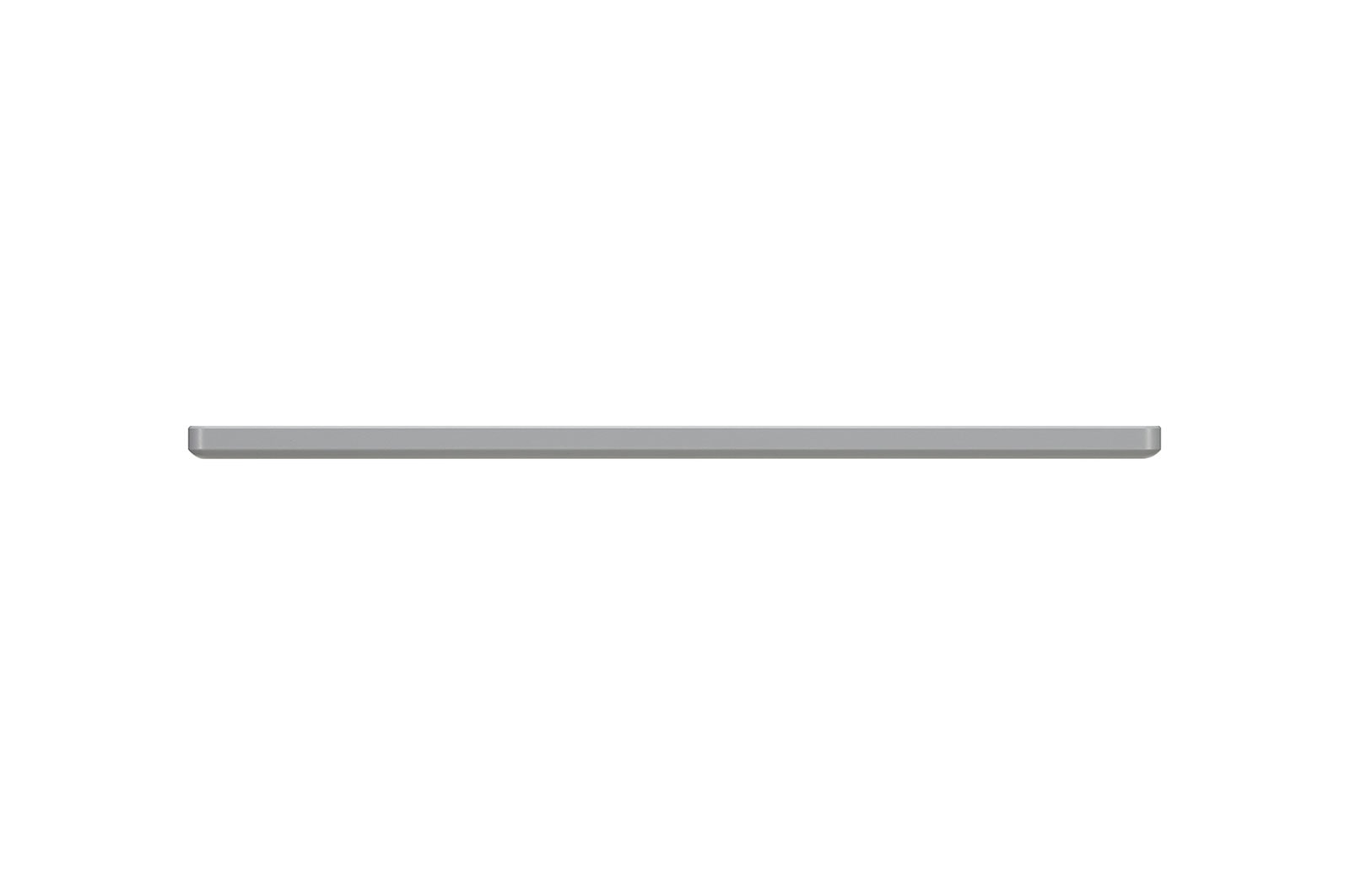

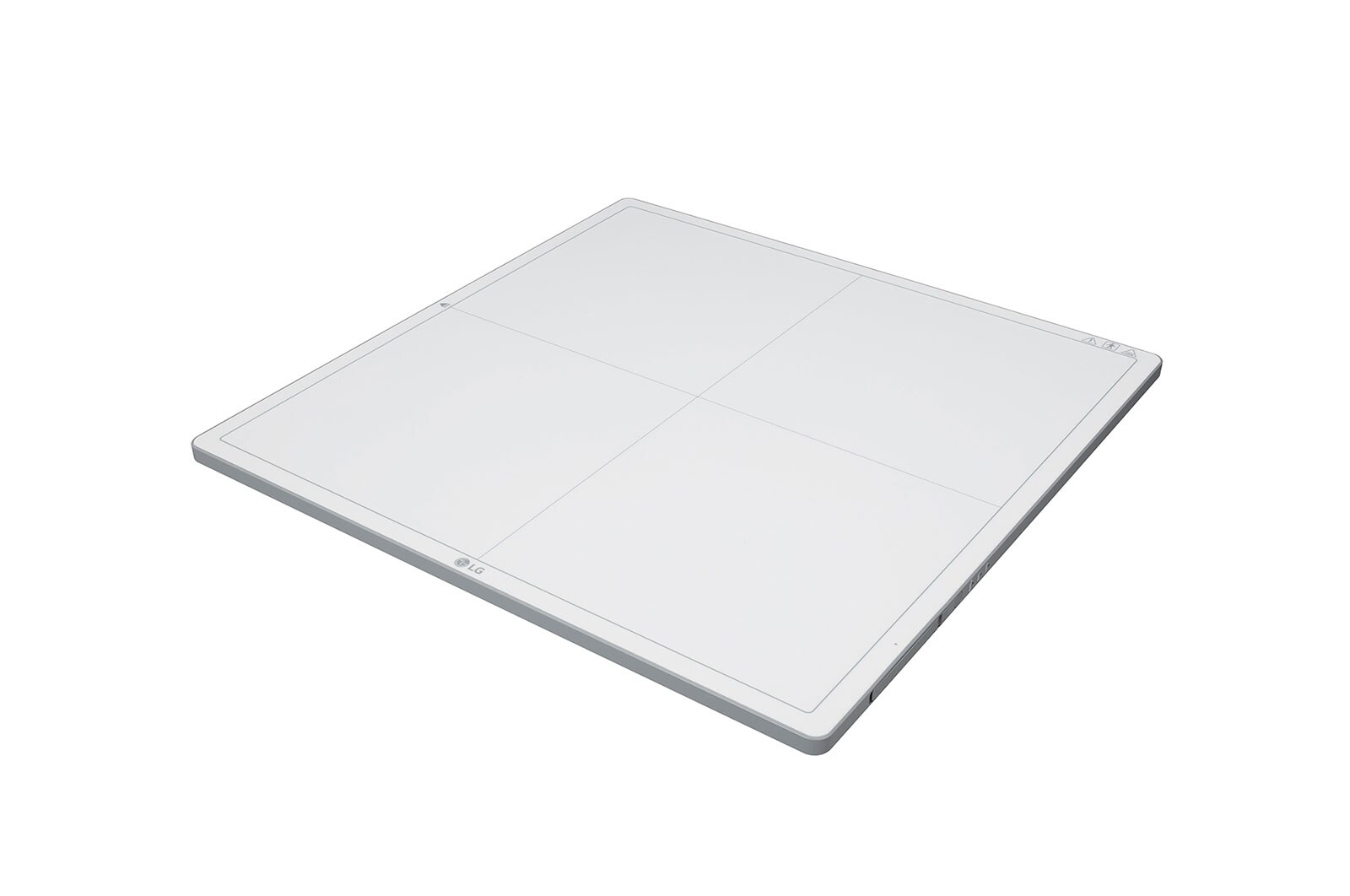

  • LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
  • LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
  • LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
  • LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
  • LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
  • LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
  • LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
  • LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
  • LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
  • LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
17HK700G-W-Front view
LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W
LG Digital X-Ray Detector (DXD) 3072 x 3072, 17HK700G-W

Key Features

  • 140㎛ pixel size
  • 16bit A/D conversion
  • Raw Image in 2sec. (wired)
  • IP53: Waterproof and Dustproof
  • Magnesium & Carbon-fiber Body
  • LG Acquisition Workstation Software
More
Ensure Diagnostic Accuracy

Superior Image Quality

LG DXD guarantees high resolution and clear image quality without image distortion through 16bit image processing. Plus, it also supports ideal pixel pitches of 140㎛ for high resolution images.
LG DXD protecting waterproof and dustproof

IP53 : Waterproof and Dustproof

IP*53 resistance rating ensures that LG DXD will be protected against objects of dust and spraying water at any angle up to 60° from the vertical shell.

*IP: Ingress protection (IP53 indicates Solids Level 5, and Liquids Level 3).

Magnesium, and Carbon-fiber Body

Magnesium & Carbon-fiber Body

With a super strong body that combines carbon-fiber with magnesium, LG DXD is not only lightweight but also exceptionally strong.

3.4kg(7lb)

Product Weight (Including Battery).

300kg(661lb)

Maximum Uniform Load.

100kg(220lb)

Maximum Local Load.
Improve Work Efficiency

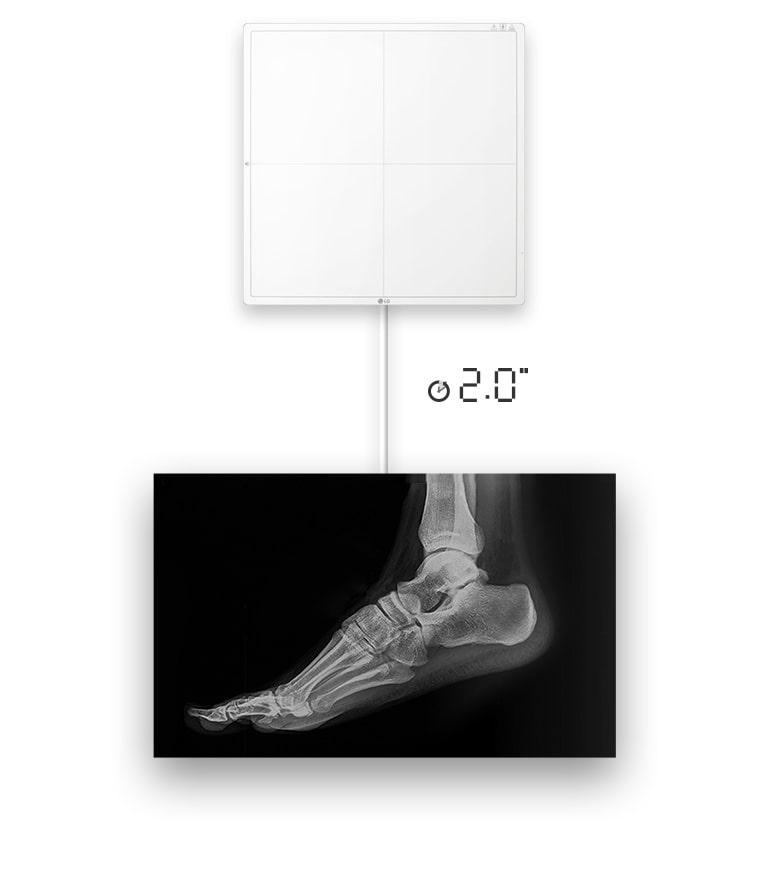

Rapid Image Availability

LG DXD increases productivity with fast-processing. It takes only 2 seconds to get a raw image.

Image availability in 2 seconds with a wired connection.

The more finely detailed image result using Multi-layer Image Processing embedded in the AWS, comparing to the image result without Multi-layer Image Processing
LG AWS for LG DXD

Enhanced Details by MLP

Multi-layer Image Processing(MLP) embedded in the AWS(Acquisition Workstation Software) provides well-balanced visualization at each frequency level with contrast enhancement processing that improves tissue visibility within an image.

Key Feature

  • 140㎛ pixel size
  • 16bit A/D conversion
  • Raw Image in 2sec. (wired)
  • IP53: Waterproof and Dustproof
  • Magnesium & Carbon-fiber Body
  • LG Acquisition Workstation Software
Print

All Spec

SENSOR(PANEL)UNIT

  • TFT Type

    A-Si

  • Scintillator

    Csi

  • Number of Pixels

    3072 x 3072

  • Pixel Pitch

    140㎛

  • TFT Dimensions(WxDxH, mm)

    445 x 445 mm

  • TFT Active Area(mm)

    430.08 × 430.08 mm

  • X-ray sensitive Pixel

    3072 x 3072

  • X-ray sensitive Area(mm)

    430.08 x 430.08 mm

  • Sensor protection plate

    Carbon Fiber Plate

  • Input

    DC24V/2.1A

  • Power consumption

    Typ. 17W

  • Weight(kg) / Icld. Battery (Typ.)

    3.4kg

  • Maximum Load Weight

    Full (Uniform Load) : 300kg
    Local (Point Load) : 100kg

  • Falling

    80cm (1m Limit at IEC600601-1 test)

  • Cycle Time(Ethernet / WLAN)

    8 sec

  • Full Image(Raw Image) (Typ.)

    2 sec (Typ.)

  • Image-lag (Typ.)

    0.023%

MTF(TYP.)

  • MTF @ 0.5lp/mm

    89%

  • MTF @ 1lp/mm

    74%

  • MTF @ 2lp/mm

    47%

  • MTF @ 3lp/mm

    29%

DQE(TYP)

  • DQE @ 0.1lp/mm

    72%

  • DQE @ 0.5lp/mm

    67%

  • DQE @ 1lp/mm

    61%

  • DQE @ 2lp/mm

    49%

  • DQE @ 3lp/mm

    28%

  • Sensitivity( lsb/uGy ) / Programmable

    Typ. 900 / Yes

DEGRADATION

  • Expected lifetime (Gy)

    100 Gy

  • Sensitivity degradation at the 'end of Life'

    20%

  • Spatial Resolution(lp/mm)

    3.57 lp/mm

  • A/D Conversion

    16 bit

  • Data Output

    16 bit

  • Auto Exposure Detection

    Yes

  • X-ray generator voltage range

    40 to 150kVp

  • Unit Interface

    Connect to Control Box

  • Power unit interface

    Connect to Control Box

  • Wired Communication

    Yes

  • Detachable Wire (Easy to plug / unplug)

    Yes (screw Fix)

  • X-ray period (ms) (=Window Time)

    Standard: 500 ( ~4000)

  • Sensor

    DXD Rotation & degree (0, 90, 180') to rotate image Drop count for SVC

  • Shock monitoring

    Yes

CONTROL BOX

  • Power Input

    AC100 to 240V, 47-63Hz

  • Power Output

    DC24V / 2.1A

  • AC Power Cord

    1.5m, White

  • Dimensions(WxDxH, mm)

    125 x 255 x 109.8 mm

  • weight(kg)

    1.3 kg

MAIN CABLE(DXD-CONTROL BOX)

  • Length

    7m

LAN CABLE(CONTROL BOX-PC): OPTIONAL(WHEN BUYER REQUIRES THIS CABLE, IS SHIPPED ACCORDING TO BOM)

  • Length

    10m

SYNC CABLE(CONTROL BOX - X-RAY GENERATOR): OPTIONAL(WHEN BUYER REQUIRES THIS CABLE, IS SHIPPED ACCORDING TO BOM)

  • Length

    15m

STORAGE

  • Temperature

    -20 to 60 ℃

  • Humidity

    Less than 90% RH, No condensation

  • Pressure

    50 ~ 106 kPa

  • Attitude

    Less than 12,192 m

OPERATING

  • Temperature

    10 to 35 ℃

  • Humidity

    Less than 80% RH, No condensation

  • Pressure

    70 ~ 106 kPa

  • Attitude

    Less than 5000 m

WATERTIGHTNESS

  • Watertightness

    IP41

  • Cleaning and desinfecting products

    Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution

  • Anti-Bacteria

    JIS Z 2801 0.99%

DIMENSIONS/WEIGHT

  • Dimension in Shiping (W x H x D)

     641 x352 x 621 mm

  • Pallet Stuffing (20ft/40ft/40ft HC)

     120/270/324

  • Weight in Shipping

    12.5kg

WARRANTY

  • Warranty

    36 Months

ACCESSORIES

  • CD

    Manual, Calibration SW

  • Cable

    Power cord, Manin Cable 7m (LAN Cable, Sync cable Option)

  • Other

    Book Manual , Outgonig Inspection sheet
