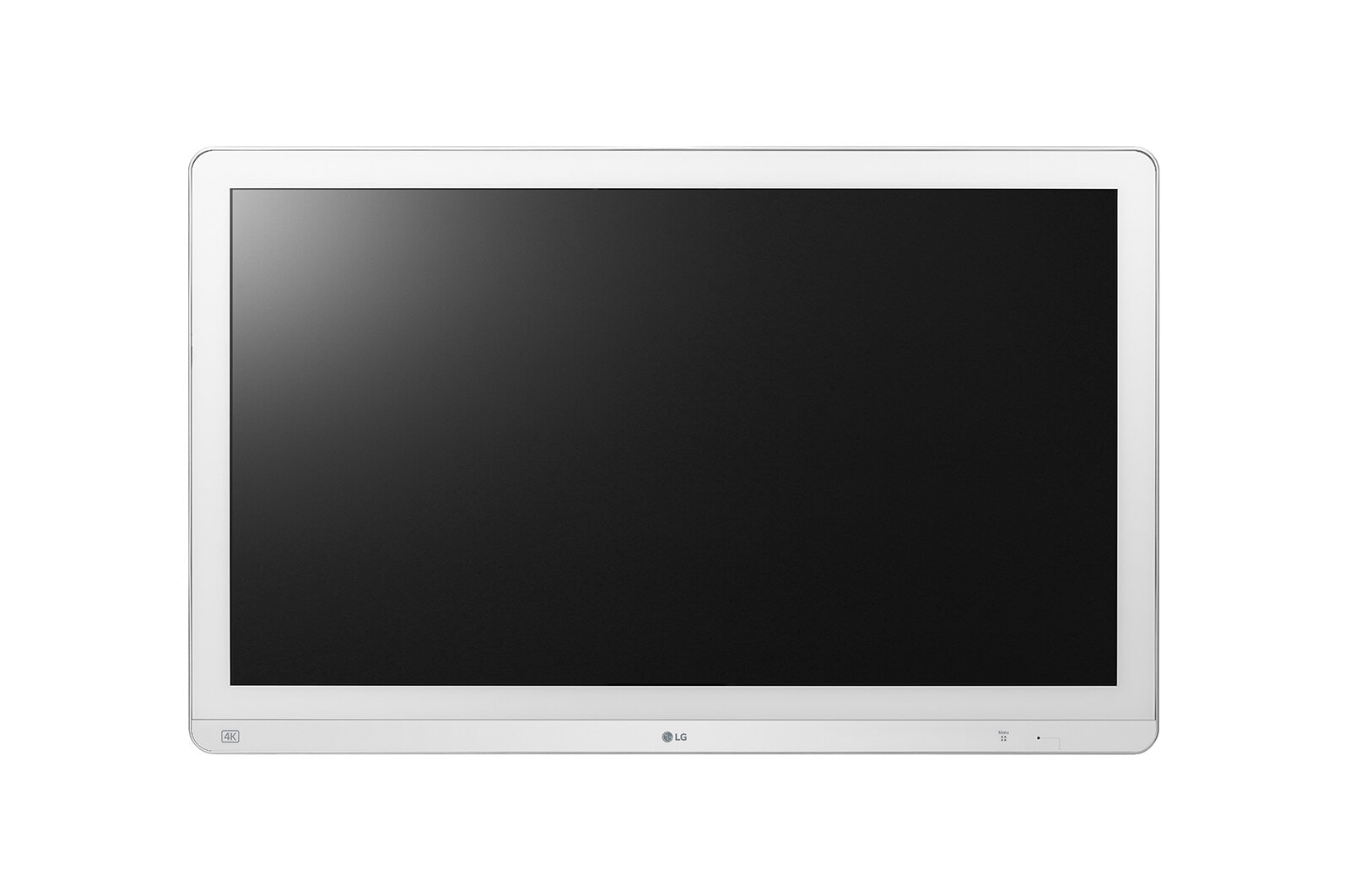

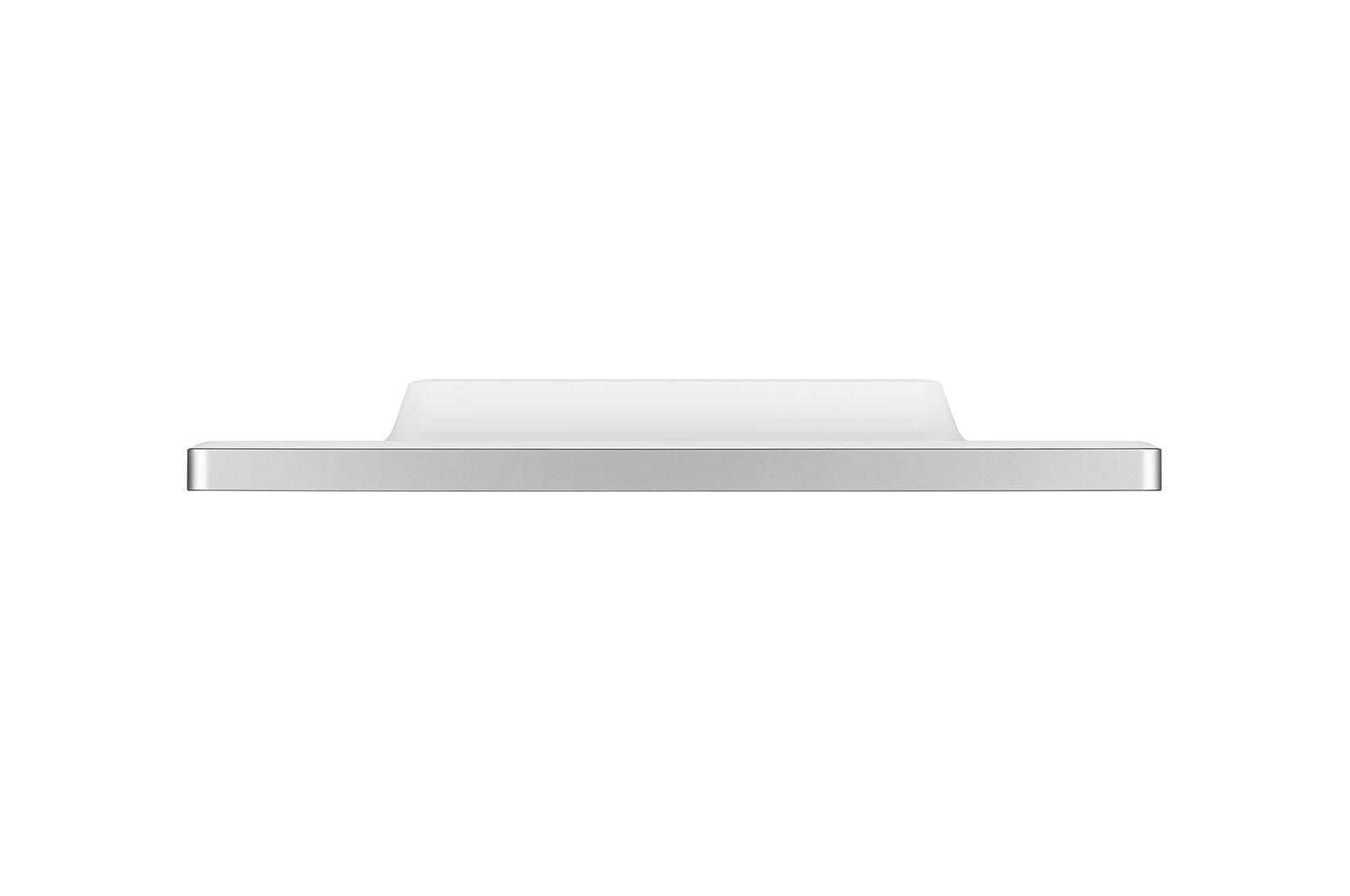

LG 31.5" 4K IPS Surgical Monitor

Large Display for Surgical Precision
4K Surgical Display

Large Display for Surgical Precision

LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.
Enhanced Accuracy with Wide View
31.5-inch 4K IPS

Enhanced Accuracy with Wide View

With 31.5-inch 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.
sRGB 115% (Area), Over 99% (Coverage)

sRGB 115% (Area), Over 99% (Coverage)

The 32HL710S, supports sRGB 115% (Area) and Over 99% (Coverage) with the standard DICOM Part 14, is designed for accurate colour recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.
Brightness Stabilization

Brightness Stabilization

LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure.
Support HDR10

Support HDR10

LG surgical monitor is designed to fits with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.

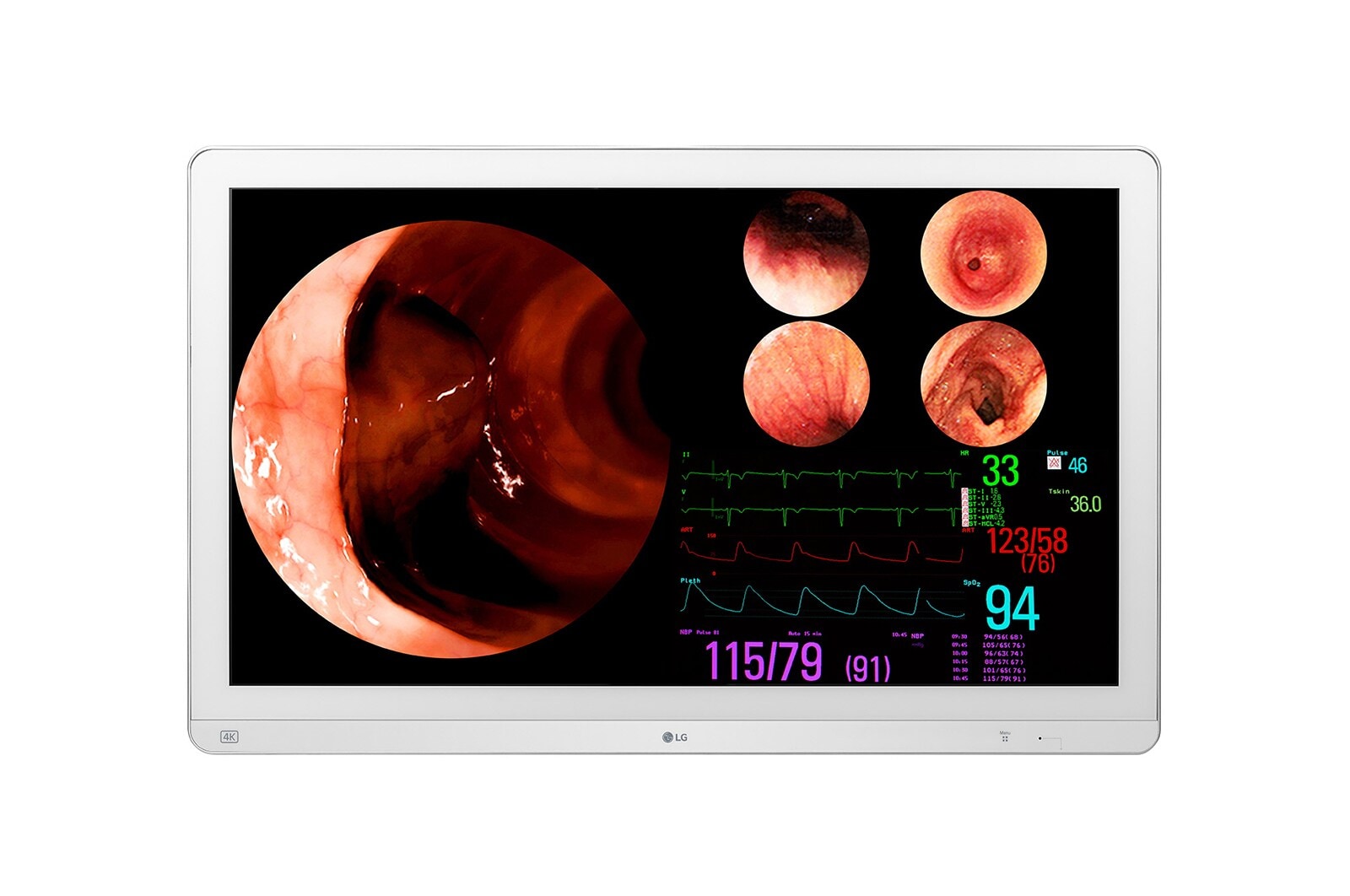

Multiple Signals on One Screen
PBP, PIP & Multi-input

Multiple Signals on One Screen

The 32HL710S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.
Find the Perfect Operating View
Mirror & Rotation

Find the Perfect Operating View

The 32HL710S with Mirror & Rotate functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.
Dustproof

Dustproof & Water Resistant

To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.

Key Feature

  • 31.5" 4K (3840x2160) IPS
  • Support HDR10
  • Mirror & Rotation Mode
  • Up to 4PBP, PIP
  • Dustproof, Water Resistant
  • Protection Glass

All Spec

DISPLAY

  • Aspect Ratio

    16:9

  • Brightness (Typ.)

    800cd/m²

  • Colour Bit

    10bit

  • Colour Gamut (Typ.)

    sRGB 115%(Area), sRGB over 99%(Coverage)

  • Contrast Ratio (Typ.)

    1300:1

  • Panel Type

    IPS

  • Resolution

    3840 x 2160

  • Response Time (GTG)

    14ms (Off-setting), 5ms (Faster-setting)

  • Size (Inch)

    31.5

  • Surface Treatment

    Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)

  • Viewing Angle (CR≥10)

    178° (Right/Left), 178° (Up/Down)

FEATURE

  • Hot Key

    Yes (2 keys)

  • Brightness stabilization

    Yes

  • Black Stabilizer

    Yes

  • HW Calibration

    Yes (True Colour Pro)

  • DICOM Compliant

    Yes

  • Colour Temperature

    6500K/7500K/9300K Manual (5000K ~ 10000K)

  • Flicker Safe

    Yes

  • HDR 10

    Yes

  • HDR Effect

    Yes

  • PBP

    Yes (2PBP/3PBP/4PBP)

  • PIP

    Yes

  • Rotation & Mirror Mode

    Yes

  • Fail Over Input Switch

    Yes

  • Light Box Mode

    Yes

  • Smart Energy Saving

    Yes

  • Super Resolution+

    Yes

SW APPLICATION

  • True Colour Pro

    Yes

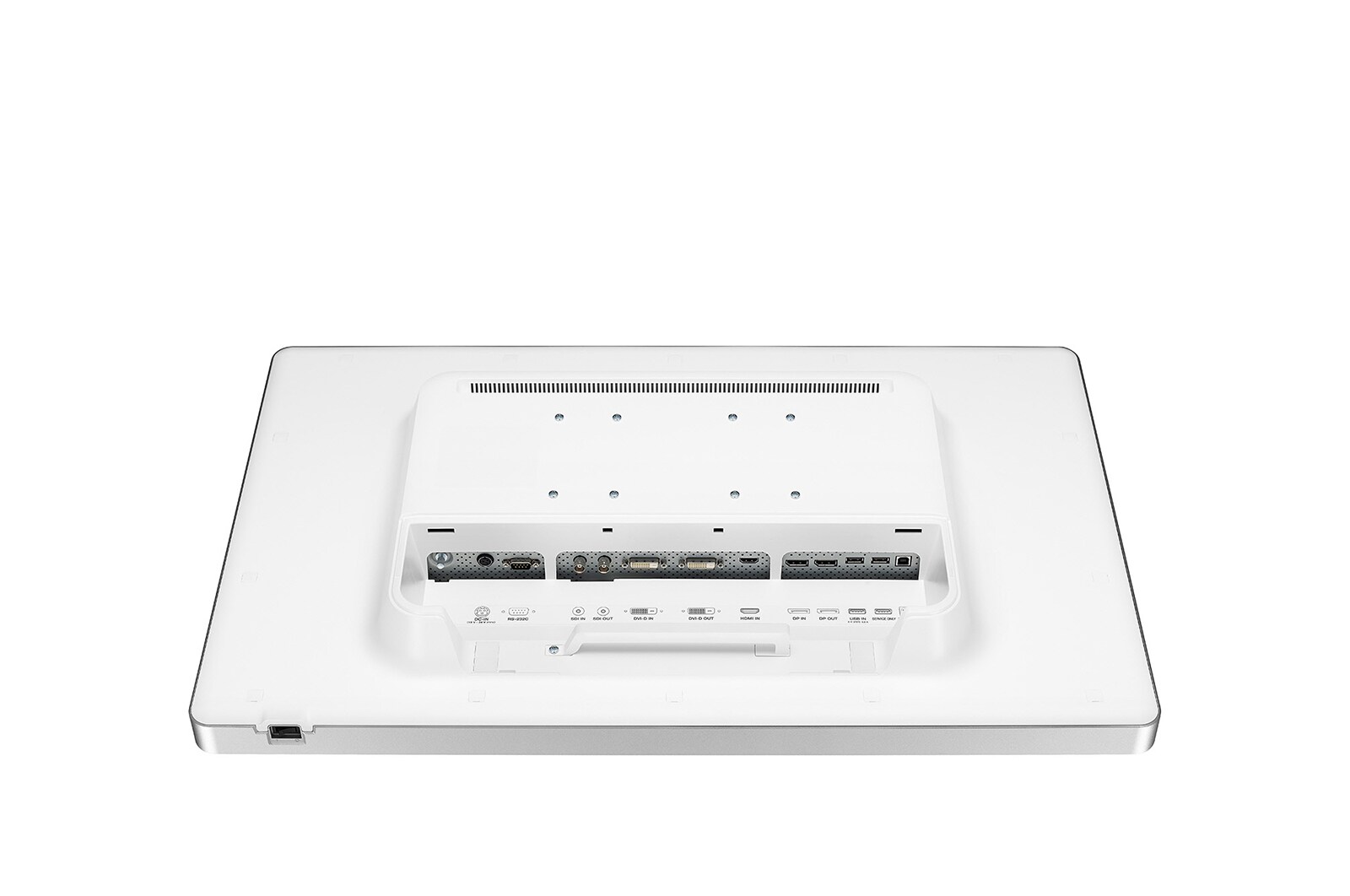

CONNECTIVITY

  • SDI

    Yes (3G,INx1/OUTx1)

  • DisplayPort

    Yes (in 1ea/out 1ea)

  • DVI

    Yes (1In/1Out)

  • HDMI

    Yes (1ea)

  • RS-232

    Yes (1ea)

  • USB Downstream Port

    Yes (1ea/ver2.0)

  • USB Upstream Port

    Yes (1ea/ver2.0)

POWER

  • AC Input

    100-240Vac, 50/60Hz

  • DC Output

    19 - 24V, 6.32A - 5.0A (24V Ready)

  • Power Consumption (DC Off)

    Less than 0.3W

  • Power Consumption (Max.)

    120W

  • Type

    External Power (Adapter)

MECHANICAL

  • Borderless Design

    Normal

  • Machanical Power Switch

    Yes

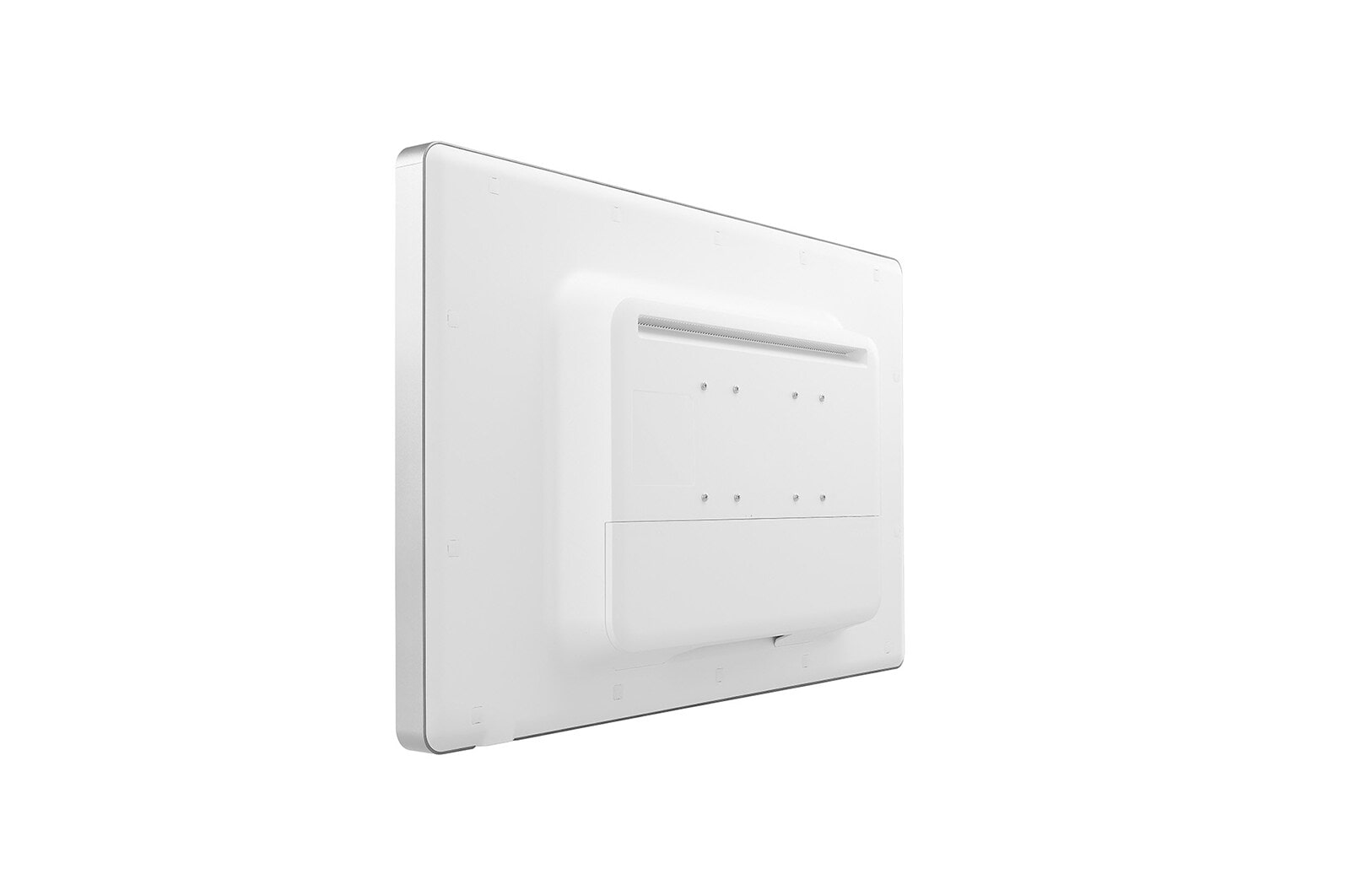

  • Wall Mount Size

    200 x 100 mm/100 x 100 mm

DIMENSIONS/WEIGHT

  • Dimension in Shiping (W x H x D)

    883 x 599 x 200 mm

  • Dimension without Stand (W x H x D)

    764.6 x 480.8 x 94.4 mm

  • Pallet Stuffing (20ft/40ft/40ft HC)

    216EA/405EA/495EA

  • Weight in Shipping

    17.4kg (38.4lb)

  • Weight without Stand

    12.4kg (27.3lb)

STANDARD

  • IEC (IEC 60601-1/IEC 60601-1-2)

    Yes

  • EN (EN 60601-1/EN 60601-1-2)

    Yes

  • IEC (IEC 60950-1/IEC 55032, 55024)

    Yes

  • EN (EN 60950-1/EN 55032, 55024)

    Yes

  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)

    Yes

  • FCC (FCC part 15 Class A)

    Yes

  • FDA

    Registration (Class I)

  • ISO13485

    Yes

  • GMP

    Yes

  • KGMP

    Yes

  • RoHS

    Yes

  • REACH

    Yes

  • WEEE

    Yes

  • MFDS

    Yes

  • IP (Front/Except for front)

    IP35/IP32

  • Vandal-proof

    IK06

ACCESSORY

  • Adapter

    Yes

  • Calibration Report (Paper)

    Yes

  • Power Cord

    Yes
