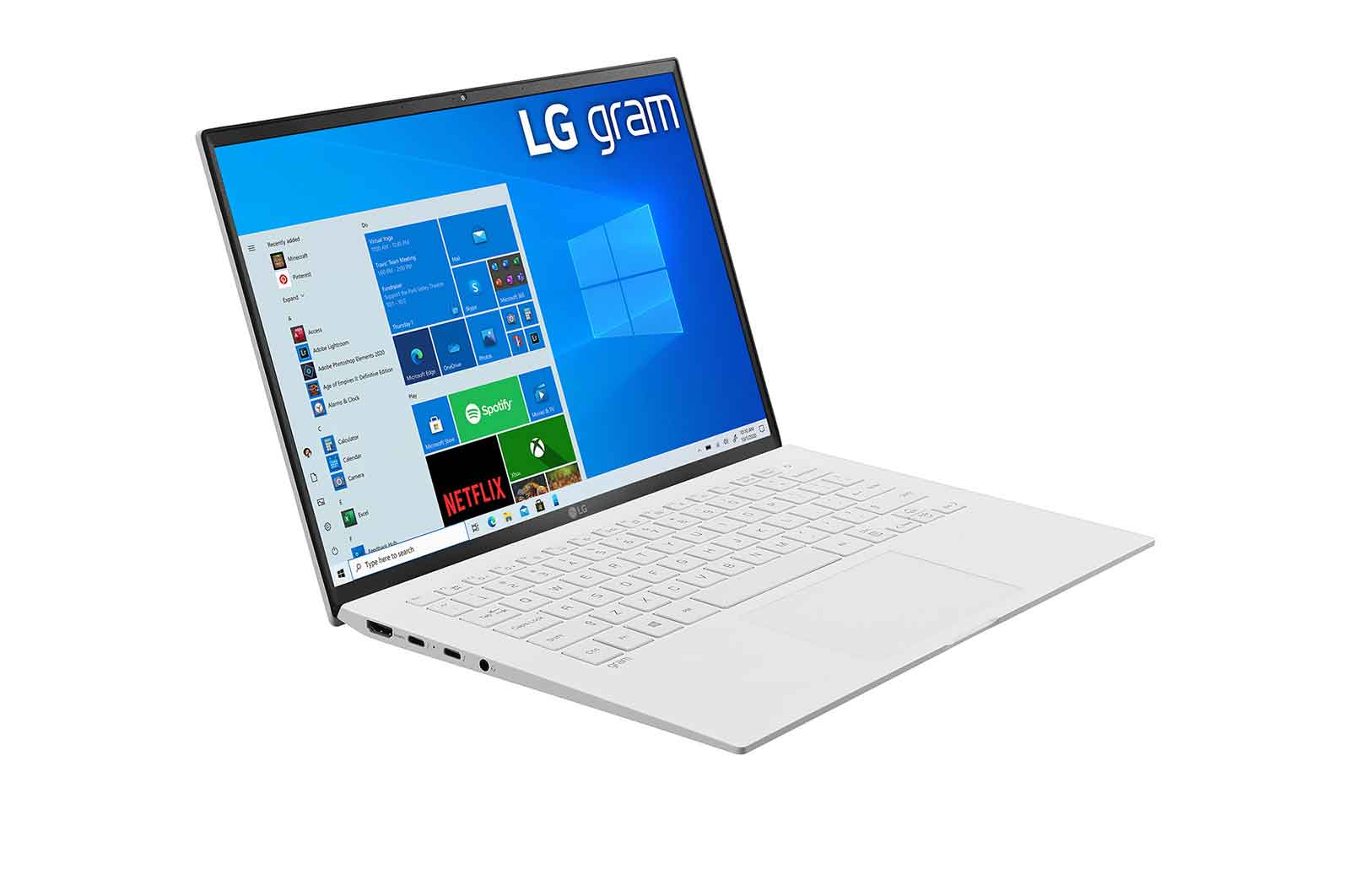

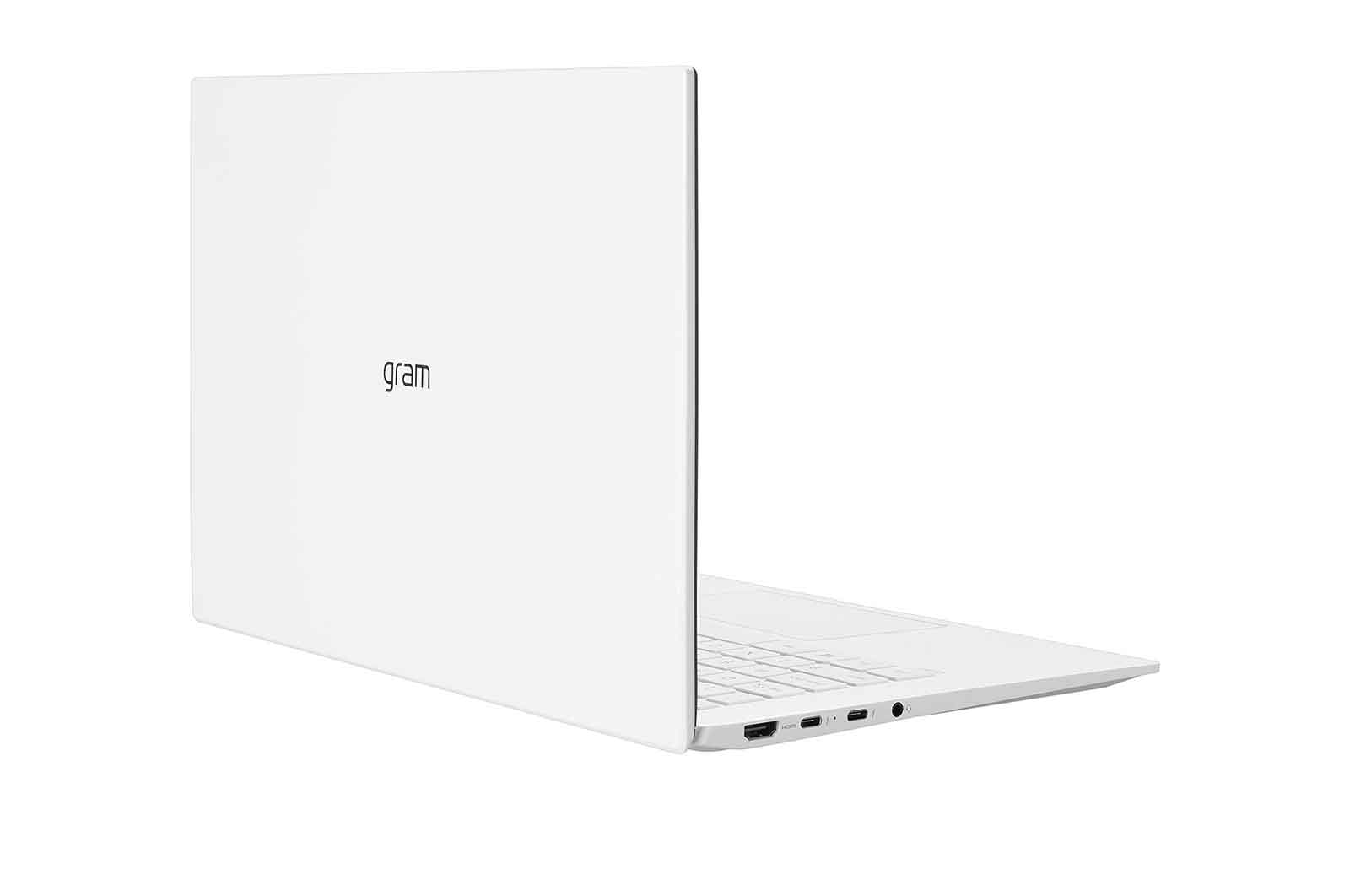

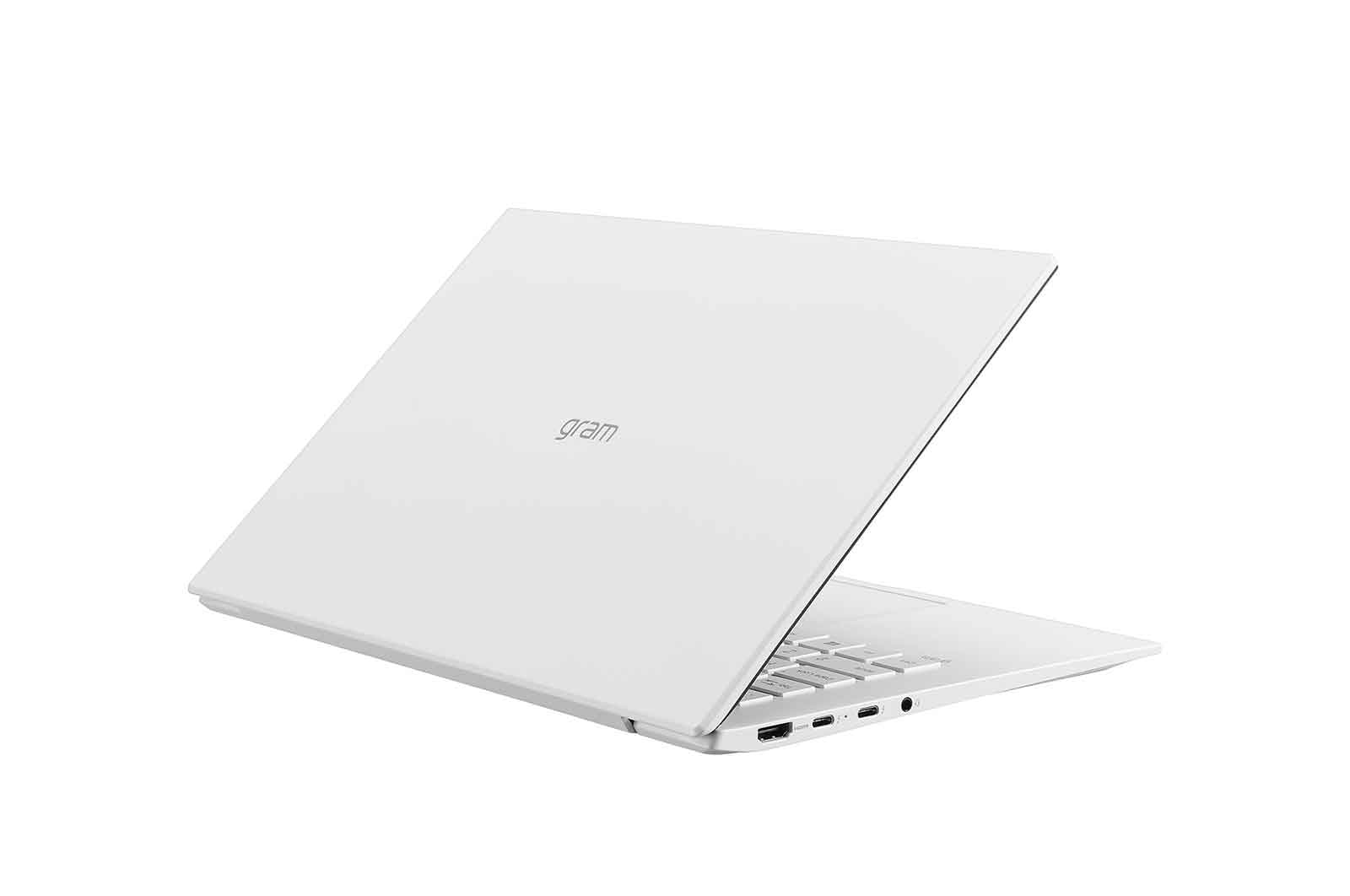

LG gram 14.0" Laptop with 16:10 WUXGA IPS Display, 11th Gen Intel® Core™ (Certified Evo™ Platform) i5 Processor and Thunderbolt™ 4

14Z90P-G.AA54A3

Key Features

11th Gen Intel® Core™ (Certified Evo™ Platform) with Iris® Xe Graphics
Windows 10 Home
14.0 inch 16:10 WUXGA (1920 x 1200) IPS Display
72Wh Lithium Ion Battery (Up to 25.5 Hours)
NVMe™ Dual Slot SSD | Thunderbolt™ 4
Weighs only 999g

LG gram 14 offering all features including light-weight as ever

Free Upgrade to Windows 111 when available (see below).
1Device comes with Windows 10 and a free Windows 11 upgrade or may be preloaded with Windows 11. The Windows 11 upgrade will be delivered to qualifying devices late 2021 into 2022. Timing varies by device. Certain features require specific hardware (see aka.ms/windows11-spec).

14" Screen & 999g

Uncompromising Lightweight

14-inch LG gram is newly engineered to increase your productivity with a 16:10 professional display, productivity-enhancing design and powerful processors, while remaining faithful to its lightweight body. So you can get heavy work done anytime, anywhere.

14”

Large Screen

999g

Ultra-Lightweight Body

16:10 IPS Display with DCI-P3 99%

Professional Display

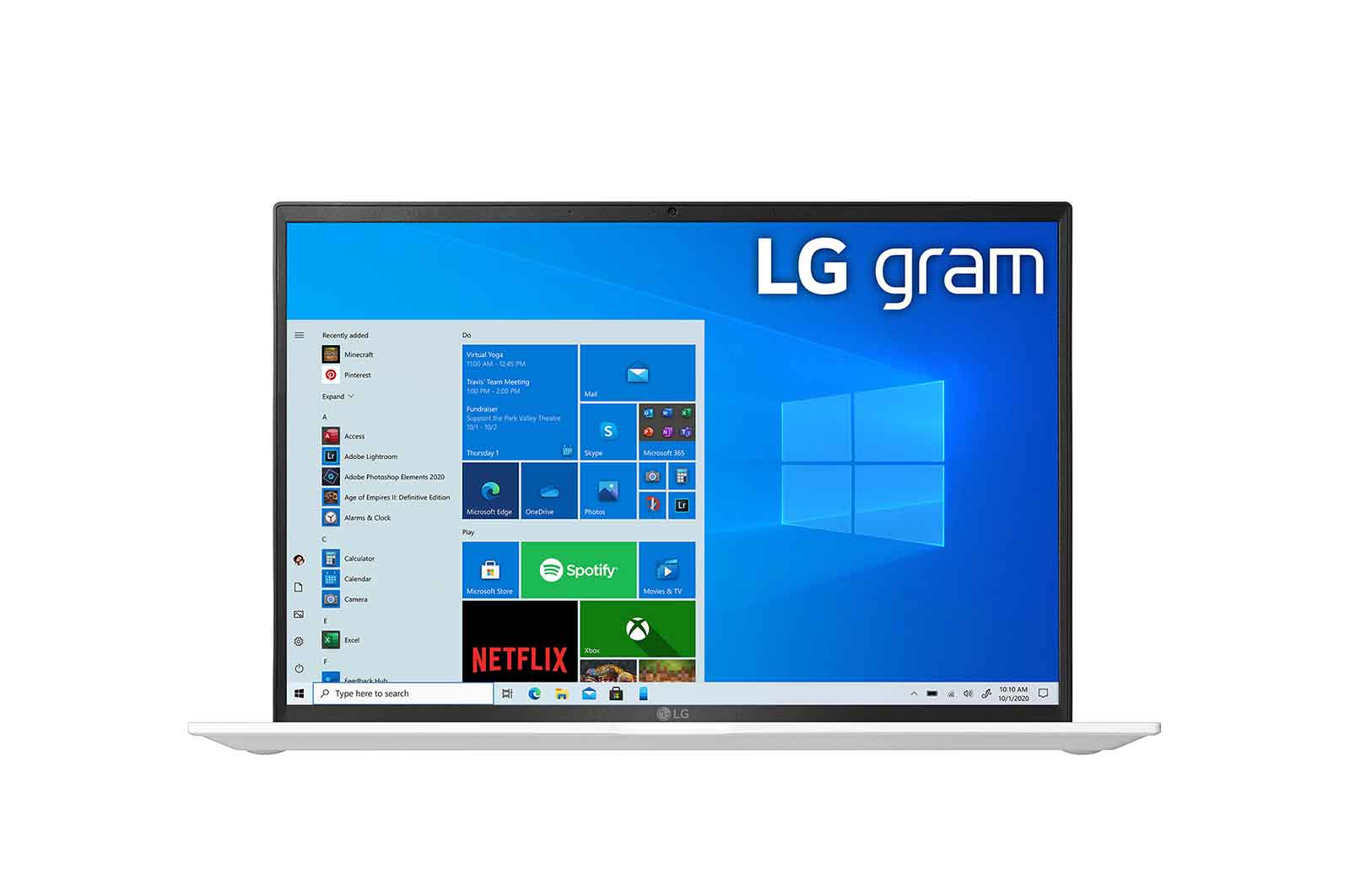

FHD+ Resolution on 16:10 Large Screen

16:10 screen with FHD+ (1920X1200) resolution is designed for your productivity offering a full grasp of more information on a page - 11% more screen real estate compared to 16:9 ratio. And the 4-way slim bezel provides an immersive experience.

FHD+ Resolution on 16:10 Large Screen

DCI-P3 99% (Typ.) Wide Color Gamut*

The new LG gram accurately represents your creative ideas and the colors you intended, thanks to the industry-standard DCI-P3 99% (Typ.) that delivers a wide range of color gamut.

DCI-P3 99% Typical delivering the Wide Color Gamut

*DCI-P3 Typical 99%, Minimum 95%.

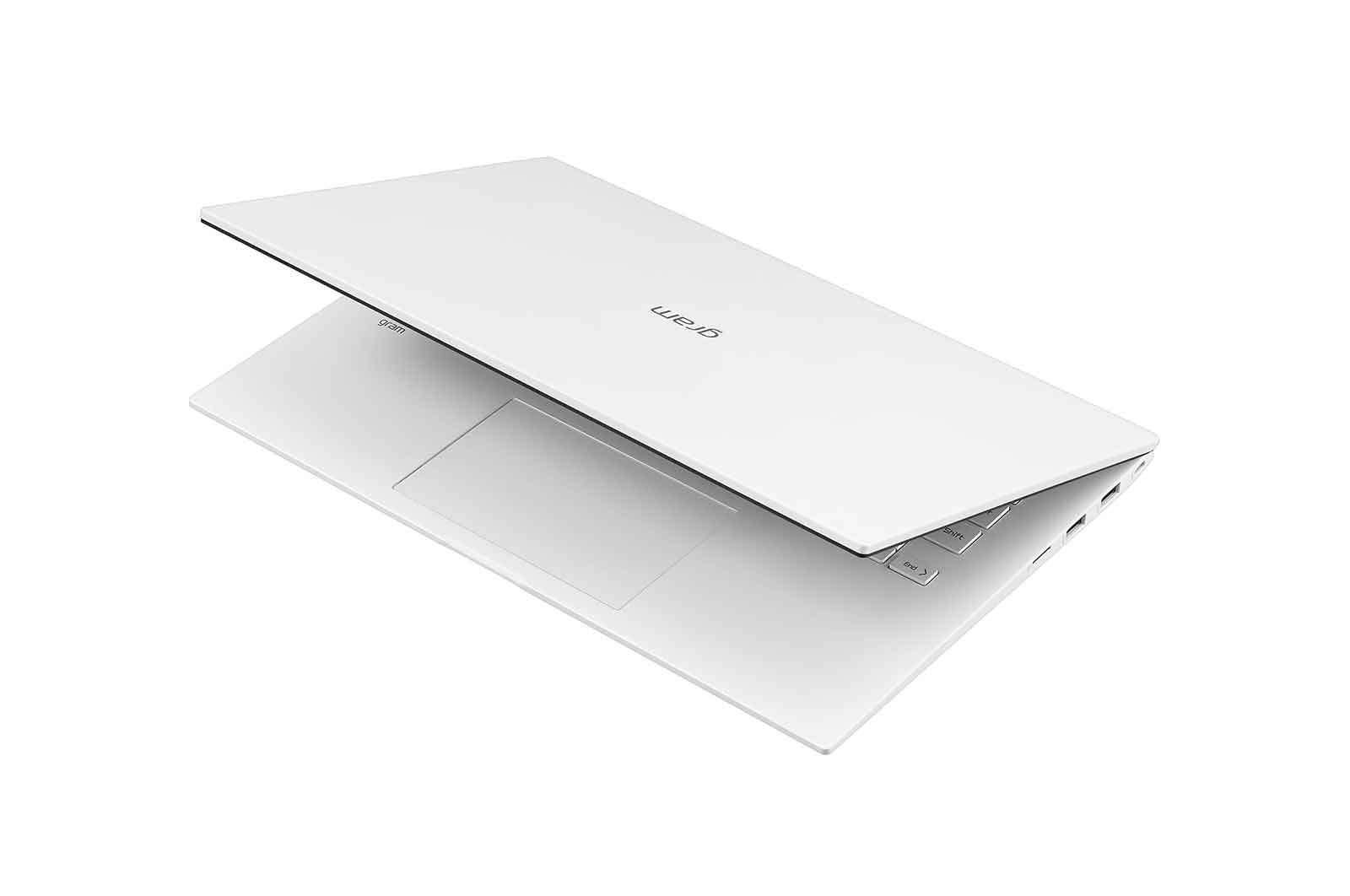

Compact Size

Slim Design for Your Productivity

Reduced bezel and body size makes 14Z90P more compact, compared to older models. And the minimalist straight-lined design in addition to hidden hinge reduces distraction so raise your focused immersion.

Compact Sized gram in the Slim Design increasing Your Productivity

Accurate and Comfortable Keyboard

Redesigned keyboard for extended comfort and efficiency, delivering a satisfying typing experience.

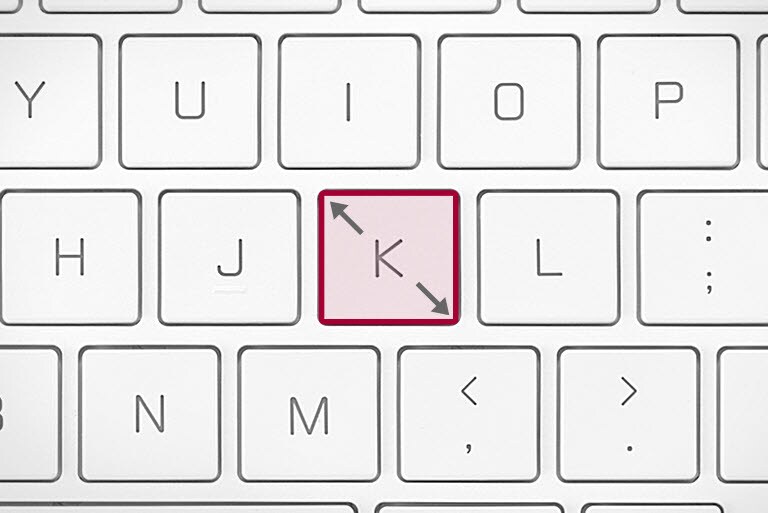

Expanded Keycaps

Extra big and flat keycaps enable seamless typing, reducing typos.

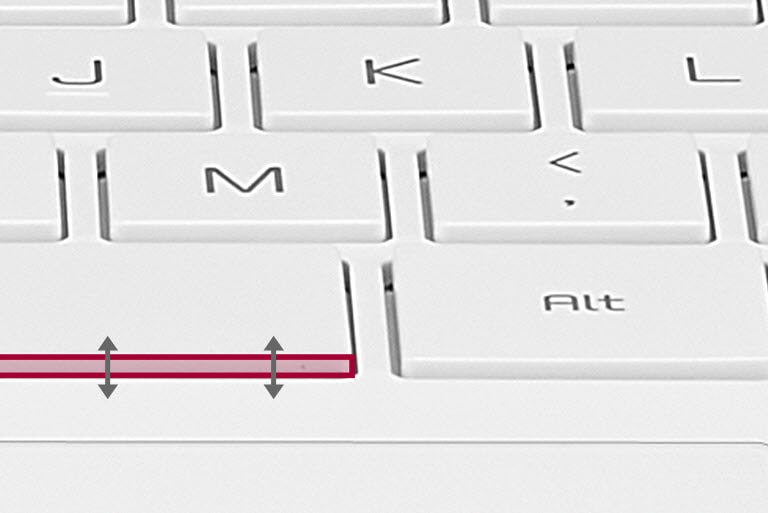

Enhanced Key Stroke

Elevated Key Stroke from 1.5mm to 1.65mm, compared to older models helps relive fatigue in your hands.

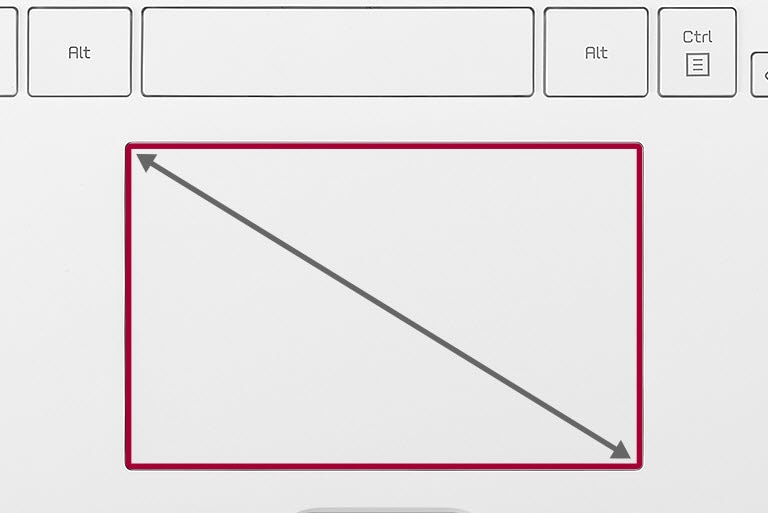

Widened Touch Pad

The widened touchpad matches the ratio of the display in the uniformity of a design, resulting in comfortable control even without using a mouse.

11th Gen Intel^®CPU

Powerful Performance with the Latest Processor and System Memory

Acquiring a certificate of the Intel® Evo™ platform that is the 11th generation Intel® Core™ processors with Intel® Iris® Xe graphics, LG gram delivers fast performance for content creation, work productivity, game playing and streaming.

*CPU and Graphics performance results are based on testing as of August 2020 by Intel®.
*Memory Performance : Comparison with DDR4 3200Mhz.

72Wh Battery

Up to 25.5 hours All-day Battery Life

14-inch LG gram offers 72Wh battery with high capacity to last up to 25.5 hour battery life from a single charge. So it facilitates your seamless performance from anywhere during your working hours.

72Wh Battery
Up to 25.5 hours of Battery Life

*Above battery life describes the maximum capacity based on the MobileMark® 2014 results. Actual battery life will vary from specifications depending on model, setup configuration, applications used, features utilized and power management settings.

Thunderbolt™ 4

Charge, Transfer and Display at Once

Thunderbolt™ 4 lets you enjoy dual 4K and single 8K display connection to only one Thunderbolt port with stability, scalability and security. Plus, 16Z90P boosts productivity, offering 100W PC charging, next-generation interface support, and USB4 compatibility.

*Thunderbolt™ cable is not included in the package.
**The above features may not function properly causing the cable that the user is using to connect.
***Power delivery up to 15W from LG gram to the connected device.
****If not using the charger in the package, the external device that outputs at least 10W is required to charge LG gram.

Improved Usability

Easy and Smart Convenience

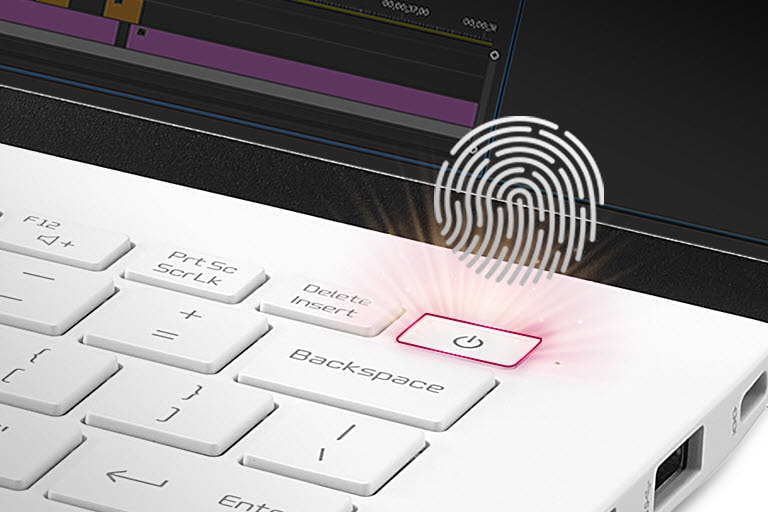

All-In-One Power button

Power and Security at Your Fingertips

Simply touch the power button to power your gram and login at once.

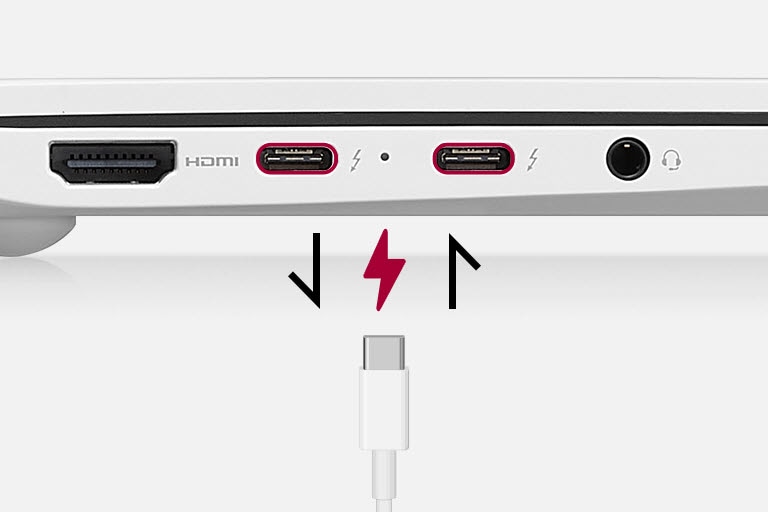

In and Out Charging with USB-C power delivery technology

In & Out Charging

Universal Charging Standard

With USB-C™ power delivery technology, you can power up a gram, while charging connected device simultaneously.

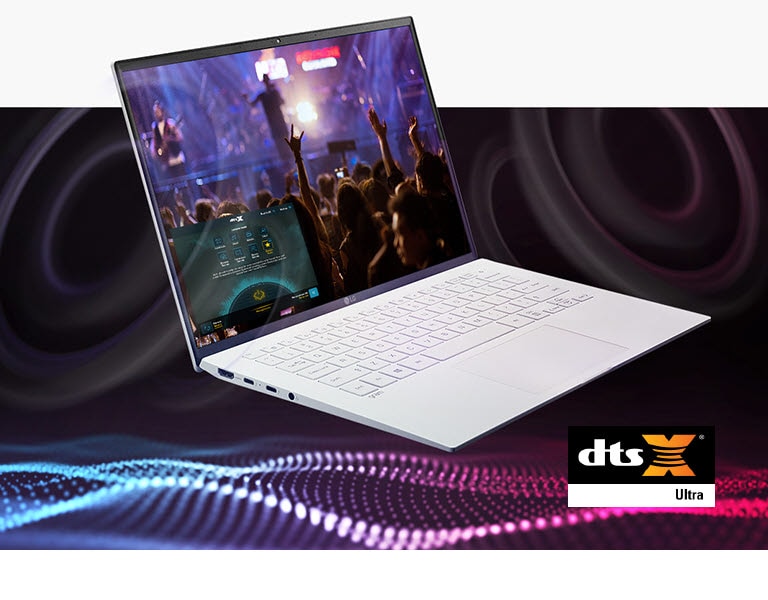

DTS: X Ultra

Immersive Sound Experience

DTS:X Ultra allows you to immerse yourself in 3D Audio Rendering even without wearing a headphone, and enjoy full and rich audio experience. Also, LG gram is upgraded in hardware with smart amp and stereo speakers, delivering realistic and powerful sound.

MIL-STD-810G

Proven Durability

The full metal body made from magnesium alloy used as aircraft material is lightweight and super-strong. Its durability is clarified by passing the demanding MIL-STD-810G military standard of durability and reliability that checks seven factors from shock and dust to extreme temperatures.

Low Pressure

High Temperature

Low Temperature

Dust

Vibration

Salt Fog

Transit Drop

*The shock test involved Functional Shock and Transit Drop.

Key Specs

Operating System
Windows 10 Home
Size (Inch)
14
Processor
i5-1135G7
Memory
16GB LPDDR4X (Dual Channel, 4266MHz)
SSD
512GB NVMe M.2(2280) Dual SSD slots
weight(kg)
0.999
Resolution
WUXGA 1920 x 1200
Graphic
Intel Iris Xe Graphics
Color gamut
DCI-P3 99% (Typical, min 95%)
Dimension(inch)
12.34 x 8.47 x 0.66"

All specs

BUTTON

Button
Power button with Fingerprint

ACCESSORY

Accessory
N/A

CERTIFIED

Certified
N/A

LED

LED
Power, DC-In, Caps Lock, webcam

SOUND

Audio
HD Audio with DTS:X Ultra
Speaker
Stereo Speaker 2.0W x 2, Max 5W(Smart Amp)

BATTERY

Battery
72Wh

STORAGE

eMMC
N/A
HDD
N/A
MMC Slot
UFS/ Micro SD
SSD
512GB NVMe M.2(2280) Dual SSD slots

POWER

AC Adapter
65W
AC Adapter type
USB Type-C

DIMENSION / WEIGHT

Dimension(mm)
313.4 x 215.2 x 16.8"
Dimension(inch)
12.34 x 8.47 x 0.66"
Shipping Dimension(inch)
16.8 x 10.3 x 2.4"
Shipping Dimension(mm)
426 x 262 x 60"
Shipping weight(kg)
1.72
Shipping weight(lb)
3.8
weight(kg)
0.999
weight(lb)
2.2

THERMAL

Thermal
Mega cooling 4.0

INFO

Product Category
gram
Year
Y21

INPUT DEVICE

Keyboard
Full Size 79 Keys (US) / 80 Keys (UK)/83Keys(Japan), Backlit KBD
Pointing Device
Precision Touch Pad w/ Scroll and Gesture Function (size: 111.6 x 69.6mm)

DESIGN

Chassis Materials
Magnesium, PC-ABS
Color
White

CONNECTIVITY

BT
BT 5.1
Interface
N/A
LAN
10/100 with RJ45 adapter
TV Tuner
N/A
Webcam
HD Webcam with Dual Mic
Wireless
Intel® Wireless-AX201 (802.11ax, 2x2, Dual Band, BT Combo)

SYSTEM

Graphic
Intel Iris Xe Graphics
Memory
16GB LPDDR4X (Dual Channel, 4266MHz)
Operating System
Windows 10 Home
Processor
i5-1135G7

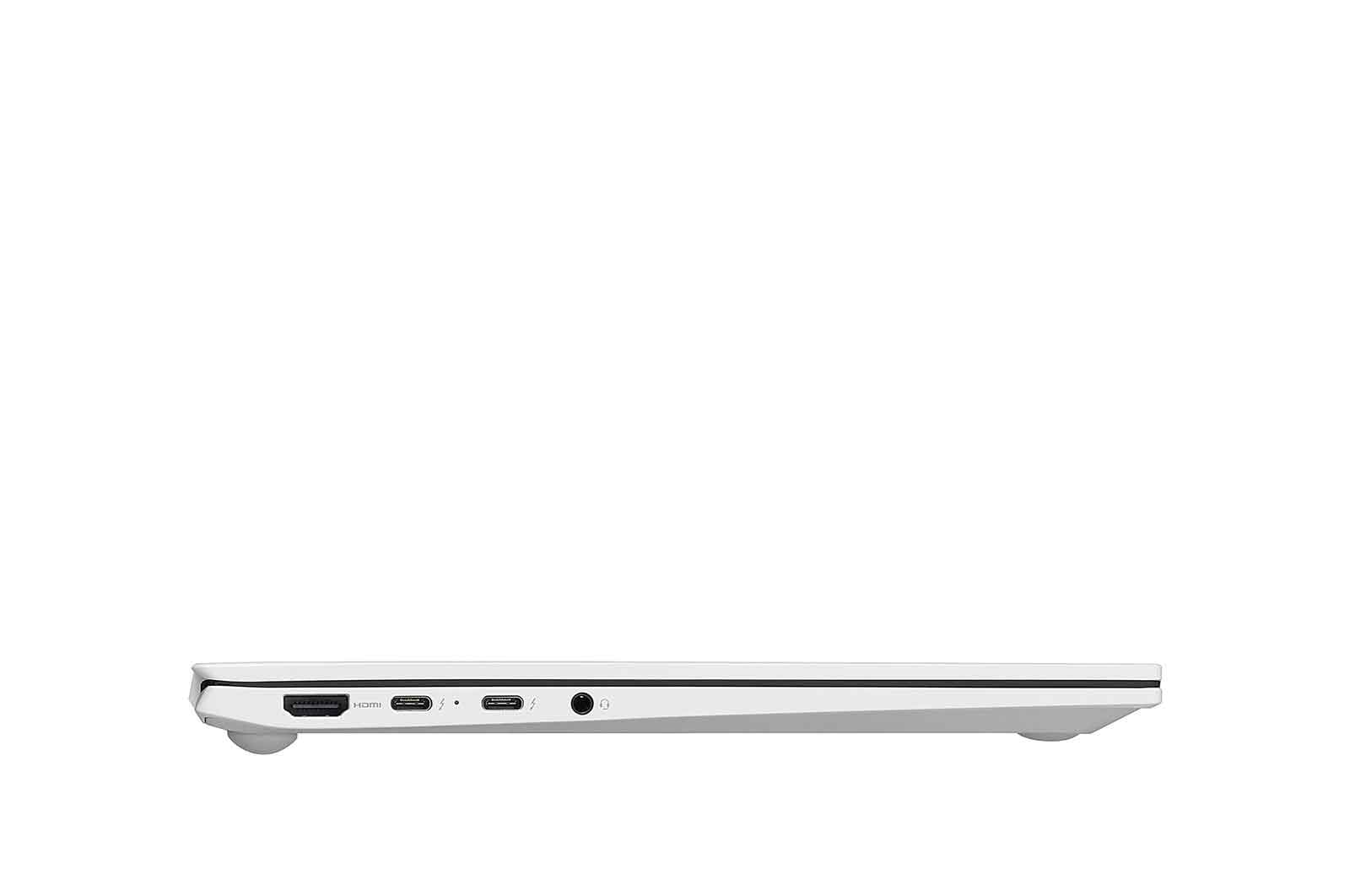

INPUT/OUTPUT PORT

DC-in
N/A
Etc.
N/A
HDMI
YES
HP-Out
4Pole Headset, US type
RJ45
N/A
USB Type A
USB 3.2 Gen 2x1 (x2)
USB Type C
USB 4 Gen3x2 Type C (x2, with Power Delivery, Display Port, Thunderbolt 4)

SECURITY

finger print
YES
fTPM/HW TPM
Option
HDD Security
YES
Secure mode
YES
Slim Kensington lock
YES
SSD Security
NO

DISPLAY

Brightness
300nit
Color gamut
DCI-P3 99% (Typical, min 95%)
Contrast
N/A
Panel Multi
LGD
Panel Type
IPS Non Touch
Pol
N/A
Ratio
16:10
Refresh Rate
N/A
Resolution
WUXGA 1920 x 1200
Response Time
N/A
Size (cm)
30.2
Size (Inch)
14

PRE-INSTALLED SW

Alexa for PC (US, UK, Canada, Japan)
YES
Bamboo Paper
NO
Cyberlink Power Media, Photo Director LE*, Power Director LE*, Audio Director LE*, Color Director LE*
YES
Dolby Atmos
NO
DTS Headphone-X
NO
DTS X:Ultra
YES
Intel® Connectivity Performance Suite
NO
Intel® Unision
NO
LG Control Center
YES
LG Display Extension
NO
LG Easy Guide / Troubleshooting Guide
YES
LG Glance by Mirametrix®
NO
LG Lively Theme (Wall-paper/ icon)
NO
LG On Screen Display 3
YES
LG PC Manuals
NO
LG Pen Settings
NO
LG Power Manager
YES
LG Reader Mode
YES
LG Security Guard
NO
LG Smart Assistant 1.0
NO
LG Smart Assistant 2.0 ( Add feature : LG Cleaning Helper, LG Hotkey Extension)
NO
LG UltraGear Studio
NO
LG Update Center
YES
LG Update & Recovery
NO
McAfee Live Safe (30 Days Trial)
YES
Microsoft 365 (30 Days Trial)
YES
Microsoft Office 2016 (30 days Trial)
NO
Nebo for LG
NO
New Wall paper
NO
OLED Care SW
NO
PCmover Professional
NO
Sync on Mobile
NO
Tips (TBD)
NO
Virtoo by LG (Selected countries)
NO
Wacom notes
NO
