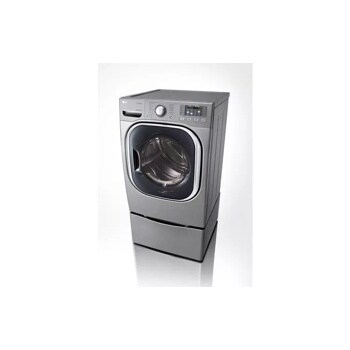

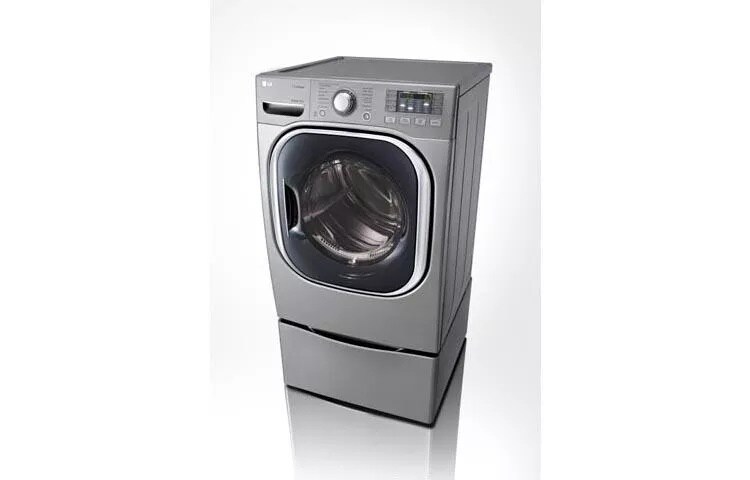

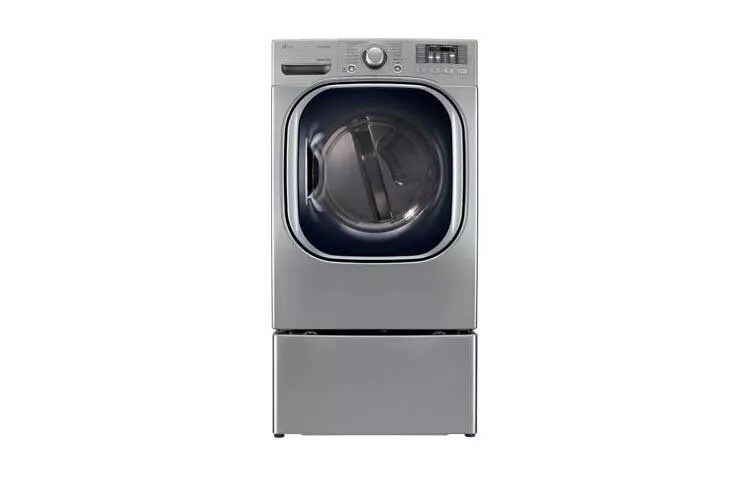

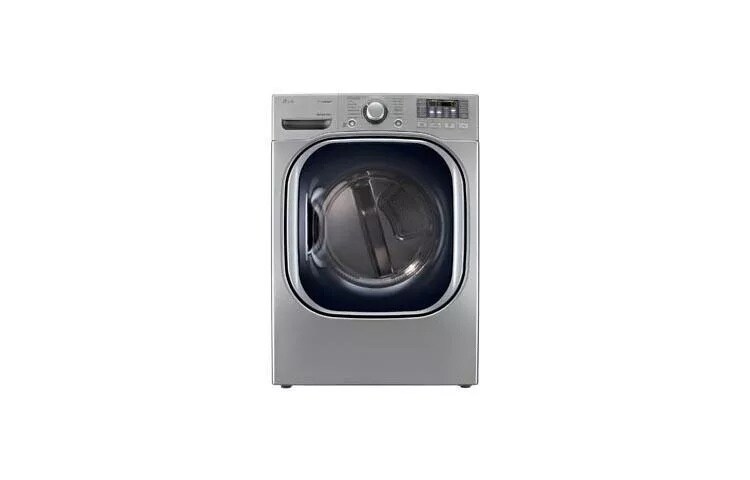

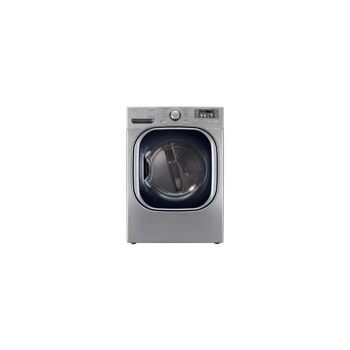

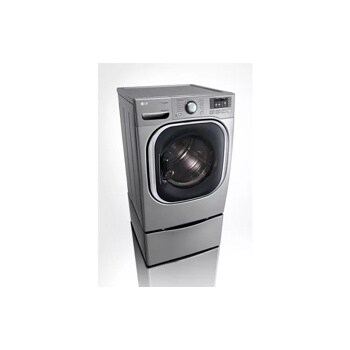

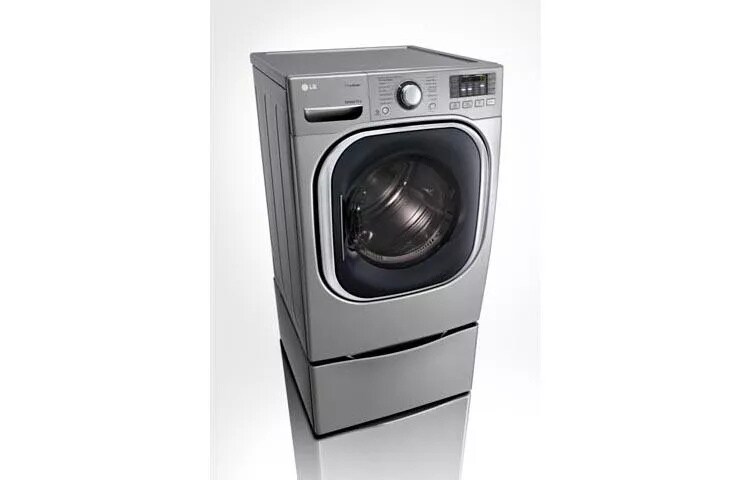

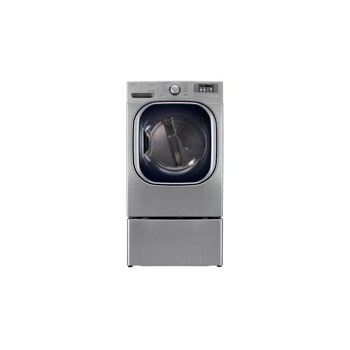

7.4 cu. ft. Ultra Large Capacity SteamDryer™ (Gas)

  • DLGX4071V

  • Graphite Steel

Key Features

  • 7.4 cu. ft. Ultra Large Capacity
  • TrueSteam™ Technology
  • SteamFresh™ Cycle
  • SteamSanitary™ Cycle
AVAILABLE COLORS:
Big time saver

Big time saver

Do laundry a little less often. With 7.4 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

Smooth operator

Smooth operator

A lot of those drying headaches can be a thing of the past. Our TrueSteam™ Technology generates real steam to reduce wrinkles and odors, and practically eliminates the need for ironing.

The quick fix

The quick fix

Late for the party and no time to iron your favorite outfit? The SteamFresh™ Cycle refreshes, and reduces wrinkles in up to five garments at a time with one 20-minute dryer cycle.

Wash the unwashable

You probably wish you could clean your throw pillows or children’s toys. With the SteamSanitary™ Cycle, you can. It uses steam to safely sanitize items marked as non-washable.

Really dry clothes

Really dry clothes

What’s worse than pulling clothes out of the dryer and finding they’re still damp? Our Sensor Dry system measures the moisture levels during the cycle and automatically adjusts the drying time, to help ensure you get dry laundry every time.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

SUMMARY
Dryer Type Gas
Stackable Yes
SteamDryer™ Yes
CAPACITY
Capacity 7.4 cu. ft.
APPEARANCE
Design Look Front Control
Intelligent Electronic Controls with Dual LED Display Yes
Dial-A-Cycle™ Yes
DRYING PROGRAMS
No. of Programs 14
Programs (Sensor Dry) Cotton/Normal, Perm. Press, Towels, Delicates, Heavy Duty, SteamFresh™, SteamSanitary™, Bulky/Large, Anti-Bacterial, Eco Dry, Sports Wear
Programs (Manual Dry) Speed Dry, Air Dry, Rack Dry
No. of Options 11
Options More Time, Less Time, Custom Program, Damp Dry Signal, Wrinkle Care, Child Lock, ReduceStatic™, EasyIron™, Rack Dry, End of Cycle Signal, Drum Light
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
FABRIC CARE FEATURES
SteamFresh™ Cycle Yes
SteamSanitary™ Cycle Yes
ReduceStatic™ Option Yes
EasyIron™ Option Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Anti-Bacterial Cycle Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
3 Minute Installation Check Yes
Drying Rack Yes
Drum Light Yes
Venting Option 3 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
MATERIALS AND FINISHES
NeveRust™ Stainless Steel Drum Yes
Top Plate Painted Steel
Cabinet Painted Steel
Control Panel Plastic
Transparent Glass Door Yes
Available Colors White (W), Graphite Steel (V)
Door Rim Large Square Chrome Rimmed Glass Door with Dark Blue Tinted Cover
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 120V, 15 Amps
Type Gas
OPTIONS
Pedestal WDP4V
Pedestal (WxHxD) 27" x 13 3/5" x 28 2/5"
Stacking Kit KSTK1
LP Conversion Kit 4948EL4002B
Side Venting Kit 3911EZ9131X
DIMENSIONS
Product (WxHxD) 27" x 38 11/16" x 29 3/4" (51" D with door open)
Carton (WxHxD) 29 1/2" x 42 1/4" x 31 1/4"
Weight (Product/Carton) 147.4 lbs./165 lbs.
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor
UPC 048231 012850

What People Are Saying

Rated 4.7 out of 5 by 19 reviewers.
Rated 5 out of 5 by This product is great! Cuts drying time - Love this dryer-- cuts drying time, plus has steam option August 9, 2015
Rated 5 out of 5 by Great for drying anything! Bought this as my first full size dryer. Put in a wool scarf to dry and comes out great without shrinking. Great for drying anything; down coat, 500count sheets, down jackets, sherpa fleece etc.. January 6, 2015
Rated 3 out of 5 by Not my favorite In contradiction to all others I do not like it. The reason is: Although pretty expensive is does not change direction while drying like the washing machine. My old dryer did that and I never had such a mess when drying larger items like sheets. Now a big bundle comes out. Secondly, I already had two repairs. One for the steamer pump and the other one is an "blockage" of the the vent which was not blocked. This happend all within 4 weeks of purchase. September 18, 2014
Rated 5 out of 5 by this drier can do anything very easy to use and very large .cut our laundry in half September 8, 2014
Rated 5 out of 5 by Great features - like the steam options. We needed to replace our washer and debated whether or not to also get a dryer...finally decided that the life of our old dryer wasn't going to be much longer than our now defunct washer... Anyway - really glad we did it. It works great. Love the steam option. Clothes come out looking crisp and fresh. Long live the new dryer (and washer). May 10, 2014
Rated 5 out of 5 by Great performance and its quiet.. Puchased this product very happy how easy to use and efficient this dryer is. Happy customer.... March 11, 2014
Rated 4 out of 5 by Good capacity.. I like the size of the dryer. good capacity. Sensor doesn't always dry items enough. I use the manual setting in addition. January 24, 2014
Rated 5 out of 5 by This dryer is a keeper! Our original plan was just to replace our washer but now we are so pleased we decided to purchase this dryer! Our sheets come out crisp and dry and practically wrinkle free. From someone who dislikes to iron, the rack that fits into the dryer for those delicate items is perfect. Our laundry room is located upstairs and I can easily run the dryer even when the kids are asleep. No longer need to close the door to the laundry room! February 15, 2014
  • 2015-08-27T13:35:37.597-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_19, tr_19
  • loc_en_US, sid_MD05020540, prod, sort_default
2 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

9 Questions & 4 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

1 answer

clothes are wrinkled and wet using steam fresh

I put 3 cotton shirts that were dry and wrinkled into the dryer using the steam fresh option. The shirts came out damp and wrinkled. You could not wear them. That is one of the top reasons I purchased this model. I was told you could get wrinkles out of your clothes using the steam.
I have also noticed when using cotton/normal some of the clothes in the same load are damp- all are cotton shirts.
Help
Category: I own this product
Interested in: Troubleshooting
2 years, 8 months ago
User Name:
sandu
Coon Rapids, MN, USA

Please wait while more information about sandu is loaded.
Additional information about sandu could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
LG’s Steam Technology allows you to inject fabrics with a swirling jet of hot steam to refresh clothes, reduce static, and make ironing easier. You might use the LESS TIME button to see if less time in the steam will reduce the dampness, however, the dampness is to provide ease in ironing the clothing. If you have additional questions, please contact our Customer Interactive Center at 800-243-0000.
2 years, 8 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

Do I need a separate side vent kit for this model?

The specs say model LG DLGX4071V comes with a 3 way vent option. We want to vent our dryer out the side; do we need a separate kit to do this?
Category: I own this product
1 year, 9 months ago
User Name:
Mjsunny

Please wait while more information about Mjsunny is loaded.
Additional information about Mjsunny could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
According to page 18 of the owner’s manual, your new dryer is shipped to vent to the rear. It can also be configured to vent to the bottom or side (right-side venting is not available on gas models). An adapter kit, part number 383EEL9001B, may be purchased from your LG retailer. This kit contains the necessary duct components to change the dryer vent location.
1 year, 9 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

conversion to propane

Model # DLGX4071V
I need the conversion kit for propane operation.
Cost?
problems converting?
Category: I own this product
1 year, 2 months ago
User Name:
JWDugger
Athens, TX 75752, USA

Please wait while more information about JWDugger is loaded.
Additional information about JWDugger could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/conte.... The part number for the LP Conversion Kit, for this dryer, is 383EEL3002D. This part should be installed by a qualified gas technician, and the change should be noted on the dryer.
1 year, 2 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Category: I own this product
6 months ago
User Name:
EDAS
oc

Please wait while more information about EDAS is loaded.
Additional information about EDAS could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We regret the trouble you have experienced with this Gas Dryer. The description would suggest that the heating/drying function of this dryer are not operational. As such, it will likely require a service technician. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair....
6 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Natural gas, in BTU/hr
Category: I do not own this product
Interested in: Specifications
2 years, 8 months ago
User Name:
WDO3

Please wait while more information about WDO3 is loaded.
Additional information about WDO3 could not be loaded.
-1point
0out of 1found this question helpful.
HelpfulNot Helpful
