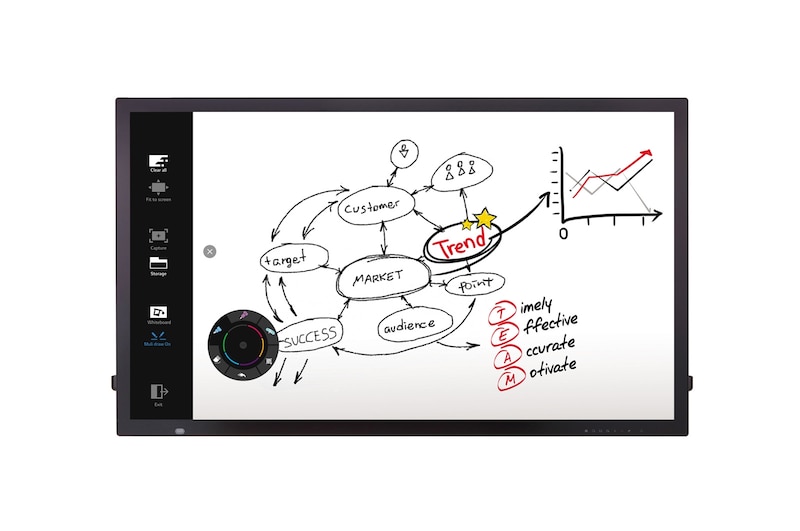

Screen Size
55
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
1920 x 1080 (FHD)
Pixels(H x V x 3)
6,220,800
Brightness
450cd/m2(Module), 370cd/m2(w/Protection Glass)
Contrast Ratio
1,100:1
Dynamic CR
4,000,000:1
Color Gamut
68%
Viewing Angle(H x V)
178 x 178
Color Depth
16.7 Million
Response Time
12ms(G to G BW)
Surface Treatment
Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.))
Life time(Typ.)
50,000 Hrs (Typ.)
Operation Hours
24Hr
Orientation
Portrait & Landscape
Input
HDMI(3), DP, DVI-D, RGB, Audio In, RS232C IN, RJ45, USB3.0, USB2.0(2), USB2.0,B Type(2), HDTV Formats(HDMI : 720p, 1080i, 1080p)
Output
RS232C OUT
Bezel Color
Black
Bezel Width
31.6 / 32.3mm / 32.3mm / 37.7mm(T/L/R/B)
Monitor Dimension(W x H x D)
1,276.4 x 751.9 x 63.9
Weight(Head)
30.1 kg
Carton Dimensions(W x H x D)
1,369 x 890 x 210
Packed Weight
36.1 kg
Handle
No

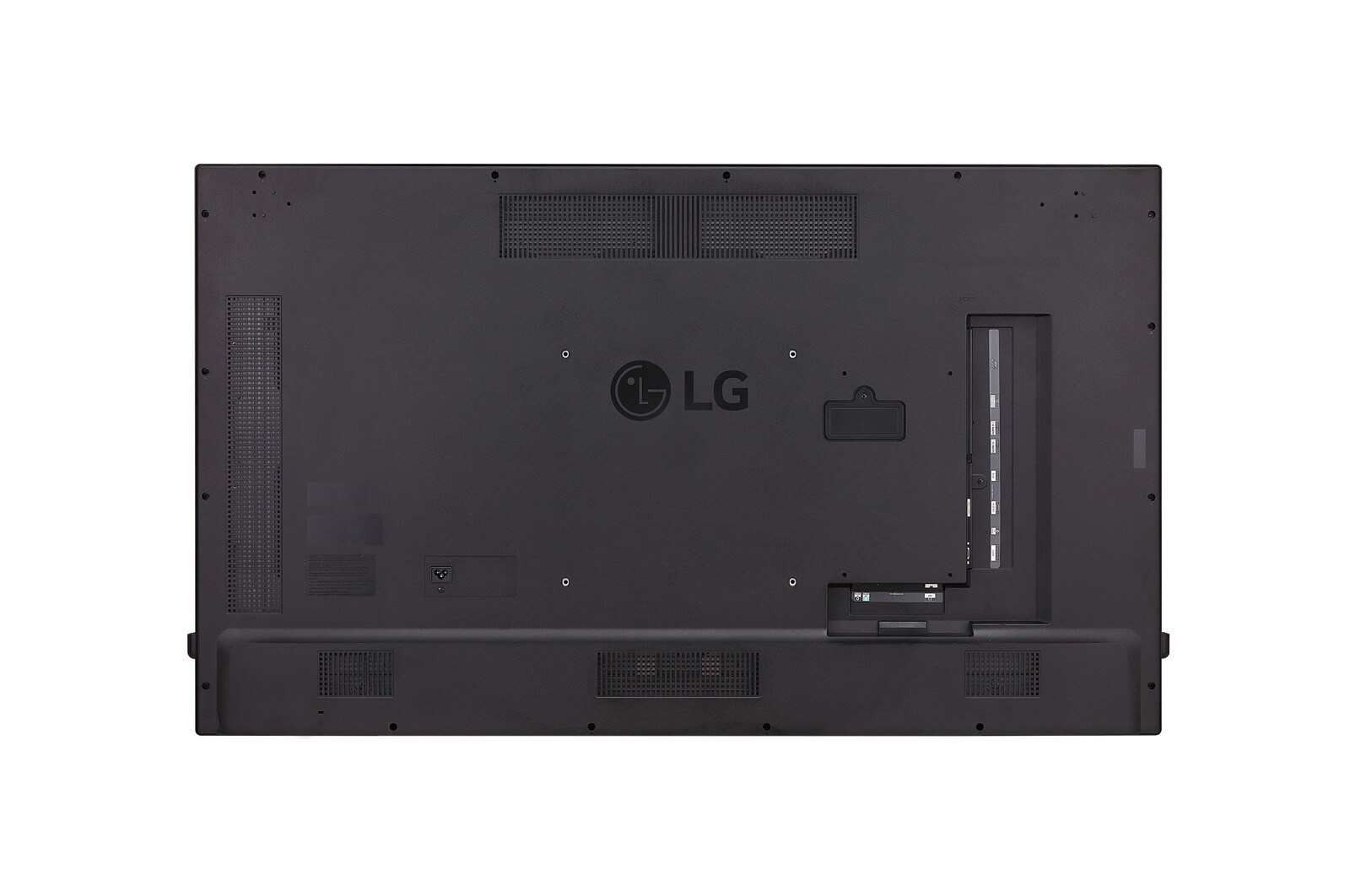

VESA™ Standard Mount Interface
300 x 300
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Cooling FAN
No
Tile Mode
No
Natural Mode @Tile Mode
No
Source Selection
HDMI1, HDMI2/HDMI3/DVI, OPS, DP, RGB, USB
Brightness/Contrast/Backlight
Yes
Position/Size
Yes
Auto Config/Phase (RGB)
Yes
Language (OSD)
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
Language (USB Playback)
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
Language (Manual)
English, French, Italian, German, Spanish, Portugues, Hungarian, Greek, Russian, Ukrainian, Polish, Arabic, Indonesian, Korean, Turkish, Czech, Slovak, Taiwanese, Danish, Norwegian, Swedish, Finnish, Uzbekistan,Arabic
Language (ESG)
English, French, Spanish, Portugues, Italian, Polish, German, Greek, Czech, Slovak, Ukrainian, Russian, Uzbekistan, Taiwanese, Japanese, Portugues(Brazil) ,Arabic
ISM Method
Normal, White Wash, Color Wash, User image, User Video, Orbiter, Inversion, Washing Bar
* Scheduling is supported additionally
Advanced
Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma
Time
Clock, On/Off Timer, Auto Off, Automatic Standby
Input Label
Yes(PC/DTV)
Power on Status
Standby, PWR, LST
Key operation
IR operation, Local key operation, Touch Operation
DPM Select
Yes (off/1/3/5/10min)
Energy Saving
Yes(Auto, Minimum, Medium, Maxium, Screen off)
Power Indicatior On/Off
No
File Play with USB
Yes
PIP/PBP
Yes(2)
Internal Memory
64GB(System 8GB + Available 56GB)
Wi-Fi
802.11n combo built-in
USB Cloning
Logo image download, Sent to USB, Receive from USB
Brightness control
Yes (Off, Auto, Minimum, Medium, Maxium)
Contents Scheduling
USB, Internal memory
Calibration mode
Yes
Off/On Scheduler
Yes
Sync mode
Time sync, Content sync, Network sync
PM mode
Power Off, Sustain Aspect Ratio, Screen Off, Screen Off Always, Screen off & Backlight
Holiday schedule
Yes
Firamware update (LAN)
Yes
Local time auto setting
Yes
Reader Mode - Low Blue Right
Yes
Crestron SDK.
Yes
HDMI-CEC 2.0 (Partially Supported)
Yes
IDB App.
Yes (IDB App v1.0)
Power on Default
Yes
Wake on LAN
Yes
Digital Audio input
Yes
Power on Delay
0 ~ 250
Content Rotation
Yes
OSD Portrait Mode
Yes
Passward change
Yes
SetID Setup
Manual, Auto
Lock Mode
Home Dashboard, USB, OSD, IR Operation, Local Key Operation, Wi-Fi, Scheen Share
Fail over
USB, RGB, DP, OPS, DVI, HDMI, Internal Memory
SuperSign Server Setup
SIgnage name, Server IP setting, Server IP Status
No Signal image (Up to 5MB)
Yes
Media share
SoftAP, Screen Share
Beacon
On/Off
OPS PC power Control
Yes
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Power Switch
No
Typ.
100W↓
Smart Enegy Saving
70W↓
DPM
0.5W↓
Power off
0.5W↓
Balance
Yes
Audio Power
20W(10W x 2)
Equalizer
Yes
Sound mode
Standard, Cinema, Clear Voice III, Sports, Music, Game
Safety
UL / cUL / CB / TUV / KC
EMC
FCC Class "A" / CE / KCC
ErP / Energy Star
No / No
OPS type compatible
Yes
External Media player Attatchable
No
SuperSign-Premium/W/lite
Yes (SuperSign Premium1.5)
SuperSign-Link/C
Yes (SuperSign Link 1.5)
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, HDMI(3M), Regulation Book, Phone to RS232C Gender, Touch Pen(2ea), Touch Pen Tip(1ea)
Optional
OPS Kit(KT-OPSA), LSW350A/B(Wall Mount)
Touch type
P-Cap(Ag Metal Mesh)
Available object size for touch
Ø6 mm ↑
Reporting Rate
10 ms ↓
Accuracy
2mm
Interface
USB 2.0
Protection Glass Thickness
3.2T (Anti-Glare)
Surface Treatment
AG Coating (6H)
Protection Glass Transmission
83% (Typ)
Operating System Support
Win 7 Pro, Win 8.x, Win 10
Multi touch point (webOS)
Max 10 Points
Multi touch point (Windows OS)
Max 40 Points (Need to support by windows applications.)
