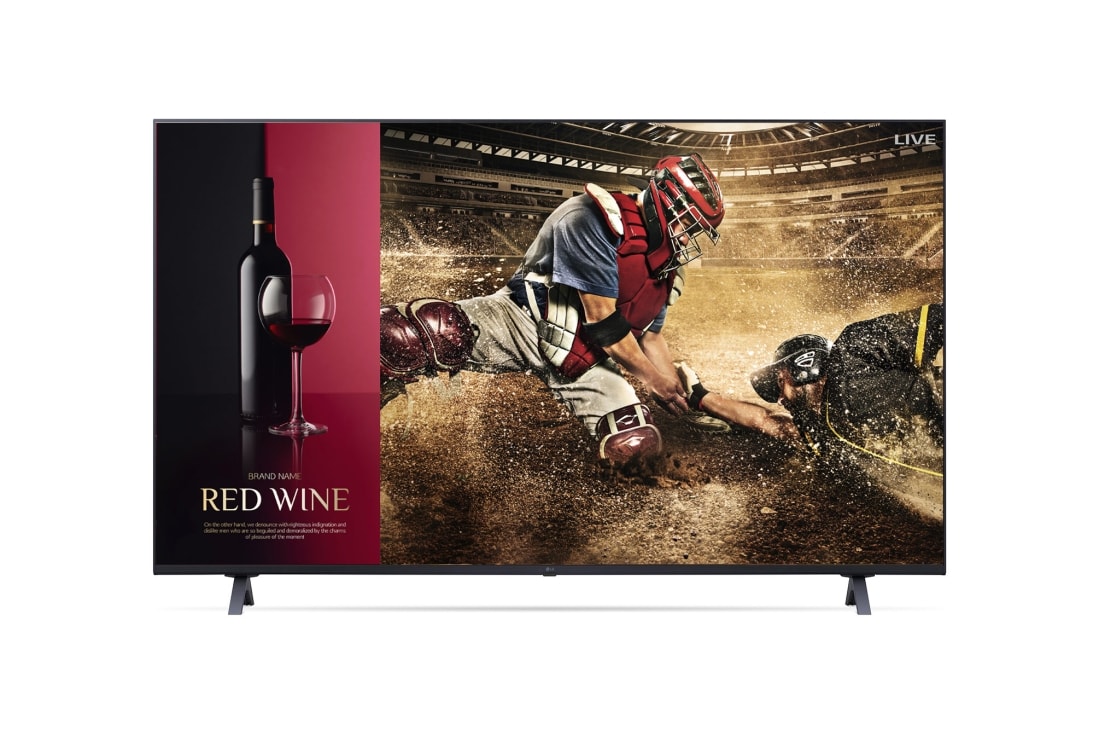

LG UHD Signage for Live TV & Promotion

55UR340C9UD

Key Features

4K Ultra HD Resolution
Slim Depth
Business Oriented
Easy Management

All Spec

ACCESSORIES

Power Cable: YES (1.8m, Straight Type)

Remote type: L-Con

AUDIO (SOUND)

Speaker (Audio Output): 20W

BROADCASTING SYSTEM

Analog (NTSC / SECAM / PAL): NTSC

Digital: ATSC, Clear QAM

CONNECTIVITIES

Digital Audio Out (Optical): YES

HDMI In: YES (3ea)

LG SVC only (Phone jack type): YES

RF In: YES (1ea)

RJ45 (Usage Purpose): YES (LAN)

RS-232C (D-Sub 9pin / Phone jack): YES (Phone jack)

USB (Ver.): YES (1ea / 2.0)

DESIGN

Front Color: Ashed Blue

Stand Type: 2 Pole

Tool Name: UP8000

DIMENSIONS/WEIGHT

Bezel Width (L/R/U/B, Off Bezel): 6.9/6.9/6.9/18.4mm

Bezel Width (L/R/U/B, On Bezel): 12.8/12.8/12.8/19.9mm

Dimension in Shipping (W x H x D): 1360 x 810 x 162mm

Dimension without Stand (W x H x D): 1235 x 715 x 57.5mm

Dimension with Stand (W x H x D): 1235 x 772 x 232mm

Weight in Shipping: 19.0kg

Weight without Stand: 14.0kg

Weight with Stand: 14.2kg

DISPLAY

Brightness (Typ.): 400 nit

Resolution: 4K Ultra HD (3,840 x 2,160)

Size (Inch): 55

HOSPITALITY FEATURE

Diagnostics: YES (Self Diagnostics(USB))

Energy Saving mode: YES

Hotel Mode / PDM / Installer Menu: YES

HTNG-CEC (Version): YES

Insert Image: YES

Lock mode: YES (Limited)

Multi IR Code: YES

RJP (Remote Jack Pack) Compatibility: YES

Simplink(HDMI-CEC) (Version): YES (1.4)

SNMP: YES

USB Auto playback / playback+: YES (USB Auto playback)

USB Cloning: YES

Welcome Screen (Splash Image): YES

Welcome Video: YES

WOL: YES

INFO

Category: Commercial lite

MECHANICAL

Kensington Lock: YES

VESA Compatible: 300 x 300mm

POWER SPEC.

Power Consumption(Max): 165W

Power Consumption(Typ): 135.3W

Power Supply (Voltage, Hz): AC 120V, 50/60Hz

Standby Power Consumption: Under 0.5W

SMART FUNCTION

webOS version: webOS 6.0

HDMI-ARC: YES (HDMI2)

STANDARD

EMC: FCC

Others: EPEAT, ISTA6

Safety: UL

SUPERSIGN SW COMPATIBILITY

Control / Control Plus: YES / -

VERTICAL FUNCTION (CORPORATE/RETAIL)

Crestron Certi. Compatibility: YES

DPM (Digital Power Management): YES

NTP sync timer: YES

Time scheduler: YES

VIDEO

HDR_HDR 10 Pro: YES

HDR_HLG (Hybrid Log Gamma): YES
