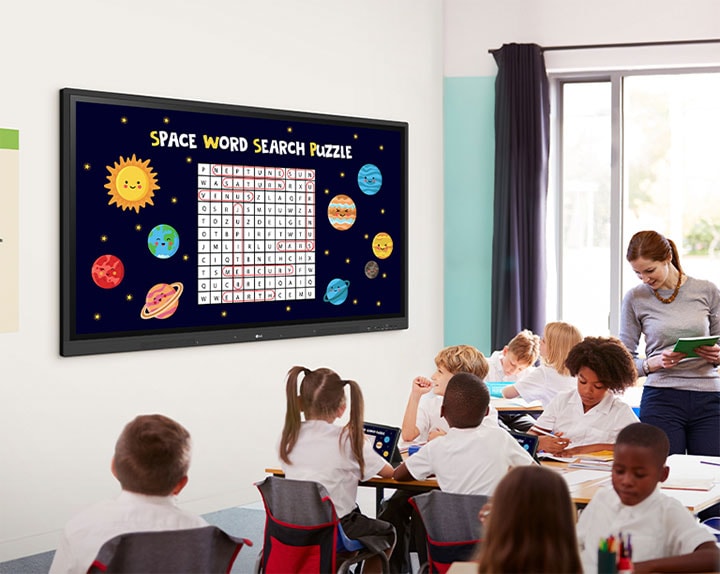

Class is being conducted in the classroom, and the class material screen which is displayed on the classroom wall's LG CreateBoard is being shared on the students' tablets.
*All images in this page are for illustrative purposes only.
LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.
Students are solving problems using various ruler models on the LG CreateBoard menu.
LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.
"In the classroom, several students are simultaneously writing on the LG CreateBoard screen. "
*A max of 32 points are recognized in the Android environment, and a max of 40 points are detected in the Windows environment.
*Up to 10 points can be recognized in the writing app.
LG CreateBoard includes simple import and export functionality. Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).

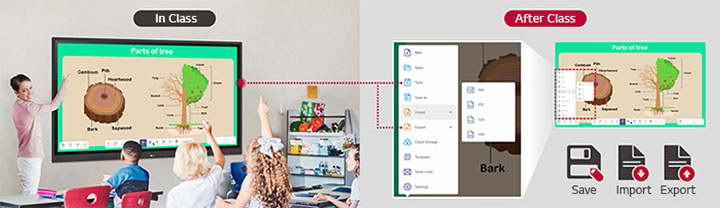

Materials used to conduct class can be shared through the LG CreateBoard's import and export function after class.
LG’s proprietary whiteboarding software

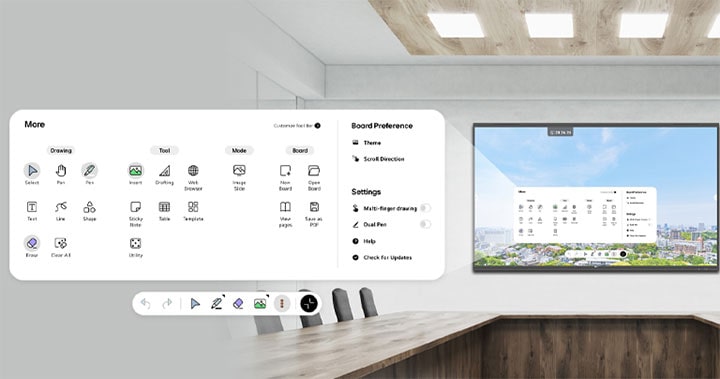

Tools for Fluid Collaboration
A variety of tools such as a calculator, clock, and sticky note are available to facilitate smooth discussions and ensure seamless idea sharing and communication. Also, users can personalize the menu bar with their most frequently used tools, thereby improving their work efficiency.
LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.
The LG CreateBoard can easily share screens with multiple devices in real time via app and website.
*LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
*For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).
LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.

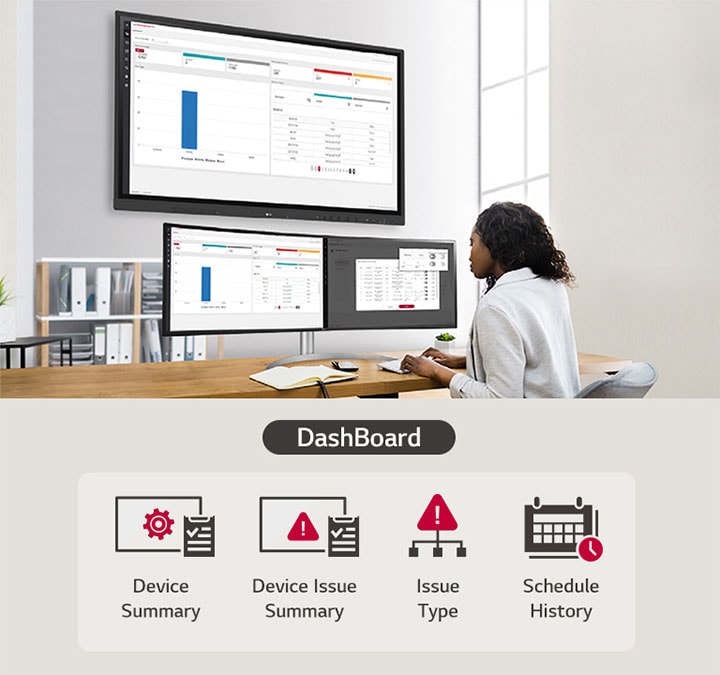

An IT manager is managing/controlling the status of the LG CreateBoard through LG ConnectedCare DMS.
*'LG ConnectedCare DMS' needs to be purchased separately.
*The availability of the 'LG ConnectedCare DMS' service differs by region, so please contact the LG sales representative in your region for more details.
*LG ConnectedCare DMS supports the TR3DJ/TR3PJ/TR3DK Series as of now(plus more to come) under a cloud environment.
Frequently used controls such as the power on/off, scheduling, brightness, and screen lock functions can be applied using a remote control.

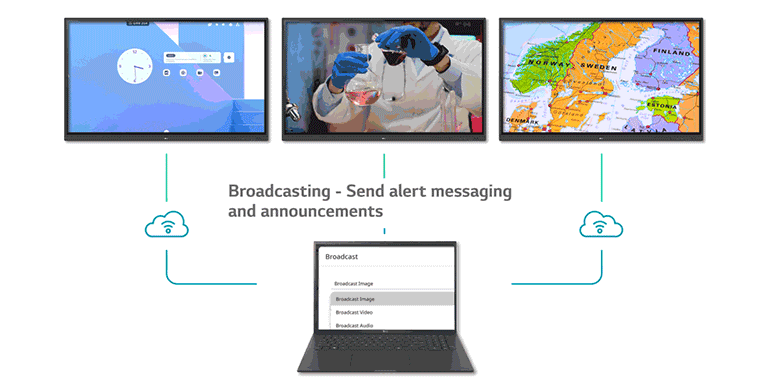

Messages and a range of other content can be sent from the main system to individual classroom devices connected to LG ConnectedCare DMS. In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which help teachers and students promptly take safety action.
Threshold Settings
Users can set thresholds in eight categories including display temperature, memory usage, or signal, and can receive warning or error notifications based on their threshold settings.
An engineer can check the status in real-time and diagnose problems remotely. Also, the current status of issues can be categorized, allowing for easy viewing and quick responses.
Remote issue management can be carried out by the LG ConnectedCare DMS solution. This makes management safer and more efficient, facilitating the stable operation of the classroom.
LG CreateBoard has received Google certification, enabling users to seamlessly integrate with the Google ecosystem by connecting their Google accounts.
* Exceptions apply in countries without Google services.

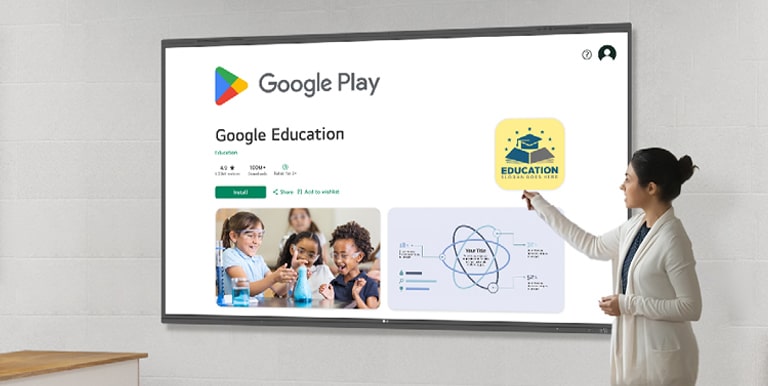

Users have access to the Google Play Store, where they can download a wide range of applications, including educationrelated games, tools, and more for an expanded experience.
* Exceptions apply in countries without Google services.
LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.
The LG CreateBoard can wirelessly connect to devices such as keyboards, mice, and speakers via Bluetooth.
USB-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.
The LG CreateBoard easily transmits data via USB-C connectivity and can charge up to 65W.
*USB Type-C cables are sold separately.

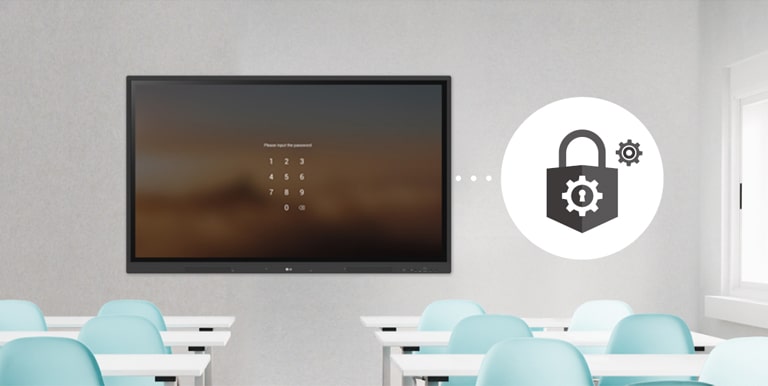

Teachers can lock the screen using the Screen Lock function, and unlock it by entering a password. Users can set the Screen Lock in the Settings menu to protect the device from unidentified users.

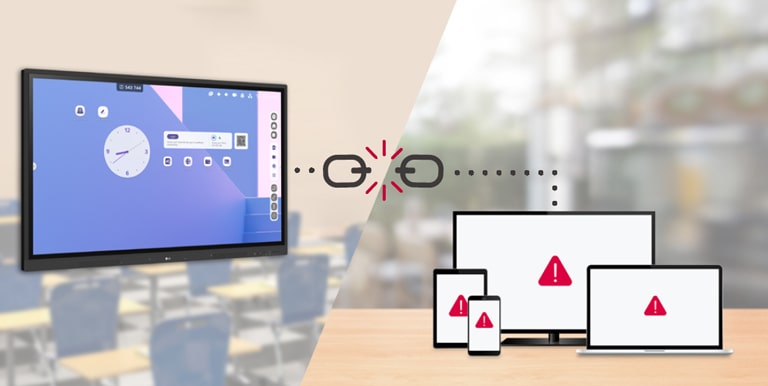

LG CreateBoard supports Secure Mode that disables the LG CreateBoard Share function to prevent unauthorized content from being shown on various devices.
USB Lock Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential when being used in spaces where security is critical.

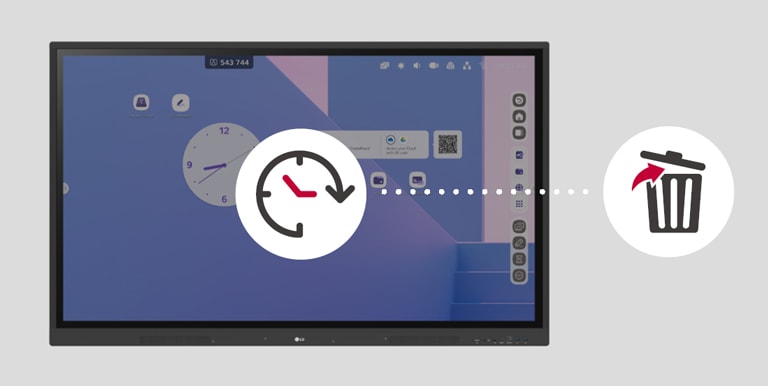

Users can set LG CreateBoard to delete files regularly for enhanced security.

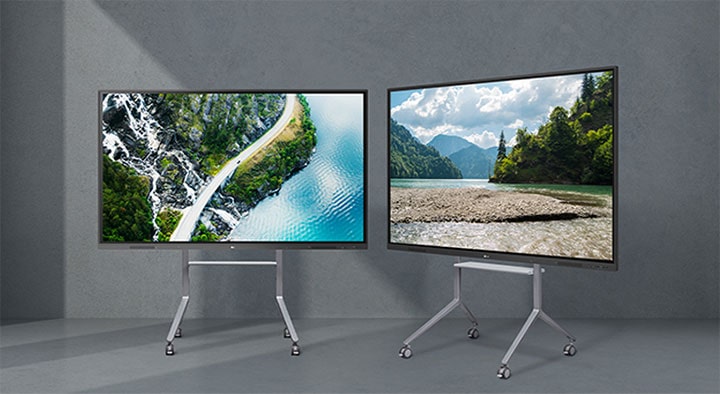

The LG Createboard can be used anywhere indoors where it can be easily wheeled around. From classrooms to in-between spaces, it plays various roles according to each need such as lectures, group discussions, school announcements, and more.
Easy Transportation with LG Universal Stand
*The stand is sold separately. (ST-860F)
**The product needs to be plugged into the appropriate power source to operate.
***The image is created based on the 86” model.
Basic
Power Cord 3 M*1, USB Cable(Type A-Type B) 5 M*1, USB Type-C Cable(C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Optional
Wall Mount(WM-L000S), Floor Stand(ST-000F)
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
Yes / Yes
Safety
CB / NRTL
Audio In
Yes (1)
Audio Out
Yes(1), Optical O(1, SPDIF)
HDMI In
Yes (3) HDCP2.2
HDMI Out
Yes(1)
RGB In
Yes (1, VGA)
RJ45(LAN) In
Yes (1)
RJ45(LAN) Out
Yes(1)
RS232C In
Yes (1)
Touch USB
Yes(2)
USB In
USB3.0 Type A(4), USB2.0 Type A(1), USB Type-C(1, USB-PD, DP-Alt)
Bluetooth
Bluetooth 5.0
CPU
Quad core A55
GPU
Mali G52MP2
LAN
Gigabit LAN
Memory(RAM)
8GB
OS ver. (Android)
Android 11
Storage
64GB
Wi-Fi
802.11a/b/g/n/ac/ax (WiFi 6)
Accuracy (Typ.)
±1.5mm
Available Object Size for Touch
Ø2 mm ↑
Interface
USB2.0
Multi Touch Point
Max 40 points (Windows),
Max 32 points (Android)
Operating System Support
Windows 7/8/10/Linux/Mac/Android
(Linux/Mac Support one point touch)
Protection Glass Thickness
4T(Anti-Glare)
Protection Glass Transmission
88%
Response Time ('Paint' app on Windows 10 PC)
≤5ms
Operation Humidity
10% to 90%
Operation Temperature
0 °C to 40 °C
Auto Brightness Sensor
Yes
Internal Memory (eMMC)
64GB
Power Indicator
Yes
Wi-Fi/BT (Built-in)
Yes (Slot type)
Booting Logo Image
Yes
OS Ver. (webOS)
Android 13
PBP
Yes (1) external source
PIP
Yes (1) external source
Screen Share
Yes (CreateBoard Share)
Smart Energy Saving
Yes (Energy Saving)
Wake on LAN
Yes
OSD
English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Qajaq, Catalan, Basque
Bezel Color
Black
Bezel Width
T/R/L/B : 30/27/27/45mm
Carton Dimensions (W x H x D)
2406 × 1474 × 280mm
Handle
Yes
Monitor Dimensions (W x H x D)
2244 × 1323 × 91mm
Packed Weight
133.2Kg
VESA Standard Mount Interface
800×600mm
Weight (Head)
103.6Kg
OPS Power Built-in
Yes
OPS Type compatible
Yes(Slot)
Aspect Ratio
16:9
Back Light Type
Direct
Brightness
440nit(w/o Glass, max),
390nit (w/o Glass, typ)
Color Depth (Number of Colors)
1.07B(10bit)
Color Gamut
NTSC 72%
Contrast Ratio
1200:1
Dynamic CR
3000:1
Life time
30,000 Hrs(L50, Min.), 50,000 Hrs (L30)
Native Resolution
3840x2160 (UHD)
Operation Hours (Hours/Day)
16/7
Panel Technology
IPS
Portait / Landscape
No / Yes
Refresh Rate
60Hz
Response Time
8ms
Screen Size (Inch)
98"
Surface Treatment (Haze)
25%
Viewing Angle (H x V)
178°(H/V)
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
BTU (British Thermal Unit)
1348 BTU/Hr(Typ.), 2081 BTU/Hr(Max)
DPM
≤0.5W
Max.
610W
Power off
≤0.5W
Typ.
395W
Connected Care
Yes / Yes(DMS)
Speaker (Built-in)
Yes (15W x 2)
Conformal Coating (Power Board)
Yes(Partial)
