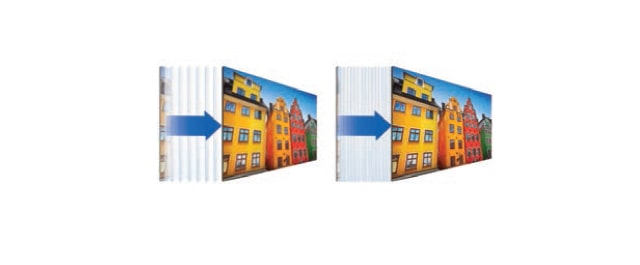

HIGH EFFICIENCY VIDEO CODING

Supports HEVC-based content which has the double data compression ratio than the H.264 so network traffic can be reduced by half.

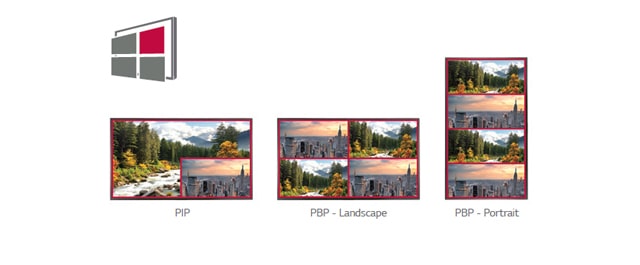

MULTIPLE SCREEN WITH PBP OR PIP

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) feature gives a chance to compose up to 4 divided split screen on landscape or portrait display format.

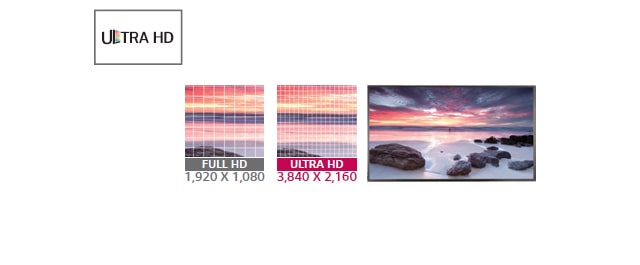

ULTRA HD RESOLUTION

Ultra HD Large screen delivers immersive viewing experience by 4 times higher definition picture quality than FHD.

ULTRA HD RESOLUTION (3840X2160)
HIGH EFFICIENCY VIDEO CODING
MULTIPLE SCREEN WITH PBP OR PIP

All Spec

PANEL

Screen Size
75
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
3,840 x 2,160 (UHD)
Brightness
500cd/m2
Contrast Ratio
1,200:1
Dynamic CR
4,000,000:1 (TBD)
Viewing Angle(H x V)
178 x 178
Response Time
6ms (G to G)
Surface Treatment
Low Haze 3%
Life time (Min.)
50,000 Hours
Guaranteed Operation Hours
24 Hours
Orientation
Portrait & Landscape

CONNECTIVITY

Input
HDMI, DP, DVI-D, Audio, USB 3.0, SD Card
External Control
RS232C In, RJ45, IR Receiver, Pixel Sensor
Output
DP, Audio

ENVIRONMENT CONDITIONS

Operation Temperature Range
0 °C to 40 °C
Operation Humidity Range
10 % to 80 %

POWER

Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption Typ.
240W
Power Consumption Smart Energy Saving
170W

PHYSICAL SPECIFICATION

Bezel Color
Black
Bezel Width
14.9mm
Monitor Dimension(W x H x D)
1,682.4 x 960.3 x 57.9mm (without Logo/Handle)
Weight(Head)
41.5kg
Carton Dimensions(W x H x D)
1,816 x 1,123 x 228mm
Packed Weight
49.5kg
VESA™ Standard Mount Interface
600 x 400 mm

MEDIA PLAYER COMPATIBILITY

OPS type compatible
Yes
External Media player Attatchable
Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

SuperSign-w lite
Yes
SuperSign-c
Yes

ACCESSORY

Basic
Remote Controller (include 2ea batteries), Power Cord, QSG, DP 1.8M, Regulation Book, Phone to RS232C Gender, Memory Cover
Optional
Pixel sensor(KT-SP0), Media player, OPS Kit(KT-OPSA), HDBaseT(EB-B100)

SPECIAL FEATURES

Special Features
Temperature Sensor, Auto Brightness Sensor, Tile Mode (up to 15x15), Natural Mode@Tile Mode, ISM Method, Internal Memory, Wi-Fi built-in, USB Cloning, Contents Scheduling, Sync mode, PM mode, Fail Over, Wake on LAN, BEACON (On/Off), Embedded Template
