49'' 500 nits FHD Slim Bezel Video Wall

49VL5PJ-A

Key Features

Brightness(Typ.) : 500 nit
Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
Depth : 89.7 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

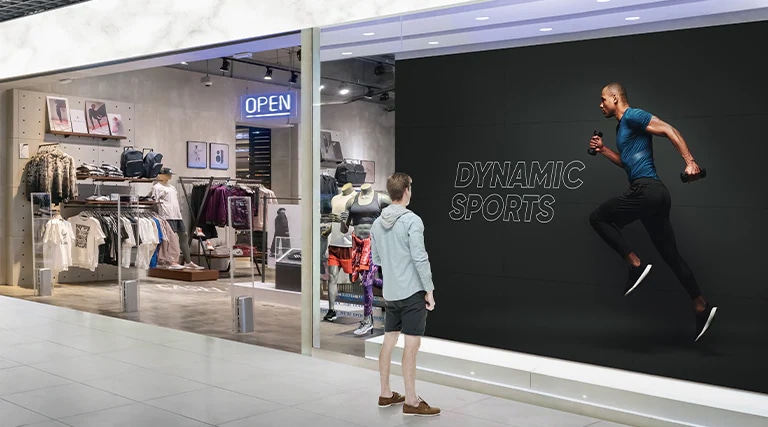

A man is looking at a big screen attached to the window of a sports store.

* All images in this web page are for illustrative purposes only.

Daisy Chain Capability

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

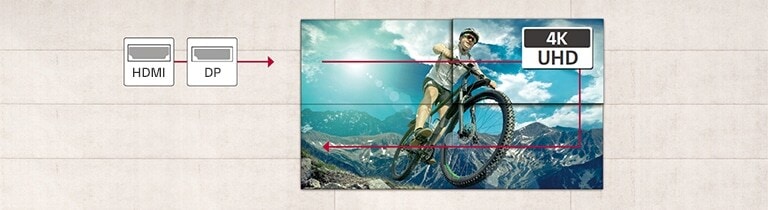

Multiple displays are being managed simultaneously through the daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

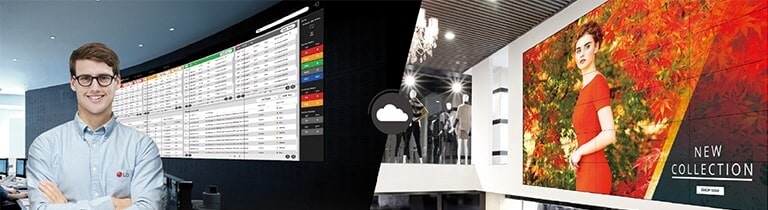

The LG employee is remotely monitoring the VL5PJ installed in a different place by using cloud-based LG monitoring solution.

* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

VL5PJ can adjust the color temperature from 3,200K to 13,000K in units of 100K.

Easy colour Adjustment

Name: 49'' 500 nits FHD Slim Bezel Video Wall
Brand: LG

Depending on the content, the colour temperature of the display can be easily adjusted in increments of 100K using a remote control.

VL5PJ consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.

Image Gap Reduction

The VL5PJ includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

* The "LG Conventional" refers to displays which do not include an image improvement algorithm.
** The image shown above are for illustration purposes only.

The included SoC and webOS smart signage platform demonstrate its ability to execute several tasks at once.

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VL5PJ can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

* SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)

Brightness(Typ.) : 500 nit
Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
Depth : 89.7 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

All Spec

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
Optional

NO

CERTIFICATION

EMC

FCC Class "A" / CE / KC
ePEAT(US only)

NO
ERP / Energy Star

YES / Energy Star 8.0(US Only)
Safety

CB / NRTL

CONNECTIVITY

Audio In

YES
Audio Out

YES
Daisy Chain

NO
DP In

YES (HDCP 2.2)
DP Out

YES
DVI-D In

YES (HDCP 1.4)
External Speaker Out

NO
HDMI In

YES (2ea)
HDMI In (HDCP Ver.)

2.2
HDMI Out

NO
IR In

YES
IR Out

NO
RGB In

NO
RJ45(LAN) In

YES (1ea)
RJ45(LAN) Out

NO
RS232C In

YES
RS232C Out

YES
Touch USB

NO
USB In

USB2.0 Type A (1ea)

ENVIRONMENT CONDITIONS

Operation Humidity

10 % to 80 %
Operation Temperature

0 °C to 40 °C

FEATURE - HARDWARE

Acceleration(Gyro) Sensor

YES
Auto Brightness Sensor

NO
BLU Sensor

YES
Current Sensor

NO
FAN (Built-in)

NO
Humidity Sensor

NO
Internal Memory (eMMC)

8GB
Local Key Operation

YES
Pixel Sensor

NO
Power Indicator

NO
Proximity Sensor

NO
Temperature Sensor

YES
Wi-Fi/BT (Built-in)

NO

FEATURE - SOFTWARE

Auto Set ID

YES
Backlight Sync

NO
Beacon

NO
Booting Logo Image

NO
Brightness Compensation

NO
Cisco Certification

NO
Control Manager

YES
Crestron Connected

YES
External Input Rotation

YES
Fail over

YES
Gapless Playback

YES
Group Manager

YES
HDMI-CEC

YES
ISM Method

YES
Local Contents Scheduling

YES
Local Network Sync

YES
Network Ready

YES
No Signal Image

YES
OS Ver. (webOS)

webOS 4.1
PBP

NO
PIP

NO
Play via URL

YES
PM mode

YES
Pro:Idiom

YES
RS232C Sync

YES
Scan Inversion

YES
Screen Rotation

YES
Screen Share

NO
Setting Data Cloning

YES
SI Server Setting

YES
Smart Energy Saving

YES
SNMP

YES
Status Mailing

YES
Tile Mode Setting

YES
USB Plug & Play

YES
Video Tag

YES (4 Video Tag)
Wake on LAN

YES
webRTC

YES
W/B Setting by Grey scale

YES

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
