55'' 500 nits FHD Slim Bezel Video Wall

55VM5J-H

Key Features

Brightness(Typ.) : 500 nit
Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
Depth : 86.9 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

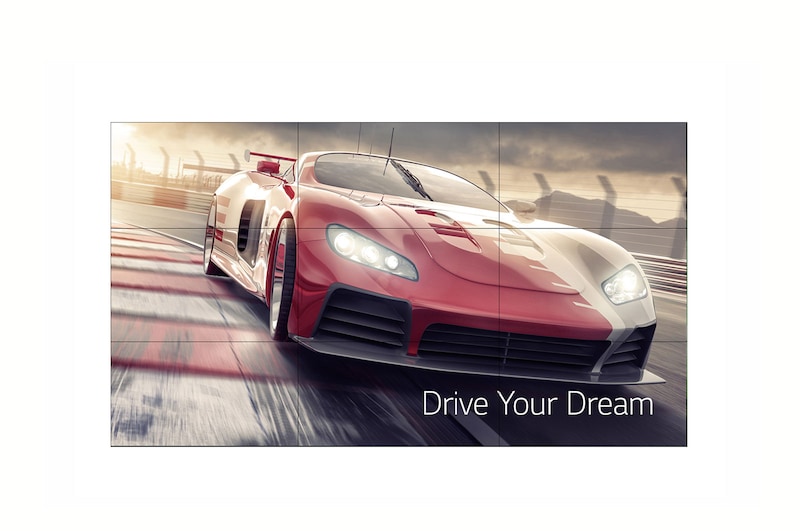

A big video wall is installed on the wall of the car showroom and the car advertisement is on the screen.

* All images in this web page are for illustrative purposes only.

Seamless Large Screens with Extreme-Narrow Bezel

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

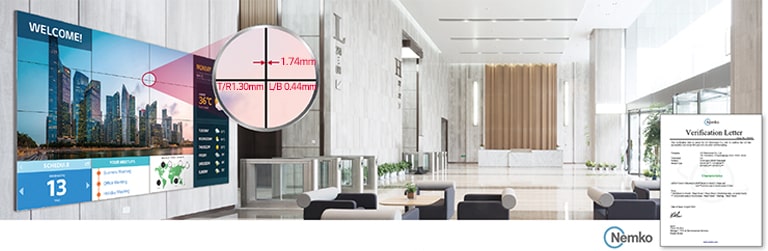

A video wall is installed in the lobby, and it provides immersive images with ultra slim bezel.

* The 1.74mm BtoB (Panel Bezel to Panel Bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.

Image Gap Reduction

The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

VM5J-H consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.

* The "LG Conventional" refers to displays which do not include an image improvement algorithm.
** The image shown above are for illustration purposes only.

A woman looks up the screen installed upstairs, and the color is vividly displayed without any distortion.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40˚) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

Wider Viewing Angle

LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

Easy colour Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

The included SoC and webOS smart signage platform demonstrate its ability to execute several tasks at once.

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

* SDK can be downloaded with the link below.
(https://webossignage.developer.lge.com)

One side of the video wall is live streaming a soccer game, while the other side of the screen is utilizing CSS effects to add more content.

Flexible Content Creation

Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.

* Supported protocols : RTSP, RTP, HLS, UDP Multicast.

Several tasks could be accomplished simultaneously with the intuitive GUI.

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

The menu screen consists of both Landscape and Portrait options.

Dedicated GUI for Portrait Orientation

The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VM5J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

Conformal Coating

Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.

* Actual images (Signage display) available may differ from the example images shown.

EMC Class B Certified

The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

The VM5J-H, certified with EMC class B, is installed on the control room wall.

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

The LG employee is remotely monitoring the VH7J-H installed in a different place by using cloud-based LG monitoring solution.

* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.

Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation.

The VH7J-H, with IP5x Dust-Proof Certification, protects the product from dust.

Brightness(Typ.) : 500 nit
Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
Depth : 86.9 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

All Spec

ACCESSORY

Basic
Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
OPS Kit(KT-OPSF)

CERTIFICATION

EMC
FCC Class "B" / CE / KC
ePEAT(US only)
NO
ERP / Energy Star
YES / Energy Star 8.0
Safety
CB / NRTL

CONNECTIVITY

Audio In
YES
Audio Out
YES
Daisy Chain
Input : HDMI, DP, DVI-D / Output : DP
DP In
YES (HDCP 2.2)
DP Out
YES
DVI-D In
YES (HDCP 1.4)
External Speaker Out
NO
HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2
HDMI Out
NO
IR In
YES
IR Out
NO
RGB In
NO
RJ45(LAN) In
YES (1ea)
RJ45(LAN) Out
YES
RS232C In
YES
RS232C Out
YES
Touch USB
NO
USB In
USB2.0 Type A (1ea)

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C

FEATURE - HARDWARE

Acceleration(Gyro) Sensor
YES
Auto Brightness Sensor
NO
BLU Sensor
YES
Current Sensor
NO
FAN (Built-in)
NO
Humidity Sensor
NO
Internal Memory (eMMC)
8GB
Local Key Operation
YES
Pixel Sensor
NO
Power Indicator
NO
Proximity Sensor
NO
Temperature Sensor
YES
Wi-Fi/BT (Built-in)
NO

FEATURE - SOFTWARE

Auto Set ID
YES
Backlight Sync
NO
Beacon
NO
Booting Logo Image
NO
Brightness Compensation
NO
Cisco Certification
NO
Control Manager
YES
Crestron Connected
YES
External Input Rotation
YES
Fail over
YES
Gapless Playback
YES
Group Manager
YES
HDMI-CEC
YES
ISM Method
YES
Local Contents Scheduling
YES
Local Network Sync
YES
Network Ready
YES
No Signal Image
YES
OS Ver. (webOS)
webOS 4.1
PBP
NO
PIP
NO
Play via URL
YES
PM mode
YES
Pro:Idiom
YES
RS232C Sync
YES
Scan Inversion
YES
Screen Rotation
YES
Screen Share
NO
Setting Data Cloning
YES
SI Server Setting
YES
Smart Energy Saving
YES
SNMP
YES
Status Mailing
YES
Tile Mode Setting
YES
USB Plug & Play
YES
Video Tag
YES (4 Video Tag)
Wake on LAN
YES
webRTC
YES
W/B Setting by Grey scale
YES

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R) A2A : 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)
Carton Dimensions (W x H x D)
1393 x 955 x 303mm
Handle
YES
Monitor Dimensions (W x H x D)
1212.2 x 683.0 x 86.9mm
Monitor Dimension with Stand (W x H x D)
N/A
Packed Weight
28.0Kg
VESA Standard Mount Interface
600 x 400mm
Weight (Head)
18.8Kg
Weight (Head+Stand)
N/A
