*Select 'Faster Mode' to perform '1ms Response Time'. (Game Mode → Response Time → Faster Mode)
**To enable the overclock 160Hz, you need a graphic card supporting DSC and DisplayPort 1.4.
UltraGear main character is holding a long spear. Express dynamic motion with vivi color.
*Select 'Faster Mode' to perform '1ms Response Time'. (Game Mode → Response Time → Faster Mode)
*In order to display 4K 160Hz, a graphic card supporting DSC must be used. Please check the graphic card manufacturer's website for DSC support.
*This Product do support DSC only on DisplayPort 1.4.
*The product supports up to 144Hz (O/C 160Hz). But it supports 4K and Variable Refresh Rate (VRR) 120Hz when using an HDMI 2.1 cable.
*In order to display 4K 160Hz, a graphic card supporting DSC must be used. Please check the graphic card manufacturer's website for DSC support. *This Product do support DSC only on DisplayPort 1.4.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.

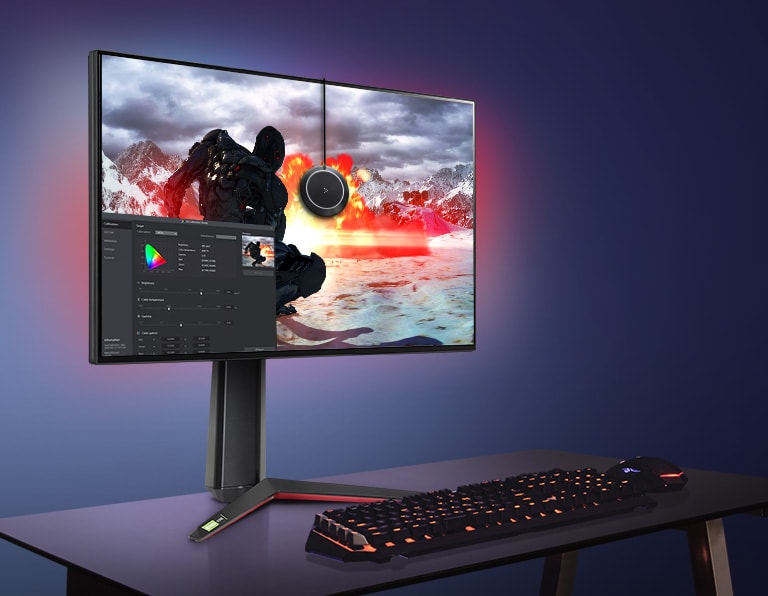

**The software and a Calibration Sensor are NOT included in the package. To download the latest LG Calibration Studio software, visit LG.COM.

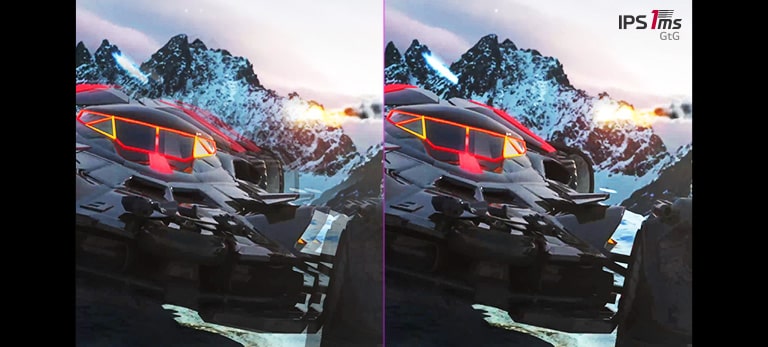

comparison of the afterimages with IPS 5ms and with IPS 1ms
*The images simulated to enhance feature understanding. It may differ from actual use.
**Comparison of speed with IPS 5ms (Left image) and IPS 1ms (GtG).
*The images simulated to enhance feature understanding. It may differ from actual use.
NVIDIA® G-SYNC® Compatible
*The images simulated to enhance feature understanding. It may differ from actual use.
*Comparison of Mode 'OFF' (left image) and NVIDIA® G-SYNC® Compatible.
*The images simulated to enhance feature understanding. It may differ from actual use.

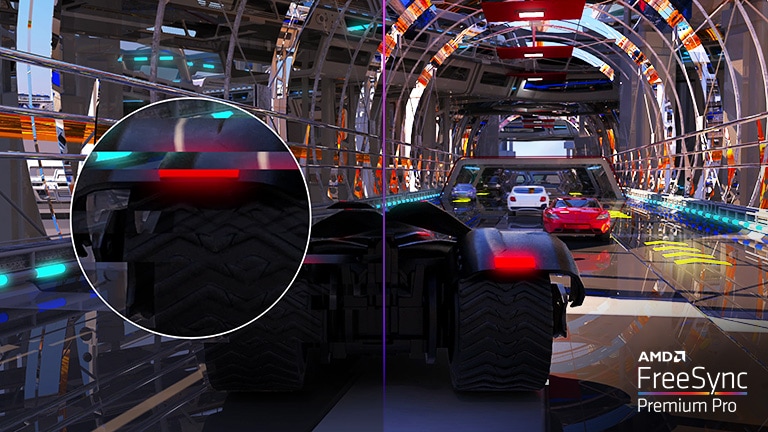

**Comparison of Mode 'OFF' (left image) and AMD FreeSync™ Premium Pro.

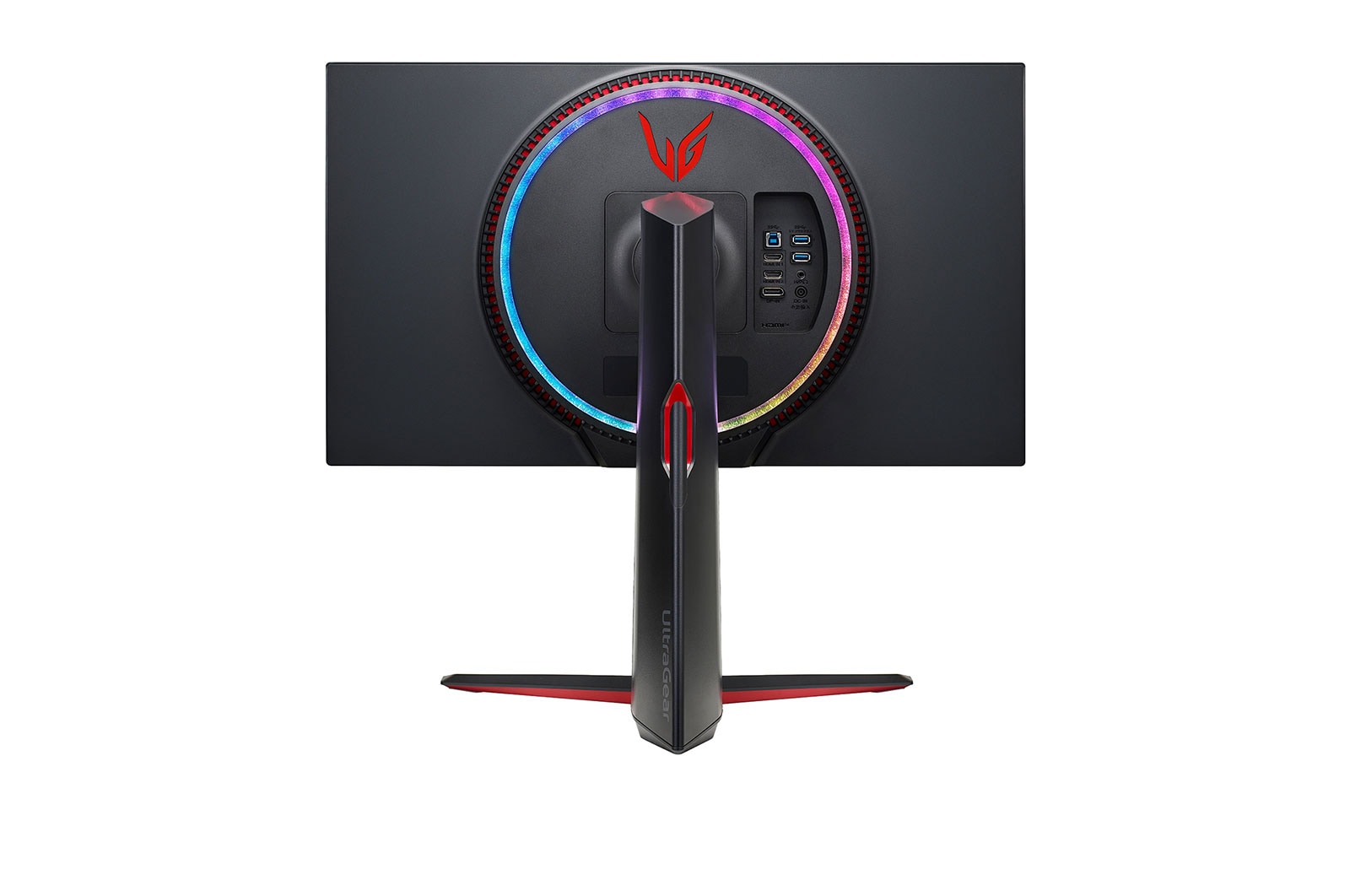

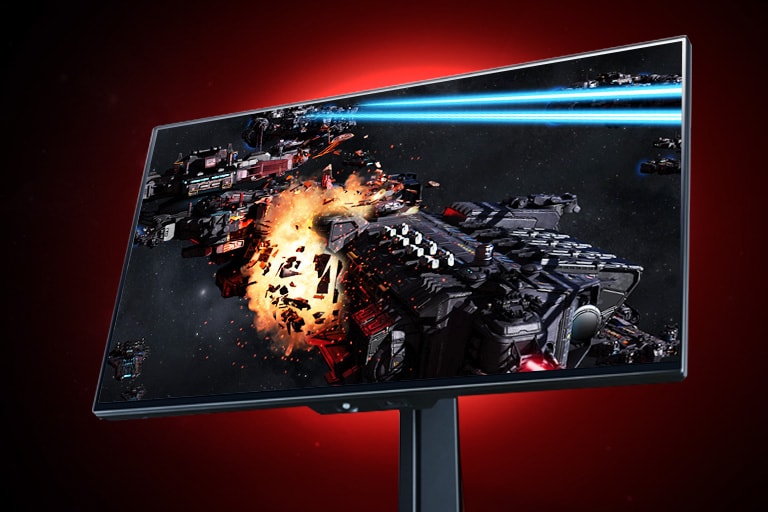

*The video shown for illustration purpose only. Actual lighting effects of Sphere Lighting 2.0 may vary due to contents and each mode.
Build an Immersive Battle Station
4-side virtually borderless
Tilt
Height

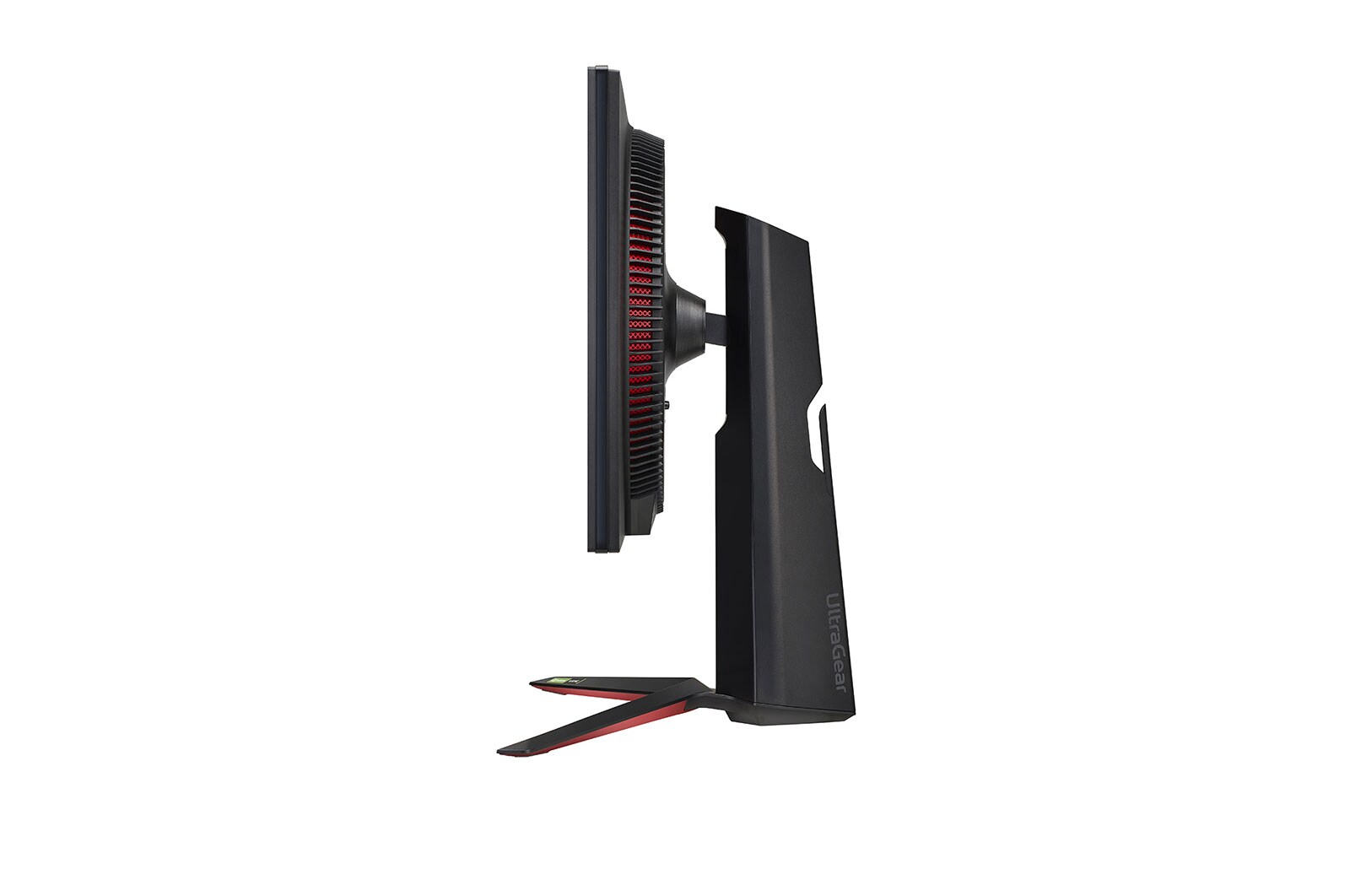

Pivot

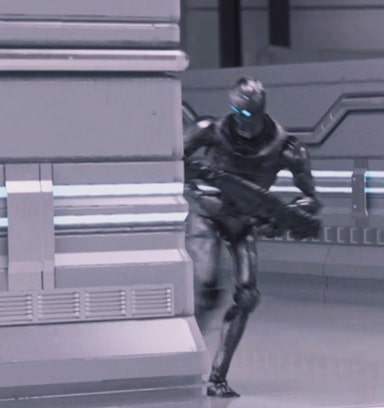

*The image on the left illustrates the LG model not supported by Dynamic Action Sync (DA) feature.
*The images simulated to enhance feature understanding. It may differ from actual use.

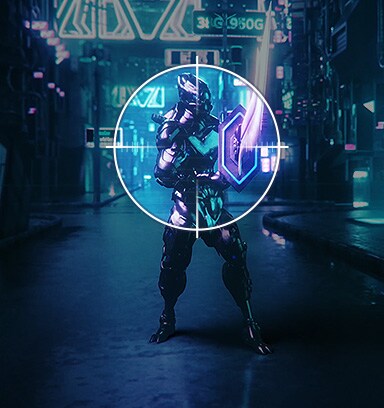

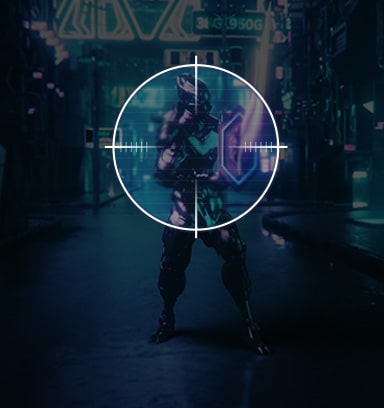

*The image on the left illustrates the LG model not supported by Black Stabilizer feature.
**The images simulated to enhance feature understanding. It may differ from actual use.
*The image on the left illustrates the LG model not supported by Crosshair feature.
**The images simulated to enhance feature understanding. It may differ from actual use.
Display - Size [Inch]
27
Display - Resolution
3840 x 2160
Display - Panel Type
IPS
Display - Aspect Ratio
16:9
Display - Color Gamut (Typ.)
DCI-P3 98% (CIE1976)
Display - Brightness (Typ.) [cd/m²]
400
Display - Refresh Rate (Max.) [Hz]
160 (O/C)
Display - Response Time
1ms (GtG at Faster)
Mechanical - Display Position Adjustments
Tilt/Height/Pivot
Product name
UltraGear
Year
2021
Aspect Ratio
16:9
Brightness (Min.) [cd/m²]
360
Brightness (Typ.) [cd/m²]
400
Color Depth (Number of Colors)
1.07B
Color Gamut (Min.)
DCI-P3 90% (CIE1976)
Color Gamut (Typ.)
DCI-P3 98% (CIE1976)
Contrast Ratio (Min.)
700:1
Contrast Ratio (Typ.)
1000:1
Panel Type
IPS
Pixel Pitch [mm]
0.1554 x 0.1554
Refresh Rate (Max.) [Hz]
160 (O/C)
Resolution
3840 x 2160
Response Time
1ms (GtG at Faster)
Size [cm]
68.47
Size [Inch]
27
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
AMD FreeSync™
FreeSync Premium Pro
Black Stabilizer
YES
Color Calibrated in Factory
YES
Crosshair
YES
Dynamic Action Sync
YES
Flicker Safe
YES
FPS Counter
YES
HDR 10
YES
HDR Effect
YES
HW Calibration
HW Calibration Ready
Nano IPS™ Technology
YES
NVIDIA G-Sync™
G-SYNC Compatible
Others (Features)
VESA DSC, Waves Maxx Audio(H/P out)
OverClocking
YES
Reader Mode
YES
RGB LED Lighting
Sphere Lighting
Smart Energy Saving
YES
User Defined Key
YES
VESA DisplayHDR™
DisplayHDR™ 600
VRR
YES
OnScreen Control (LG Screen Manager)
YES
LG Calibration Studio (True Color Pro)
YES
LG UltraGear™ Control Center
YES
DisplayPort
YES(1ea)
DP Version
1.4
HDMI
YES(2ea)
Headphone out
3-pole (Sound Only)
USB Downstream Port
YES(2ea/ver3.0)
USB Upstream Port
YES(1ea/ver3.0)
AC Input
100~240V (50/60Hz)
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Max.)
95W
Power Consumption (Sleep Mode)
Less than 0.5W
Power Consumption (Typ.)
65W
Type
External Power(Adapter)
Display Position Adjustments
Tilt/Height/Pivot
Wall Mountable [mm]
100 x 100
Dimension in Shiping (W x H x D) [mm]
735 x 200 x 522
Dimension without Stand (W x H x D) [mm]
609.2 x 352.9 x 54.3
Dimension with Stand (W x H x D) [mm]
609.2 x 574.7 x 291.2(↑) 609.2 x 464.7 x 291.2(↓)
Weight in Shipping [kg]
11.5
Weight without Stand [kg]
5.7
Weight with Stand [kg]
7.9
Display Port
YES
HDMI
YES
Others (Accessory)
Mouse Holder
USB A to B
YES
