49" Class (48.5" diagonal) Commercial Lite Ultra High Definition TV

49" Class (48.5" diagonal) Commercial Lite Ultra High Definition TV

Share This Content.

You Can Share The Items You Like With Your Friends

49" Class (48.5" diagonal) Commercial Lite Ultra High Definition TV

49UX340C

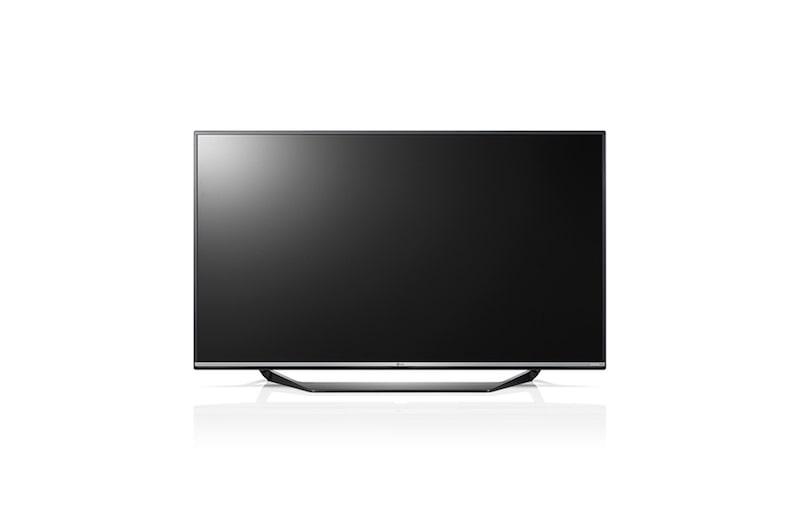

Front
Front

Key Features

  • 4K UPSCALER
  • TRIPLE XD ENGINE
  • IPS 4K WIDE VIEWING ANGLE
  • ULTRA HDTV
More
Print

All Spec

POWER

  • Voltage, Hz

    100 ~ 240V, 50/60Hz

  • Stand-by

    0.5W↓

ACCESSORY

  • Remote type

    L-Con

  • Cable

    Power cord (1.55m, Angle Type)

  • Manual / ESG

    Simple Manual

FEATURES

  • Remote Diagnosis

    Yes (Self Diagnosis(USB))

  • HDMI-CEC

    Yes (Without ARC)

  • HTNG-CEC

    Yes

  • Hotel Mode / PDM / Installer Menu

    Yes

  • Lock mode

    Yes

  • External Speaker Out

    Yes (Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω)

  • RJP Interface

    Yes (RS232C, HDMI CEC)

  • RJP Compatibility

    Yes, LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)

  • USB

    Yes (USB 2.0)

  • USB Auto Play back

    Yes

  • Moving Picture Playback (SD/HD/Plus HD)

    Divx HD

  • Picture

    JPEG

  • Audio Codec

    MP3, AC3, MPEG, AAC,HEAAC, CDDA, LPCM

  • USB Cloning

    Yes

  • Multi IR Code

    Yes

  • Welcome Screen (Splash Image)

    Yes

  • Auto Off / Auto Sleep

    Yes

  • Motion eye care

    Yes

PANEL SPECIFICATION

  • Panel Size

    49" Class

  • Backlight Type

    Edge

  • Resolution

    3840 x 2160 (UHD)

  • Panel Brightness (cd/m2l, Typ)

    400

  • Dynamic Contrast Ratio (Dynamic MCI (Hz))

    1,000,000:1

  • Static (Panel) Contrast Ratio

    1,200:1

  • Viewing Angle Degree

    178°/178°

  • Response Time(G to G)

    9

  • Frame Rate

    T120Hz

  • Life span

    30000

AUDIO

  • Audio Output

    10W + 10W

  • Speaker System

    2.0 ch

  • Sound Mode

    6 modes (Standard, News, Music, Cinema, Sport, Game)

  • Optical Sound Sync

    Yes

  • Sound Optimizer

    3 modes (Normal, Wall-Mount Type, Stand Type)

  • Clear Voice

    Yes

BROADCASTING SYSTEM

  • Analog

    Yes (NTSC)

  • Digital

    Yes (ATSC/QAM/VSB)

VIDEO

  • Triple XD Engine

    Yes

  • Dynamic Color Enhancer

    Yes

  • Real Cinema 24p (3:3 pull down)

    Yes

  • Aspect Ratio

    Yes - 6 modes ( 16:9, Just scan,Set by program, 4:3,Zoom,Cinema zoom1)

  • Tru 4K Upsacaler

    Yes

REQUIRED LISTING(CERTIFICATION)

  • Safety

    UL

  • EMC

    FCC

INTERFACE

  • HDMI In

    1 (2.0)

  • USB (2.0)

    1

  • RF In

    1

  • AV In

    1 (Sharing with Component in)

  • Component in (Y,Pb,Pr) + Audio

    1

  • Digital Audio Out (Coaxial / Optical)

    1 (Optical)

  • HDMI/HDCP Input

    1 (2.0)

  • RGB In (D-sub 15pin) - PC

    1

  • PC Audio Input

    1(Sharing with Component Audio)

  • RS-232C(D-Sub 9pin)

    1

  • External Speaker Out(3.5mm phone jack)

    1 (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω

CABINET

  • Bezel Width(L/R, U, B) - on bezel

    11.7, 11.2, 14.8

  • Bezel Width(L/R, U, B) - Off bezel

    9.4, 8.9, 12.5

  • Weight (W/O Stand,kg)

    14

  • Weight (with stand, kg)

    15.9

  • Weight (Packing)

    19.6

  • WxHxD (w/o stand, mm)

    1104x645x56.7

  • WxHxD (with stand, mm)

    1104x701x261

  • WxHxD (Packing, mm)

    1197x790x152

  • VESA Compatible

    300x300

UPC CODE

  • 49UX340C

    719192 198005

WARRANTY

  • Warranty

    3 Year Limited Warranty (Parts/Labor/Backlight)

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
