32" TV Signage
Contact Us

32" TV Signage

Share This Content.

You Can Share The Items You Like With Your Friends

32" TV Signage

32LT662MBUC

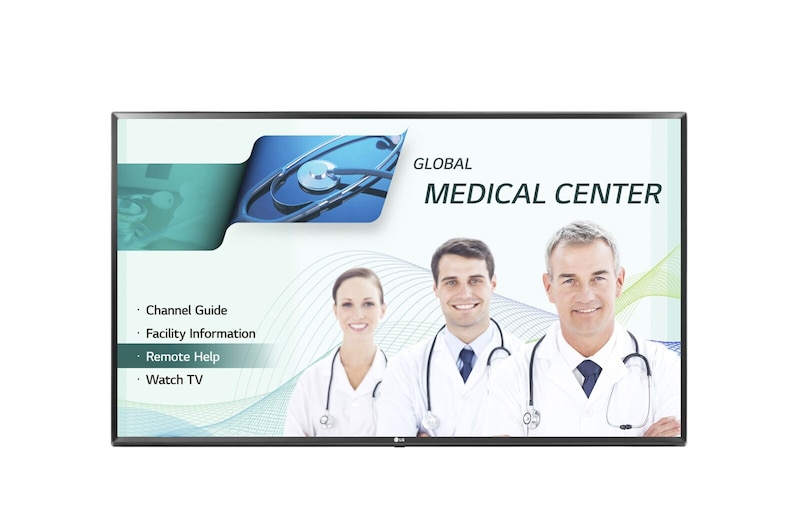

Front View With Infill Image
Front View

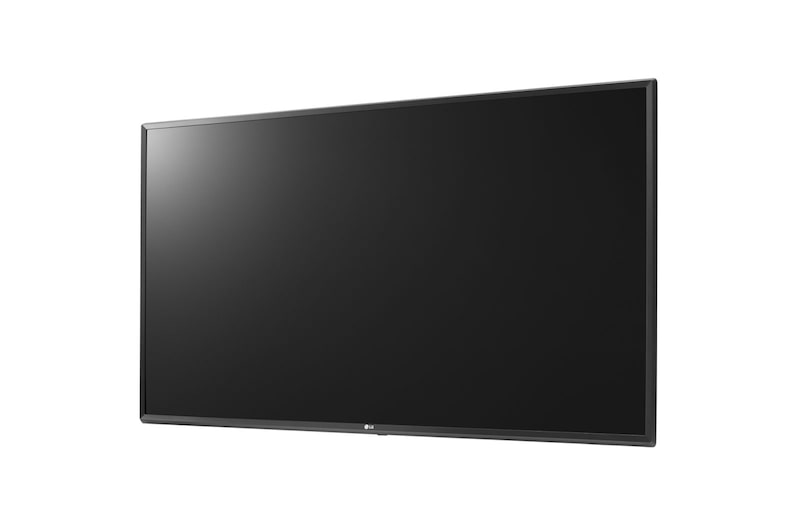

-15 degree Right Angled View

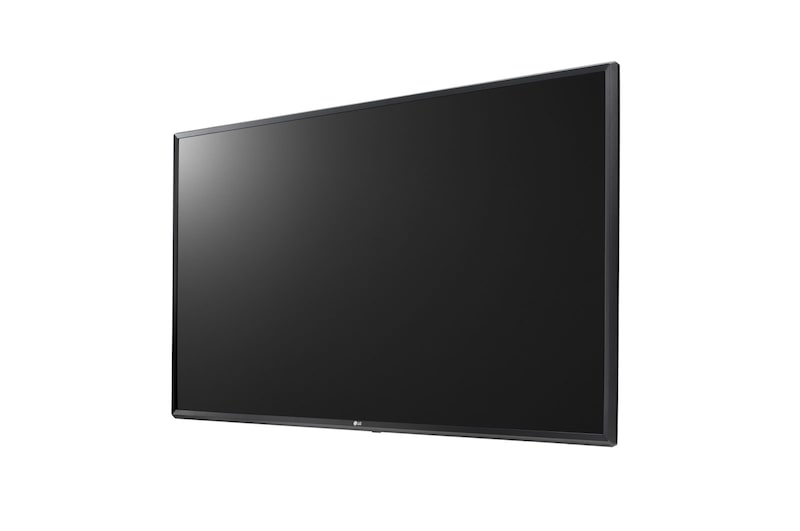

-45 degree Right Angled View
Right Side View

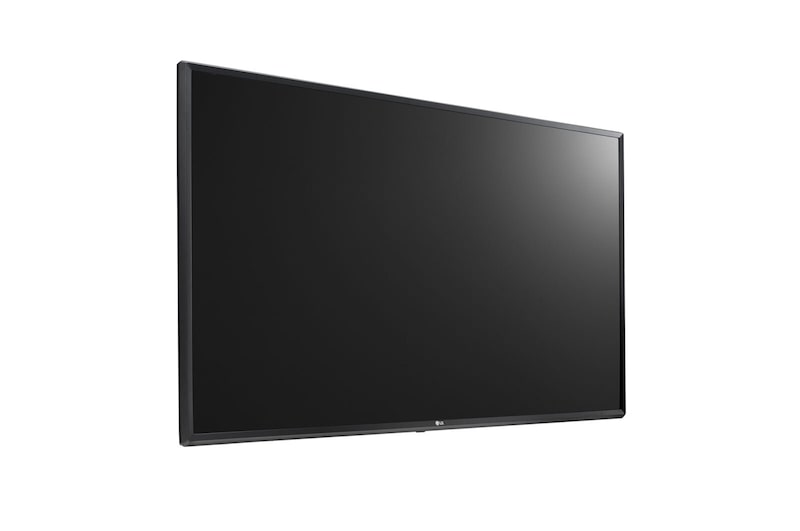

-15 degree Left Angled View

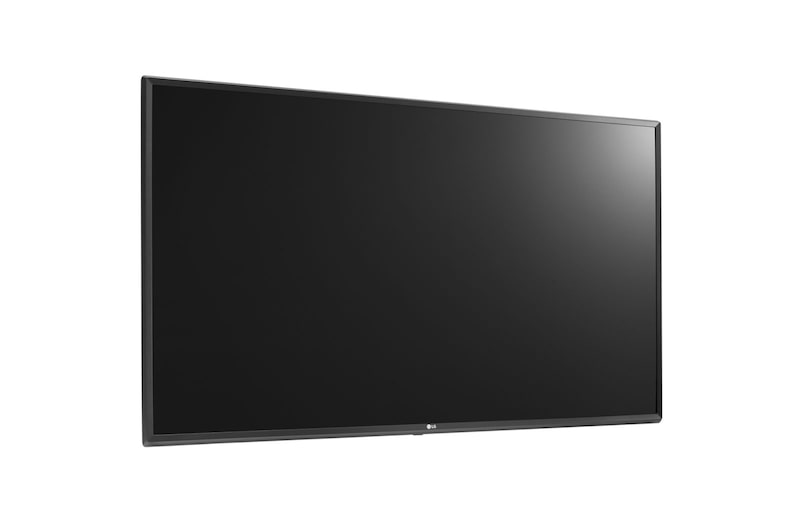

-45 degree Left Angled View

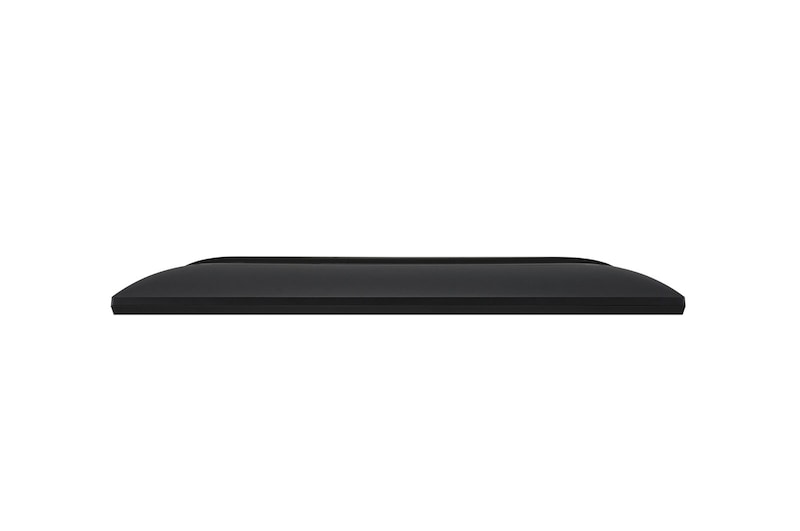

Top View
Perspective View

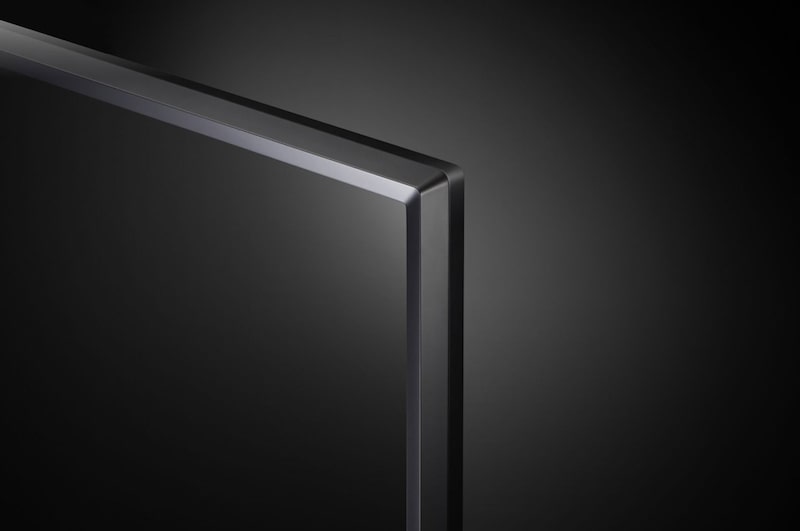

Right Corner View
Front View With Infill Image
Front View
-15 degree Right Angled View
-45 degree Right Angled View
Right Side View
-15 degree Left Angled View
-45 degree Left Angled View
Top View
Perspective View
Right Corner View

Key Features

  • UL Hospital Grade Listed
  • Pillow Speaker Ready
  • Reliable Nurse call system
  • Pro: Centric Information Management Solution
More

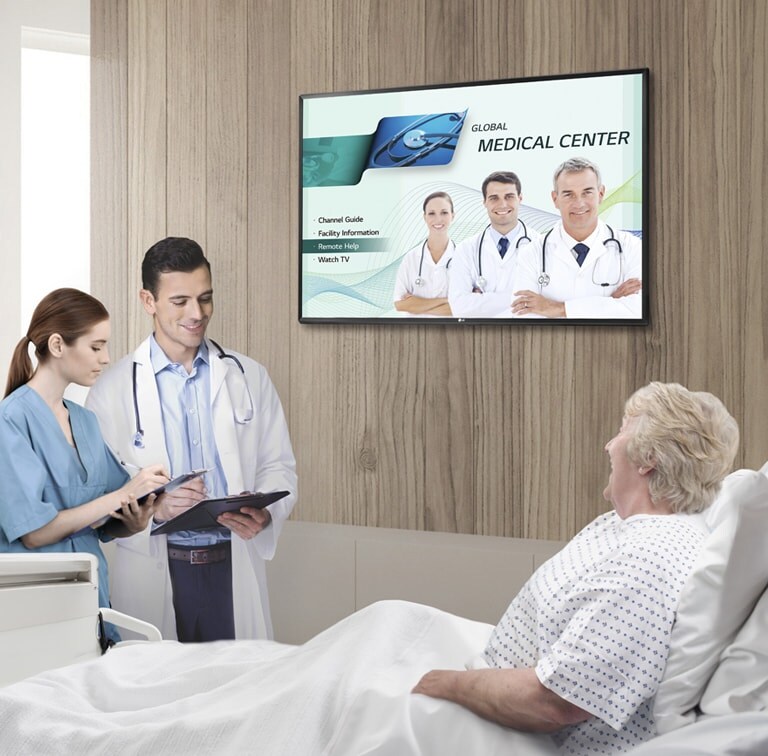

UL-Listed Hospital TVs

The LT662M Hospital TV provides advanced technology in a cost-effective solution designed for patients and staff. All features, including Pillow Speaker support and Hospital UL Certification, are designed for Patient-oriented care, meeting the specific needs of individuals.

FEATURES FOR HOSPITAL ENVIRONMENT

Pillow Speaker Ready

Sound and videos can be controlled directly by a pillow speaker for patient convenience.

Reliable Nurse call system

mprove patient care and staff response with the reliable nurse call system by a pillow speaker.

UL Hospital Grade Listed

LT662M is designed for the healthcare and hospital environment to withstand heavy use.

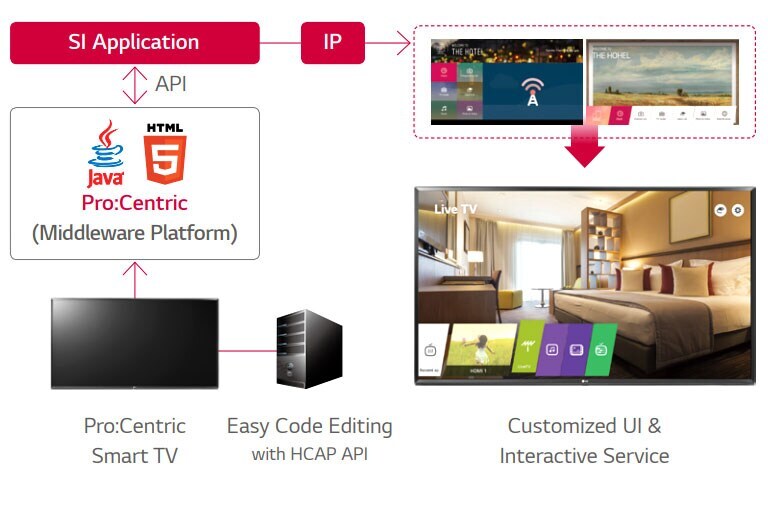

Pro:Centric Information Management Solution<br>1
SMART EXPERIENCE

Pro:Centric Information Management Solution

Pro: Centric SMART is optimized for customizing information and entertainment services through an IP & RF infrastructure. With its high picture quality, sophisticated design and advanced connectivity functions, the LT662M improves and creates new in-room experiences for patients, family and hospital staff.

*Customized UI may be little different.

Pro: Centric Direct Solution<br>1
SMART EXPERIENCE

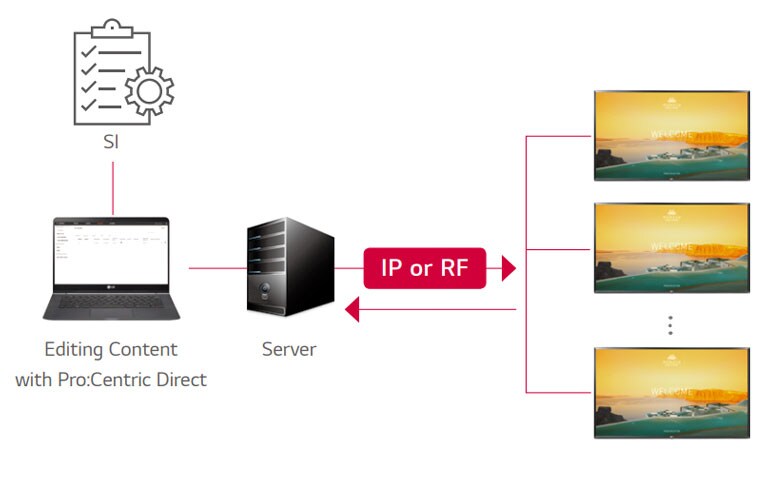

Pro: Centric Direct Solution

Pro: Centric Direct is a hospitality content management system that supports simple editing tools and provides various solutions such as 1-click service and IP-network-based remote management. With these solutions, users can easily edit the user interface, provide customized service and manage all TVs efficiently.

*Actual UI may differ.
*When PCS400R and PCD 2.0 are used, PCD feature is available even in RF infrastructure. However,to have interactive services in RF infrastructure, Wi-Fi is required (RF + Wireless infrastructure is needed)

Pro: Idiom<br>1
SMART EXPERIENCE

Pro: Idiom

We securely provide entertainment content with Pro:Idiom DRM(Digital Right Management) which prevents illegal copying on your LG devices
Voice Recognition<br>1
USER-FRIENDLY EXPERIENCE

Voice Recognition

From seamless interaction to consistent user experience, LG is going one step further to lead the commercial TV market by voice recognition, allowing users to easily control LG TVs. Our stable and dependable solutions based on webOS and Pro:Centric Direct will significantly enhance the competitiveness of your products and services.

*TV Smart Control.
*Server Based Control.
*Magic motion Remote is required (sold separately)

Soft AP <br>1
USER-FRIENDLY EXPERIENCE

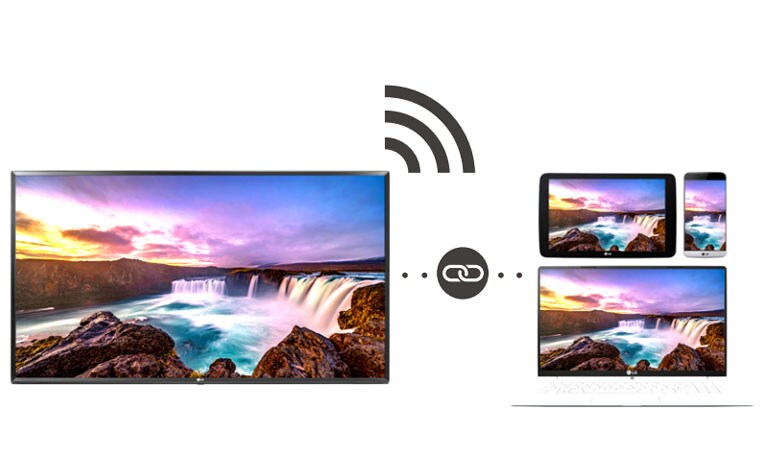

Soft AP

Software-enabled Access Point (SoftAP) is a "virtual" Wi-Fi that uses software to create a wireless hotspot. The current version supports Bridge Mode, which enables network managers to control connected devices.

*SoftAP should be sent in installation menu after TV is on.
*Smart Mirroring may not operate at the same time.

Multi IR<br>1
USER-FRIENDLY EXPERIENCE

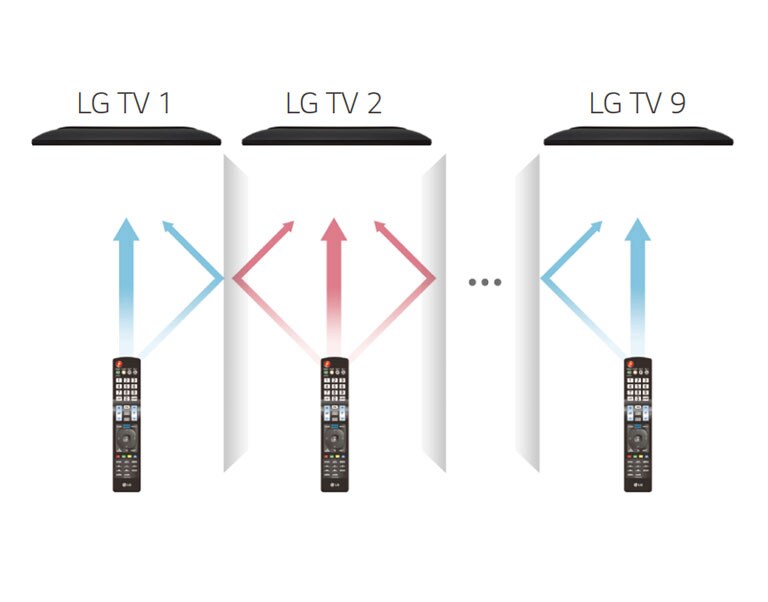

Multi IR

Multi IR function eliminates the signal interference of remote controls that occurs between TVs in multiple rooms. This system also works on the same LG TV model.
Instant On<br>1
USER-FRIENDLY EXPERIENCE

Instant On

The high speed loading system enables users to enjoy content immediately after turning on the TV.
Instant On<br>1
USER-FRIENDLY EXPERIENCE

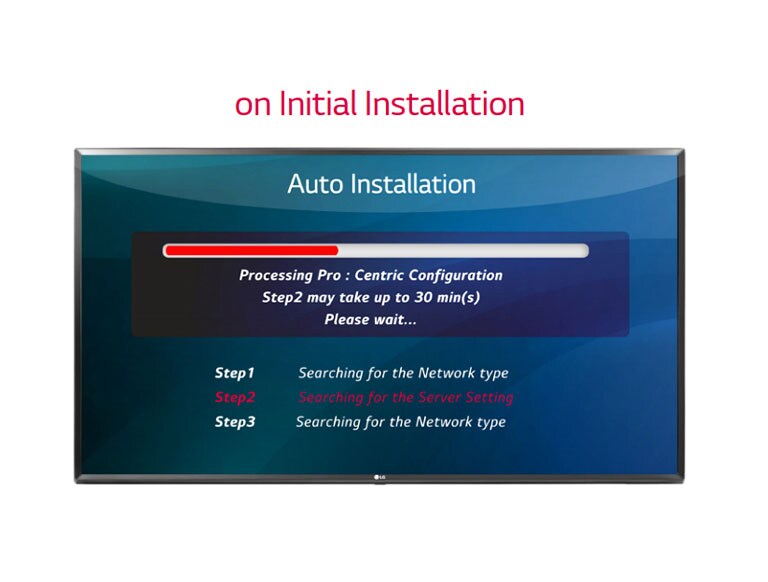

EzManager
(Express script)

EzManager provides a convenient installation function to automatically choose settings for the Pro:Centric TV without any extra configuration. And Express Script provides streamlined configuration of the TV for Free-To-Guest(FTG) Mode via CPU operation (including pillow speaker setup).
Instant On<br>1
USER-FRIENDLY EXPERIENCE

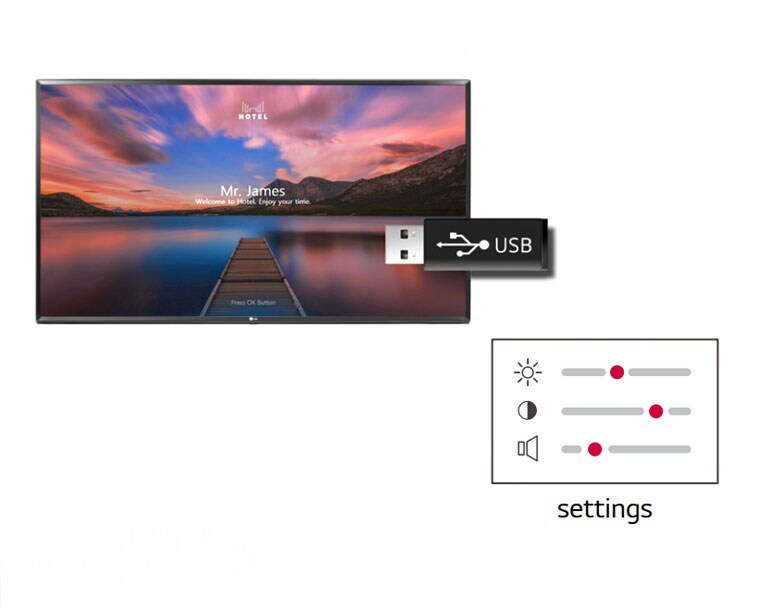

USB Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and be sent to the other displays through a USB plug-in.

Key Feature

  • UL Hospital Grade Listed
  • Pillow Speaker Ready
  • Reliable Nurse call system
  • Pro: Centric Information Management Solution
Print

All Spec

POWER SPEC.

  • Power Consumption(Typ)

    26W

  • Power Consumption(Max)

    58W

  • Power Supply (Voltage, Hz)

    AC 120V, 50/60Hz

  • Standby Power Consumption

    Under 0.5W

ACCESSORIES

  • Power Cable

    YES (1.8M / Angle Type)

AUDIO (SOUND)

  • AI Acoustic Tuning

    YES (Ready,mmR Required)

  • LG Sound Sync

    YES

  • Speaker (Audio Output)

    10W

BROADCASTING SYSTEM

  • Analog (NTSC / SECAM / PAL)

    NTSC

  • Digital

    ATSC / Clear QAM / VSB

CONNECTIVITIES

  • AV In

    YES

  • Digital Audio Out (Optical)

    YES

  • HDMI In

    YES (2ea)

  • LG SVC only (Phone jack type)

    YES

  • MPI Port (RJ12 jack)

    YES

  • Pillow Speaker interface (6pin)

    YES

  • RF In

    YES (1ea)

  • RJ45 (Usage Purpose)

    1 (Ethernet)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (Phone jack)

  • USB (Ver.)

    YES (1ea / 2.0)

DESIGN

  • Front Color

    Ceramic BK

  • Stand Type

    No Stand (Wall Mount Only)

  • Tool Name

    LJ61

DIMENSIONS/WEIGHT

  • Bezel Width (L/R/U/B, Off Bezel)

    18.8/18.8/18.8/21.6mm

  • Bezel Width (L/R/U/B, On Bezel)

    20.7/20.7/20.6/23.4mm

  • Dimension in Shipping (W x H x D)

    812 x 510 x 142mm

  • Dimension without Stand (W x H x D)

    739 x 441 x 74.6 (84)mm

  • Weight in Shipping

    6.05kg

  • Weight without Stand

    4.85kg

DISPLAY

  • Brightness (Typ.)

    240 nit

  • Resolution

    HD (1,366 x 768)

  • Size (Inch)

    32

HOSPITALITY FEATURE

  • Diagnostics

    YES (IP Remote)

  • EzManager

    YES

  • Hotel Mode / PDM / Installer Menu

    YES

  • HTNG-CEC (Version)

    YES (1.4)

  • Insert Image

    YES

  • Instant ON

    YES

  • IR Out

    YES (RS-232C, MPI)

  • Multi IR Code

    YES

  • One Channel Map

    YES

  • RJP (Remote Jack Pack) Compatibility

    YES

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • SNMP

    YES

  • USB Cloning

    YES

  • Wake on RF

    YES

  • Welcome Screen (Splash Image)

    YES

  • WOL

    YES

HOSPITALITY SOLUTION

  • Pro:Centric Direct

    YES

  • Pro:Centric Server

    YES

  • Pro:Centric Smart

    YES

  • Pro:Centric V

    YES

  • Pro:Idiom (DRM)

    YES

  • Pro:Idiom Media (DRM)

    YES

  • Quick Menu (Customizable Portal)

    YES

  • webRTC (Real Time Communication)

    YES

INFO

  • Category

    Pro:Centric Smart

MECHANICAL

  • Kensington Lock

    YES

  • VESA Compatible

    200 x 200mm

SMART FUNCTION

  • Bluetooth

    YES

  • Bluetooth Audio Playback

    YES

  • DIAL

    YES

  • HDMI-ARC

    YES (HDMI2)

  • IoT

    YES

  • Magic Remote Compatibility

    YES (Ready)

  • Screen Share

    YES

  • Soft AP

    YES

  • Voice Recognition (Standalone/Solution)

    YES

  • webOS version

    webOS 4.5

  • Web Browser

    YES

  • Wi-Fi

    YES

STANDARD

  • EMC

    FCC

  • Safety

    UL Hospital

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • BEACON

    YES

  • NTP sync timer

    YES

VERTICAL FUNCTION (HOSPITAL)

  • Pillow Speaker

    YES

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
