60" class Premium Slim Direct LED TV with Integrated Pro:Idiom® (59.5" diagonal)

60" class Premium Slim Direct LED TV with Integrated Pro:Idiom® (59.5" diagonal)

Share This Content.

You Can Share The Items You Like With Your Friends

60" class Premium Slim Direct LED TV with Integrated Pro:Idiom® (59.5" diagonal)

60LY970H

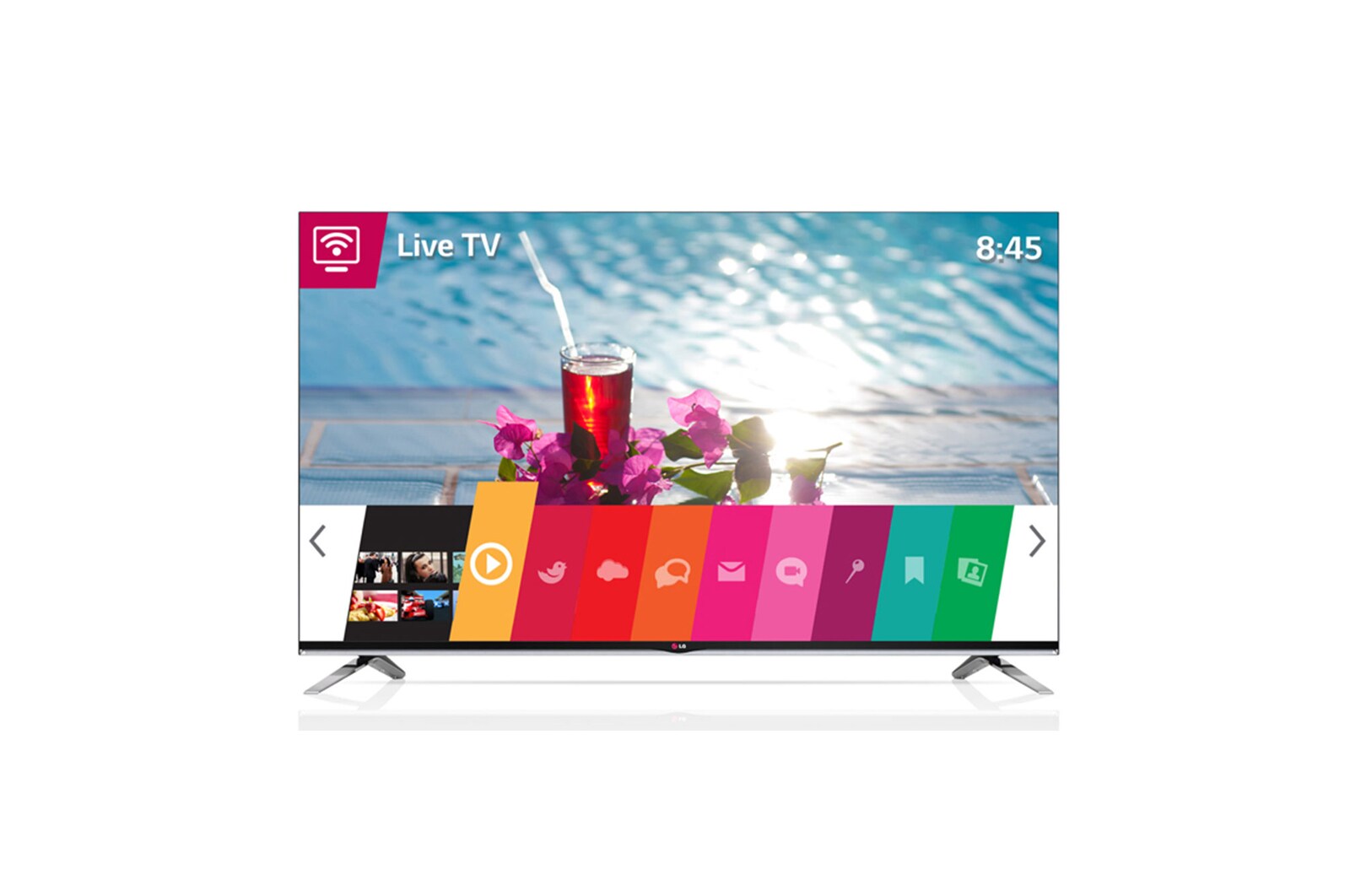

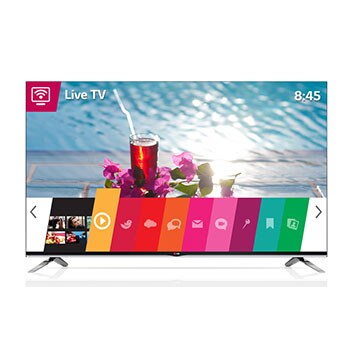

Front view
Front view

Key Features

  • Premium slim design
  • Smart Share: second screen connectivity / sharing
  • Smart customization
  • Pre-loaded applications
More
Print

All Spec

VIDEO

  • Dynamic Colour Enhancer

    Yes

  • Triple XD Engine

    Yes

  • Aspect Ratio

    Yes (5 Modes: 16:9, Just scan, Set by program, 4:3, Zoom)

AUDIO

  • Smart Sound Mode

    Yes

  • Audio Output

    12W + 12W

  • apt-X codec

    Yes

  • Clear Voice II

    Yes

  • Sound Mode

    Yes (6 Modes: Standard, News, Music, Cinema, Sport, Game)

  • Speaker System

    2.1 ch

  • Optical Sound Sync

    Yes

  • Wireless Sound Sync

    Yes

  • Sound Expansion

    Yes

  • Sound Optimizer

    3 modes (Off, Wall-Mount Type, Stand Type)

  • Subwoofer

    Yes

BROADCASTING SYSTEM

  • Analog

    Yes (NTSC)

  • Digital

    Yes (ATSC / Clear QAM/VSB)

INTERFACE(SIDE)

  • HDMI In

    2 Side

  • USB (2.0)

    1 Side

INTERFACE(REAR)

  • RF In

    1 Rear

  • AV In

    1 Rear

  • Digital Audio Out (Coaxial / Optical)

    1 (Optical)

  • HDMI/HDCP Input

    1 Rear

  • USB 2.0

    1 Rear

  • PC Audio Input

    1 Rear (Sharing with Component In)

  • RS-232C(D-Sub 9pin)

    1 Rear (Phone Jack)

  • LAN Port

    2 Rear

  • RJ45(RJP interface)

    1 Rear

  • TV link Configuration(phone jack type)

    1 Rear

  • External Speaker Out

    1 Rear (3.5mm phone jack)

  • PTC Configuration (phone jack type)

    1 Rear

  • MPI Jack (RJ-12)

    1 Rear

  • Component in (Y,Pb,Pr)+Audio(L/R)

    1 Rear

PANEL

  • Panel Size

    60” Class (59.5” meas. diag.)

  • Panel Technology

    Edge lit LED

  • Native Resolution

    1920 x 1080 (FHD)

  • Frame Rate

    120Hz

  • Dynamic Contrast Ratio

    2,000,000:1

  • Response Time

    8ms

  • Viewing Angle (HxV)

    178° x 178°

  • Static (Panel) Contrast Ratio

    1400

CABINET

  • Bezel Width (off Bezel) (mm)

    1.0mm/1.0mm/24.7mm

  • Bezel Width (on Bezel) (mm)

    8.8mm/8.8mm/26.5mm

  • Weight (without Stand)

    47.0 Ibs

  • Carton

    56.9” x 33.8” x 6.9”

  • Weight (Carton)

    60.6 Ibs

  • Weight (With Stand)

    48.1 Ibs

  • VESA™ Standard Mount Interface

    400mm x 400mm

  • Colour

    Dark Titan / Stand : Black

  • Dimensions with Stand (W×H×D)

    52.7” x 33.0” x 10.8”

  • Dimensions without Stand (W×H×D)

    52.7” x 30.7” x 2.3”

  • Flame Retardent

    Yes (Back Cover only)

POWER

  • Stand-by

    0.5W↓

  • Watts (typical)

    65.7W

  • Power Source

    110 ~ 240V, 50/60Hz

SPECIAL FEATURES

  • Remote App Compatibility

    Yes

  • Auto Configuration

    Yes (EzManager)

  • HDMI-CEC

    Yes

  • HTNG-CEC

    Yes

  • Welcome Screen (Splash Image)

    Yes

  • Remote Diagnosis

    Yes

  • Pro:Centric

    Yes

  • Multicast/Unicast ready

    Yes

  • IP Streaming

    Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (※IGMPv3 SSM Support)

  • APP. (P:C Smart)

    Yes (Commercial CP/Apps)

  • Smart Energy Saving (Auto Power Off)

    Yes

  • Motion eye care (intelligent sensor)

    Yes

  • Hybrid Streaming (IP & RF) ※ MultiCast/HTTP Data Carousel

    Yes

  • RF(1/2Tuner)

    Yes (2 Tuner)

  • Pro:Centric Application

    Yes (PCA 3.0)

  • MHL

    Yes

  • Web Browser

    Yes

  • HCAP (GEM/FLASH/HTML)

    Yes

  • DLNA(Movie/Photo/Music)

    Yes (Smart Share)

  • Pro:Idiom

    Yes

  • SI Compatible (TVLink Protocol)

    Yes (MPI protocol)

  • b-LAN

    Yes

  • WiDi (PC to TV)

    Yes

  • WiFi

    Yes (built-in)

  • Multi IR Code

    Yes

  • IR Out

    Yes (MPI Jack)

  • Auto Off / Auto Sleep

    Yes

  • RJP Compatibility

    LG,Teleadapt (RJ45, HDMI CEC), G-Link(HDMI-CEC)

  • RJP Interface

    Yes (RJ45, HDMI)

  • External Speaker Out

    Yes(Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GRD,L+,R+), 1W with 8Ω)

  • Hotel Mode / PDM / Installer Menu

    Yes (Installer Menu)

  • USB

    Yes (USB 2.0)

  • WiFi Direct

    Yes

  • USB Cloning

    Yes

  • Moving Picture Playback (SD/HD/Plus HD)

    Divx HD

  • Picture

    JPEG

  • Video Mute

    Yes

  • Miracast (Mobile to TV)

    Yes

  • 3D

    Yes

  • webOS

    Yes

  • One Channel Map/Logical Channel Map

    Yes (LCM)

UPC

  • UPC Code

    719192 915862

WARRANTY

  • Warranty

    3-Year Limited Warranty (Parts/Labour)

REMOTE JACK PANEL COMPATIBILITY (RJP)

  • REMOTE JACK PANEL COMPATIBILITY (RJP)

    G-Link, teleadapt

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
