55” IPS UHD Multi Touch Screen Digital Display with webOS 4.1 Smart Signage Platform, Anti-shatter Glass, Conformal Coating & Embedded Group Manager

55TC3CG-H

LG 55” IPS UHD Multi Touch Screen Digital Display with webOS 4.1 Smart Signage Platform, Anti-shatter Glass, Conformal Coating & Embedded Group Manager, 55TC3CG-H

Key Features

IPS Display with wide viewing angles
Multi Touch Screen (Up to 40 points)
webOS 4.1 Smart Signage Platform
Anti-shatter Glass & Conformal Coating
SuperSign CMS, Control/Control+

Engage your Audience

The 55TC3CG-H offers high touch performance and great colour with vivid details that can seen at virtually any angle.

*Image for illustration purposes only.

High Touch Performance

Precise Touch Response

The screen accurately recognizes extremely small touch points and instantly shows a response. This means that SIs can compose GUI icons in a variety of sizes on the 55TC3CG-H and users can fully enjoy their touch experience with no lagging.

*Image for illustration purposes only.

Multi Touch with No Dead Zones

Capable of recognizing up to 40 point-touches at once, the screen provides multiple users a smooth and natural sense of touch. Unlike infrared touch screens, the 55TC3CG-H accurately detects touch points even at the corners or edges of the display. This allows a variety of touch-based customer services to be provided throughout the entire screen.

*Image for illustration purposes only.

Excellent Picture Quality

Beautiful Colour, Wide View

LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated.

Vivid Details with Ultra HD

Ultra High Definition resolution allows users to view details even when zooming in on the display, with four times higher definition than Full HD.

Product Reliability

Fewer Scratches & Shatter Proof

Touch screens in public spaces can be scratched in heavy use or even abuse situations. The 55TC3CG-H has an advanced tempered screen coating to minimize scratches. In addition, its anti-shatter glass is designed to minimize harm to the user, even in the event the product being subject to abuse.

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on the circuit board virtually eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.

Easy Content Management

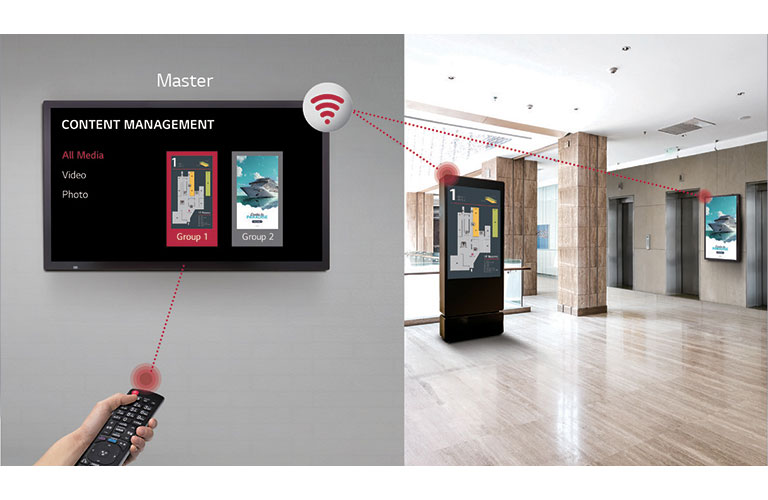

Embedded Group Manager

The embedded content management system allows you to edit and play content, schedule a playlist and even group and control signage via remote control, without need for a separate PC. This makes content management much easier and user-friendly.

*Image for illustration purposes only.

Multi Screen Mode

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

*Image for illustration purposes only.

High Compatibility

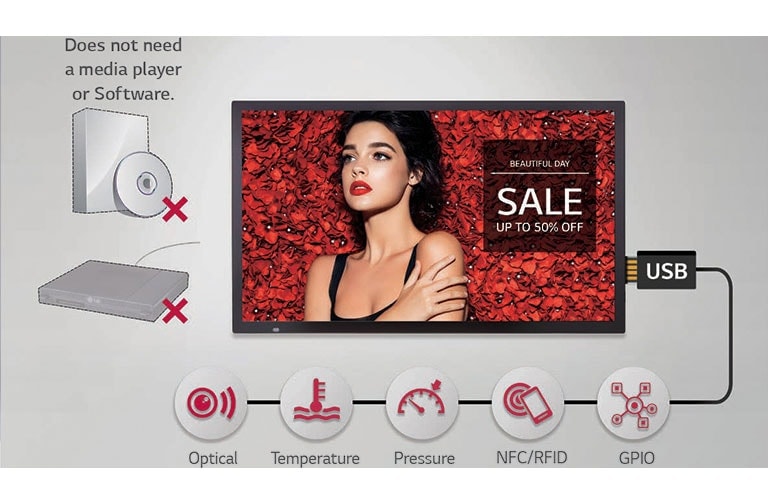

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. With webOS smart signage, there’s no need to purchase additional software or media players.

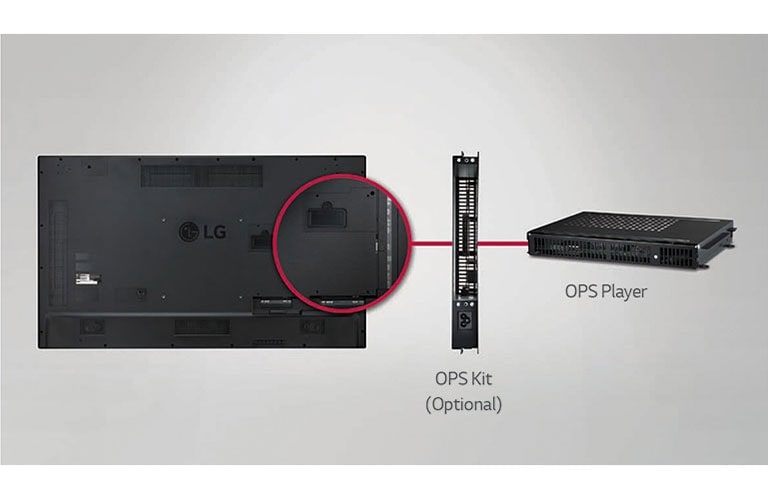

OPS Player Connectivity

The 55TC3CG-H provides an Open Pluggable Specification (OPS) Kit to connect a third-party OPS player. Users have the flexibility to choose any media player as long as it complies with the OPS.

IPS Display with wide viewing angles
Multi Touch Screen (Up to 40 points)
webOS 4.1 Smart Signage Platform
Anti-shatter Glass & Conformal Coating
SuperSign CMS, Control/Control+

All Spec

ACCESSORY

Basic
Power Cord 1.55m, USB Cable(Type A-Type B) 1.8m, HDMI Cable 3m, User Manual, QSG, Remote Controller(include battery 2ea), RS232C cable(Phone jack), IR Receiver, Magnet Sheet(3ea)
Optional
Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF), SP-5200

CERTIFICATION

EMC
FCC Class "A" / CE / KC
ePEAT(US only)
NO
ERP / Energy Star
YES / YES
Safety
CB / NRTL

CONNECTIVITY

Audio In
NO
Audio Out
YES
Daisy Chain
Input : HDMI, DP / Output : DP
DP In
YES (HDCP 2.2/1.3)
DP Out
YES
DVI-D In
NO
External Speaker Out
YES
HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2/1.4
HDMI Out
NO
IR In
YES
IR Out
NO
RGB In
NO
RJ45(LAN) In
YES (1ea)
RJ45(LAN) Out
NO
RS232C In
YES
RS232C Out
YES
Touch USB
USB2.0 Type B (1ea)
USB In
USB2.0 Type A (2ea)

DEDICATED FEATURE - TOUCH

Accuracy (Typ.)
2.0mm
Available Object Size for Touch
Ø6mm ↑
Interface
USB2.0
Multi Touch Point
Max. 40 Points
Operating System Support
Windows 8.1/10, Linux (Kernel v3.0 above)
Protection Glass Thickness
3.2mm (Anti-Glare)
Protection Glass Transmission
0.83
Response Time ('Paint' app on Windows 10 PC)
100ms ↓

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C

FEATURE - HARDWARE

Acceleration(Gyro) Sensor
NO
Auto Brightness Sensor
YES
BLU Sensor
NO
Current Sensor
NO
FAN (Built-in)
NO
Humidity Sensor
NO
Internal Memory (eMMC)
8GB
Local Key Operation
YES
Pixel Sensor
NO
Power Indicator
NO
Proximity Sensor
NO
Temperature Sensor
YES
Wi-Fi/BT (Built-in)
NO

FEATURE - SOFTWARE

Auto Set ID
YES
Backlight Sync
NO
Beacon
NO
Booting Logo Image
YES
Brightness Compensation
NO
Cisco Certification
YES
Control Manager
YES
Crestron Connected
YES
External Input Rotation
YES
Fail over
YES
Gapless Playback
YES
Group Manager
YES
HDMI-CEC
YES
ISM Method
YES
Local Contents Scheduling
YES
Local Network Sync
YES
Network Ready
NO
No Signal Image
YES
OS Ver. (webOS)
webOS 4.1
PBP
YES (4PBP)
PIP
YES
Play via URL
YES
PM mode
YES
Pro:Idiom
YES
RS232C Sync
YES
Scan Inversion
NO
Screen Rotation
YES
Screen Share
NO
Setting Data Cloning
YES
SI Server Setting
YES
Smart Energy Saving
YES
SNMP
YES
Status Mailing
YES
Tile Mode Setting
YES
USB Plug & Play
YES
Video Tag
YES (4 Video Tag)
Wake on LAN
YES
webRTC
YES
W/B Setting by Grey scale
NO

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
