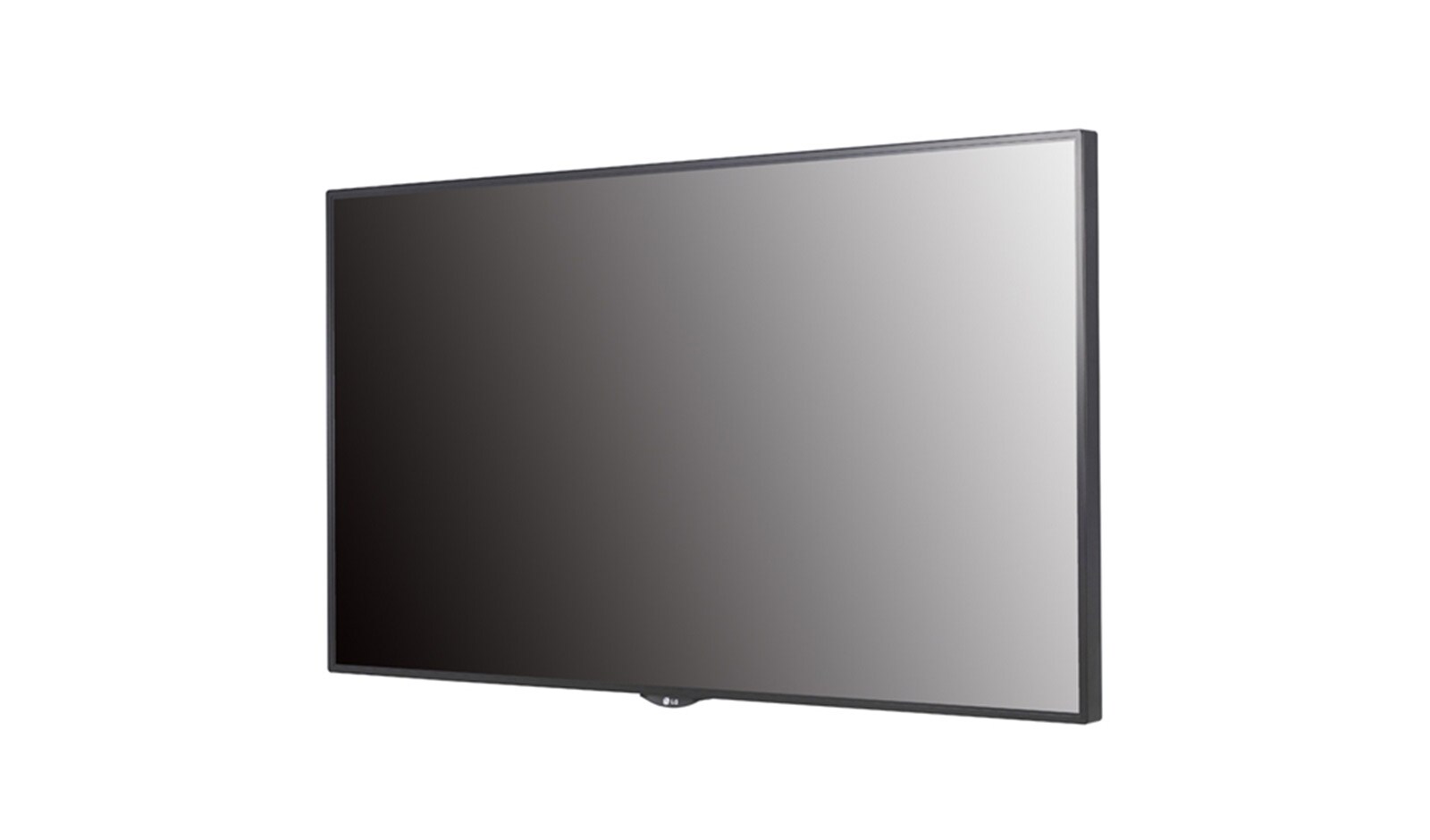

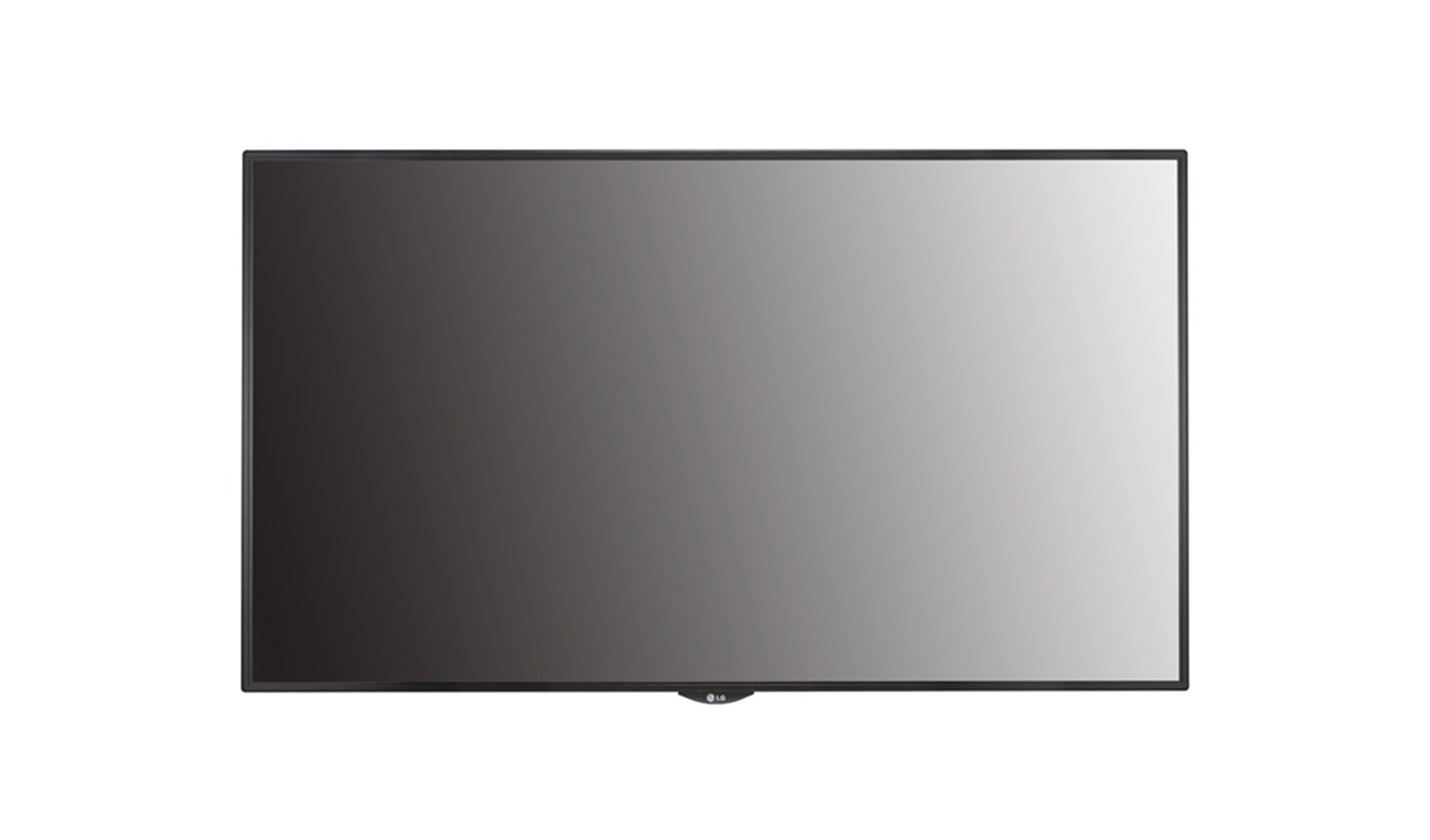

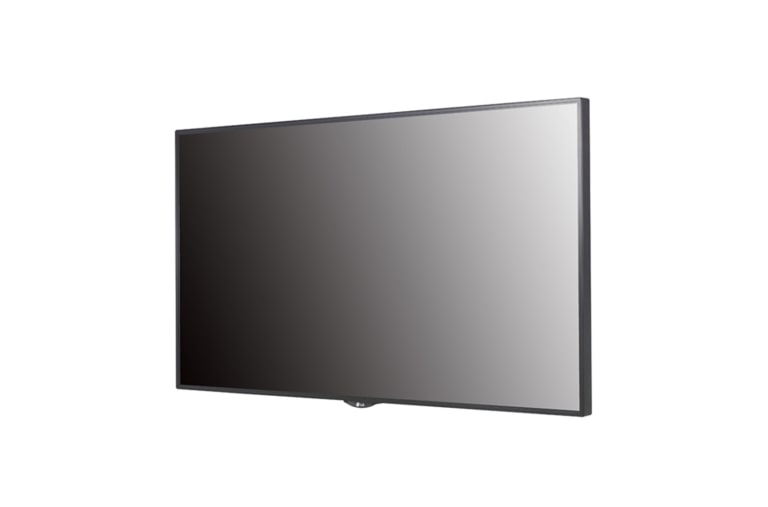

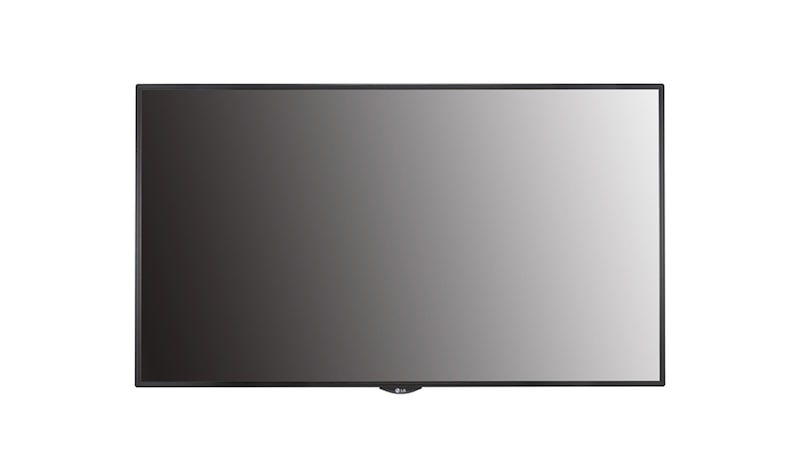

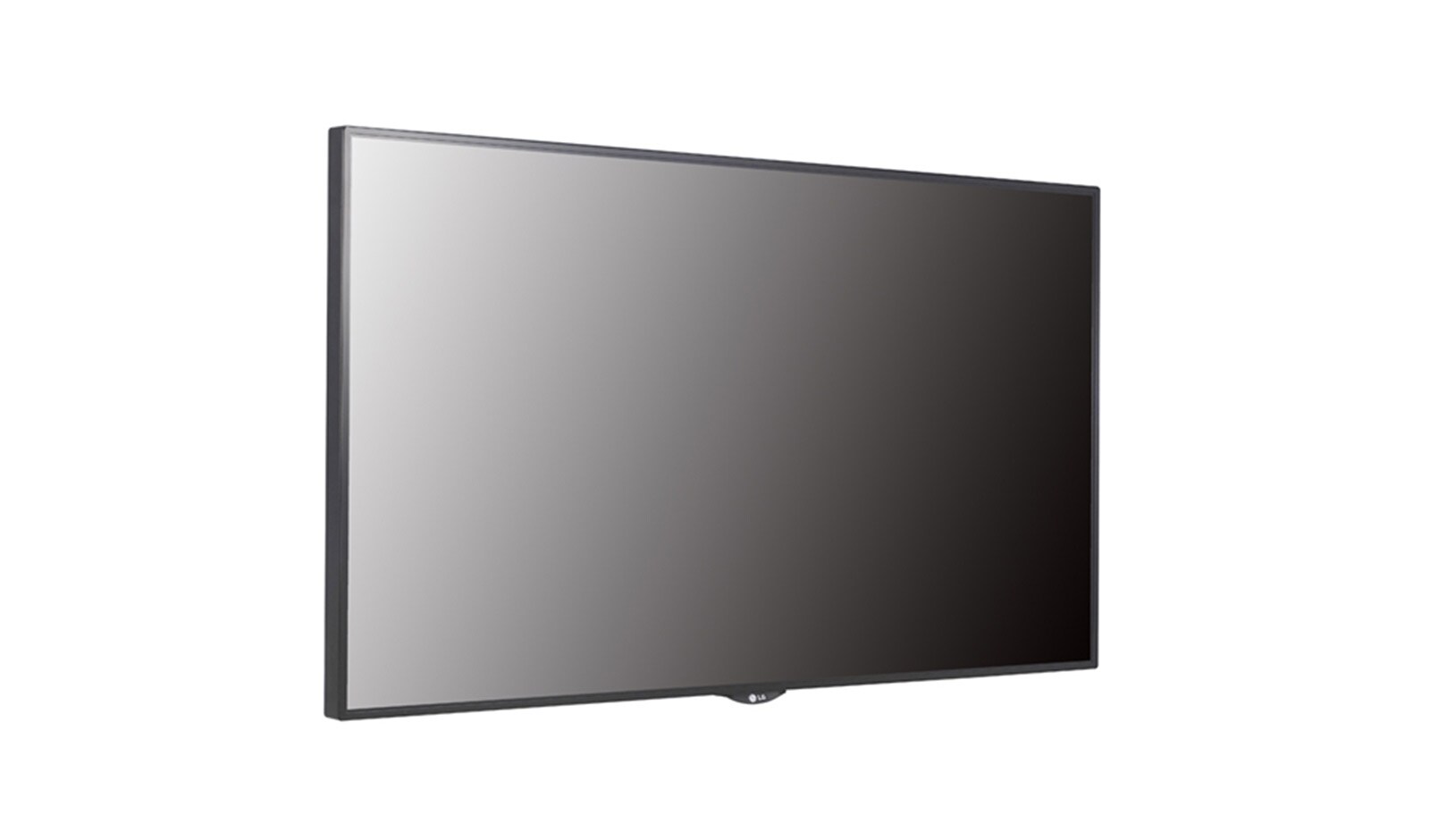

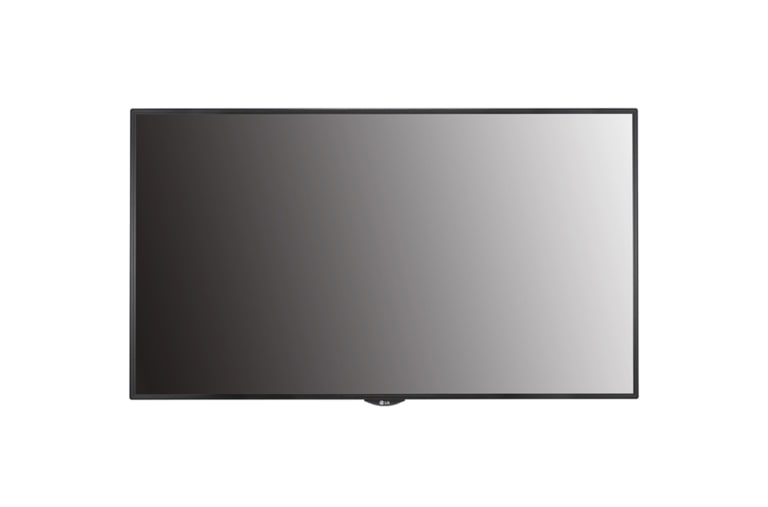

41.92" (1064.67mm diagonal) Standard Performance SM3C Series

42LS75C-B

Key Features

IP Streaming Protocol
Proxy Server
Mirroring
Soft AP
Simple Installation

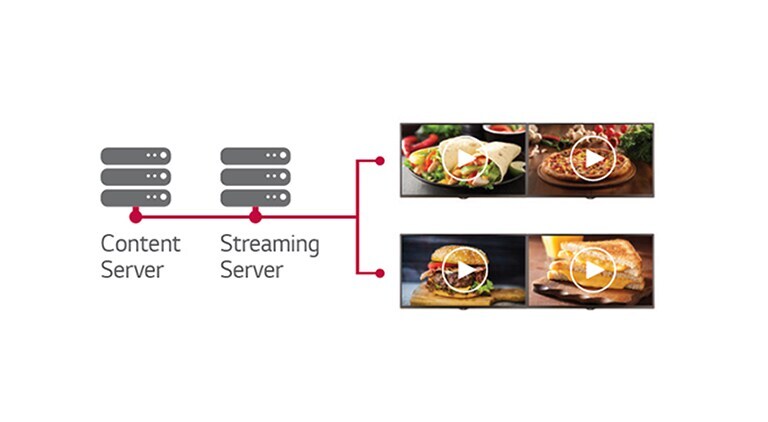

IP Streaming Protocol

Various types of IP video streaming protocol are supported, such as RTSP/RTP, MMS, HLS and MPEG-2 TS*.

*RTSP (Real-Time Streaming Protocol), RTP (Real-time Transport Protocol), MMS (Microsoft Media Server), HLS (http live streaming)

Secure Communication Protocol

By supporting HTTPS* protocol, communication between server and signage is more secure.

*HTTPS: Hypertext Transfer Protocol over Secure Socket Layer

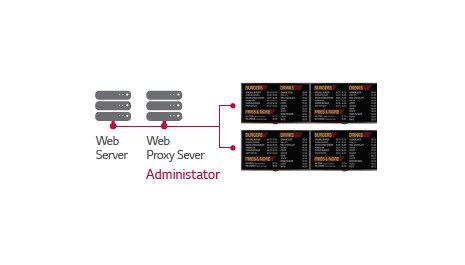

Proxy Server

Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for requests from clients seeking resources from other servers.)

Mirroring

Content sharing is more convenient on a Wi-Fi network.

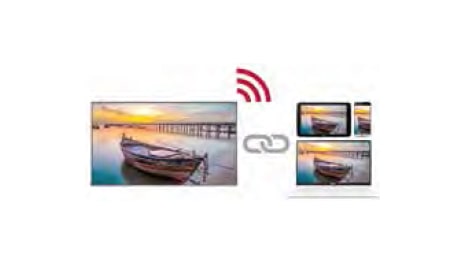

Soft AP

The LS75C with Soft AP software can operate as a wireless access point for mobile devices.

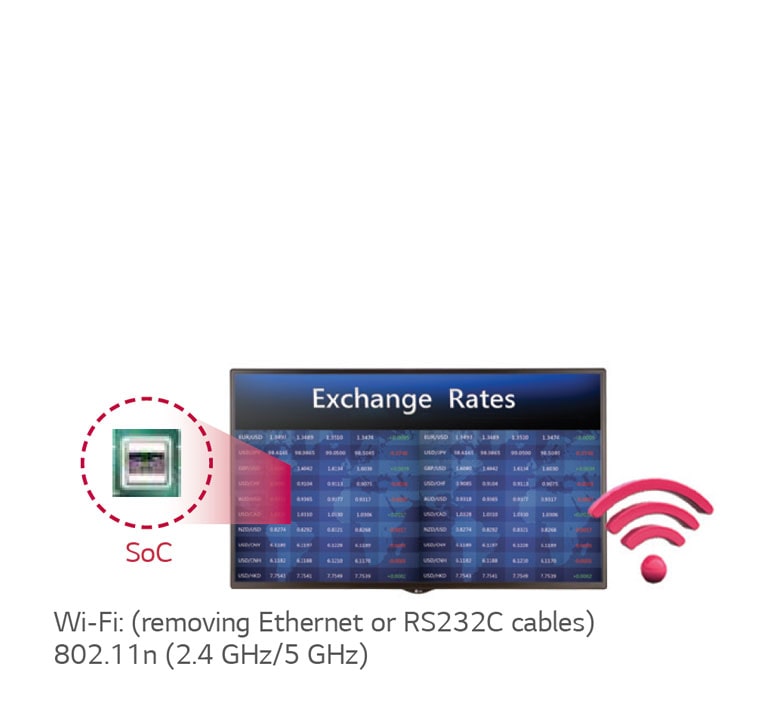

Simple Installation

Installation has been simplified by removing the external media player and Ethernet/RS232C cables.

Wi-Fi (requires external dongle): (removing Ethernet or RS232C cables) 802.11n (2.4 GHz/5 GHz)

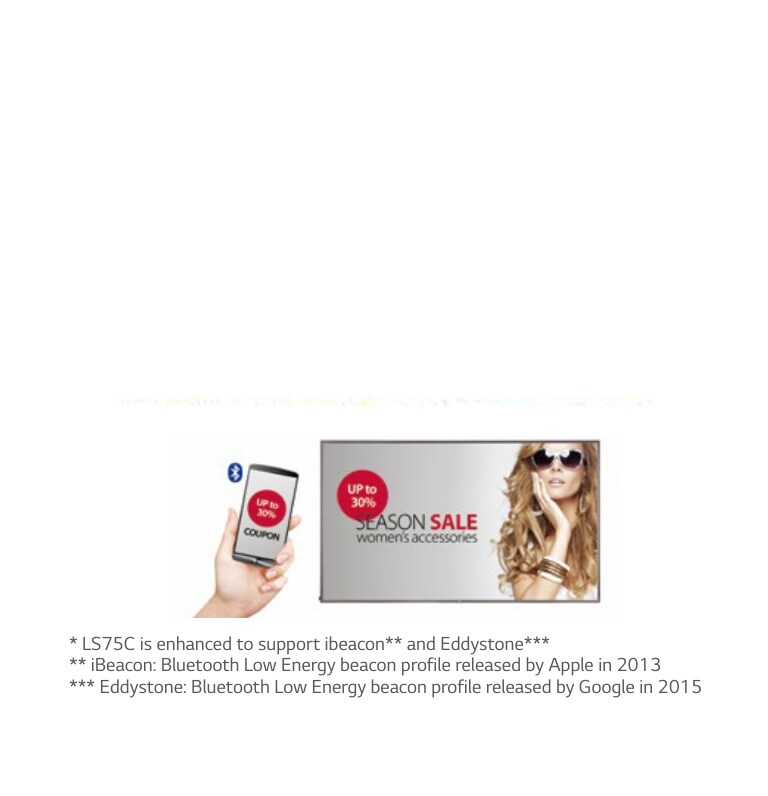

BEACON

With BEACON and Bluetooth Low Energy (BLE) supported by LS75C*, retail stores can update anything in real time. When connected with Wi-Fi dongle, the BEACON is available.

* LS75C is enhanced to support iBeacon** & Eddystone***
** BLE beacon profile released by Apple, 2013
*** BLE beacon profile released by Google, 2015

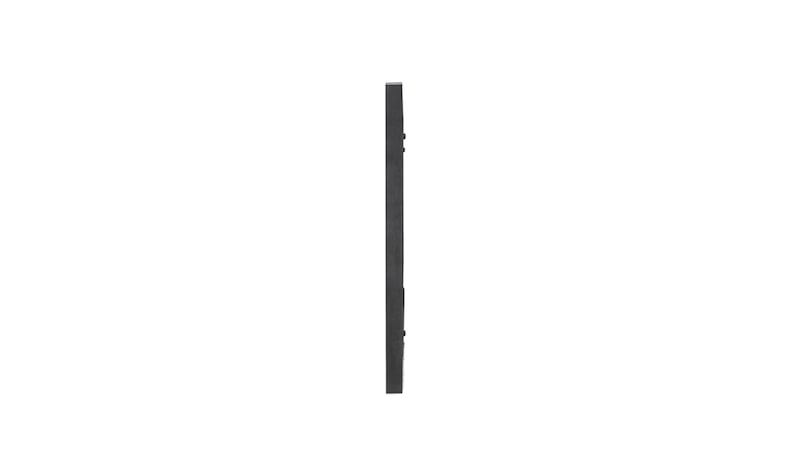

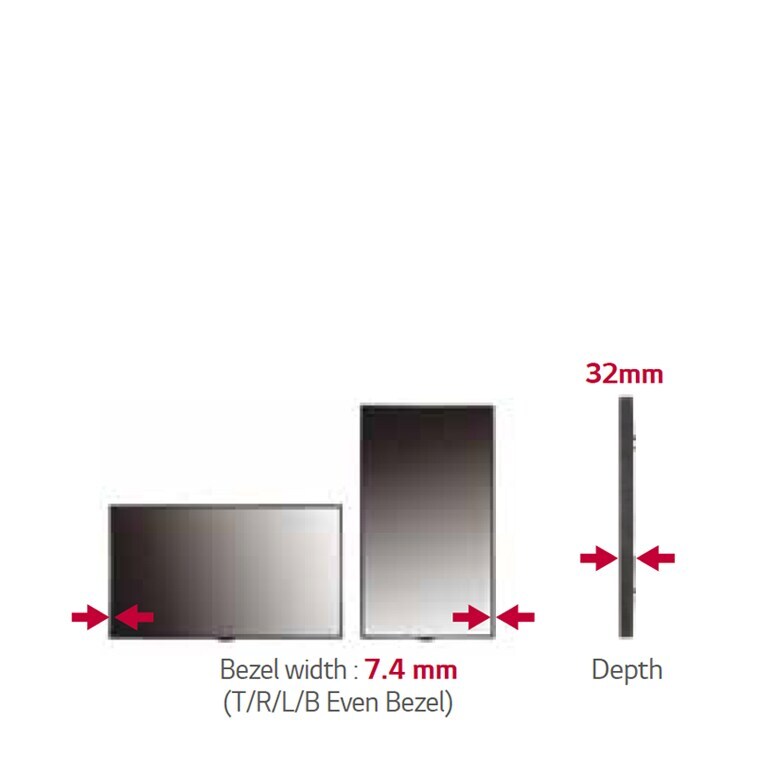

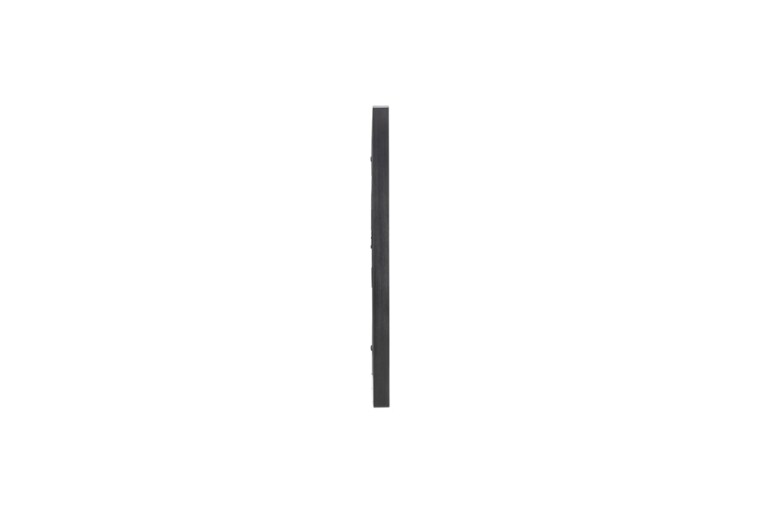

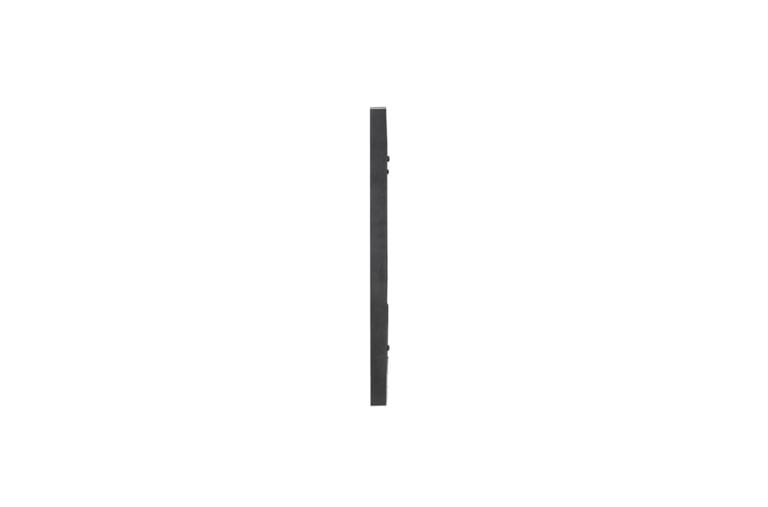

Slimmer Even Bezel & Depth

The thinner bezel & depth allows a perfect fit for a sleek look.

Detachable Logo

Portrait mode allows the logo to be positioned in the desired setting.

IP Streaming Protocol
Proxy Server
Mirroring
Soft AP
Simple Installation

All Spec

PANEL

Screen Size
41.92 inches (1064.67mm) diagonal
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Brightness
700 cd/m2
Contrast Ratio
1,300:1
Viewing Angle (HxV)
178 x 178
Response Time
8ms (G to G BW) typ.
Surface Treatment
Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 10%)
Life time (Typ.)
50,000 Hrs min.
Operation Hours
24 Hrs / 7 Days
Orientation
Portrait & Landscape

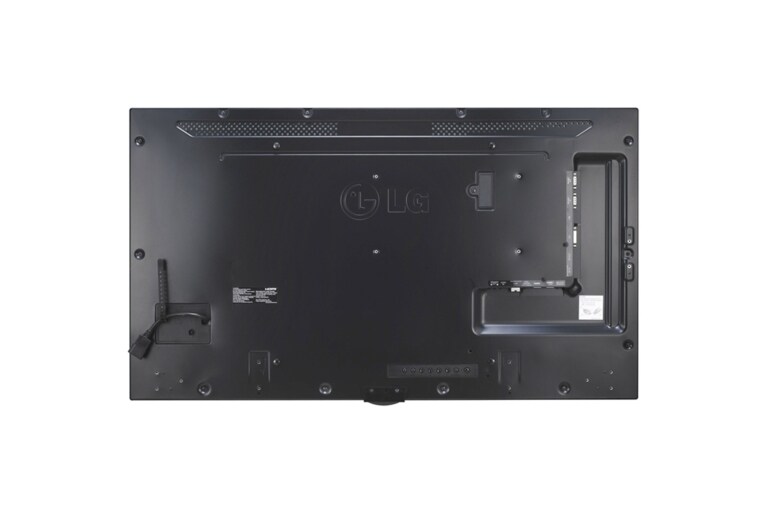

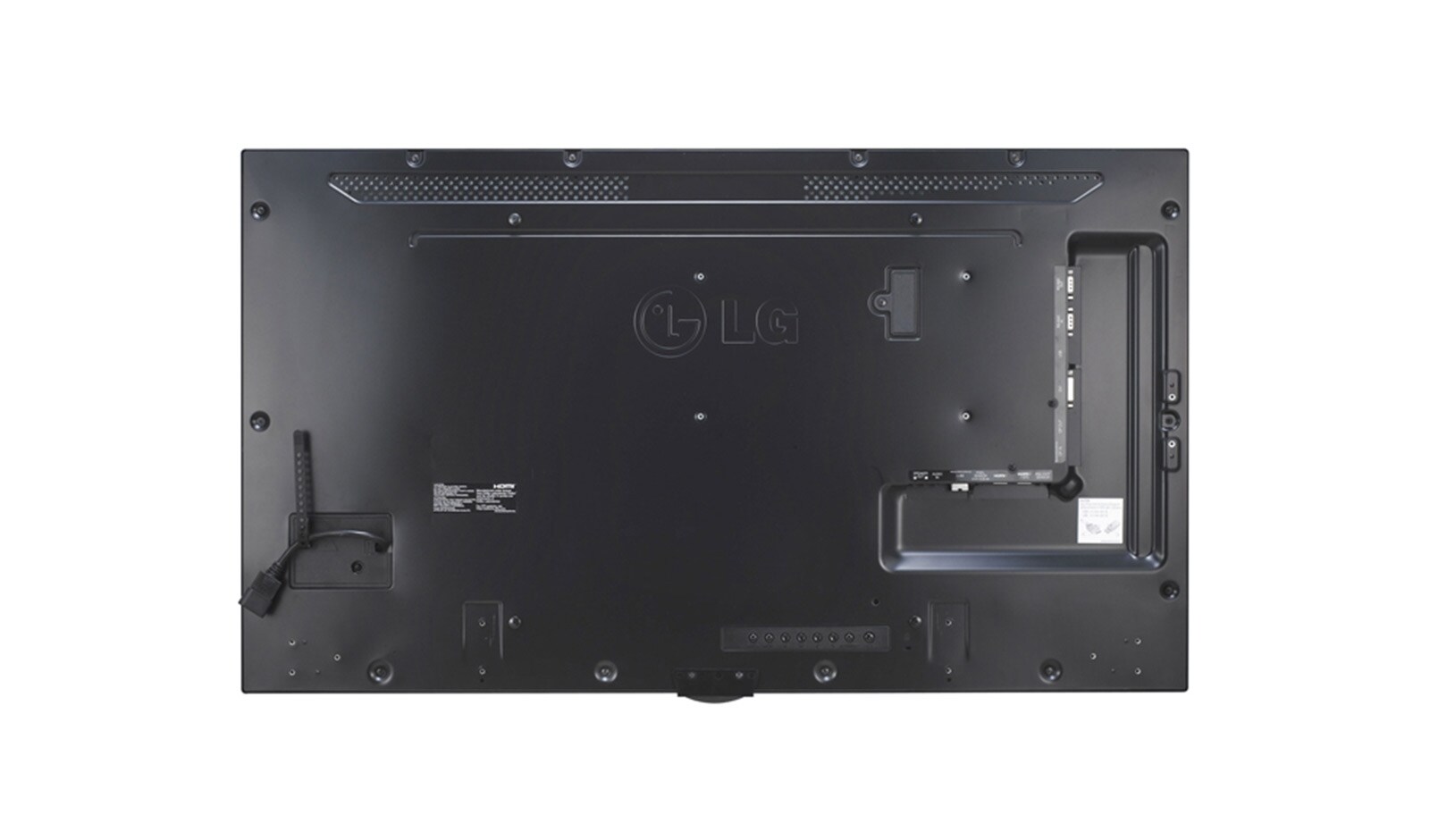

CONNECTIVITY

Input
HDMI (2), DP, DVI-D, Audio in, OPS
External Control
RS232C in/out, RJ45, IR / Light sensor, Pixel sensor, USB 3.0
Output
DP, External Speaker out

POWER

Power Supply
100–240V~, 50/60Hz
Power Type
Built-in Power
Power Consumption Typ.
110 W (TBD)
Power Consumption Smart Energy Saving
80 W (TBD)

PHYSICAL SPECIFICATION

Bezel Color
Black
Bezel Width
7.4 mm (T/L/R/B even)
Monitor Dimension (W x H x D)
949 x 555 x 32 mm
Weight (Head)
12.5kg
Monitor with Optional Stand Dimensions (W x H x D)
949 x 618 x 298 mm
Weight (Head + Stand)
13.9 kg
Carton Dimensions (W x H x D)
1,045 x 645 x 127 mm
Packed Weight
14.8 kg
VESA TM Standard Mount Interface
400 x 400 mm

MEDIA PLAYER COMPATIBILITY

OPS type compatible
Yes
External Media Player Attachable
Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

SuperSign W/Lite
Yes
SuperSign C
Yes

STANDARD(CERTIFICATION)

Safety
UL / cUL / CB / TUV / KC
EMC
FCC Class "A" / CE / KCC
ErP / Energy Star
N/A / N/A

ENVIRONMENTAL CONDITIONS

Operating Temperature
0°C t o 40°C
Operating Humidity
10% t o 80%

SPECIAL FEATURES

Yes
Temperature sensor, Auto brightness sensor, Tile Mode, DPM select, DPM wake up, Energy saving, Smart energy saving, File play with USB, PIP/PBP(2), Internal memory 16GB (System 4GB + Available 12GB), Wi-Fi dongle ready (802.11n) , USB cloning, Fail over

ACCESSORIES

Basic
Remote controller (2ea batteries included), Power cord, IR/Light sensor receiver, QSG, Regular book (depend on regional standard), HDMI cable
Optional
SP-2100 (External speaker), ST-200T, AN-WF500 (Wi-Fi USB dongle), KT-OPSA (OPS kits), KT-SP0 (Pixel sensor)
