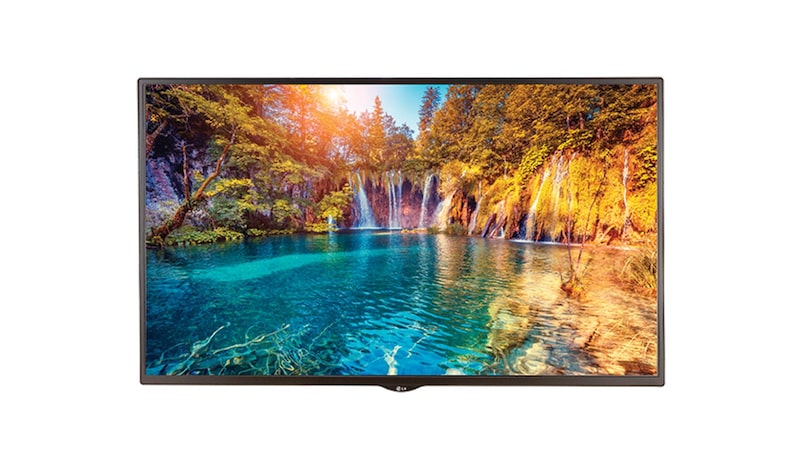

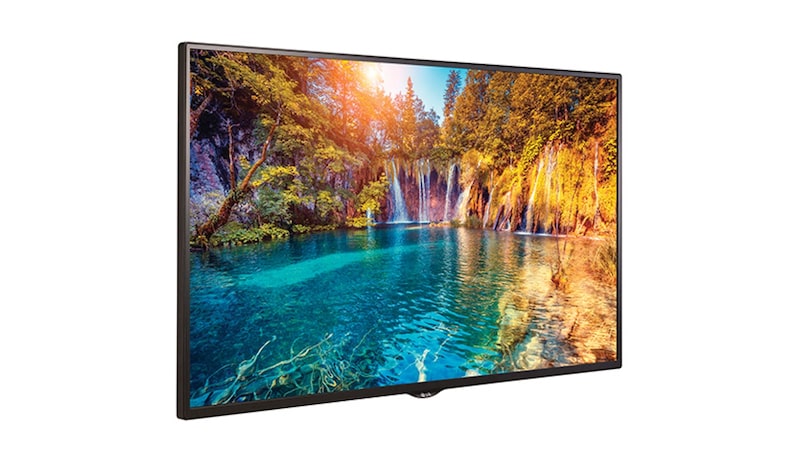

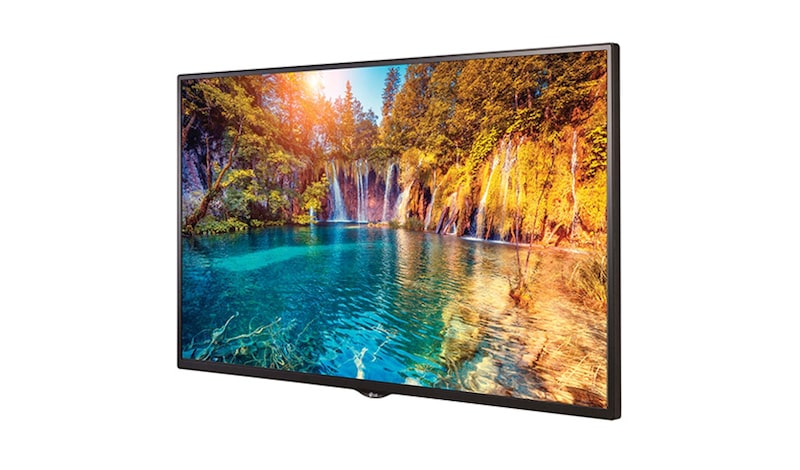

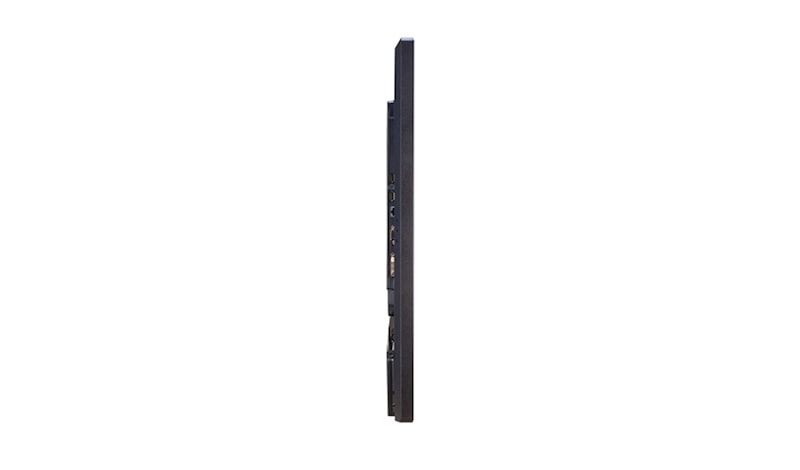

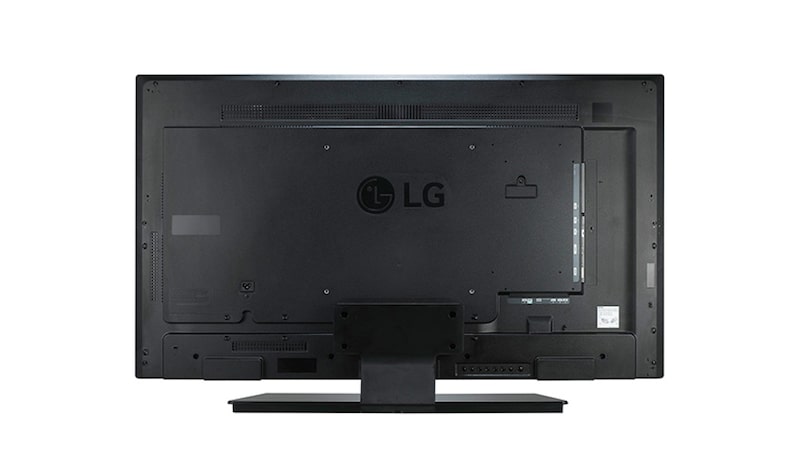

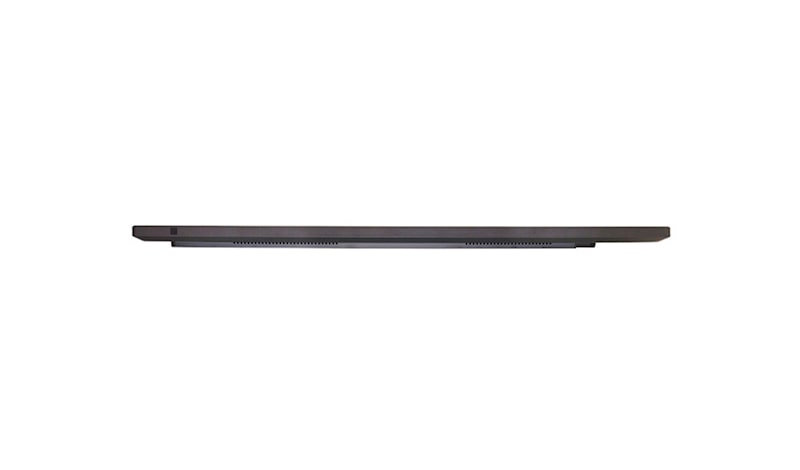

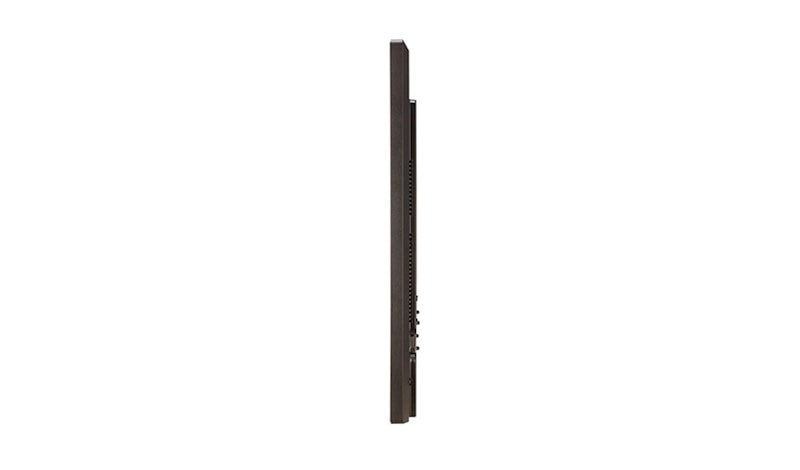

49" class (48.5" diagonal) Edge-Lit LED IPS Digital Signage Display

49SE3KB-B

Key Features

BUILT-IN SPEAKERS
CONFORMAL COATING
NETWORK MANAGEMENT PROTOCOL
CONNECT UP TO 50 MONITORS WIRELESSLY AND/OR WIRED

LG SuperSign™

Run messages on up to 50 display screens in the form of a billboard without any additional hardware. Advertisements, information and broadcast content can be arranged on the same screen to attract attention and deliver specific messaging to your customer base.

CONFORMAL COATING

Conformal coating helps protect against water, dust and iron powder deposits which accumulate in harsh environments, saving on expensive installation and added enclosure costs.

USB CONTENT SCHEDULING

Play and schedule content using the USB connection without the need to connect to a server.

DETACHABLE LOGO

The detachable logo can be removed and repositioned to the desired setting. Perfect when using in Portrait Mode.

WI-FI SUPPORT

Play and schedule content using the USB connection without the need to connect to a server.

NETWORK MANAGEMENT PROTOCOL

Simple Network Management Protocol support ensures convenient network management. It enables monitoring of TV's on the network by the head-end or a cloud server for maintenance and admin purposes. It provides the ability to deliver remote software updates from the head-end server and quick boot-up of embedded applications.

ASPECT RATIO SUSTAINABILITY*

Sustain the same resolution and picture quality while powering on/off by receiving Extended Display Identification Data through the IC switch. * Installation Menu > LG Digital Signage > PM Mode

STAND-BY SCREEN*

Even with the monitor powered off and no signal from the media player, the monitor will still stay accessible remotely via Stand-By Screen mode. * Installation Menu > LG Digital Signage > PM Mode

SCHEDULED SCREEN WASH

Prevent residual images with the screen transition feature.

ENERGY STAR® Qualified

Earning the ENERGY STAR® means a product meets strict energy efficiency guidelines set by the US Environmental Protection Agency and the Department of Energy. ENERGY STAR® certified televisions are on average, over 24 percent more energy efficient than conventional models, saving energy in all usage modes: sleep, idle and on.

EXTENDED CARE

Extend the protection on your LG products for up to three years with LG Premium Care.

BUILT-IN SPEAKERS
CONFORMAL COATING
NETWORK MANAGEMENT PROTOCOL
CONNECT UP TO 50 MONITORS WIRELESSLY AND/OR WIRED

All Spec

PANEL

Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
1920 x 1080 (FHD)
Brightness
350 cd/m^2
Contrast Ratio
1,300:1
Dynamic CR
500,000:1
Viewing Angle (H x V)
178 x 178
Surface Treatment
Hard coating (3H), Anti-glare treatment of the front polarizer, Haze 1% (Typ)
Orientation
Portrait & Landscape
Panel Size
49" class (48.50" diagonal)
Pixels (H x V x 3)
6,220,800
Response Time
12ms(GtoGBW)
Color Depth
1.06 Billion
Life time (Typ.)
30,000 Hrs (Min)
Recommended Use
18hrs /7 days
Color Gamut
68%

ENVIRONMENT CONDITIONS

Operation Temperature
32°F - 104°F
Operation Humidity
10 % to 80 %

POWER

Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
DPM
0.7W
Power off
0.5W
Power Consumption-Typ
100W

AUDIO

Balance
Yes
Audio Power
20W (10W x 2) for External Speaker
Sound mode
Standard, News, Music, Cinema, Sport, Game
Clear Voice II
Yes
Virtual Surround
Yes
Equalizer
Yes

SPECIAL FEATURES

DST Daylight Saving Time
Yes
Temp Sensor
Yes
Screen Off Schedule
Yes
Time sync Clock
Yes
PM mode
Yes
Holiday schedule
Yes
Firmware Update (LAN)
Yes
Local Auto Time
Yes
Overlay touch
Yes
Still Image Diagnosis
Yes
HDMI-CEC
Yes
Limited mode
Input source change, Menu Display, OSD Display
Power on Default
Input source, A/V Setting, Aspect Ratio
Wake on LAN
Yes
Digital Audio input
Yes
Power on Delay
0 ~ 255
Pivot Mode
Yes
OSD Portrait Mode
0, 90, 270
Intelligent Auto
Yes
Password Change
Yes
Set ID Setup
Manual, Auto
Configuration Setup
Splash Upset Time, USB auto Playback, Screen Saver Cube
Lock Mode
USB
Fail over
USB, RGB, DVI, HDMI
SuperSign Server Setup
Player name, Server IP setting, Server IP Status
No Signal image (Up to 5MB)
Yes
External Media Player Attachable
Yes (MP500/MP700)
SuperSign-w lite
Yes
SuperSign-c
Yes
Language
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Portugues(Europe), Dutch, Czech, Greek
Tile Mode
Yes (Up to 15x15)
Natural Mode @ Tile Mode
Yes
Auto Config/
Yes
Source Selection
RGB, HDMI, DVI, USB1, USB2
Brightness / Contrast / Backlight
Yes
Position / Size
Yes
Advanced
Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma
DPM wake up
Yes
Time
Clock, On/Off Time, Sleep Timer, Power on Delay, Auto Off, Automatic Standby
Calibration mode
Yes
Input Label
Yes (PC / DTV)
USB Cloning
Logo image download, EzDownload, Sent to USB, Receive from USB
Easy brightness control
Yes
Content scheduling
USB
Power on Status
Standard, PWR, LST
ISM Method
Normal, White Wash, Color Wash, Orbiter, inversion, Washing Bar, User image
Wi-Fi
Dongle Ready
Energy Saving
Yes(Minimum, Medium, Maxium, Screen off)
DPM Select
Yes

ACCESSORIES

Optional Dongle
AN-WF500
Speaker
SP-5000
Stand
ST-492T
Basic
Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
