49" Class (48.50" measured diagonally) Open-Frame XF3C Series

Share This Content.

You Can Share The Items You Like With Your Friends

49" Class (48.50" measured diagonally) Open-Frame XF3C Series

49XF3C-B
(3)

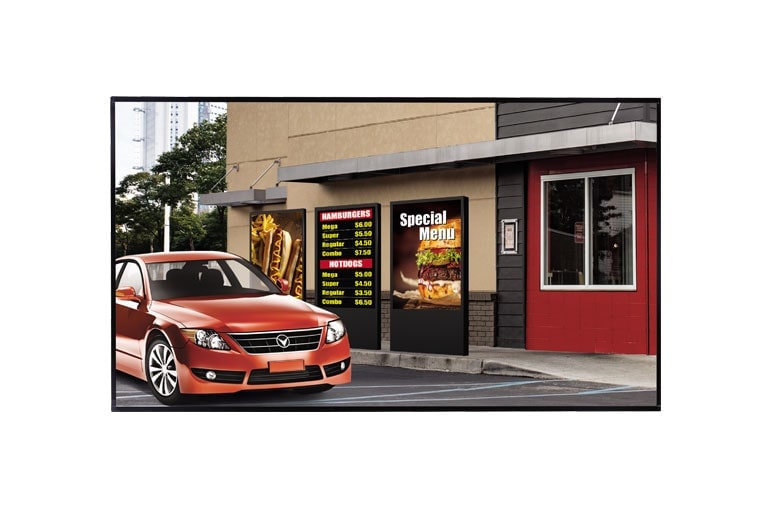

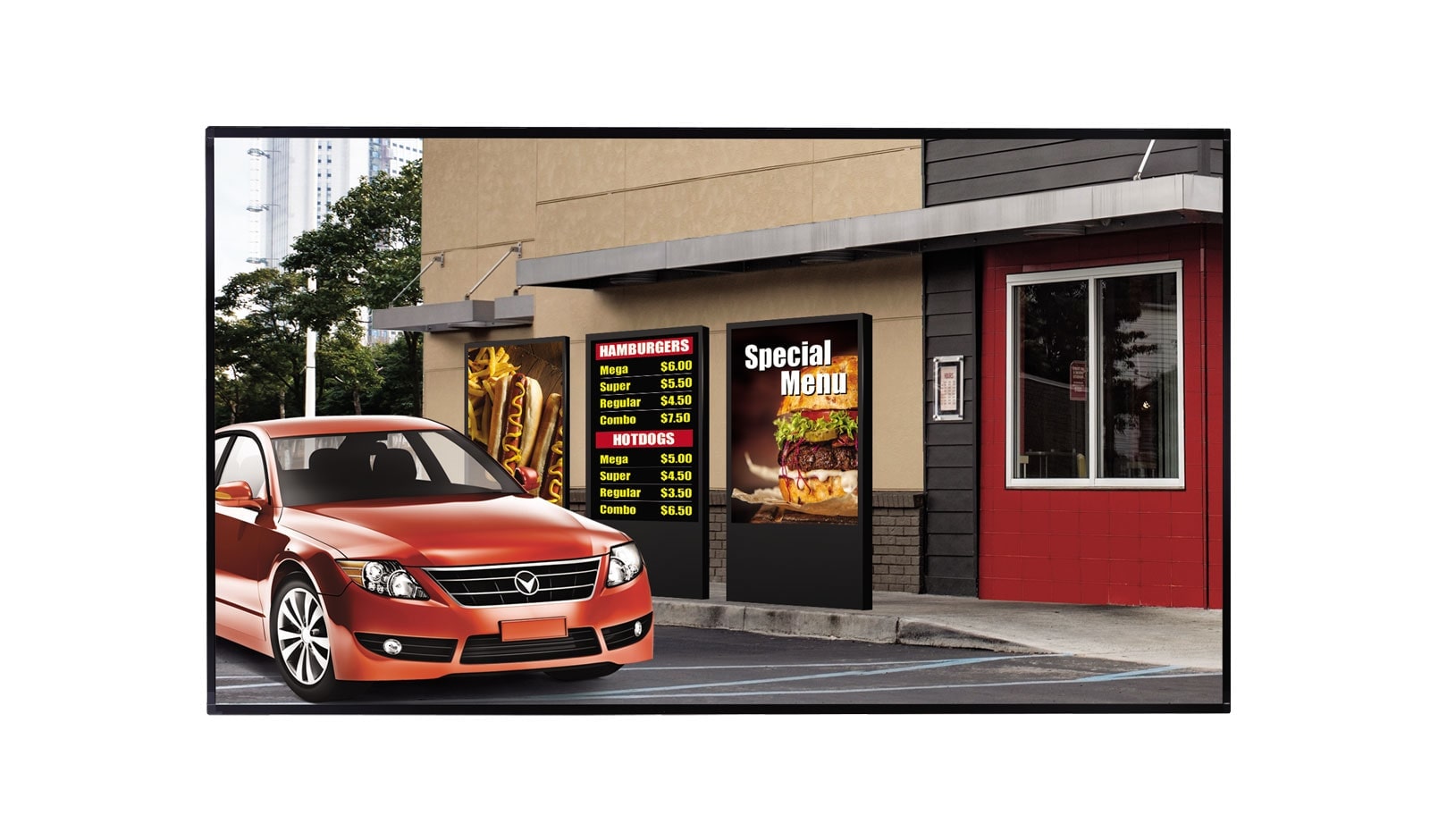

  • Front view of 49" Class (48.50" measured diagonally) Open-Frame XF3C Series 49XF3C-B

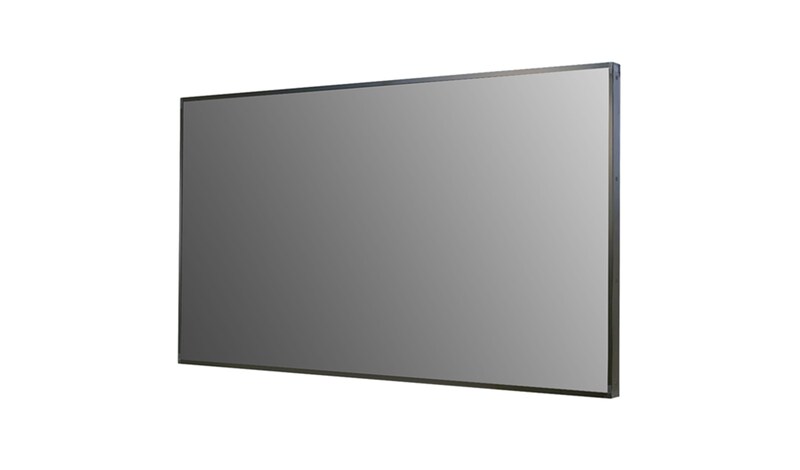

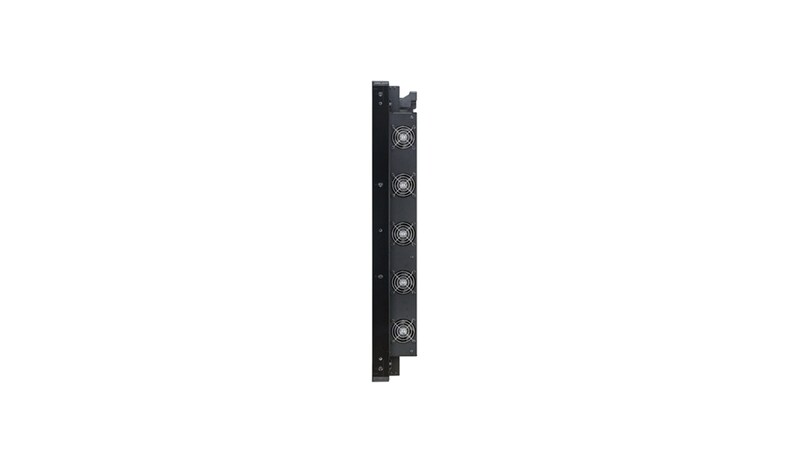

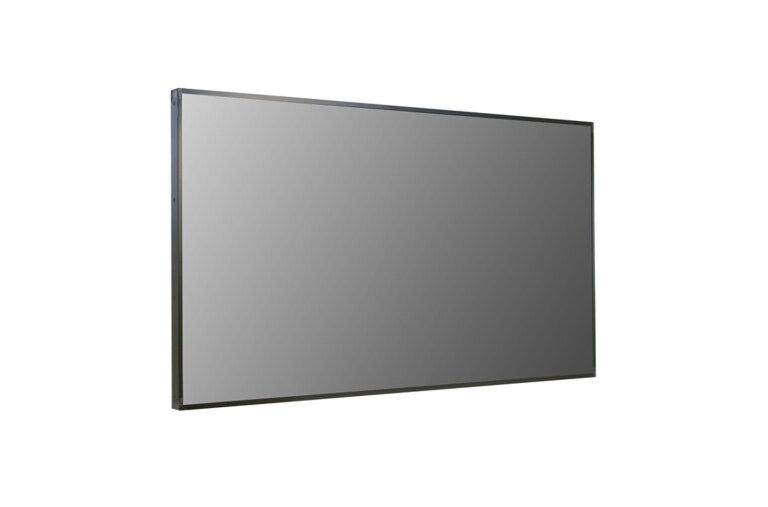

  • LG 49" Class (48.50" measured diagonally) Open-Frame XF3C Series, 49XF3C-B
  • LG 49" Class (48.50" measured diagonally) Open-Frame XF3C Series, 49XF3C-B
  • LG 49" Class (48.50" measured diagonally) Open-Frame XF3C Series, 49XF3C-B
  • LG 49" Class (48.50" measured diagonally) Open-Frame XF3C Series, 49XF3C-B
  • LG 49" Class (48.50" measured diagonally) Open-Frame XF3C Series, 49XF3C-B
  • LG 49" Class (48.50" measured diagonally) Open-Frame XF3C Series, 49XF3C-B

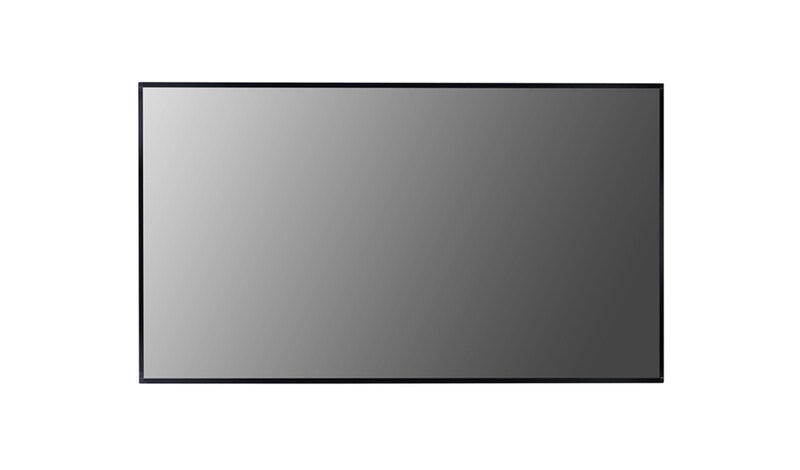

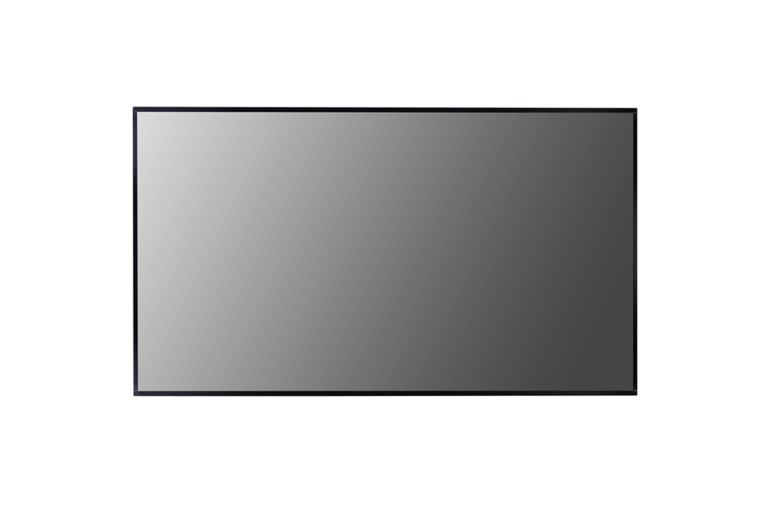

Front view of 49" Class (48.50" measured diagonally) Open-Frame XF3C Series 49XF3C-B

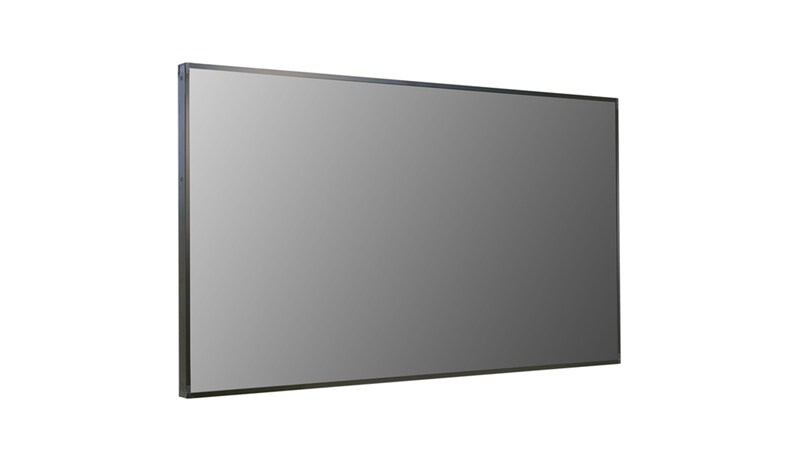

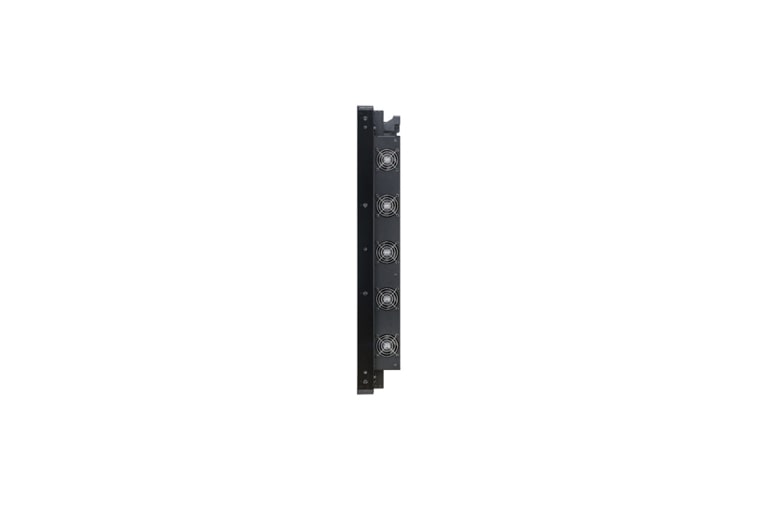

LG 49" Class (48.50" measured diagonally) Open-Frame XF3C Series, 49XF3C-B
LG 49" Class (48.50" measured diagonally) Open-Frame XF3C Series, 49XF3C-B
LG 49" Class (48.50" measured diagonally) Open-Frame XF3C Series, 49XF3C-B
LG 49" Class (48.50" measured diagonally) Open-Frame XF3C Series, 49XF3C-B
LG 49" Class (48.50" measured diagonally) Open-Frame XF3C Series, 49XF3C-B
LG 49" Class (48.50" measured diagonally) Open-Frame XF3C Series, 49XF3C-B

Key Features

  • Real-Time Remote Monitoring
  • Saving System Log Files
  • Smart Brightness Control
  • Slimmer Depth
More

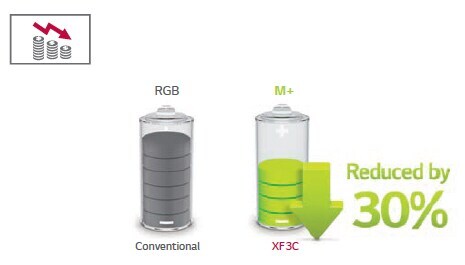

Low Power Consumption Using The M+ Panel<br>1

Low Power Consumption Using The M Panel

The M panel offers excellent energy efficiency and cost savings and decreases power consumption by 30 compared to conventional RGB panels.
Smart Brightness Control<br>1

Smart Brightness Control

The auto-brightness sensor and preset time scheduler save power whenever possible.
Slimmer Depth<br>1

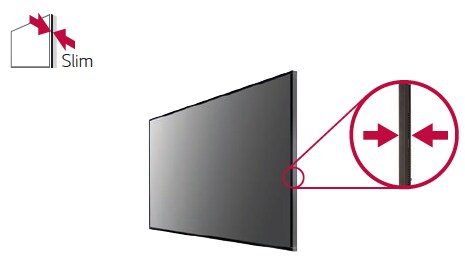

Slimmer Depth

The slimmer depth saves space for installation and makes the enclosure design slimmer.

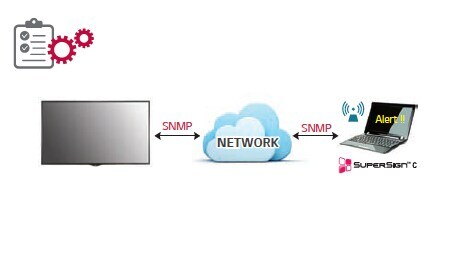

Real-Time Remote Monitoring

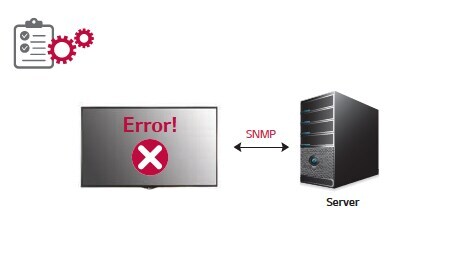

Real-Time Remote Monitoring

When an alarm occurs, an email notification is sent through the SNMP using the SuperSign C or SI software. In case a malfunction or error occurs, real-time remote care is available.
Saving System Log Files<br>1

Saving System Log Files

The XF3C supports log file back-up for fault clarification when the display fails. This allows you to conveniently check when an error has occurred.

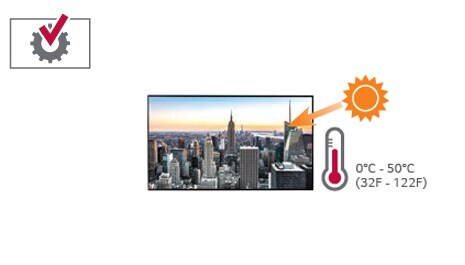

High Operating Temperature<br>1

High Operating Temperature

Its high reliability under high operating temperatures reduces the material costs of the enclosure.

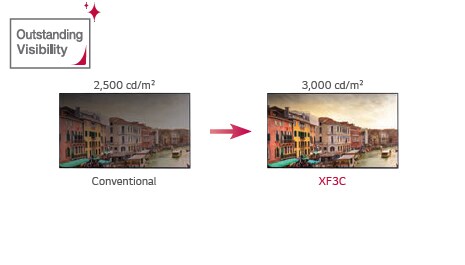

Increased Brightness<br>1

Increased Brightness

The brightness has been increased to 3,000 cd/m2 compared to previous models, making the XF3C the ultimate screen for outdoor visibility.
Wide Viewing Angle<br>1

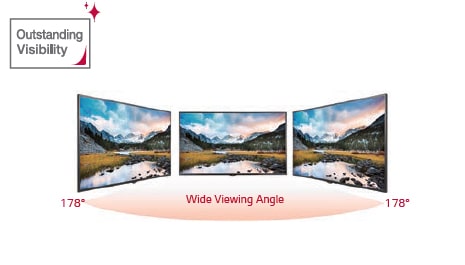

Wide Viewing Angle

IPS technology provides better control of the liquid crystals which allows the screen to be viewed from virtually any angle.

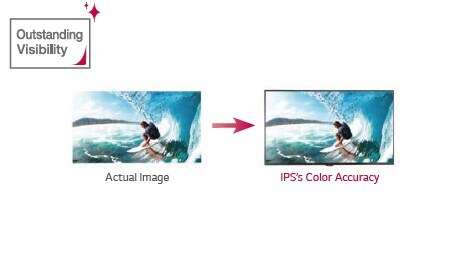

Color Accuracy<br>1

Color Accuracy

IPS technology displays accurate color for each pixel closest to the original image and reproduces the original color without distortion.

Key Feature

  • Real-Time Remote Monitoring
  • Saving System Log Files
  • Smart Brightness Control
  • Slimmer Depth
Print

All Spec

PANEL

  • Screen Size

    49" Class (48.50" measured diagonally)

  • Panel Technology

    M+ (WRGB)

  • Aspect Ratio

    16 : 9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness

    2,400 cd/m2 (Min), 3,000 cd/m2 (Typ)

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    500,000 : 1

  • Viewing Angle (HxV)

    178 x 178

  • Surface Treatment

    Hard Coating(2H), Anti-Glare Treatment of the Front Polarizer
    (Reflectance < 2%)

  • Life Time

    50,000 Hours

  • Orientation

    Portrait & Landscape

CONNECTIVITY

  • Input

    HDMI(2), DP, DVI-D, Audio, USB, IR Receiver, Pixel Sensor

  • Output

    DP, External Speaker Out (L/R)

  • External Control

    RS232C (In/Out), RJ45

PHYSICAL SPECIFICATION

  • Bezel Width

    6.5 mm (L/R), 9 mm (T/B)

  • Monitor Dimension (W x H x D)

    1,092.7 x 626.4 x 105 mm

  • Weight (Head)

    22 kg

  • Carton Dimensions (W x H x D)

    1,195 x 196 x 760 mm

  • Packed Weight

    26.7 kg

  • VESA TM Standard Mount Interface

    600 x 400mm

SPECIAL FEATURES

  • Yes

    Temperature Sensor, Auto Brightness Sensor, Easy Brightness Control, Cooling Fan, Tilt Mode (up to 15 x 15), Local Dimming (160 Block), Fail over, System Log File Save, Smart Energy Saving, Internal Memory

ENVIRONMENTAL CONDITIONS

  • Operating Temperature Range

    0°C to 50°C (w/o Direct Sunlight) 0°C to 40°C (Direct Sunlight)

  • Operating Humidity Range

    10% to 80%

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

  • Power Consumption Typ./Max

    190W / 250W

  • Power Consumption Smart Energy Saving

    85W

STANDARD(CERTIFICATION)

  • Safety

    RU / CB scheme

  • EMC

    FCC Class "A" / CE / KCC

SOFTWARE COMPATIILITY

  • webOS

    webOS 1.0

  • SuperSign W/Lite

    Yes

  • SuperSign C

    Yes

ACCESSORIES

  • Accessories

    Remote Controller (2 batteries included), Power Cord, IR extension cable/PCB, HDMI Cable, Manual, IR BRKT (Only in 75")

  • Optional Accessories

    KT-SP0, AN-WF500 *Stand is not available

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
